Nơi xuất xứ: Henan, ChinaNhãn hiệu: BEDO
Điều kiện: MớiVideo Gọi Đi-Kiểm Tra: Cung Cấp
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpTiếp Thị Loại: Sản phẩm mới 2024
Bảo Hành Của Core Thành Phần: 6 ThángCore Thành Phần: PLC, Động Cơ, Động Cơ
Điện áp: 380V, 50Hz, 3 pha hoặc tùy chỉnh, 220V/380V/415V/600V hoặc tùy chỉnhCông suất (HP): 45*2
Kích thước (L * W * H): 4300*2200*2150m mBảo hành: 1 Năm
Key Điểm Bán Hàng: Dễ dàng để Hoạt ĐộngÁp dụng Các Ngành Công Nghiệp: Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Thực phẩm và Đồ Uống Nhà Máy, Các trang trại, Xây dựng làm việc, Năng lượng & Khai Thác Mỏ, Khác
Phòng Trưng Bày Trí: Canada, Thổ Nhĩ Kỳ, Đức, Việt Nam, Ả Rập Saudi, Pakistan, Romania, Nhật BảnTrọng lượng (KG): 1200
Tên: 10 tấn/h đôi trục Shredder máy kim loại xe sắt thép ShredderSử dụng: Gỗ tái chế/Kim loại/cao su/Nhựa/bìa cứng
Nguồn điện chính: 7.5 * 2kwMàu sắc: Tùy chỉnh
Chứng nhận: CEGói: Hộp gỗ
10 Ton/H Heavy Double Shaft Shredder Machine Metal Car Iron Steel Chipper Shredder Plastic Crushing Machines
Product Description
Double shaft Shredder machine is suitable for waste recycling requirements of various industries, such as: electronic waste, plastic, metal, wood, waste rubber, packaging barrels, pallet and so on. There are many kinds of recycled materials, which can be directly recycled or further refined according to requirements. The series of biaxial shredding machine has low speed, large torque, low noise and other characteristics, using computer PLC programming control system, can automatically control the equipment start and stop, reverse and overload automatic reverse control function.
Specification
The series of double shaft shredding machine has low speed, large torque, low noise and other characteristics, using computer PLC programming control system, can automatically control the equipment start and stop, reverse and overload automatic reverse control function.
Model | Power(kw) | Capaticy(t) | Cutter Diameter(mm) | Size(mm) |
BD-SZ400 | 7.5*2 | 1.5-1 | 130 | 1750*900*1420 |
BD-SZ500 | 11*2 | 2-3 | 216 | 1850*1150*1650 |
BD-SZ600 | 15*2 | 3-4 | 216 | 1950*1150*1650 |
BD-SZ800 | 22*2 | 4-5 | 316 | 3250*1720*1750 |
BD-SZ1000 | 30*2 | 6-10 | 316 | 3530*1720*1950 |
BD-SZ1200 | 37*2 | 10-18 | 400 | 3750*2100*2120 |
BD-SZ1400 | 45*2 | 10-18 | 4500 | 4300*2200*2150 |
BD-SZ1500 | 55*2 | 14-22 | 500 | 4550*2200*2150 |

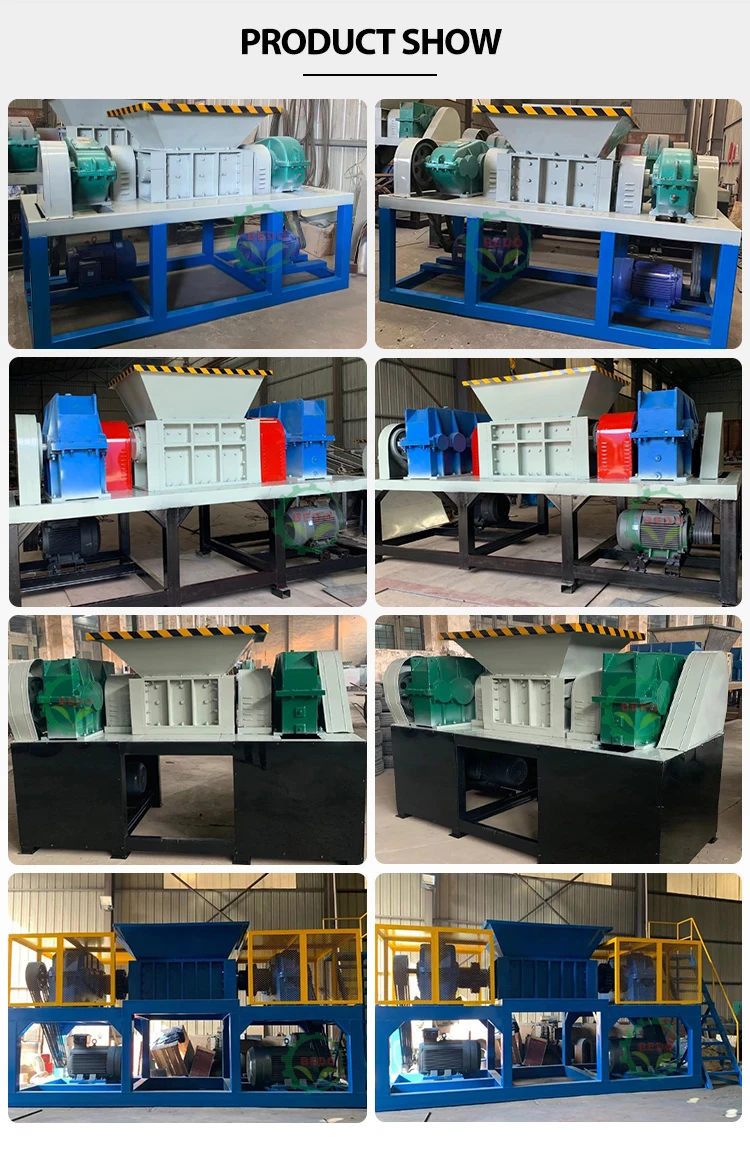

Detailed images
Advantages
Shredding machine product Advantages:

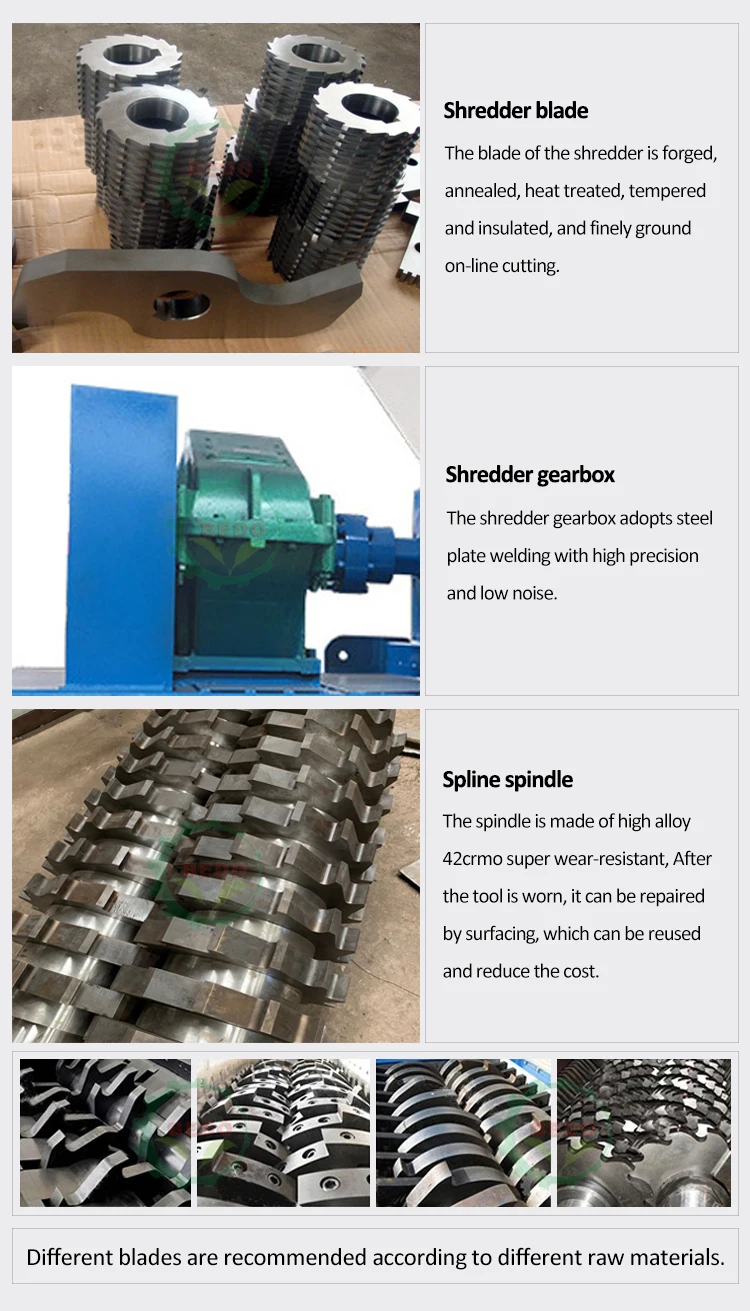

1.The blade holder and blade on the rotor can be removed, easy to clean, maintenance, maintenance.
2.Each moving knife has 4 cutting edges, after wear can rotate 90 continue to use.
3.The main shaft is driven by the gear reduction box, running smoothly, low noise, large torque.
4.Adopting PLC program control system, can automatically reverse, make the machine run stably.
5.The box body adopts welding, after welding tempering treatment, eliminate welding stress.
6.The installation position of the moving knife is precisely machined by the machining center to ensure that the clearance between each moving knife and the fixed knife is the same.
7.The moving knife holder is connected to the knife shaft with high strength screws in an embedded way, which can prevent the phenomenon of falling knife caused by welding type after long-term vibration.
8.Convenient transportation after tearing, can reduce transportation cost, increase transportation efficiency, convenient secondary processing.
Detachable box:Shredding machine box can be removed by the coupling at both ends, by removing the mounting plate at both ends of the bearing, the spindle will be removed as a whole, the spindle can be on the tool body, bearing installation concentricity, prolong the service life of the bearing and deceleration.
Reducer:The hard gear surface is made of high quality alloy steel, the surface is finely processed by carburizing and quenching heat treatment, with smooth transmission, low noise and large bearing capacity.
40 cr spindle:The spindle adopts 40Cr quenching and quenching fire to enhance the resistance of the shaft. The six-way structure is adopted to increase the bite effect of the coupling, reduce the energy loss and maximize the tearing capacity of the tool.
Intelligent control cabinet:Through PLC programming system to achieve remote control, centralized management. You don't need to be on site every day to carry out remote operation, greatly saving manpower.
Raw Material and Final Product

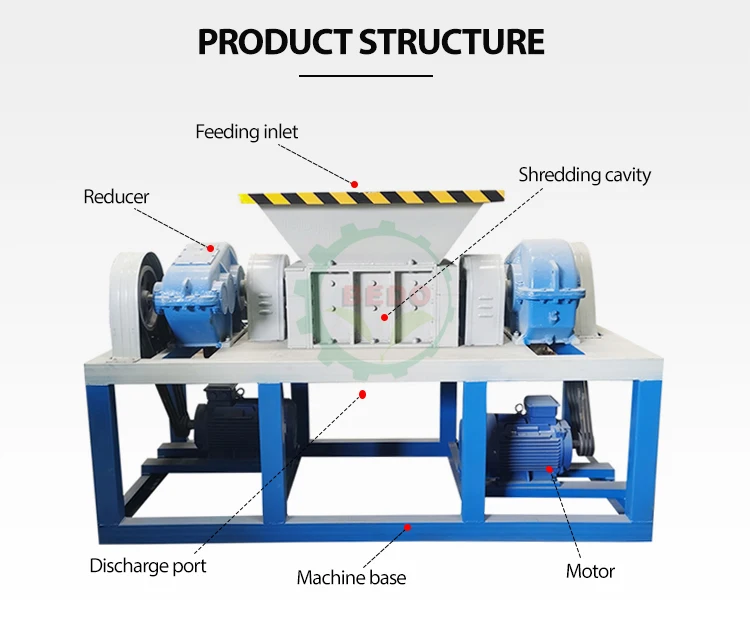

Shredding machine working principle:
Shredding machine adopts reducer motor direct worm gear, directly installed in the shredder drive shaft, through the size of gear speed to the drive shaft, so that the main drive shaft spiral tooth knife disc formed relative movement. The spiral tooth knife plate on the main drive shaft is staggered, so that after the material enters, it is squeezed, torn and cut at the same time, so that the material is broken.
Shredding machine generally can be used for shredding more difficult to break plastic, rubber, large tires, large nylon material, plastic head material, car bumper, large fishing net, large pipe, fiber, paper, wood, electrical parts, cables, PET bottles, cardboard, circuit boards, wood, plastic buckets and other solid objects. Shredding machine is also called scrap metal shredding machine, double shaft shredding machine, wood shredding machine, tire shredding machine, plastic shredding machine, pipe shredding machine,garbage shredding machine, circuit board shredding machine, rubber shredding machine, aluminum shredding machine, etc. The main function of the equipment is to crush large material and inconvenient to transport large diameter round barrel metal material through the shredding machine shear extrusion, shredding to meet the requirements of the sheet material.
Packing & Delivery
1. Packing: Single machine packed in standard wooden case.Shipping mark on the wooden case.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
