1325 1530 Heavy-Duty CNC Plasma Bảng Máy Cắt

639

Đã bán

131.911.000đ

121.764.000đ ~ 131.911.000đ

1325 1530 Heavy-Duty CNC Plasma Bảng Máy Cắt

639

Đã bán

131.911.000đ

121.764.000đ ~ 131.911.000đ

Thông tin

Kích thước: 1500*3000mmLoại động cơ: Servo Motor

Điều kiện: MớiNơi xuất xứ: Shandong, China

Nhãn hiệu: JIAXINSố Mô Hình: JX-T1530

Điện áp: 220VCông suất: 2KW

Kích thước (L * W * H): 4250**2200*1300mmTrọng lượng (KG): 2100

Năm: 2020Bảo hành: 2 Năm

Key Điểm Bán Hàng: Dài Dịch Vụ Cuộc SốngÁp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Xây dựng làm việc, Công Ty quảng cáo

Phòng Trưng Bày Trí: Không cóTiếp Thị Loại: Sản Phẩm Mới 2020

Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp

Bảo Hành Của Core Thành Phần: 2 NămCore Thành Phần: Động Cơ, Hộp Số, PLC

Product name: CNC Plasma Table Cutting MachineCutting thickness: As per plasma power source

Cutting speed: 0-2000mm/minWorking area: 1500*3000mm

Control system: Shanghai Fangling F2300ADrive mode: Bilateral drive

Drive motor: Leadshine Servo motors with drivenTHC: Fangling automatic arc voltage THC F1628

Nesting software: FASTCAM softwareInput power: AC380V/50HzAC220V/50Hz

Dịch vụ sau bán hàng cung cấp: Video Hỗ Trợ Kỹ Thuật, Lĩnh Vực Bảo Trì Và Dịch Vụ Sửa Chữa, Hỗ Trợ Trực Tuyến, Miễn Phí Các Bộ Phận Dự Phòng, Lĩnh vực cài đặt, vận hành và đào tạoSau Khi Dịch Vụ Bảo Hành: Video Hỗ Trợ Kỹ Thuật, Hỗ Trợ Trực Tuyến, Các Bộ Phận Dự Phòng, Lĩnh Vực Bảo Trì Và Dịch Vụ Sửa Chữa

Địa Phương Phục Vụ Vị Trí: Không cóChứng nhận: CE ISO

Product Description

Detailed Images

Leadshine 400W servo motors

More precision and quicker speed.

Transverse mobile and Lifting Station

Lifting motor for height control to make sure cutting height up and down quickly and steady.

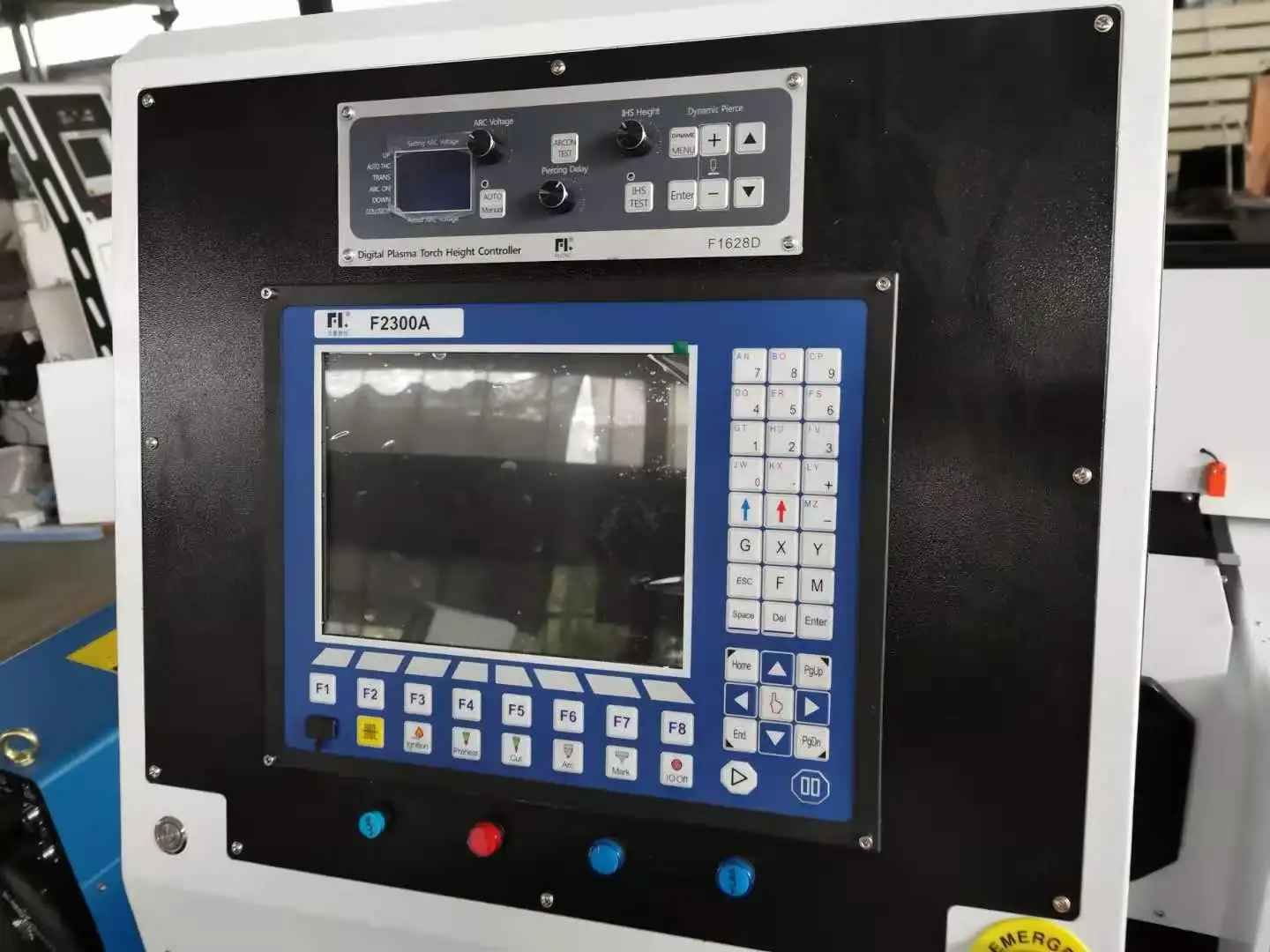

Shanghai Fangling F2300A controller

1.512M RAM, At least 80GB Hard Disk
2.Air-conditioner for CNC&electrical components 3.USB & RJ45 Interfaces for loading in cutting files. 4.EMI for Servo Driver System 5.CNC functions

FastCam Nesting software

FastCAM Support:

Windows98/2000/NT/XP FastCAM

Multi-languages:

Chinese/English/German/Spanish/Polish/Korea/Czech/Russian etc.

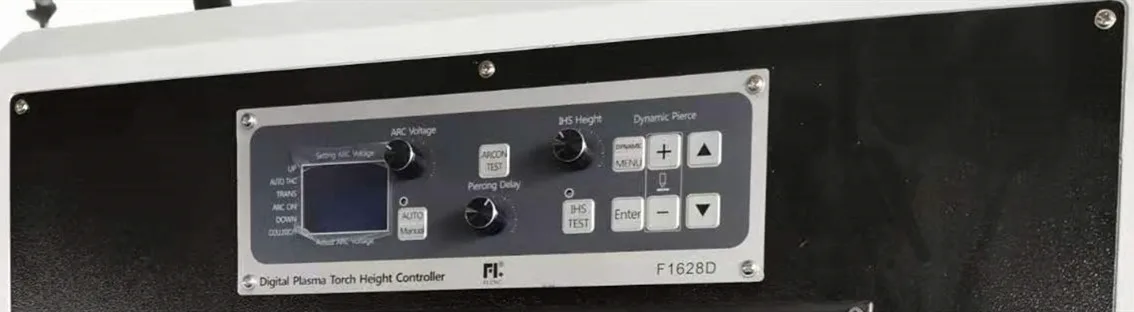

Fangling F1628 THC

Bus interface, support communication with the system, realize more customized functions

DC 24V input, drive 24V DC motor, accuracy <1V, dual-speed positioning, maximum power 100W

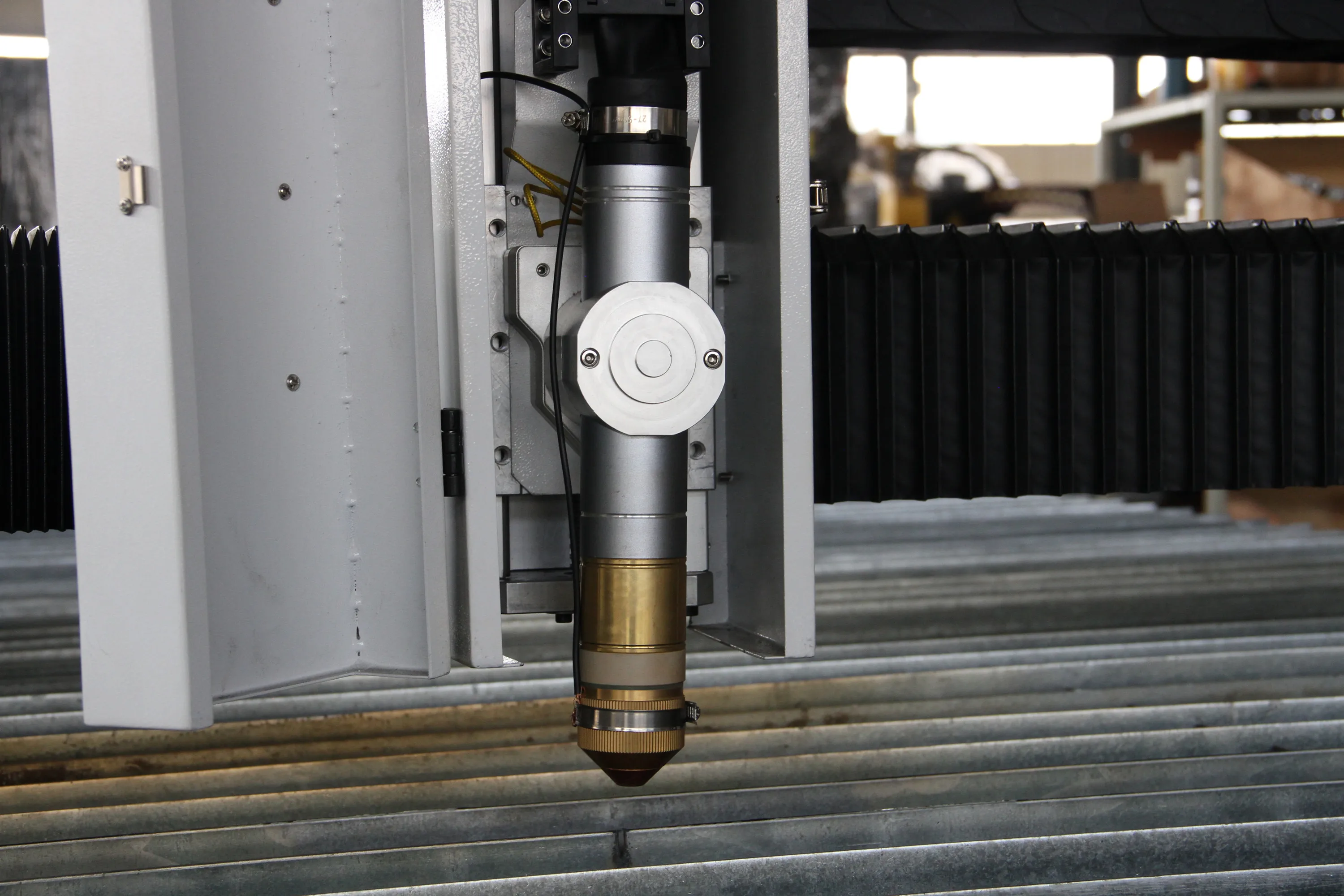

Fine Plasma Cutting Torch

Hypertherm, Thermadyne or other brands

With anti-collision holder, during the cutting, when the torch touched the steel, torch will automatically pause, after the obstacle away, the torch will continue move, it protect the torch from damage.

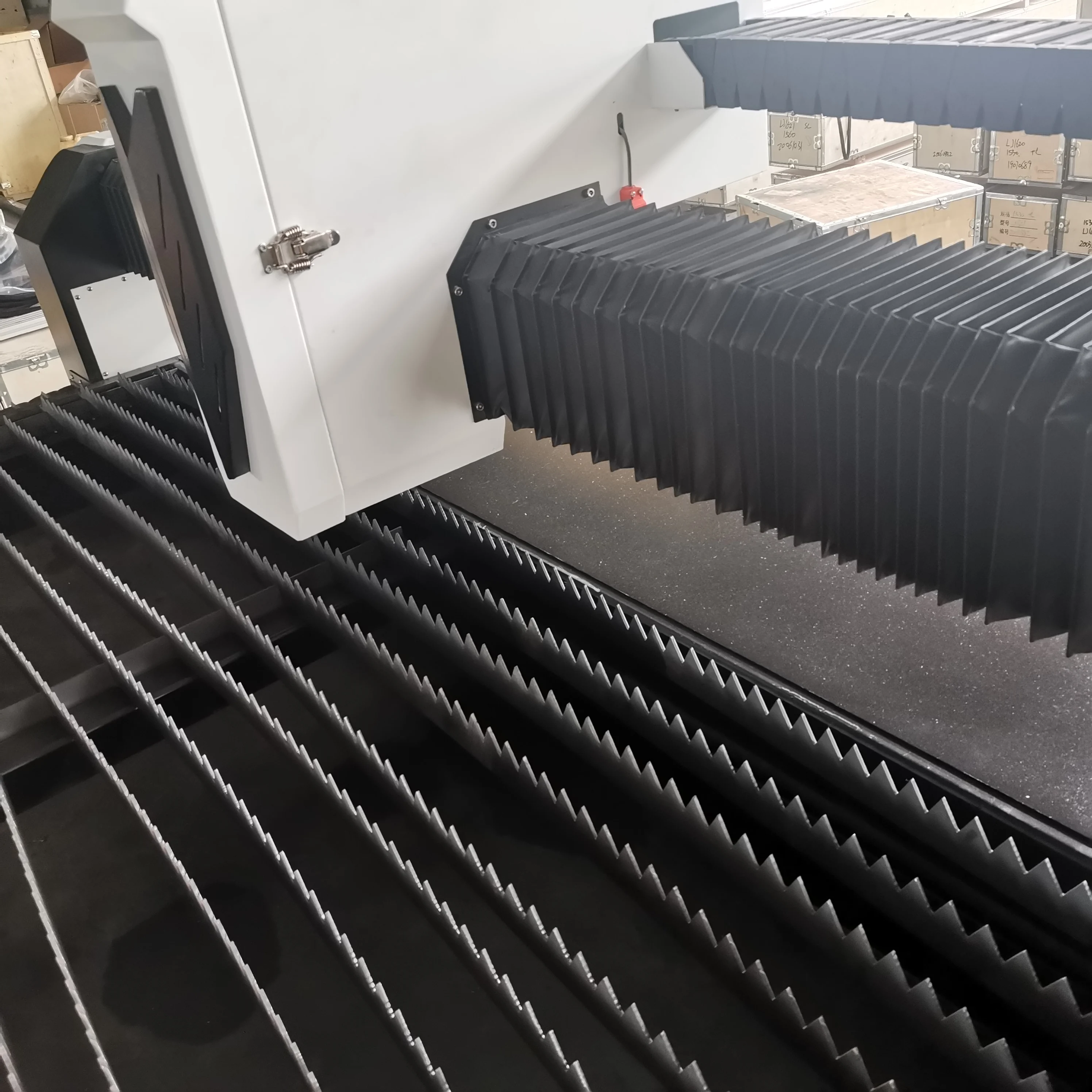

Rack gear and high precision linear guide

With Anti-dust cover

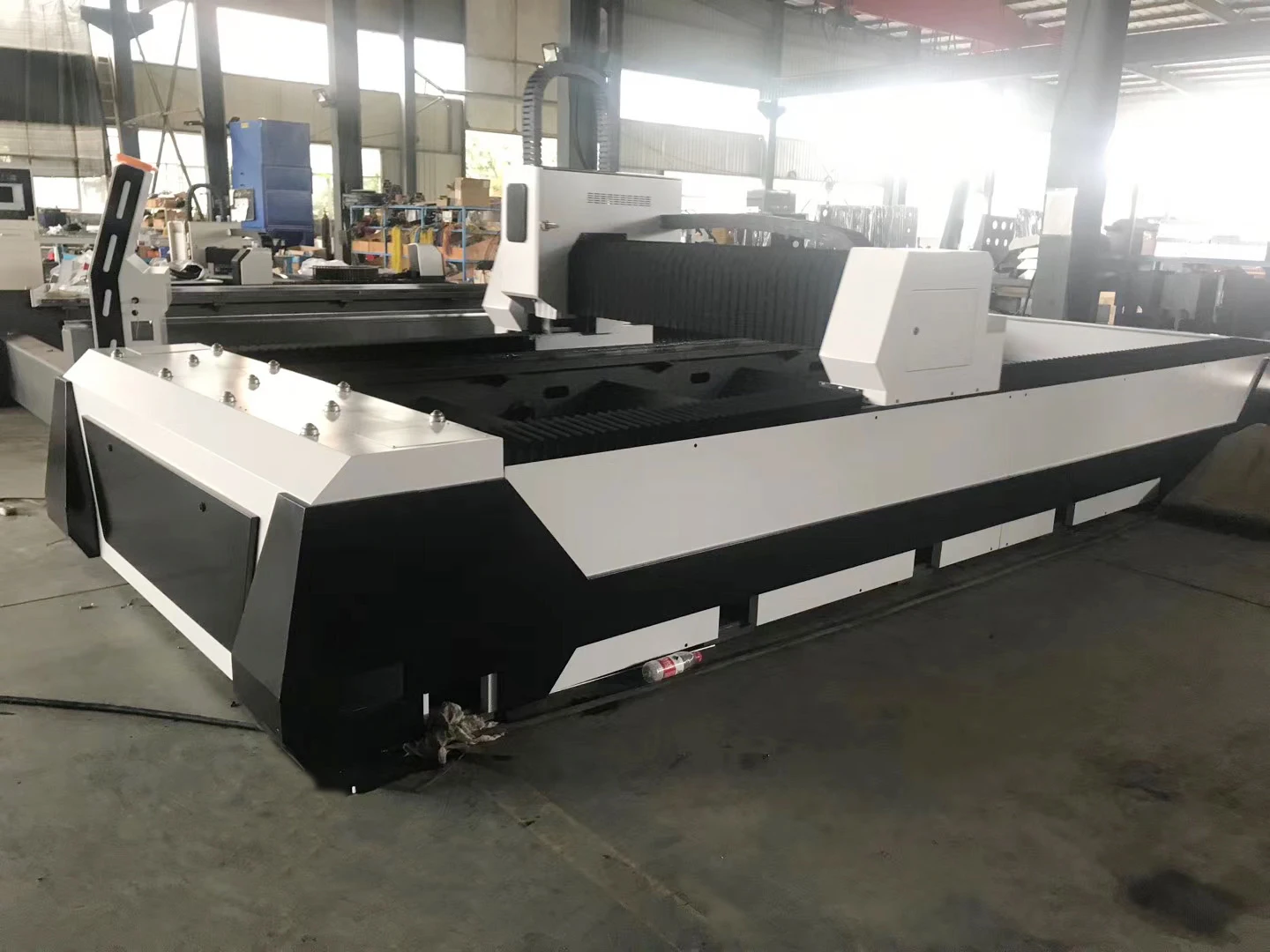

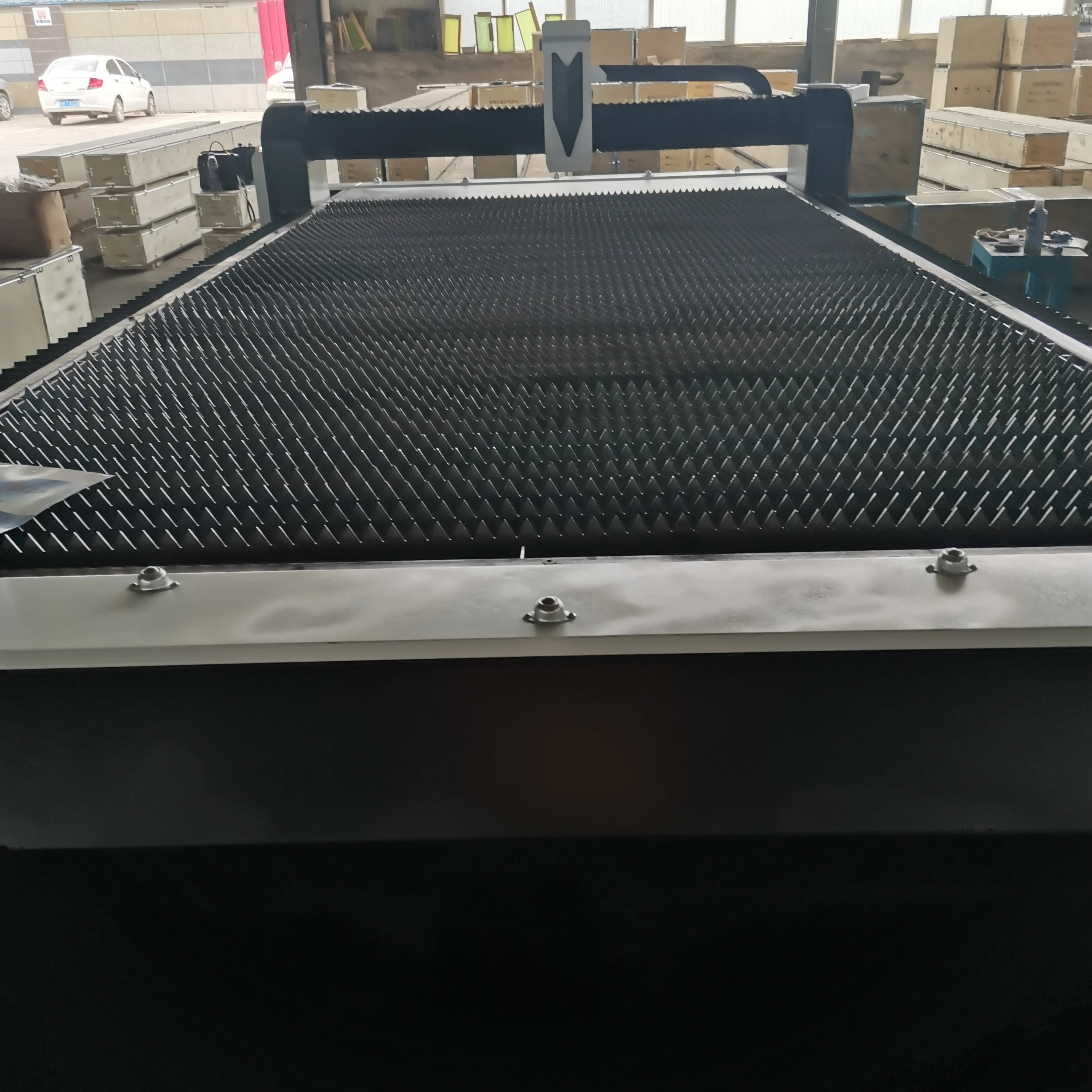

Heavy machine bodySaw blade cutting table

Water table, suitable for metal cutting

Size Information

1325 1530 Heavy-duty CNC Plasma Table Cutting Machine

Model	JX-T1530
Effective Cutting area	1500*3000mm
Machine Dimension	220042501300mm
Configuration
Cutting model	Plasma cutting
Cutting speed	No-load speed: 20m/min without shake
Cutting speed	Y-axis effective cutting range	Loading speed: 0~15m/min with high stability
Cutting thickness	According to plasma power source
Drive mode	Bilateral drive
Drive motor	Leadshine Servo motors for driving
Torch Height Control
Arc THC	Fangling automatic arc voltage THC F1628
Rail		380V
Precision	PRECISION HIWIN brand LINEAR RAIL,
	Total power protection level	Precious linear Square guide rail and linear guide rail better than round guide
		The linear tolerance of two guides on X axis is less than 0.05mm X and Y axis vertical tolerance is less than 0.05mm
Software & System
Nesting software	FASTCAM software
Cutting platform	INCLUDE
System	Shanghai Fangling F2300A
Remark	1. Space saving , quick installation, no foundation request 2. Using integrated modular structure, making installation quick and easy 3. High accuracy AC servo motor drive. 4. Friendly operation panel, easy-to-use 5. Automatic program optimization nest path 6. G and M code recognizable 7. DXF/DWG files programming and nest 8. USB data transmission 9. The machine size can be customized (standard model: 13002500, 15003000, 1500*6000)

China Huayuan Plasma Power Source for CNC Plasma Cutting Machine

Item	Model
Item		LGK-63IGBT	LGK-100IGBT	LGK-120IGBT	LGK-160IGBT	LGK-200IGBT	LGK-300IGBT	LGK-400IGBT
Input source	3 phase 380V 50Hz
Rated input capacity (KVA)	9.5	17.8	22.4	32.2	46.7	65.8	94.1
Rated input current (A)	14.5	27	34	49	71	100	143
Rated output current (A)	63	100	120	160	200	300	400
Rated output voltage (v)	106	120	128	144	160	200	200
Rated unloading voltage (v)	300	300	300	315	315	380	380
Rated loading cycle	60%(40℃)	100%(40℃)
Range of output current (A	30-63	30-100	30-120	30-160	30-200	30-300	30-400
Ratio of arc pressure output signal	1:1/1:20/1:50/1:100									1:1/1:20
Qualified cutting capacity (carbon steel) (mm)	0.3-12	0.3-22	0.3-25	0.3-35	0.3-45	0.3-50	0.3-60
Cutting capacity (carbon steel)	25mm	40mm	45mm	55mm	65nmm	80mm	90mm
Plasma air	Air compressor
Air pressure	0.3-0.5Mpa	0.4-0.6Mpa							0.45-0.6Mpa
Cooling method of torch	Air Cooling					Water Cooling
Cooling method of source	Air cooling
Insulation grade	Grade F
Shell protect grade	IP21S
Dimension (mm)	585280485	675320605			800380650	800380810	890430900	930430900
Net weight (kg)	26	45	46	65	82	124	144

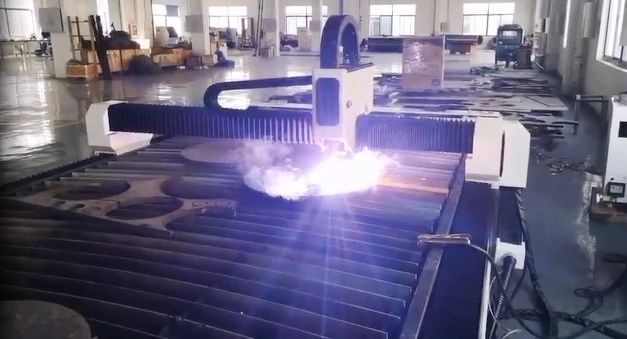

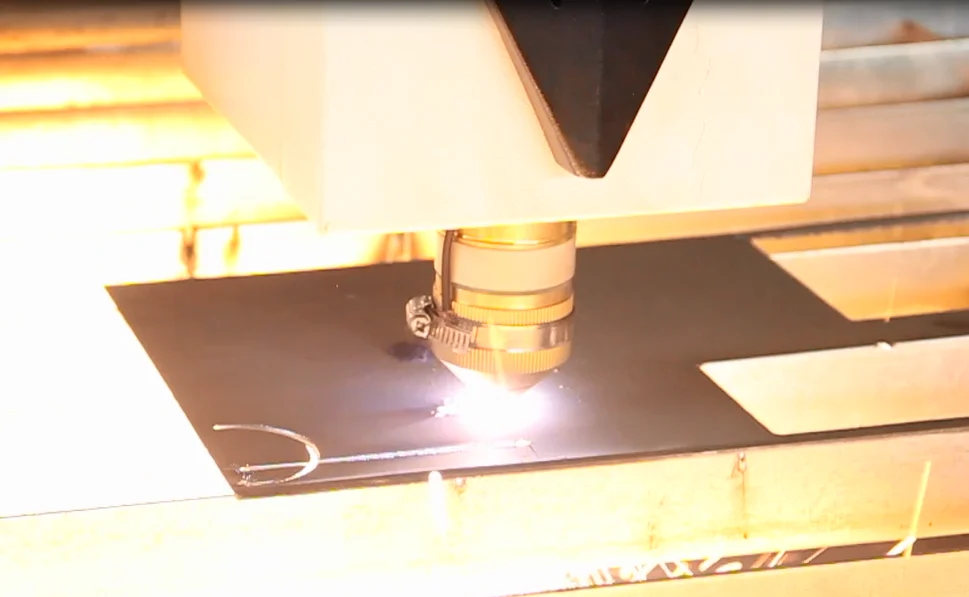

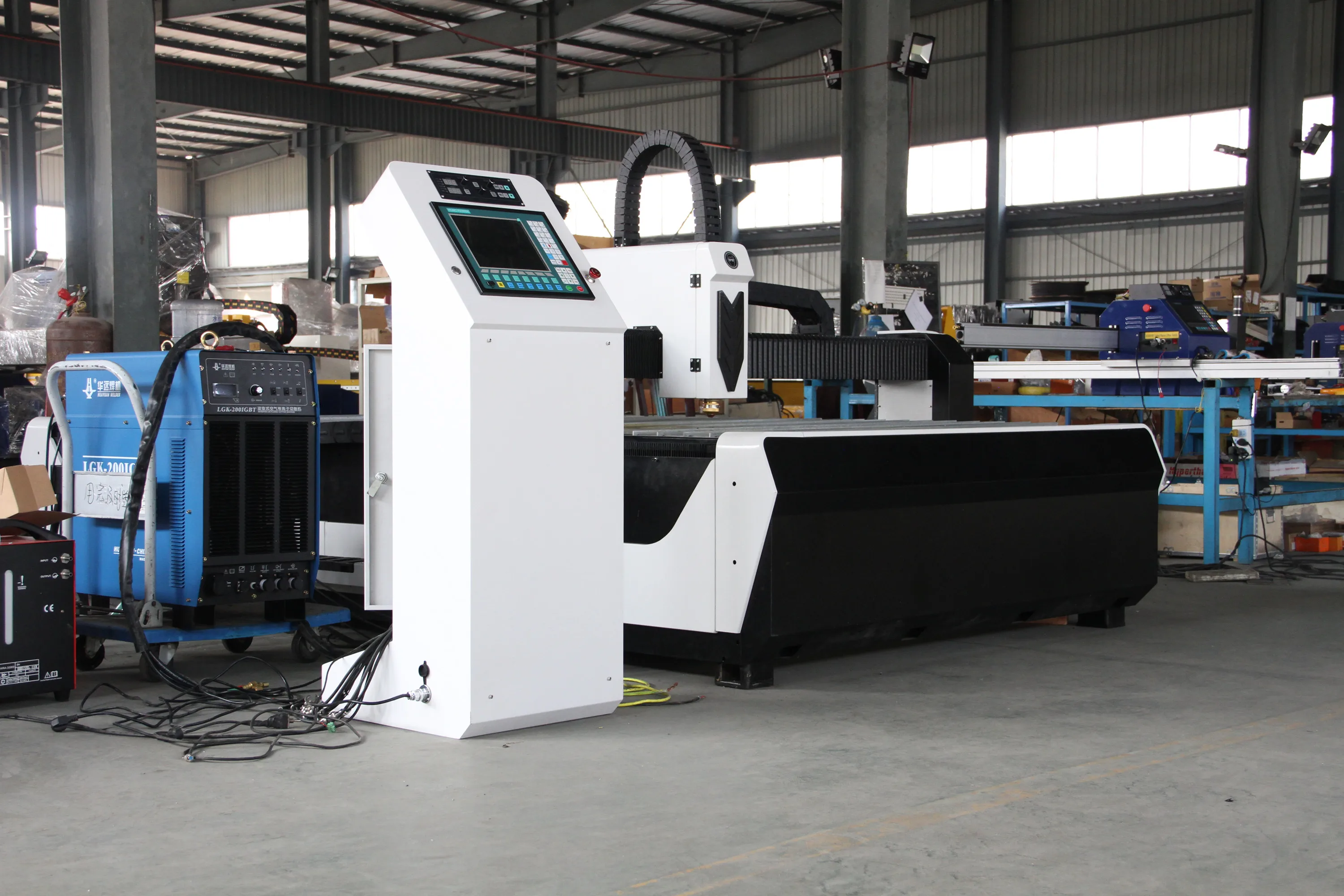

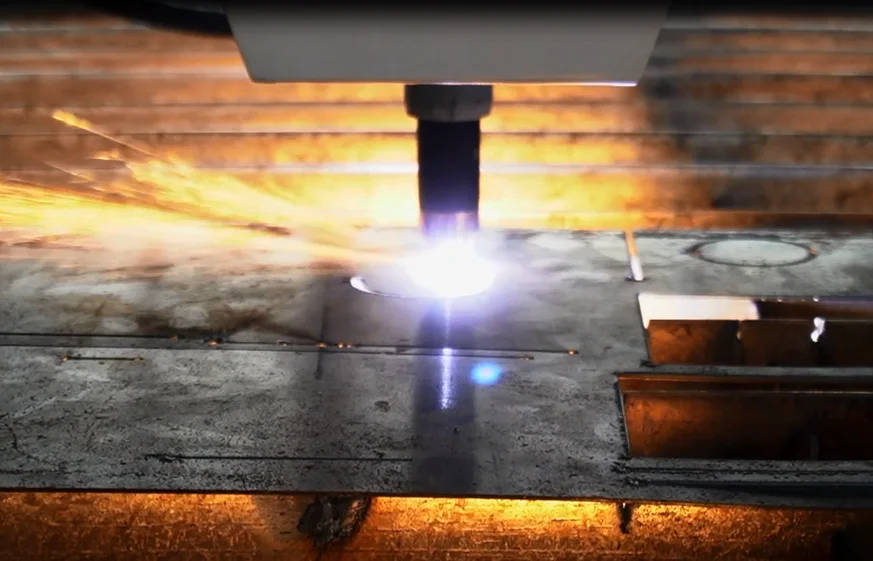

Working pictures

JX-T1325 JX-T1530 JX-T1560 heavy type table CNC plasma cutting machine is mainly used to cut 0.3- 40mm metal sheets, the metal sheet could be iron, stainless steel, aluminum, copper, Titanium, tin and many other kinds metal. Widely used in trucks, trailers, motorcycles, pressure vessls, general machinery, steel structure, ship and so on.

Cutting Sample
