1500va Biến Áp Chỉnh Lưu Cho Cathodic Bảo Vệ 120V Ac 24V Dc Biến Áp
1500va Biến Áp Chỉnh Lưu Cho Cathodic Bảo Vệ 120V Ac 24V Dc Biến Áp
1500va Biến Áp Chỉnh Lưu Cho Cathodic Bảo Vệ 120V Ac 24V Dc Biến Áp
1500va transformer rectifier for cathodic protection 120v ac 24v dc transformer
Electrical Specification
| TECHNICAL DATAS | PRIMARY | SECONDARY |
| RATED VOLTAGE | 1×120V | 24V DC |
| RATED POWER | 1500VA | |
| REEL TYPE | EI 75 (2 SECTIONS) (75×62.5mm) | |
| REEL MATERIAL | UL TRAMID A3×2G 5 or equivalent | |
| WORKING FREQUENCY | 50-60 Hz | |
| BREAKDOWN STRENGTH | 4000 V | |
| CLASS OF THERMAL INSULATION | B (130°) | |
| TYPE OF MAGNET SHEET | MA 2.6 W/Kg | |
| EXECUTIVE STANDARDS | EN-61558 | |
| TOTAL WEIGHT (Kg) | EI 75 - 1.3 Kg | |
Circuit Diagram
Serving Market

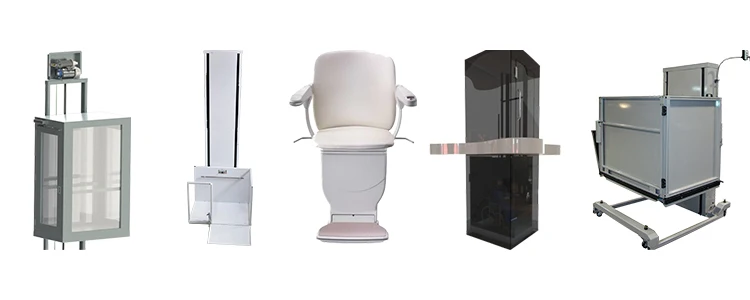

TIANYI HAVE DESIGNED, MANUFACTURED AND MARKETED 1500VA 120V AC 24V DC RECTIFIER TRANSFORMER WIDELY USED IN ELEVATORS, VERTICAL PLATFORM LIFTS, STAIRLIFTS, PRESTIGE ELEVATORS, PORTABLE LIFTS. WE ARE CURRENTLY SERVING CANADA MARKET IN THIS TRANSFORMER. TIANYI IS YOUR RELIABLE SOURCE AND DESTINATION.
International Exhibition
Transformer Certifications
OUR STRENGTH LIES IN QUICK, ECONOMICAL AND HIGH QUALITY SOLUTIONS. WE UNDERSTAND HOW TO OPTIMIZE AND CUT THE COST IN ACCORDANCE TO THE DETAILED APPLICATIONS WITH OVER 25 YEAS INDUSTRY EXPERIENCE.
- ATTRACTIVE PRICE STRUCTURE ESPECIALLY FOR SMALL QUANTITIES.
- INDIVIDUAL SOLUTION ADAPTED TO YOUR APPLICATION
- RAPID PRODUCTION OF YOUR STANDARD SOLUTIONS DUE TO A WIDE OF STORED CORES.
- IN-HOUSE CORE PRODUCTION
- OVER 100 R&D TECHNICANS, PROFESSIONAL MANAGERS AND EXPERIENCED WORKERS.
- EQUIPPED WITH STATE OF THE ART COIL WINDING, STEEL CUTTING AND TESTING EQUIPMENT.
- 210,000 SQ.FT FACILITY LOCATED IN MIANYANG, CHINA
- EXPERTISE IN GETTING CUSTOMERS THROUGH UL / PSE / VDE / CE SAFETY APPROVALS
- ISO 9001 QUALITY MANAGEMENT SYSTEM
