2*6 khu vực làm việc giàn loại nặng CNC Plasma và oxy-nhiên liệu máy cắt
642
Đã bán
215.731.213đ
192.889.084đ ~ 215.731.213đ
215.731.213đ
192.889.084đ ~ 215.731.213đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
192.889.084đ
bsoEG91FfJ
Mô tả sản phẩm
Loại động cơ: Servo MotorĐiều kiện: Mới
Nơi xuất xứ: Shandong, ChinaNhãn hiệu: jiaxin
Số Mô Hình: JX-3080Điện áp: 220V, Điện áp máy: 220V, một pha
Công suất: 3-5kWKích thước (L * W * H): 4000*8000m m
Trọng lượng (KG): 1500 KGNăm: 2020
Bảo hành: 1 NămKey Điểm Bán Hàng: Độ chính xác cao
Áp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Công nghiệp chế biến kim loạiPhòng Trưng Bày Trí: Không có
Tiếp Thị Loại: Sản Phẩm Hot 2019Máy Móc Báo Cáo Thử Nghiệm: Không Có Sẵn
Video Gọi Đi-Kiểm Tra: Cung CấpBảo Hành Của Core Thành Phần: 1 Năm
Core Thành Phần: Động CơTên: Ganty CNC Máy cắt plasma
Chế độ cắt: Cắt plasma + cắt ngọn lửaVật liệu cắt: Sắt/tấm nhôm/Thép không gỉ
Hiệu quả là: 3200*6500m mTốc độ cắt: 50-12000mm/phút
Nguồn điện plasma: Theo nhu cầu của bạnTrọng lượng: 1500kg
Chứng nhận: CE

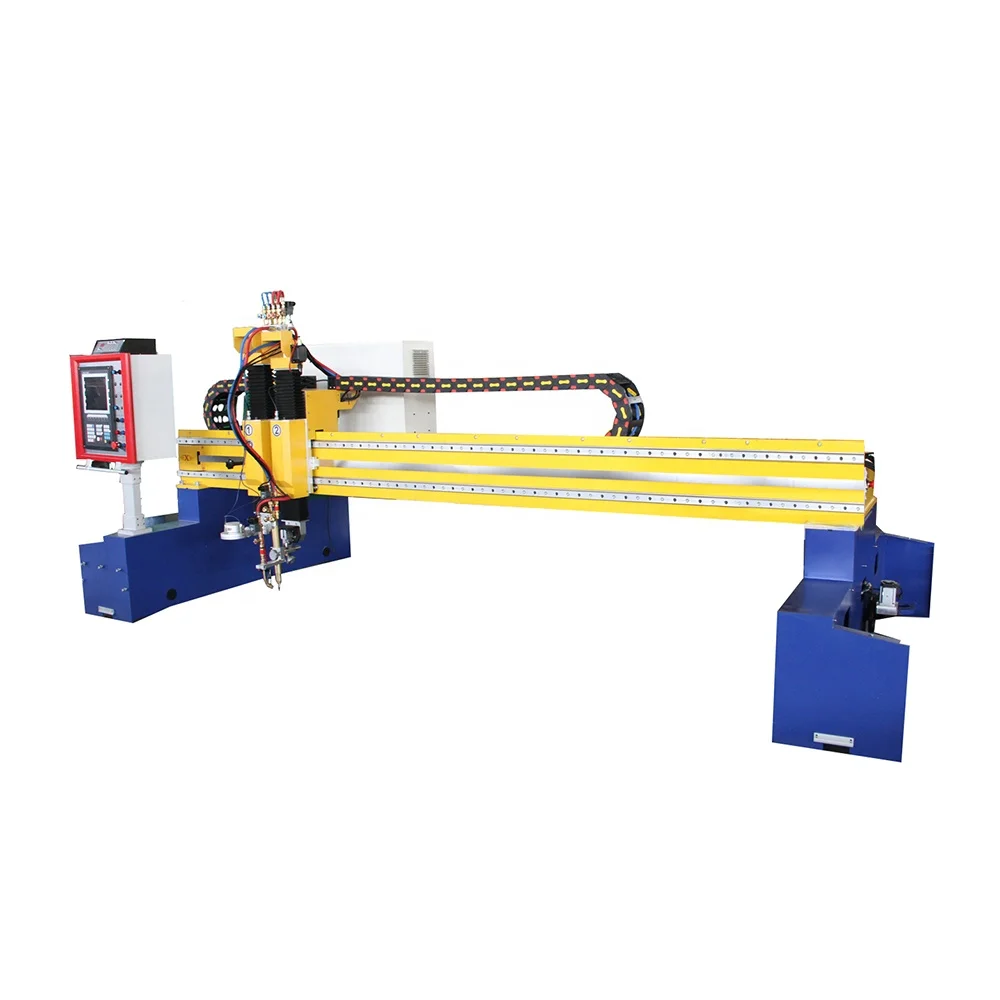

Product Description
Application

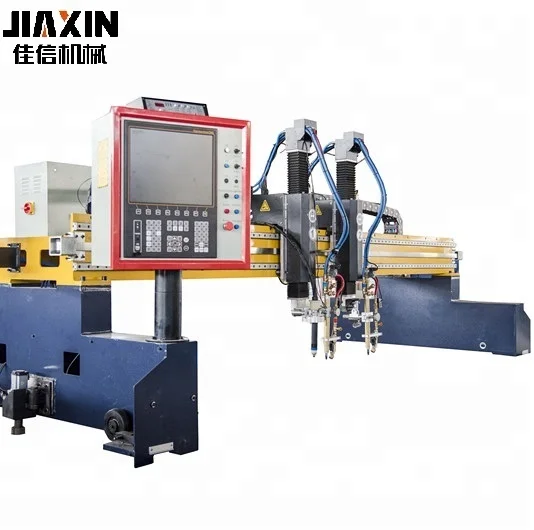

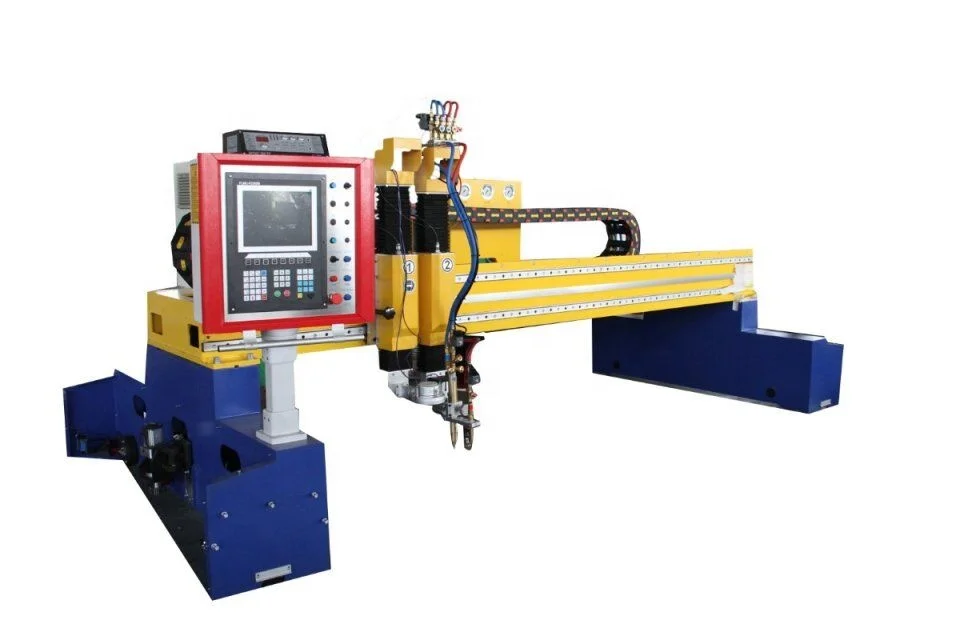

The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time.

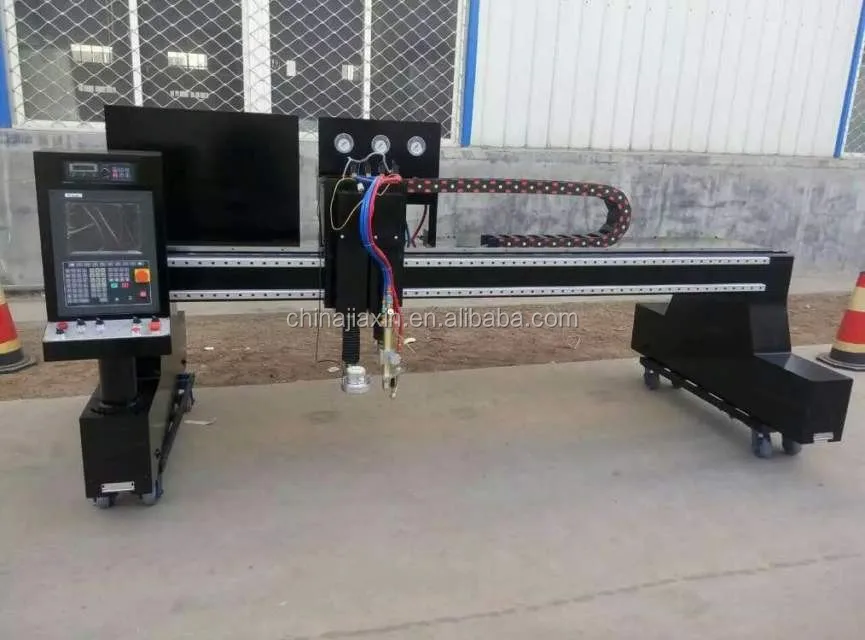

This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

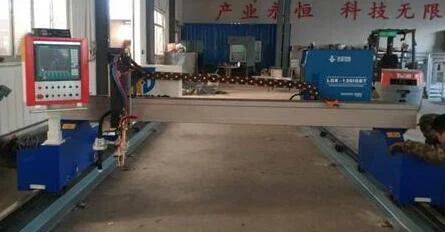

Detailed Images
Features

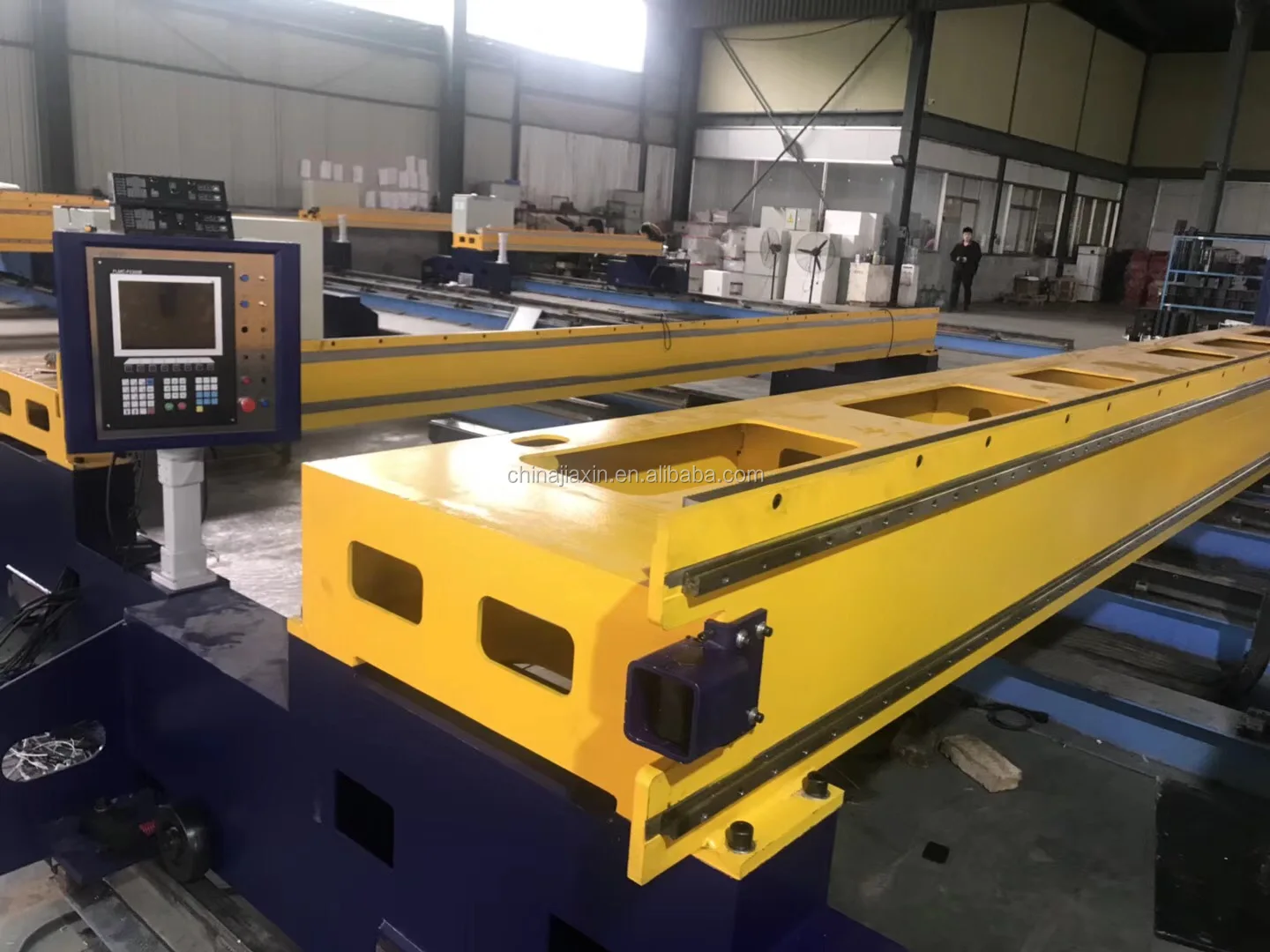

1. Steel hollow beam design ensures good heat dissipation without deformation.
2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4. World&rsquos top branded components and circuits ensure long service life.

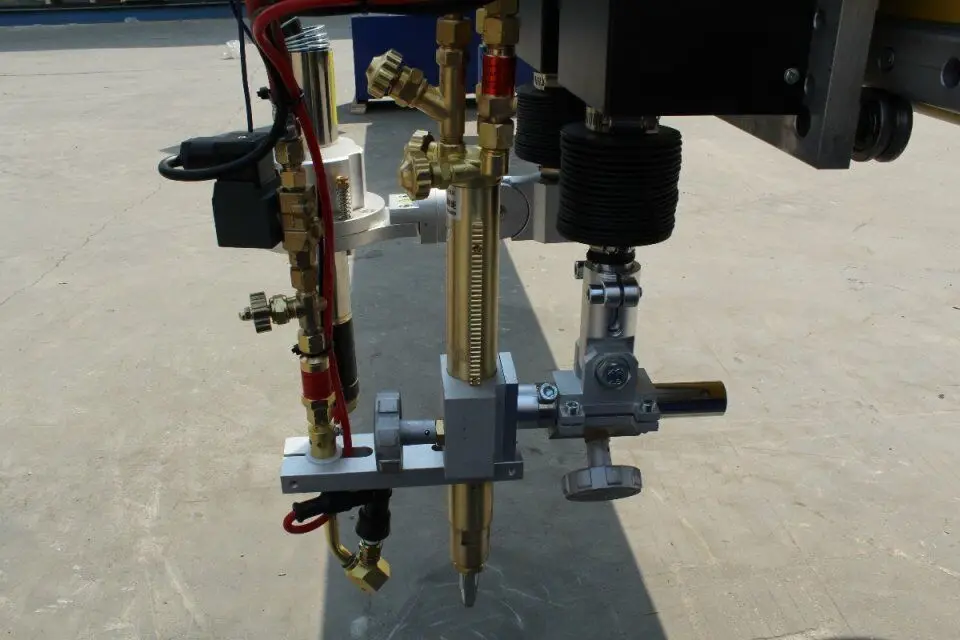

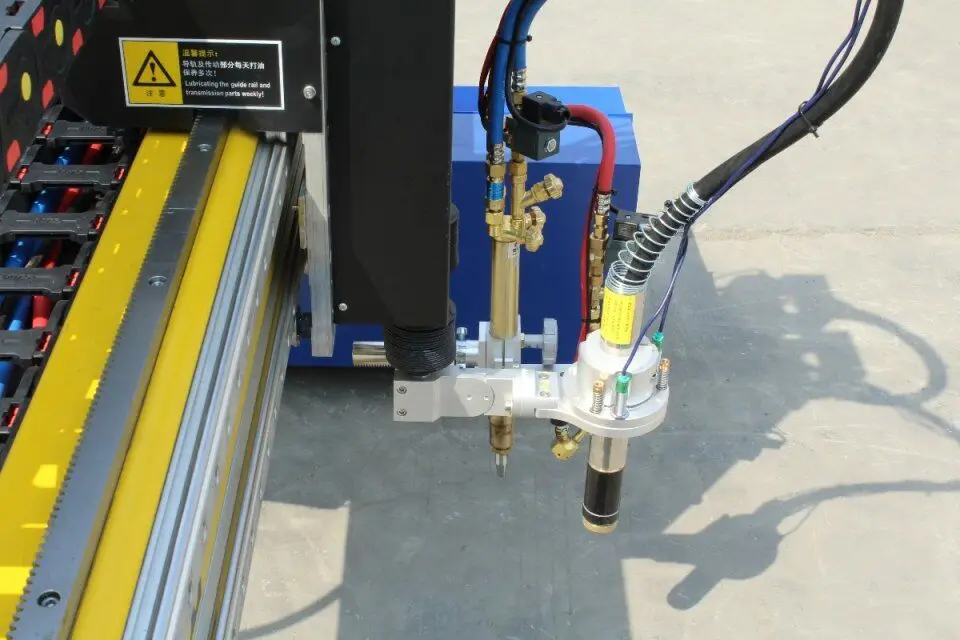

5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Product Paramenters
Voltage | Machine voltage:220v, single phase Power source voltage:380v, three phase |
Cutting effective area | 2200*6000mm |
Machine size | 3000*8000mm |
cutting torch | one plasma torch, one flame torch (Can increase) |
cutting thickness | Plasma：0-35mm, flame:6-200mm |
Plasma power source | huayuan brand,MISNCO,Hypertherm,Victor |

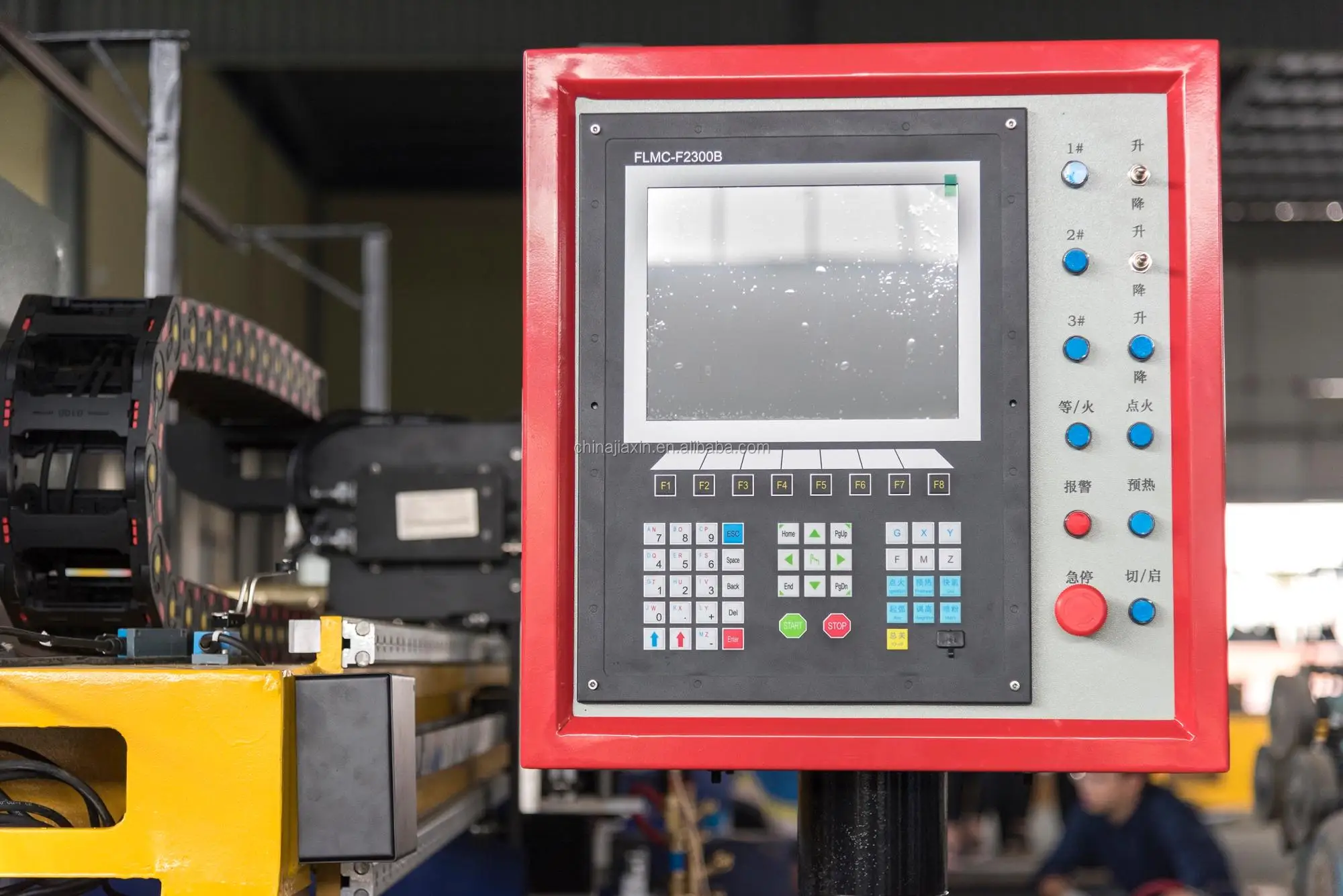

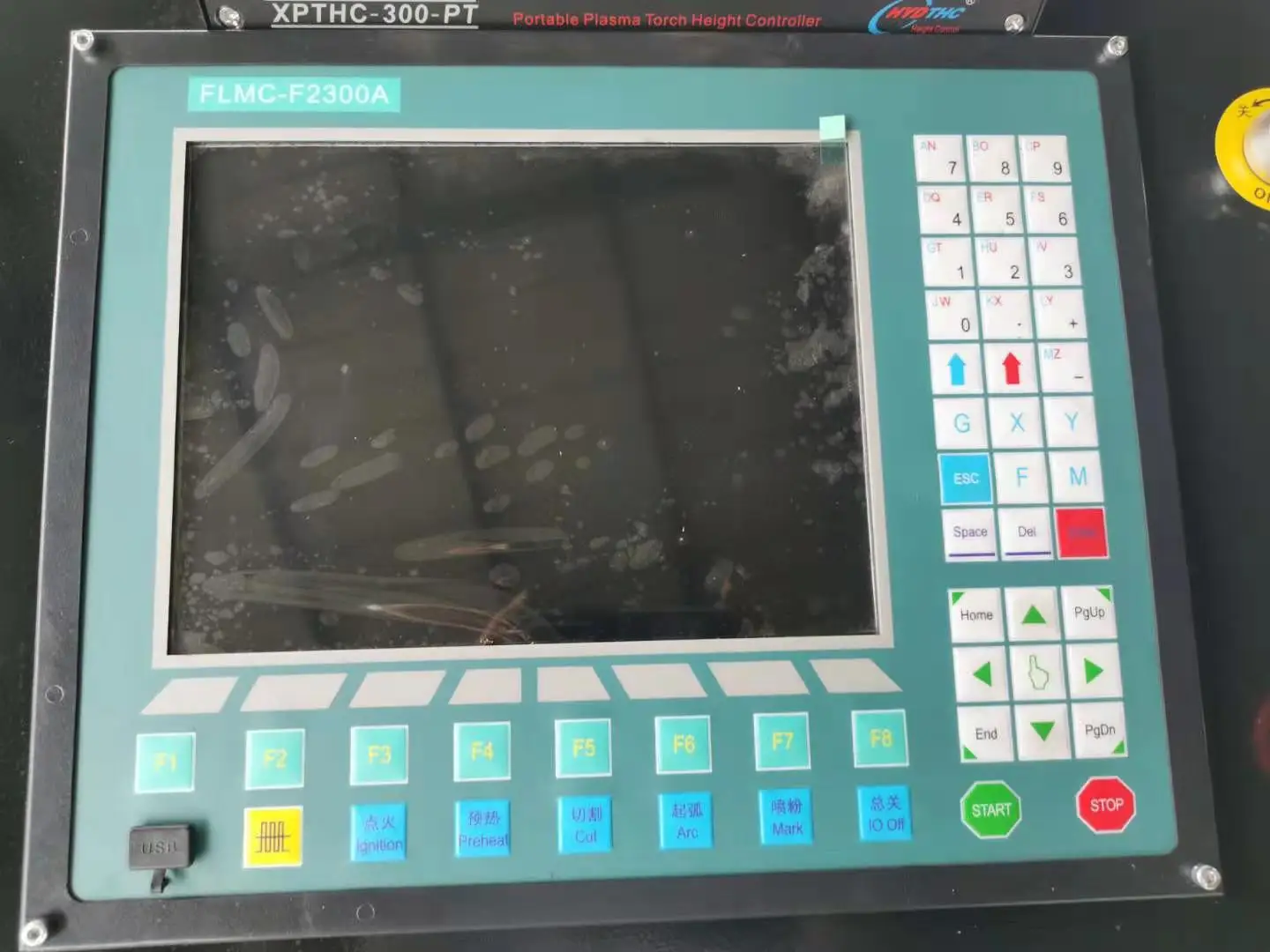

CNC control system
512M RAM, At least 80GB Hard Disk
Air-Conditioner for CNC& Electrical Components
USB & RJ45 Interfaces for loading in cutting files.
EMI for Servo Driver System.
CNC functions:
(a). Configurable Watch Windows enable on-screen real-time monitoring of key performance parameters while cutting
(b). Critical plasma, THC and cutting machine parameters can be controlled in the part program using Part Program Support (PPS)
for optimal and repeatable cut quality
(c). Hardware and software designed for a broad range of processes such as oxyfuel, laser, waterjet, tube/pipe and plasma cutting,
including pipe and bevel cutting applications
(d). The patent-pending CutPro wizard is an intuitive step-by-step process that guides the operator through the most frequently
required job setup steps. In field trials, new operators began cutting high-quality parts in less than 5 minutes without training,
drastically reducing the &ldquohire to cut&rdquo time. This means that multiple operators across multiple shifts can quickly produce
consistent results, making it so you have your best operator on every shift
As easy as 1, 2, 3, cut!
Air-Conditioner for CNC& Electrical Components
USB & RJ45 Interfaces for loading in cutting files.
EMI for Servo Driver System.
CNC functions:
(a). Configurable Watch Windows enable on-screen real-time monitoring of key performance parameters while cutting
(b). Critical plasma, THC and cutting machine parameters can be controlled in the part program using Part Program Support (PPS)
for optimal and repeatable cut quality
(c). Hardware and software designed for a broad range of processes such as oxyfuel, laser, waterjet, tube/pipe and plasma cutting,
including pipe and bevel cutting applications
(d). The patent-pending CutPro wizard is an intuitive step-by-step process that guides the operator through the most frequently
required job setup steps. In field trials, new operators began cutting high-quality parts in less than 5 minutes without training,
drastically reducing the &ldquohire to cut&rdquo time. This means that multiple operators across multiple shifts can quickly produce
consistent results, making it so you have your best operator on every shift
As easy as 1, 2, 3, cut!

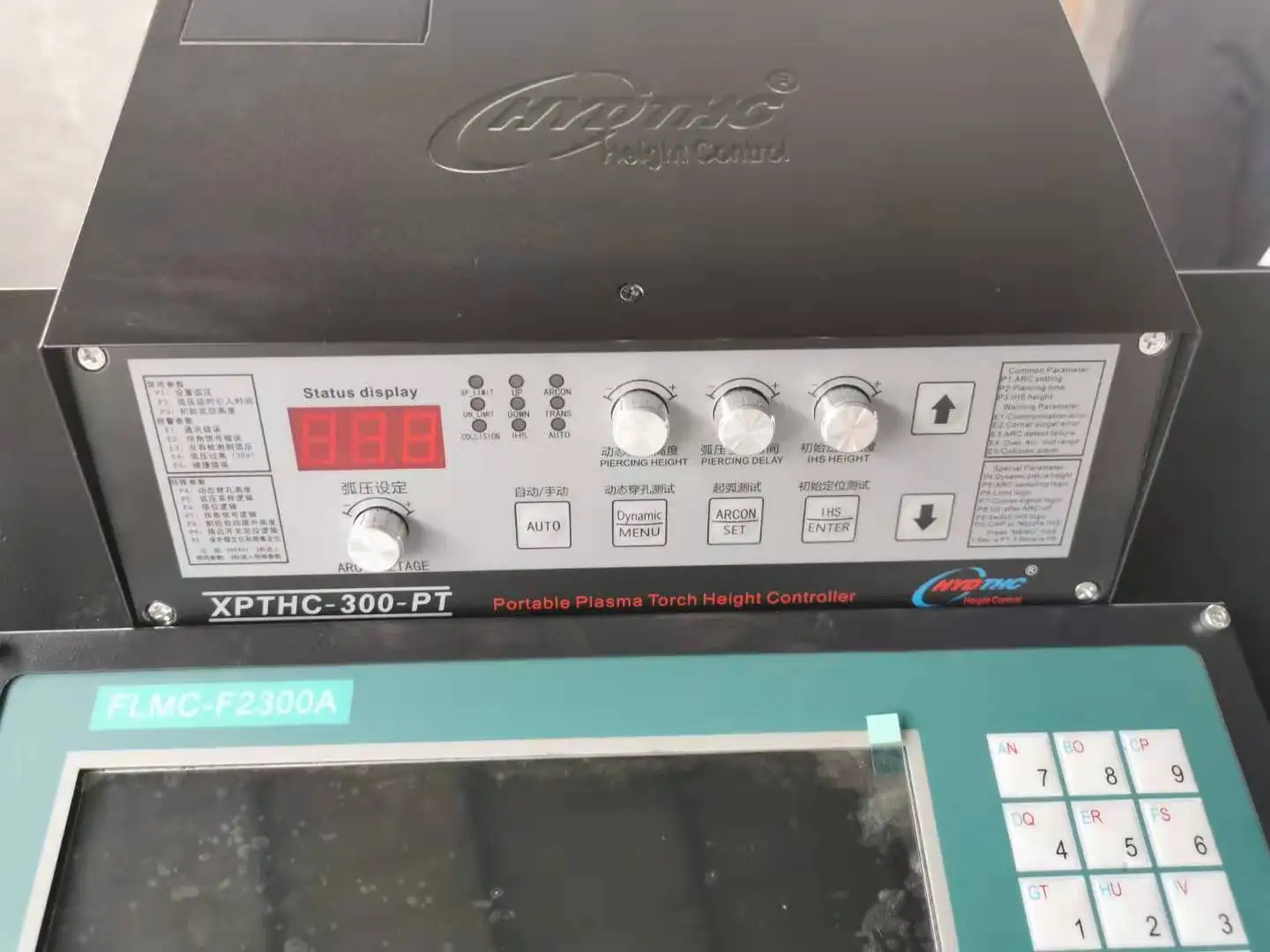

THC
Can be equipped with HYD-300,HYD-400,Fangling F1621 THC.
Basic functions,
A、 Auto Initial Height Sensing(IHS)：
B、 Torch Anti-Collision Function:
C、 Freeze Auto Height Control on Corner Signal
D、 Lifting torch Up on IHS Disabled status.
E、 Lifting Torch Up on TURN ON or Arc Off:
F、Set Pierce Delay Time.
G. Manual Operation
A、 Auto Initial Height Sensing(IHS)：
B、 Torch Anti-Collision Function:
C、 Freeze Auto Height Control on Corner Signal
D、 Lifting torch Up on IHS Disabled status.
E、 Lifting Torch Up on TURN ON or Arc Off:
F、Set Pierce Delay Time.
G. Manual Operation

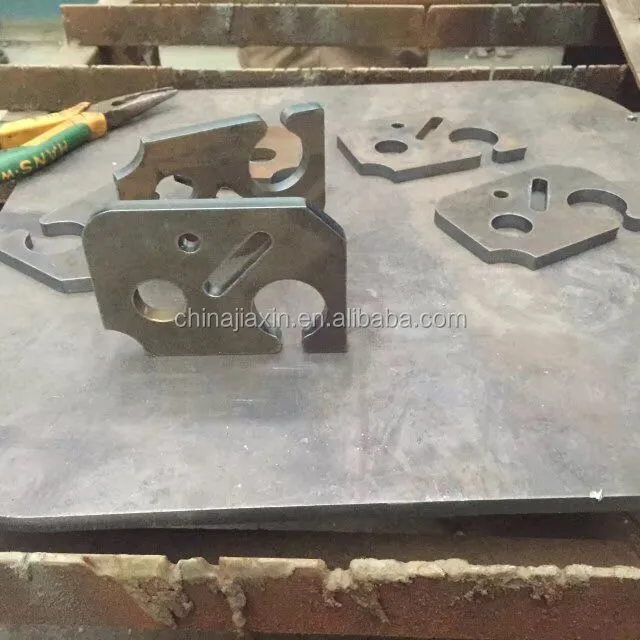

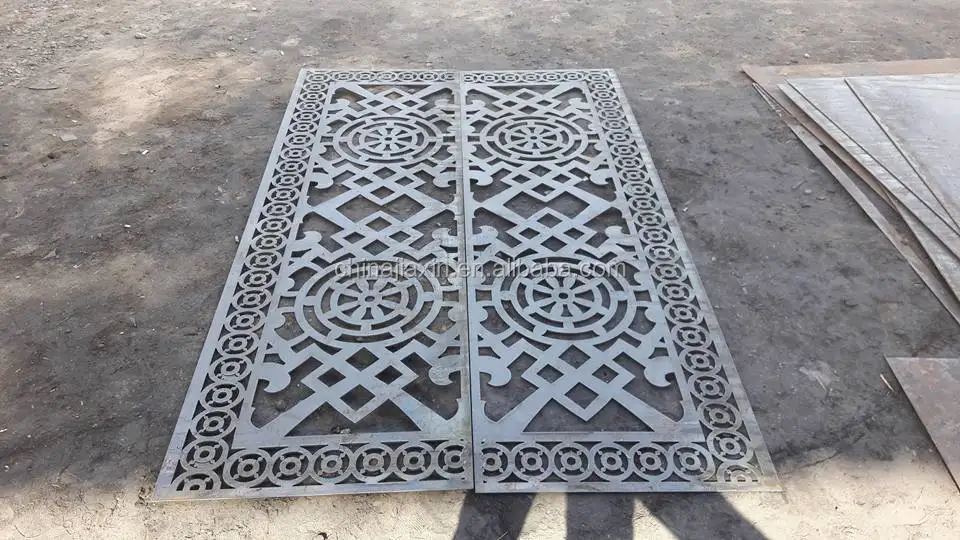

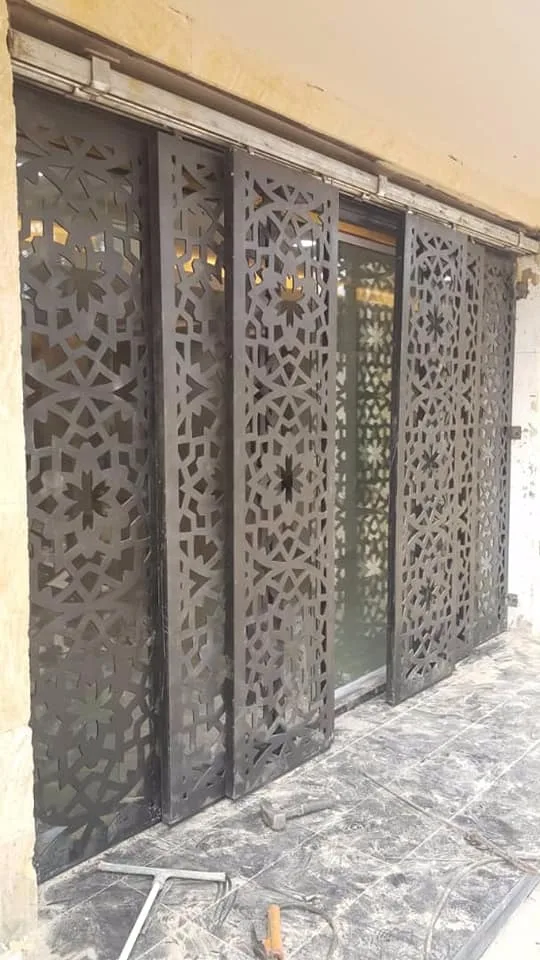

cutting example

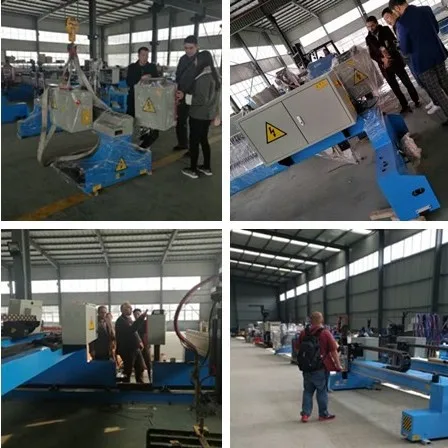

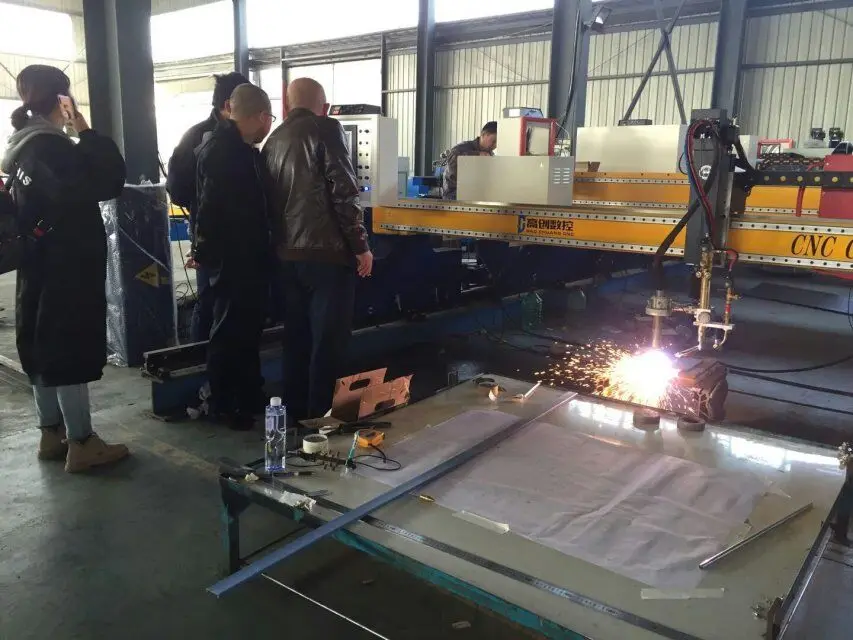

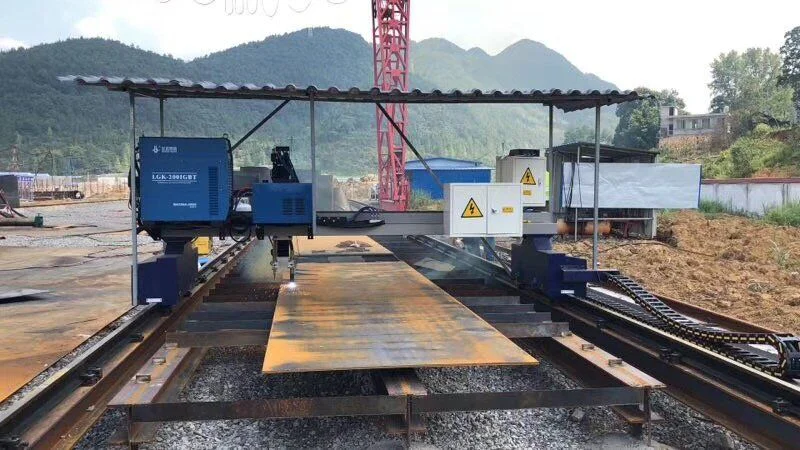

Customer Photos
