High quality low cost cnc gantry type plasma cutting machines

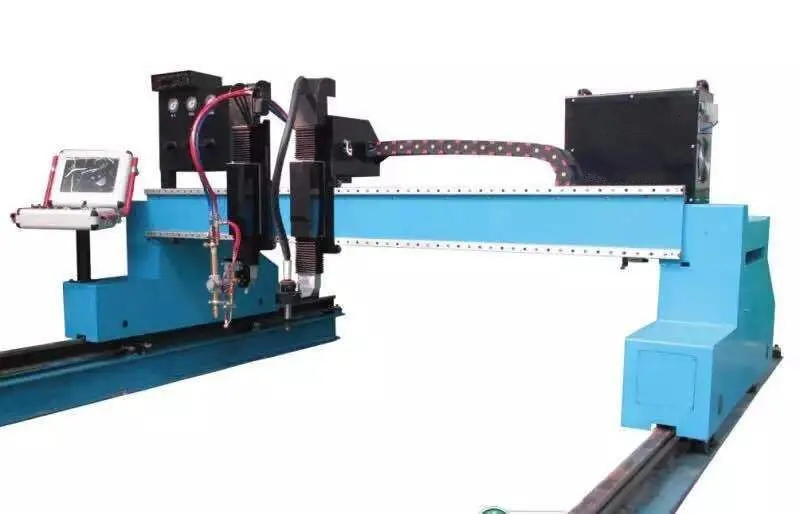

Pictures show
Specification
|
Technical Specification |
|
|
Model |
JX-1530 |
|
Machine dimension (mm) |
Maximum 12 meter in width and not limited in length |
|
Effective processing area (mm) |
1 meter less in width and 2 meter less in length than machine size |
|
Suggested cutting thickness (mm) |
Stainless steel:1-50mm and Carbon steel:6-160mm |
|
Drilling capacity (mm) |
Maximum 140mm in depth and 35mm in diameter |
|
Drilling power |
8Kw (25hp) 1Kw=1.36PS=1.34HP |
|
Drilling feed |
10m/min (400ipm) |
|
Drilling torque |
200 N.M. (150 ft-lb) |
|
Borehole pressure |
11000 N (2500 lbf) |
|
Cutting Speed (mm/min) |
50-9000 |
|
Running speed (mm/min) |
12000 |
|
Basic components |
|
|
Cutting Mode |
Oxy-fuel/ Plasma/ High definition plasma/ Laser |
|
Drive mode |
Servo motor, Dual-side |
|
Guide track |
Straight ball-guide |
|
Cutting Torch Number |
Customer specified |
|
Driving Motor |
Panasonic from Japan |
|
NC Controller |
Micro EDGE pro, Shanghai KP, SJTU-SK |
|
Plasma Power |
Victory (Thermadyne), Kjellberg, Hypertherm, TAYOR LGK |
|
Programming software |
FASTCAM |
|
Gearbox |
SEW or Neugart from Germany |
|
Other Data |
|
|
Working temperature |
- 10°C -45°C |
|
Humidity |
<90%, no condensation |
|
Surroundings |
Ventilation, vibrationless |
|
Power voltage |
3×380V±10% 50Hz/ according to user's local condition |
|
Operation language |
Multilingual and English available |
|
Options |
|
|
Powder marking |
available |
|
Under water cutting |
available |
|
Beveling torch |
available |
|
Strip cutting torch |
available |
|
Heating and cooling system |
available |
|
Integration dust extraction |
available |
|
Thin plate processing device |
available |

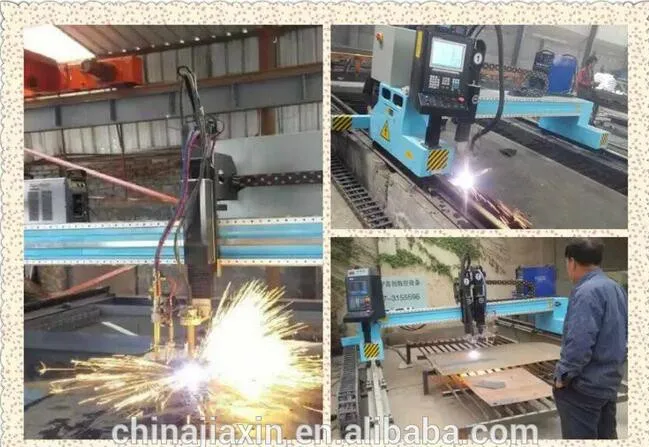

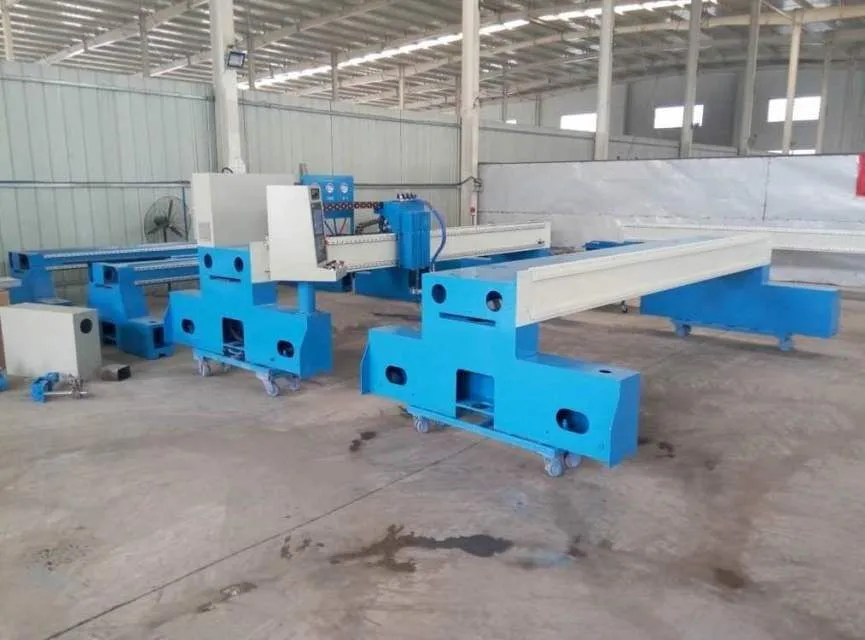

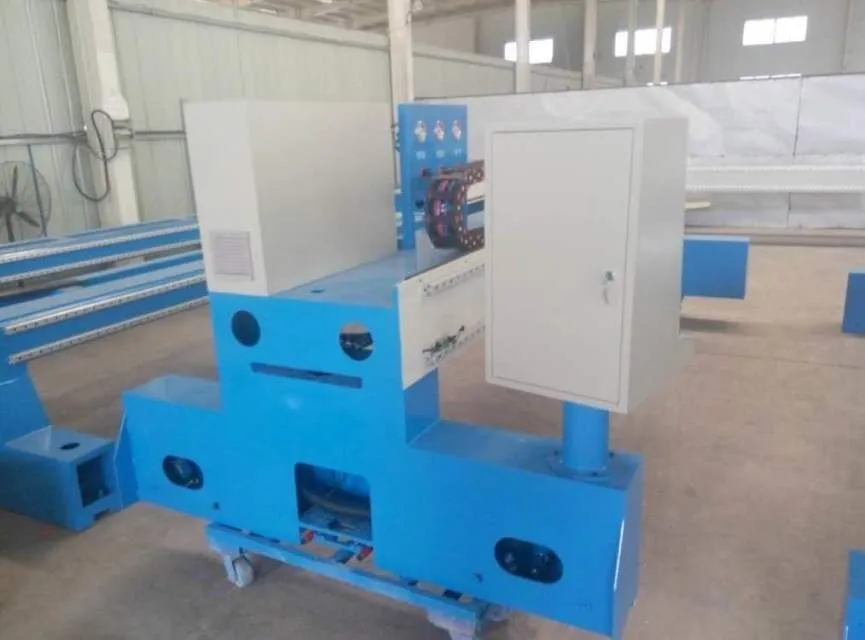

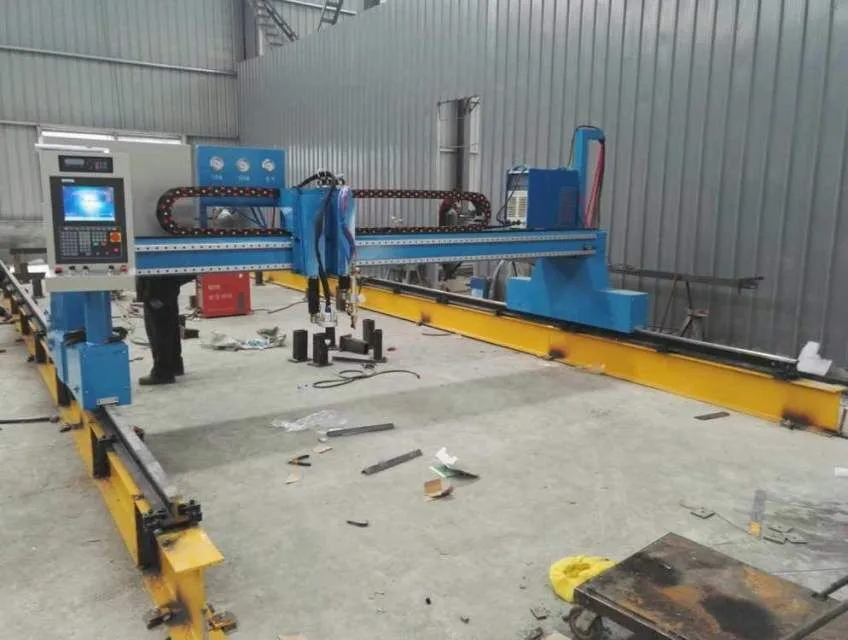

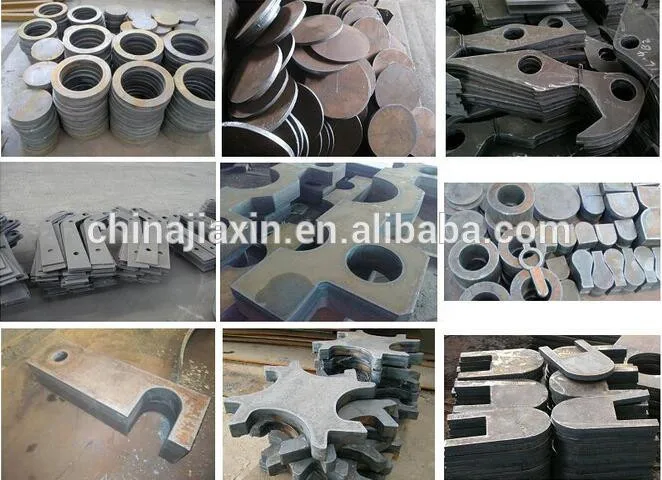

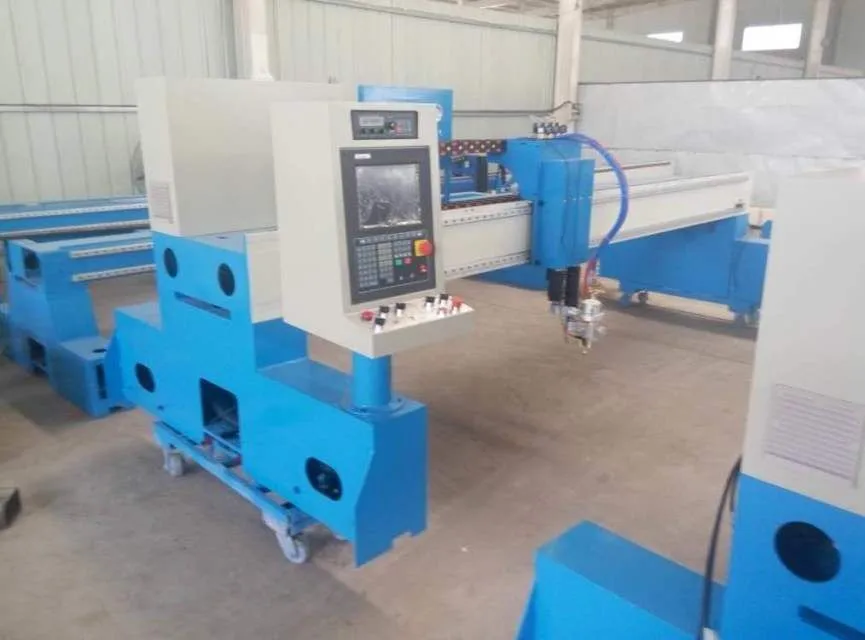

Working Pictures
Function of Machine
Introduction
The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.
Features
1. Steel hollow beam design ensures good heat dissipation without deformation.
2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4. World&rsquos top branded components and circuits ensure long service life.
5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Application
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
