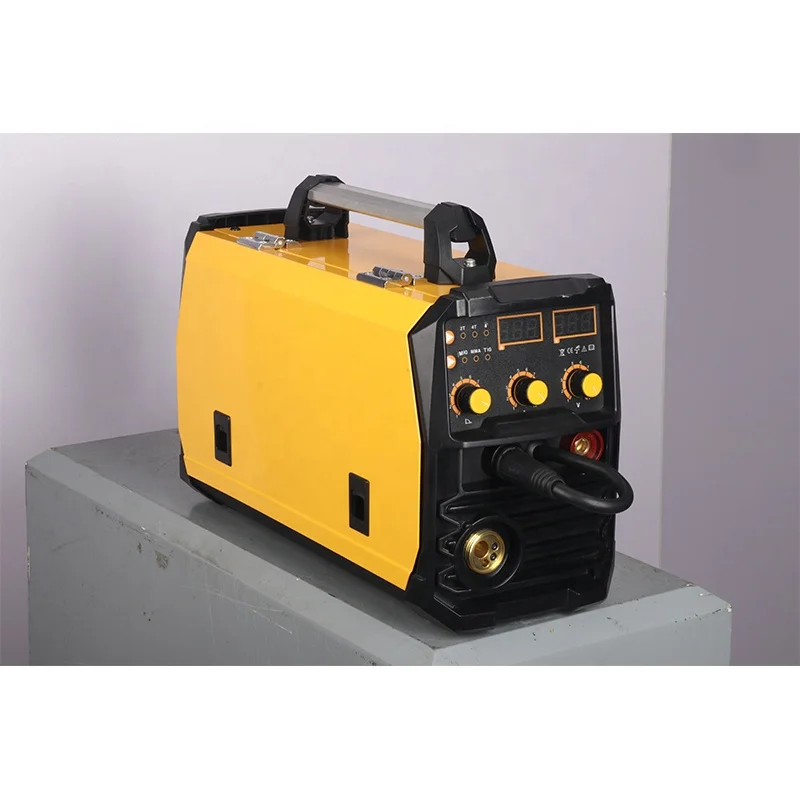

220V No gas use Welder MIG-160 Amp MAG TIG ARC MMA Stick 3 in1 Welding machine
Feature:
1.IGBT inverter technology,energy saving.
2.PWM pulse width control,technology,special performance,accurate current control.
3.Slow wire feeding,arc end with small balls clean,electronic and inductance regulating,
shielding gas post flow functions:well spatter control,good depth of fusion,good welding effect.
4.Over current,over heat,over load.over voltage protection.Special appearance wire feeder integrated.
5..Suitable for welding mild steel,low alloy steel metal sheet.
| ITEM | MIG-100 | MIG-135 | MIG-175 | MIG-195 |
| POWER VOLTAGE(V) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| RATED INPUT CAPACITY(KVA) | 3.25 | 4.1 | 6.8 | 7.6 |
| RATED OUTPUT(A) | 100 | 120 | 170 | 190 |
| RATED INPUT(A) | 14.8 | 18.7 | 31 | 35 |
| NO-LOAD VOLTAGE(V) | 44 | 44 | 55 | 55 |
| DUTY CYCLE(%) | 60 | 60 | 30 | 30 |
| EFFICIENCY(%) | 80 | 80 | 80 | 80 |
| POWER FACTOR | 0.73 | 0.73 | 0.73 | 0.73 |
| INSULATION CLASS | F | F | F | F |
| PROTECT CLASS | IP21S | IP21S | IP21S | IP21S |
| USABLE ELECTRODE(mm) | 0.6-0.8 | 0.6-0.8 | 0.6-1.0 | 0.6-1.0 |
| DIMENSION(mm) | 480*220*340 | 480*220*340 | 480*220*340 | 480*220*340 |
| WEIGHT(kg) |
10 |
10 |
11.4 |
11.4 |
Payment: T/T 30%in advance,70% after got the copy of the BL or LC at sight
1.FACTORY AERIAL VIEW
2.WORKSHOP AND OFFICE AREA
Q1: Are you a factory or trading company?
A: We are manufacturing factory.
Q2: Where is your factory located?
A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,
Wenling City, Zhejiang Province, China.
