4-12mm CNC tự động dây thép Bender/Sắt thép cây stirrup uốn máy cho Thái Lan/Nga/Israel
999
Đã bán
456.615.000đ
443.931.250đ ~ 456.615.000đ
456.615.000đ
443.931.250đ ~ 456.615.000đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
443.931.250đ
jFQEIpW7K2
Mô tả sản phẩm
Nơi xuất xứ: Shandong, ChinaNhãn hiệu: Shandong Jiaxin
Điều kiện: MớiVideo Gọi Đi-Kiểm Tra: Cung Cấp
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpTiếp Thị Loại: Sản Phẩm Mới 2020
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: PLC, Hộp Số, Động Cơ
Vật liệu / kim loại chế biến: Thép cacbonTự động hóa: Tự Động
Năm: 2020Trọng lượng (KG): 2733
Key Điểm Bán Hàng: Năng suất cao, tự độngBảo hành: 1 Năm
Động cơ Công Suất (kW): 31.5Áp dụng Các Ngành Công Nghiệp: Nhà Máy sản xuất, Xây dựng làm việc, Vật Liệu xây dựng Cửa Hàng
Phòng Trưng Bày Trí: Ý, Nước Pháp, Việt Nam, Indonesia, Không cóTên sản phẩm: Máy uốn CNC
Mô hình: WG-12BLoại: CNC
Đường kính uốn: 4-12m mChức năng: Uốn và cắt
Tốc độ uốn: 1100 [°/SN]Chế độ hoạt động: Điều khiển PLC
Điện áp: 3 pha 380V 50HzUốn Khoan Dung: ± 1 ° C
Góc uốn tối đa: 0 -180 ° C
Product Overview

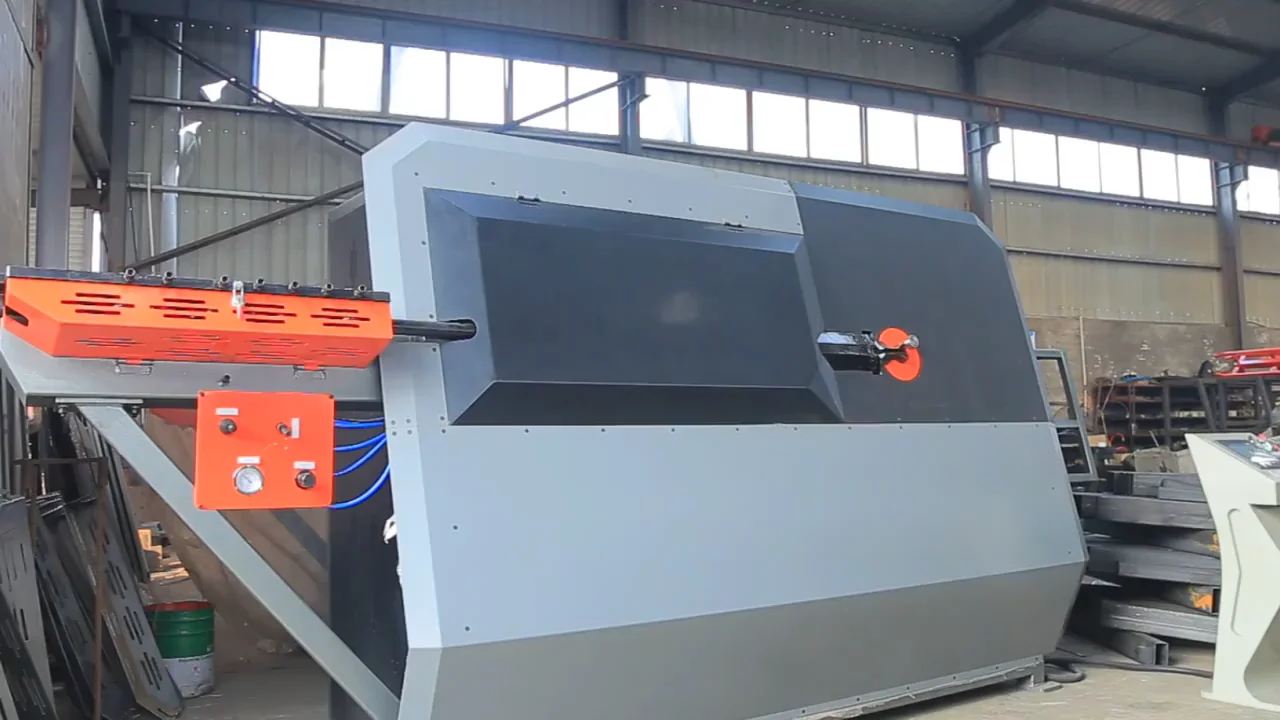

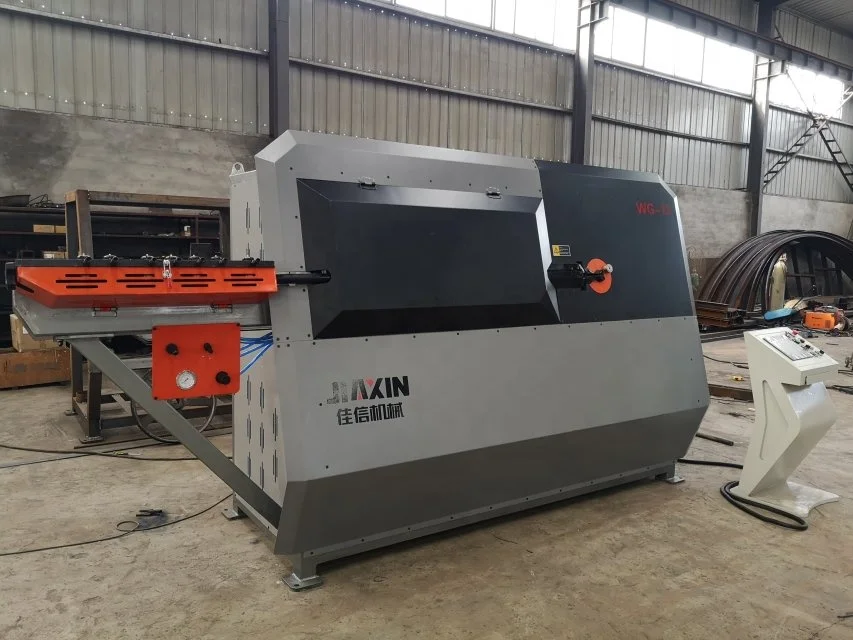

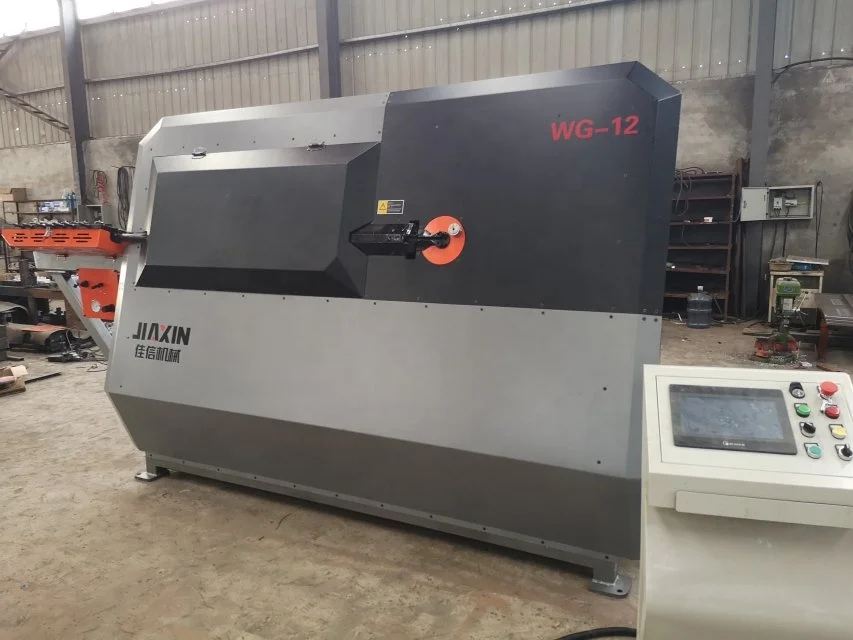

Automatic Rebar Bending Machine
The CNC steel bar bending machine integrates straightening, length measurement, bending, cutting, and counting. The whole machine has a compact and reasonable structure, simple operation, high production efficiency, and labor saving. This machine adopts a fully automatic microcomputer to control the servo drive motor, which has the advantages of fast speed, large force, accurate counting, and low failure.
◆ It can handle single-line &Phi6~12 (rebar &Phi6~12), double-line &Phi6~10 (rebar &Phi6~10) smooth round cold-rolled and hot-rolled steel bars and rebars
◆ Adopt CNC servo control system to realize fully automatic and uninterrupted bending forming process
◆ The perfect combination of steel bar straightening, sizing, bending, and cutting functions, while meeting the precision requirements of steel bar processing, truly realizing one machine with multiple functions
◆ The maximum production capacity is 1800 stirrups/hour, which is equivalent to the production efficiency of multiple workers while saving materials to the greatest extent
◆ Arbitrarily set the required processing size, a variety of graphics for you to choose at will
◆ It is composed of two sets of horizontal and vertical straightening wheels that can be adjusted automatically, combined with 4 traction wheels, driven by imported servo, to ensure the best accuracy of steel straightening
◆ The bending die and bending die adopt integral cast steel technology, which has good integrity and sufficient rigidity
◆ The lubricating oil adopts a centralized oil supply system, which avoids the drawbacks of separate oil injection for key parts.

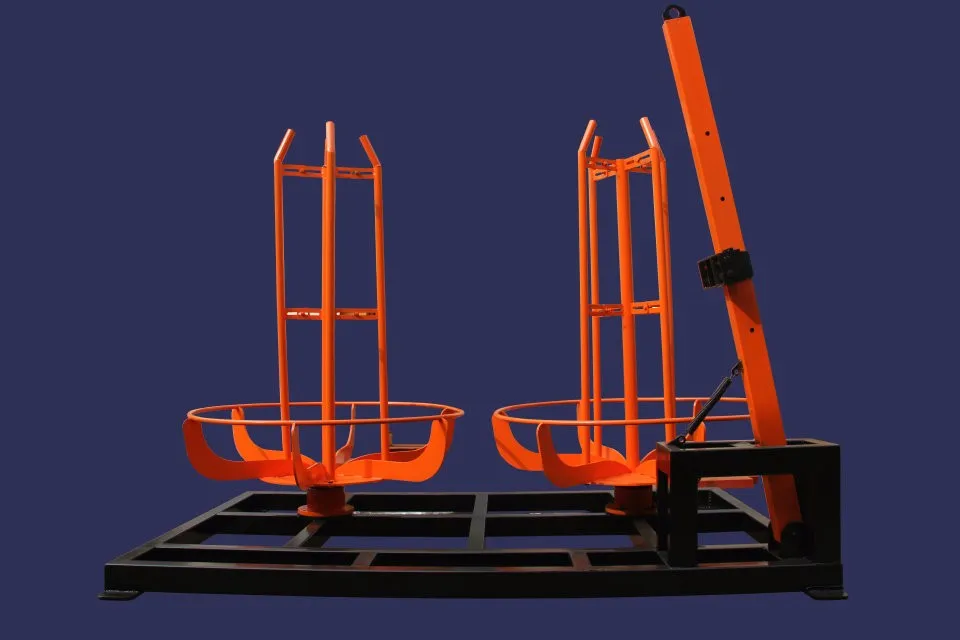

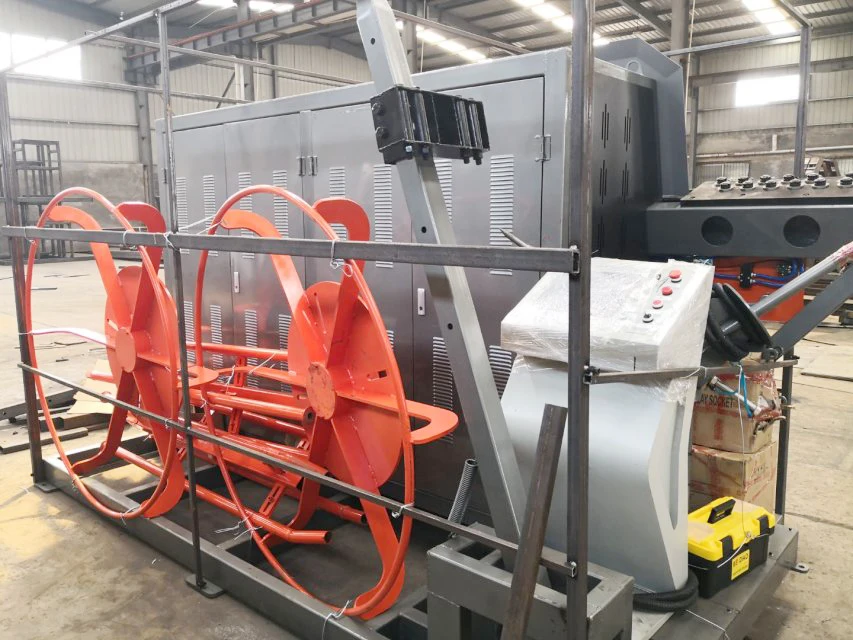

Pay-off Stand
Maximum carrying capacity 2,000Kg each.
1. Automatic braking system (pneumatic) and buffering system.
2. Emergency stop.
3. Inner diameter adjustable
PRODUCT SPECIFICATIONS
WG-12B CNC Steel Bar Stirrup Bending Machine | ||||
Production capacity | Single wire | &Phi4 &ndash 12 [mm] | ||
Double wire | &Phi4 &ndash 10 [mm] | |||
Max. bending angle | ±180° [double direction] | |||
Max. bending speed | 1100 [°/sec] | |||
Max. pulling speed | 2000 [mm/sec] | |||
Mandrel diameter | &Phi25 &ndash &Phi32 [mm] | |||
Stirrup side length | 70--1800[mm] | |||
Length tolerance | ± 1 [mm] | |||
Bending tolerance | ± 1° | |||
Average air-compressed consumption | 6 [l/min] | |||
Average electric power consumption | 6 [Kw/h] | |||
Labeled electric power | 28 [Kw] | |||
Voltage | 380 ±10%[v] - 50 [Hz] - 3[phase] | |||
Overall machine net weight | 2733 [Kg] | |||
Overall dimension（main machine） | 3040× 1400 × 2250 [mm] [L*W*H] | |||
Overall dimension（with package） | 3300*1650*2200[mm] [L*W*H] | |||
Remark | It needs to customize if for &Phi4&ndash12mm and &Phi4&ndash16mm diameter. | |||
Details Images

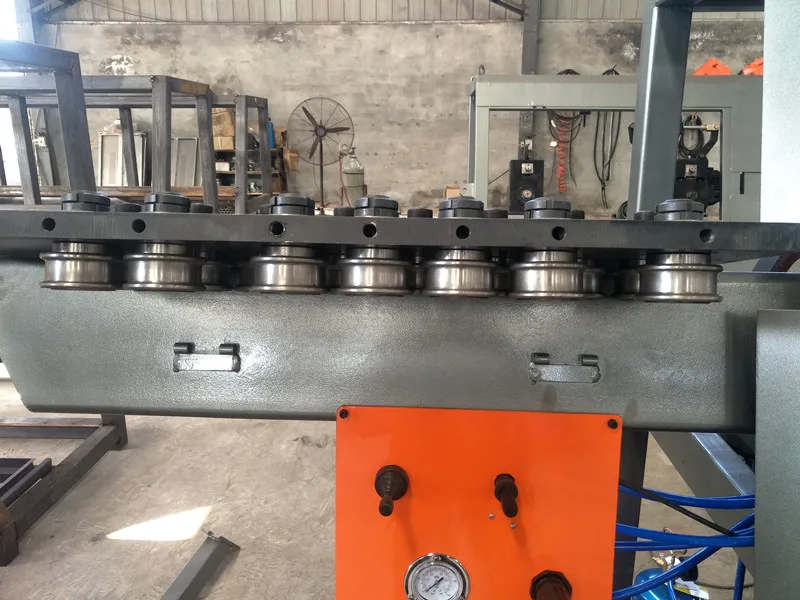

Wires Straightening rollers
Could impact wires aromatically, pneumatic impact wire.
Meter round
Adopt double wire and double wire feed automatically, with good straightening effect, it can also accurately remember the length of steel reinforcement.

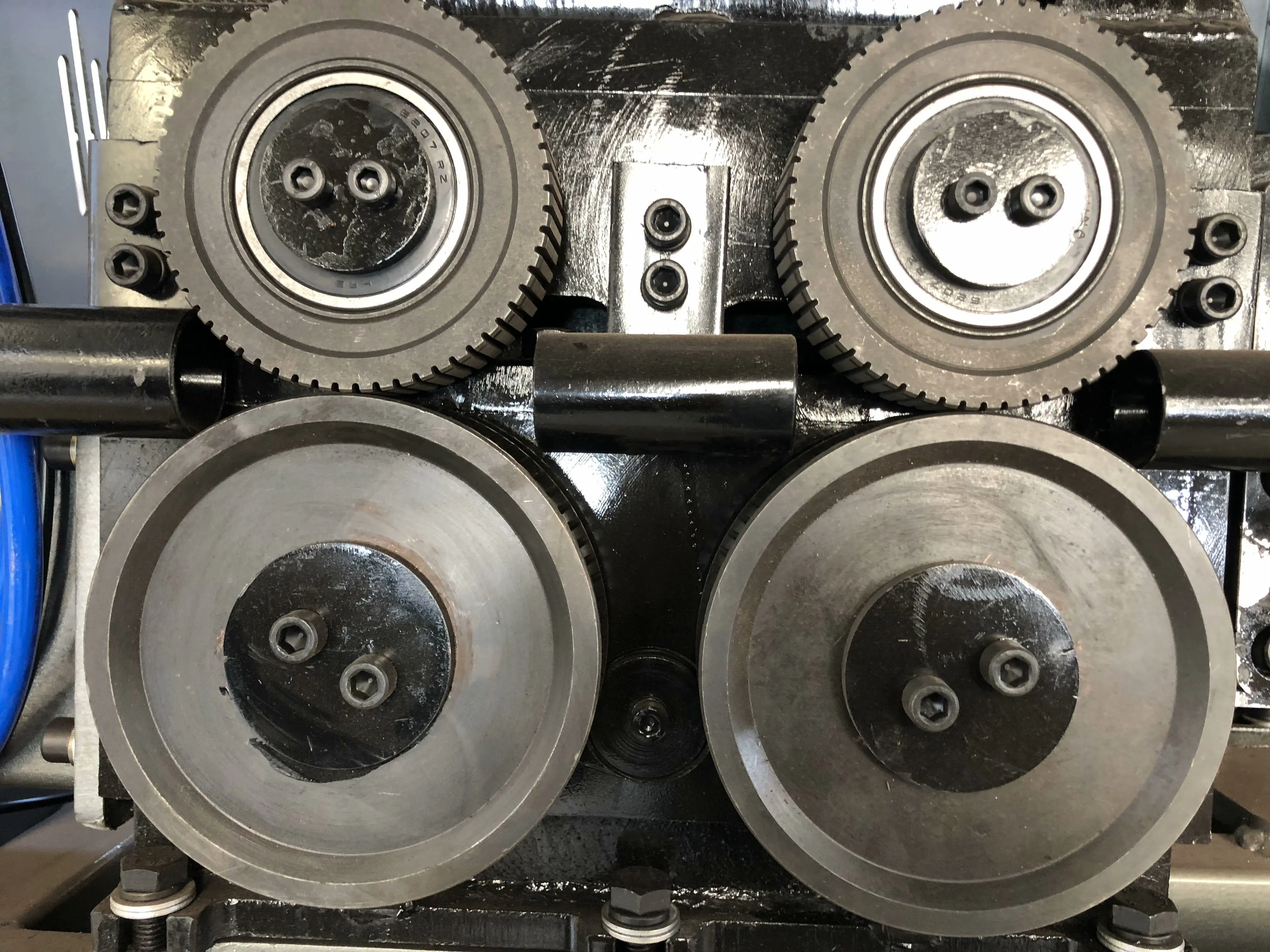

Traction wheel
Feeding device, memory feeding wheel, accurate.

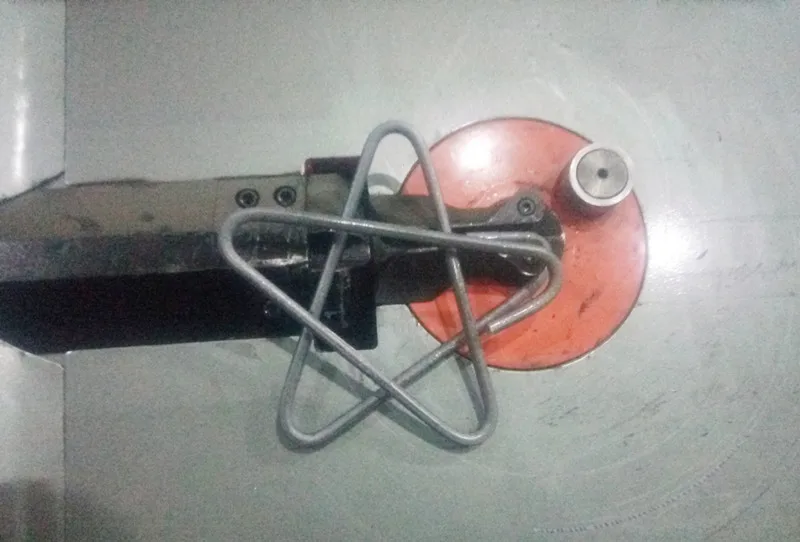

Bending axis
Driven by 7.5KW servo bending motor,
could bending ±180° and retractable and rotating smoothly.Bending axis could be replaced conveniently.

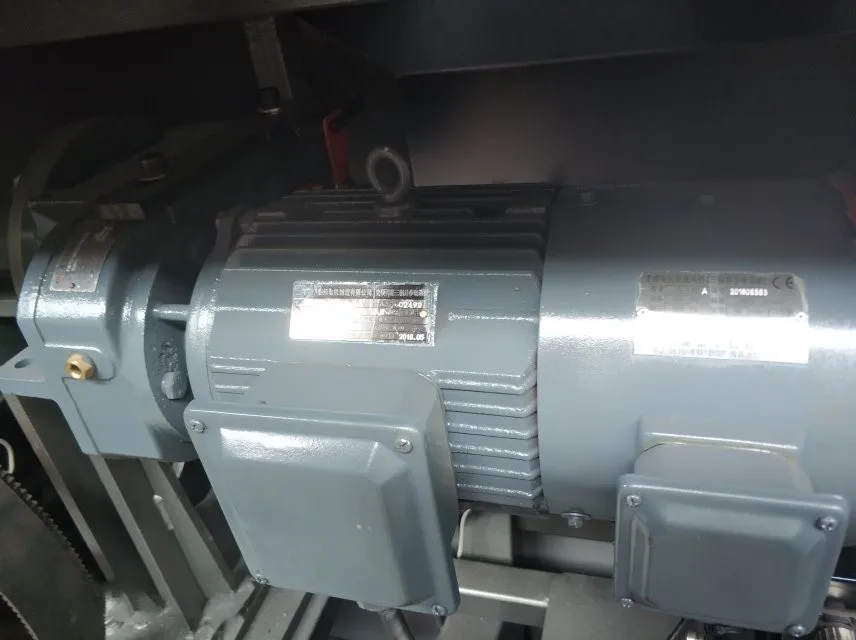

Bending servo motor: 7.5KW
Pulling servo motor: 18.1KW
Cutting motor: 3KW

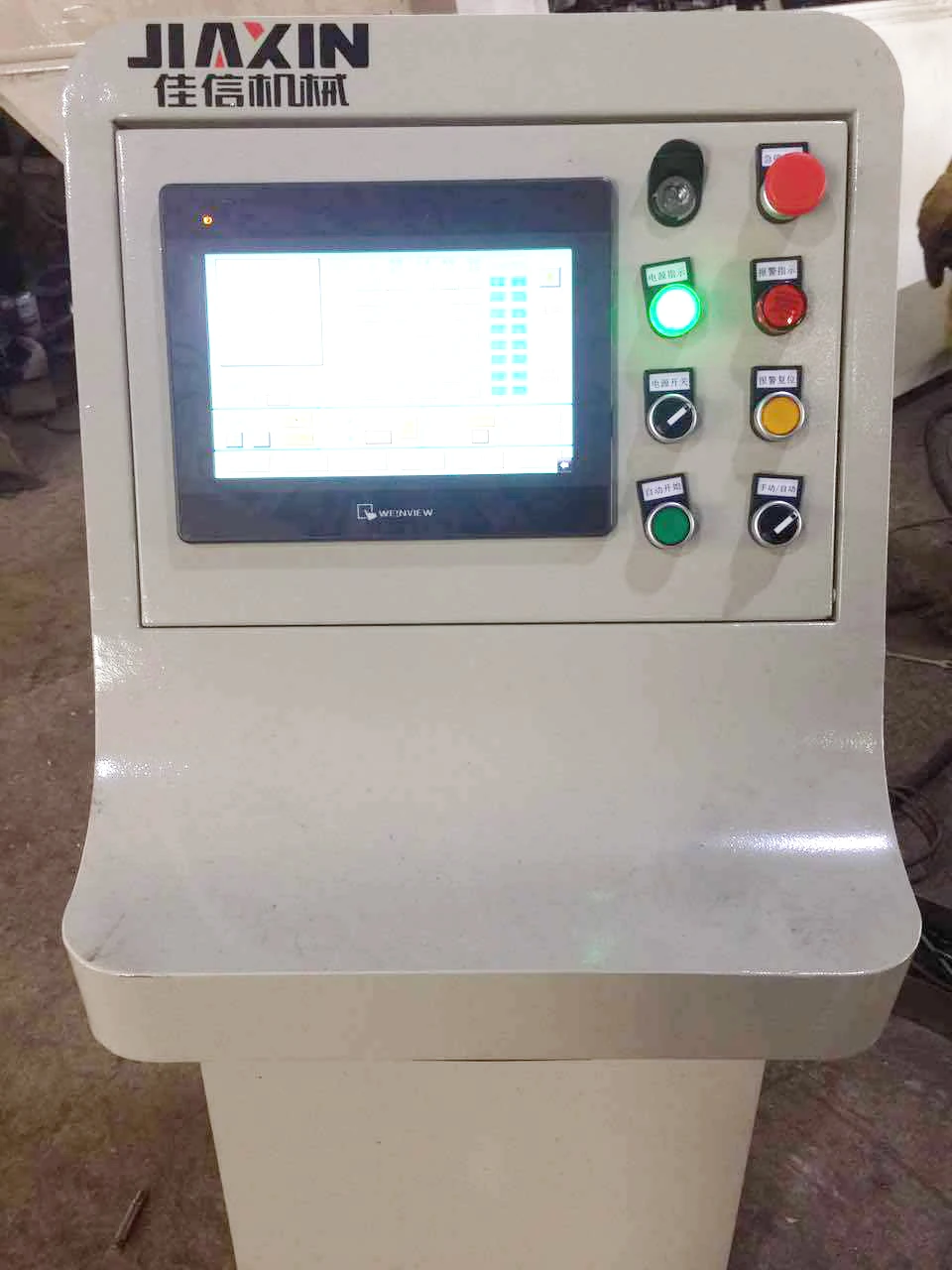

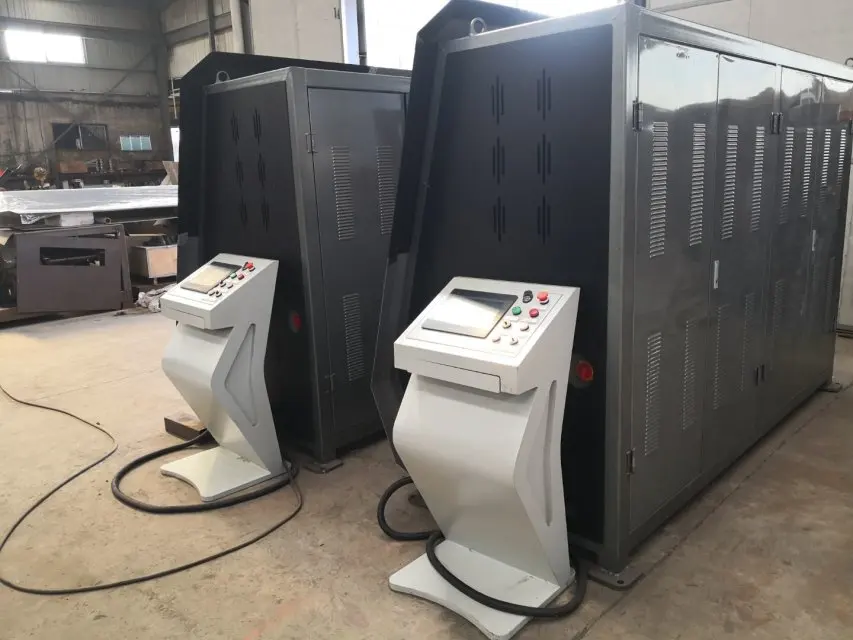

Control system
Professional Fatek PLC controller, with touchscreen. Support English operating.

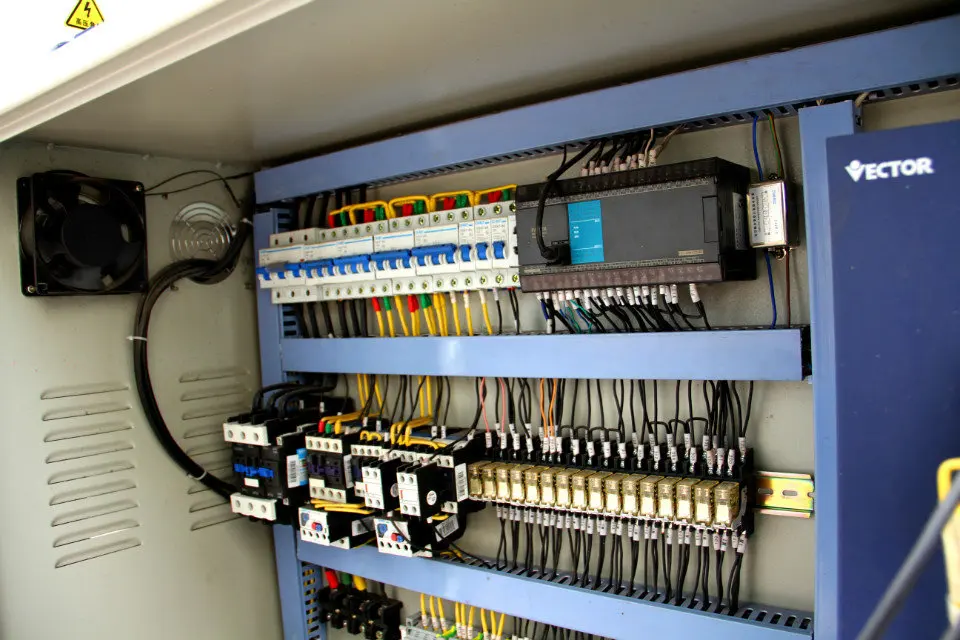

Electric control cabinet
Adopt high-quality brand electrical apparatus element in China, be sure its steady performance.

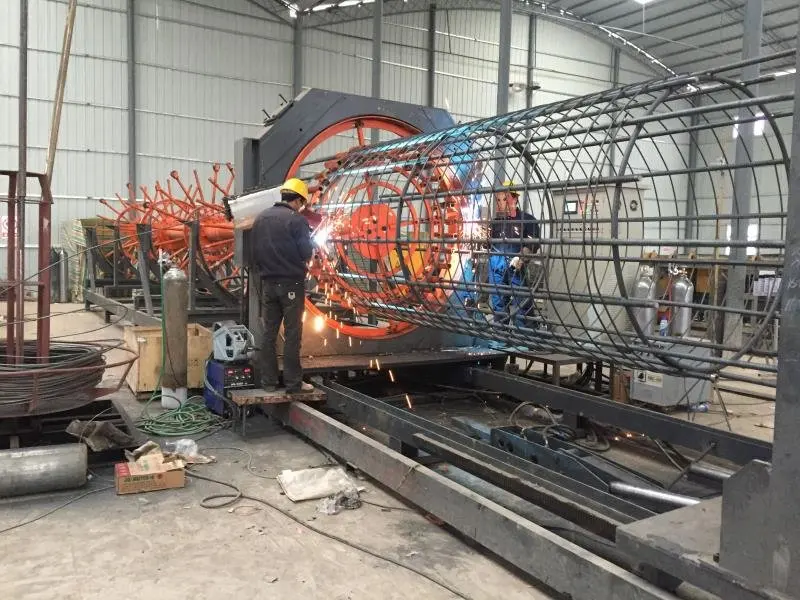

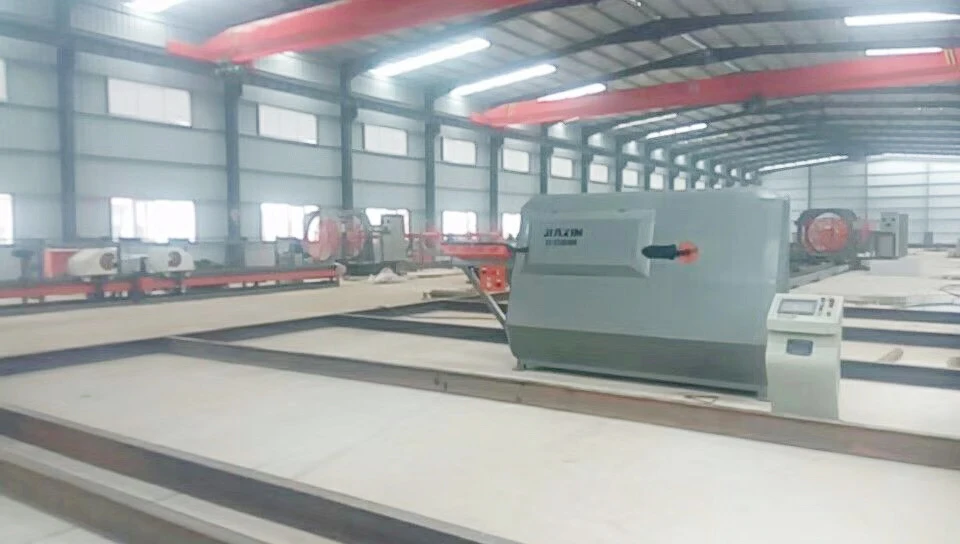

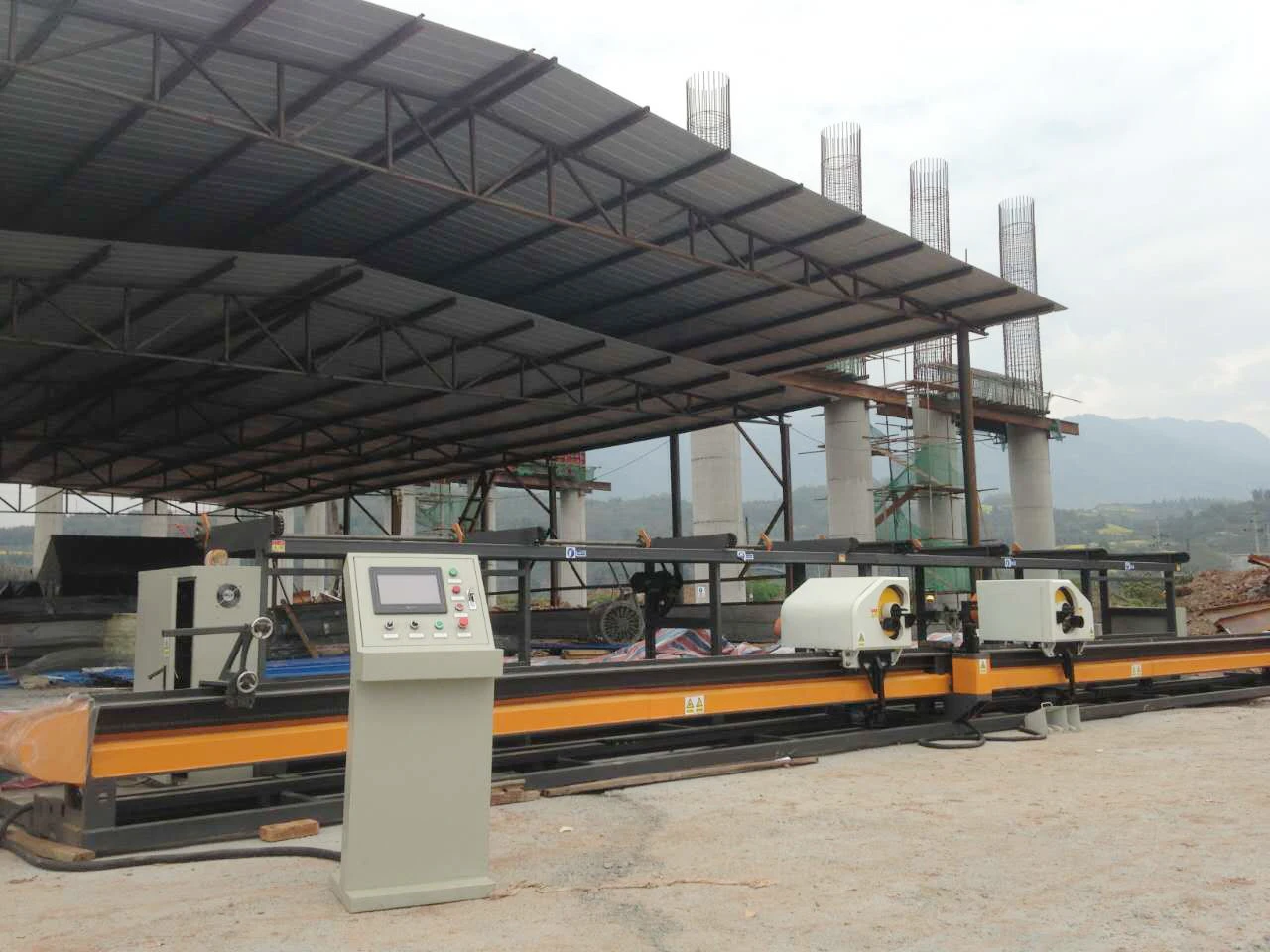

Working pictures
This CNC steel bar bending machine is mainly used for construction site, bridge construction, dam construction, reinforcement shop and so on.

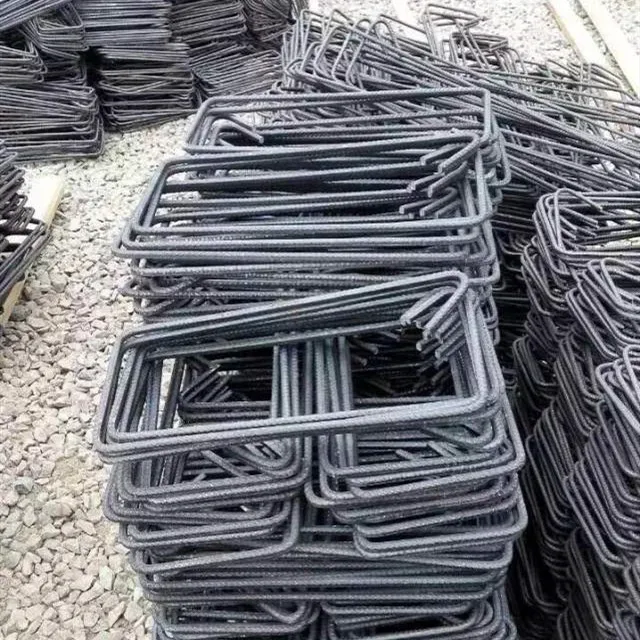

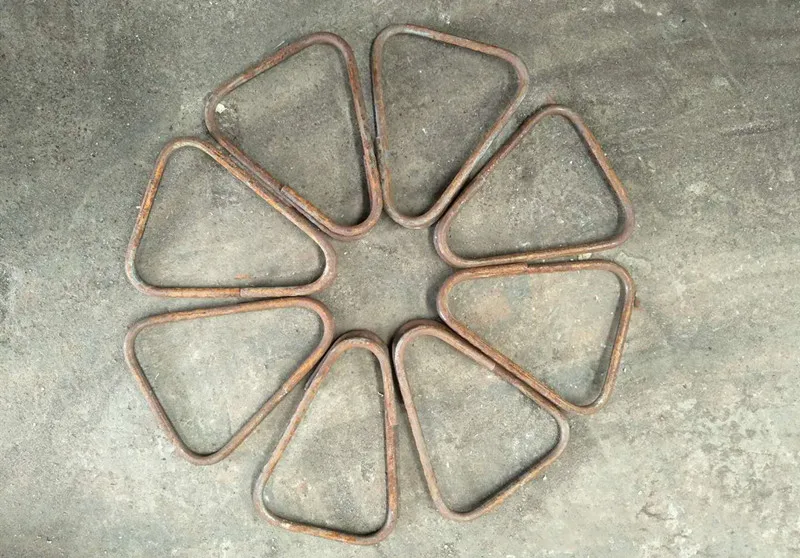

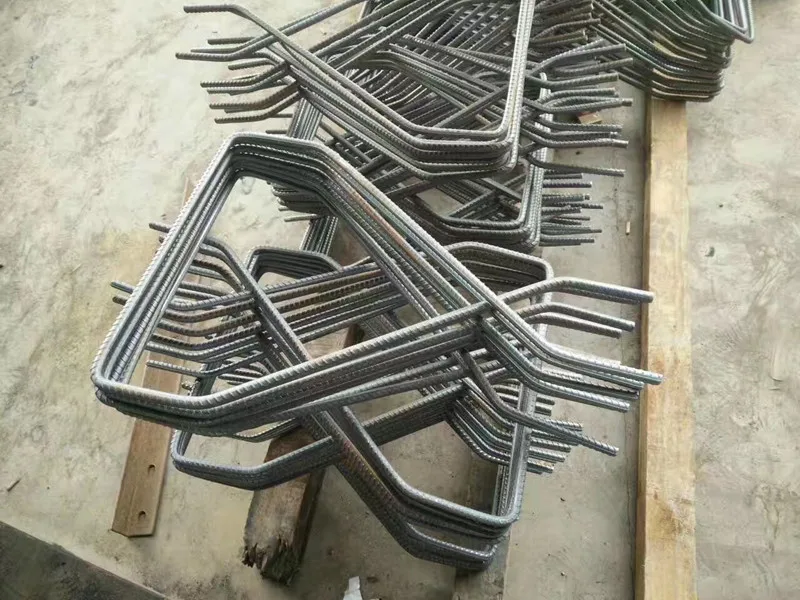

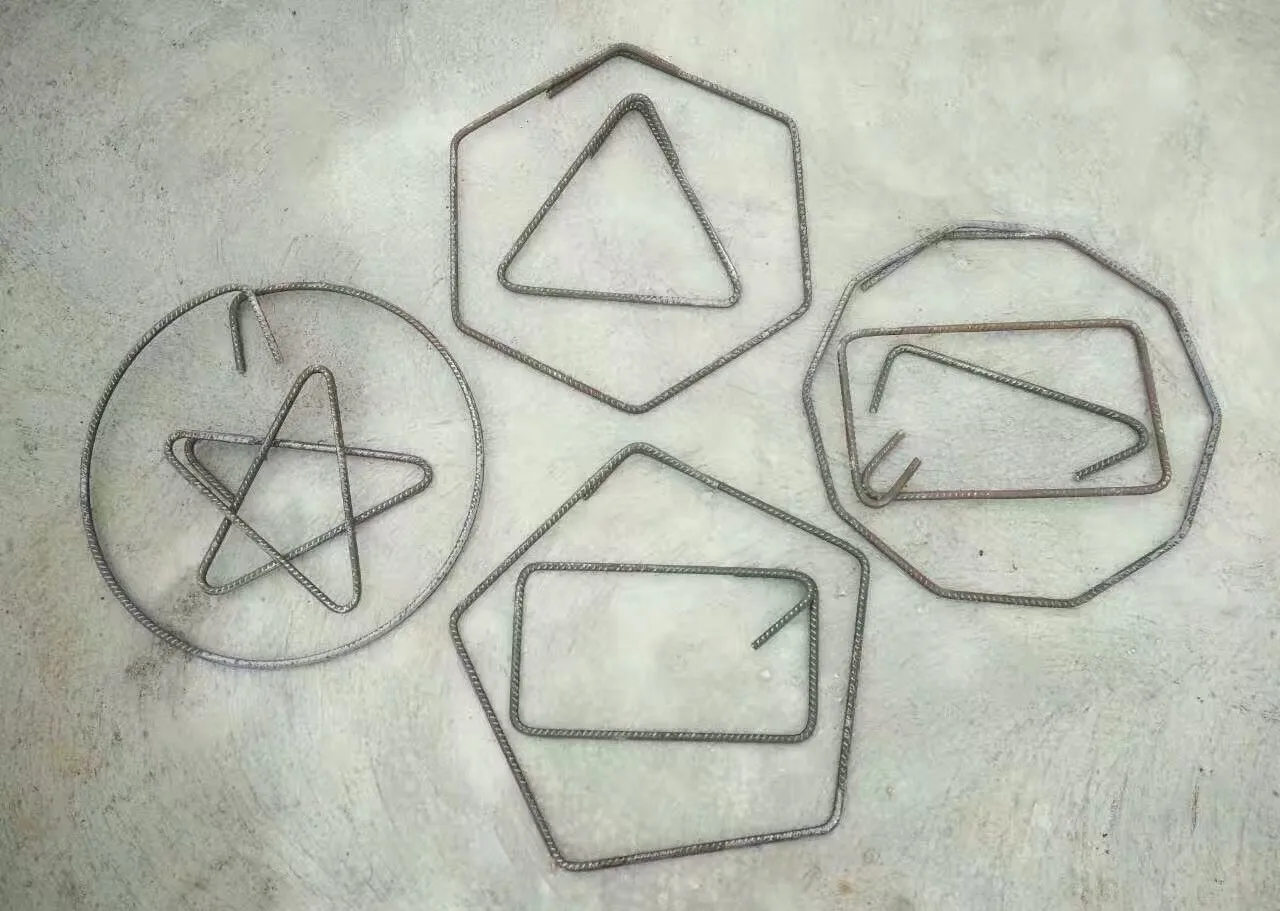

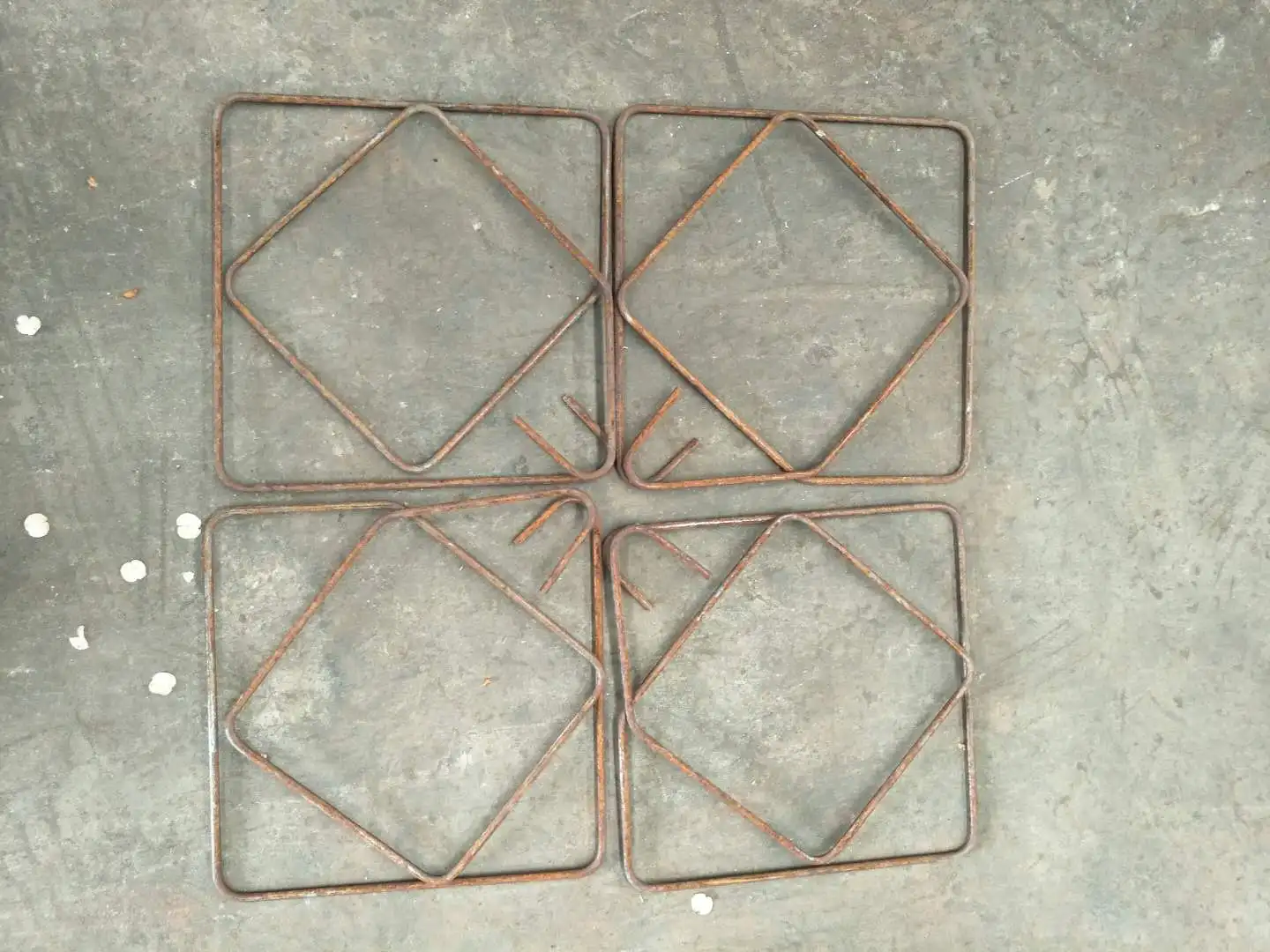

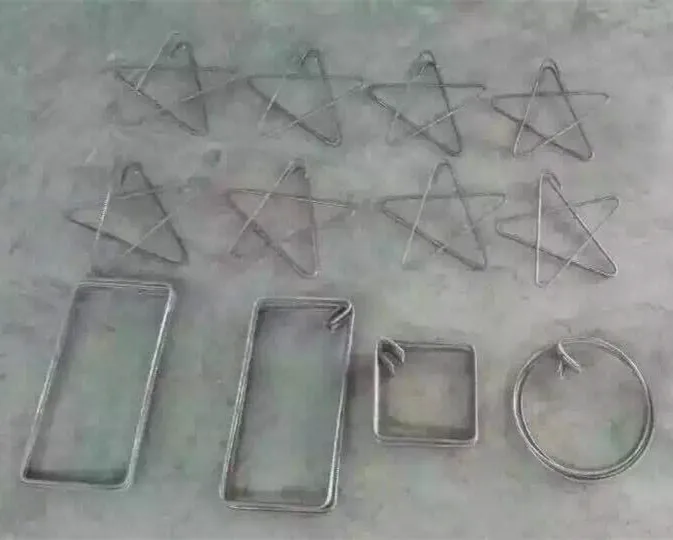

Finished Steel Products

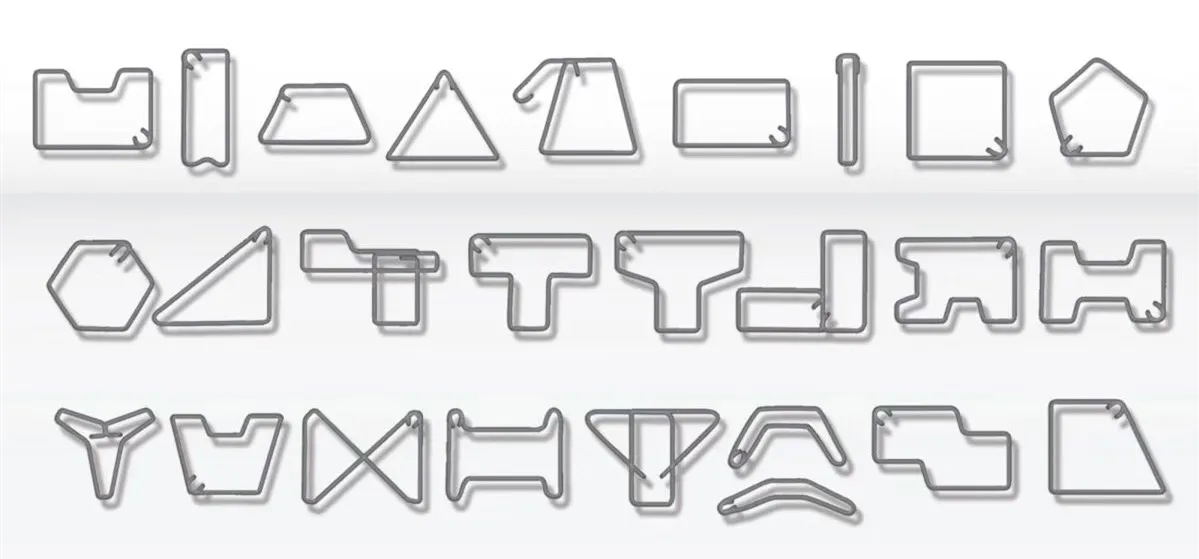

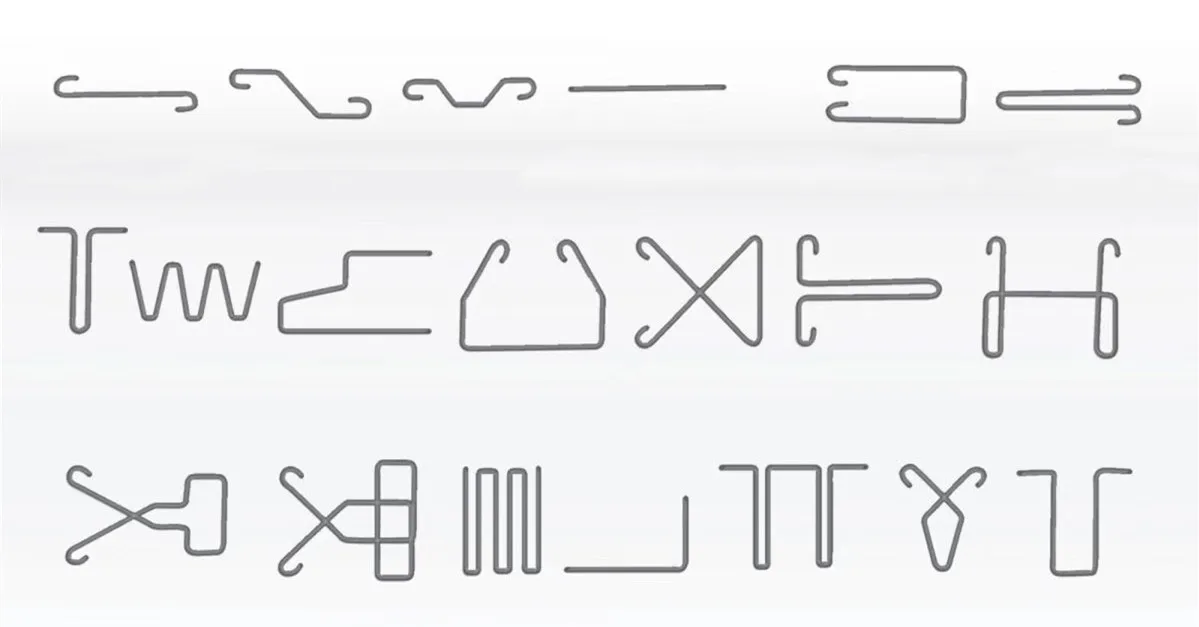

Optional graphics in system

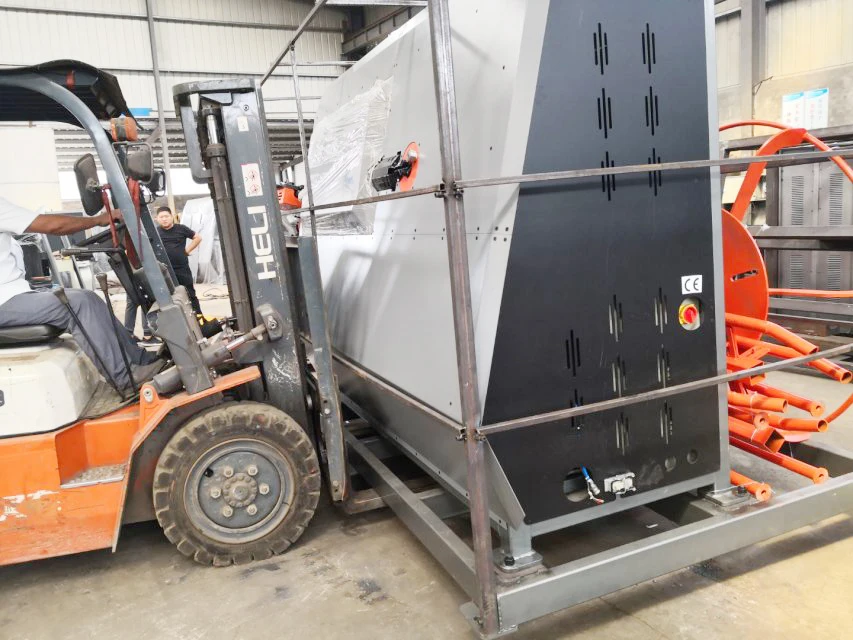

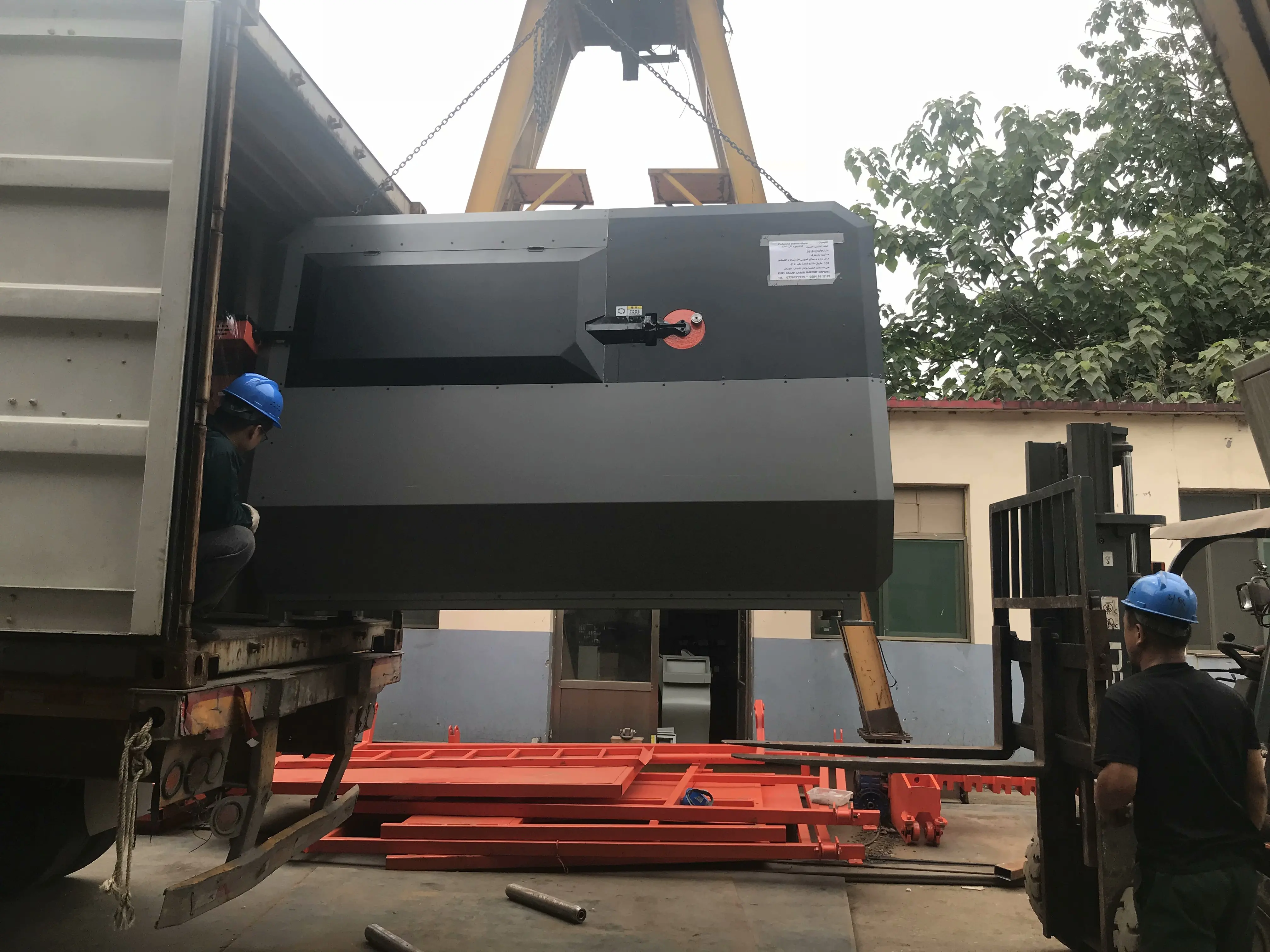

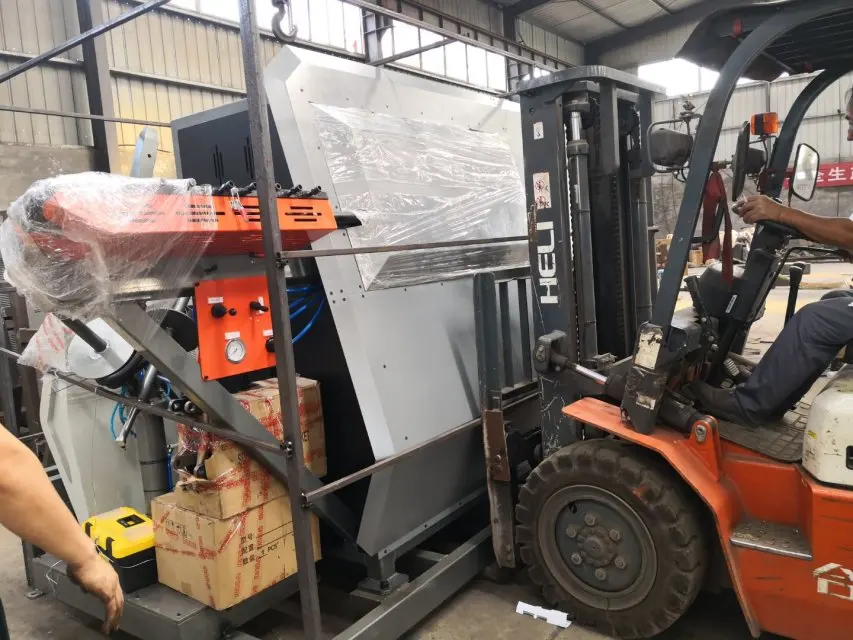

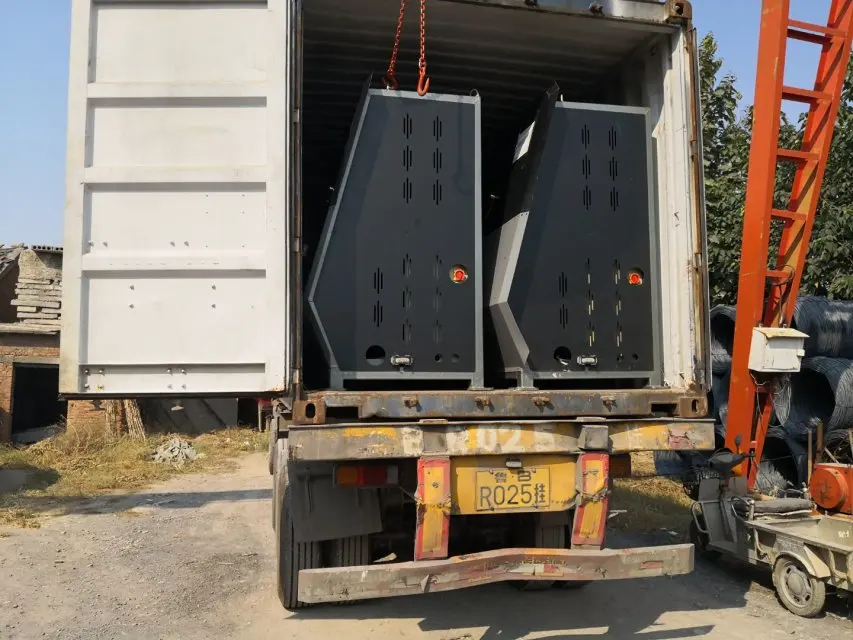

Packing and Delivery
Company Profile
Shandong Jiaxin Machinery Equipment Co.,Ltd., located in the hometown of Confucius and Mencius Jining City, northwest of excellent transport location for communication between businesses and customers to provide a great convenience and fast.
''Science and technology are primary productive forces'' continuous advancement of technology is the development of the etemal source of power. The factory after nearly two decades of development, from a roll mold factory into a large-scale production with a production of cold, hot-rolled steel processing equipment, CNC steel processing equipment, five series more than thirty kinds of products manufacturing enterprises.
We have always adhered to the ''integrty of management,quality first'' business philosophy customer for God's business objectives. Through a nationwide sales and service network, improve the pre-sale, service sincere coorperstion by providing quality products and efficient service for you.
Certifications
FAQ
Q: Are you a factory or trading company?
A: We are a manufacturer with export license, you could get factory price from us.
Q: Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China. All our clients, from home or abroad, are warmly welcomed to visit us!
Q: Can you do OEM?
A: Yes, we can do OEM products.
A: We are a manufacturer with export license, you could get factory price from us.
Q: Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China. All our clients, from home or abroad, are warmly welcomed to visit us!
Q: Can you do OEM?
A: Yes, we can do OEM products.
