60 80 100 Lưới 99.99% Tinh Khiết Bạc Dẫn Điện Dệt Dây Lưới Màn Hình
60 80 100 mesh 99.99% pure silver conductive woven wire mesh screen
| Specifications of sliver wire mesh | |||||
|
Mesh |
Wire Diameter |
Opening |
Opening |
||
|
inch |
mm |
inch |
mm |
Area % |
|
|
20 mesh |
0.014 |
0.35 |
0.036 |
0.91 |
51.8 |
|
20 mesh |
0.009 |
0.23 |
0.041 |
1.04 |
67.2 |
|
24 mesh |
0.014 |
0.35 |
0.028 |
0.71 |
44.2 |
|
28 mesh |
0.01 |
0.25 |
0.026 |
0.66 |
51.8 |
|
30 mesh |
0.011 |
0.28 |
0.022 |
0.55 |
44.8 |
|
30 mesh |
0.0065 |
0.16 |
0.027 |
0.68 |
64.8 |
|
35 mesh |
0.012 |
0.3 |
0.017' |
0.43 |
33.8 |
|
35 mesh |
0.01 |
0.25 |
0.019 |
0.48 |
42.4 |
|
40 mesh |
0.01 |
0.25 |
0.015 |
0.38 |
36 |
|
40 mesh |
0.0095 |
0.24 |
0.016 |
0.4 |
38.4 |
|
50 mesh |
0.009 |
0.23 |
0.011 |
0.28 |
30.3 |
|
50 mesh |
0.008 |
0.20 |
0.012 |
0.3 |
36 |
|
60 mesh |
0.0075 |
0.19 |
0.009 |
0.22 |
30.5 |
|
60 mesh |
0.0059 |
0.15 |
0.011 |
0.28 |
40.2 |

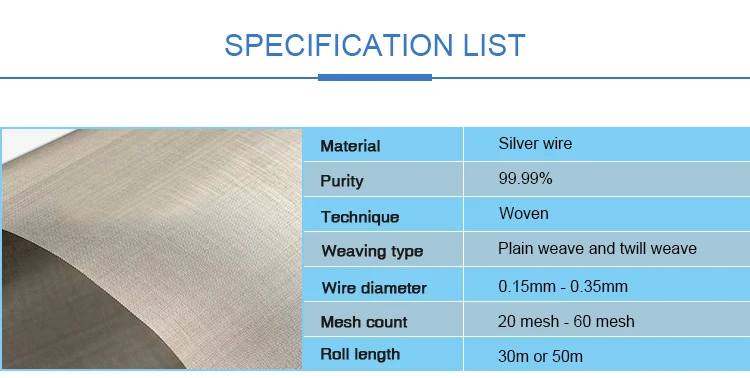

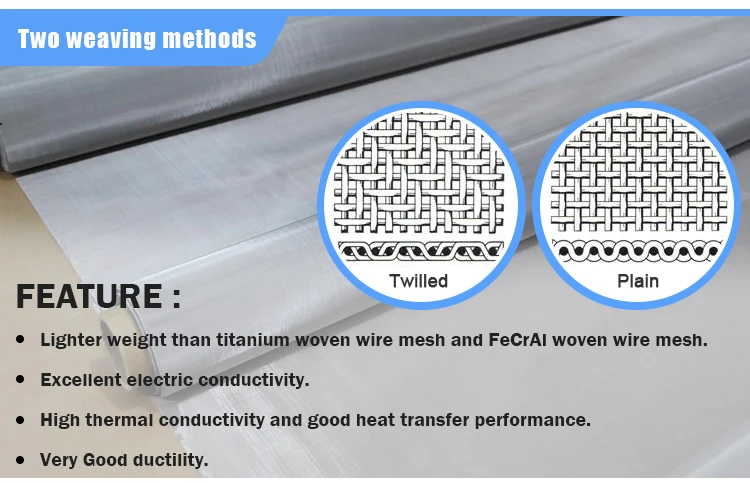

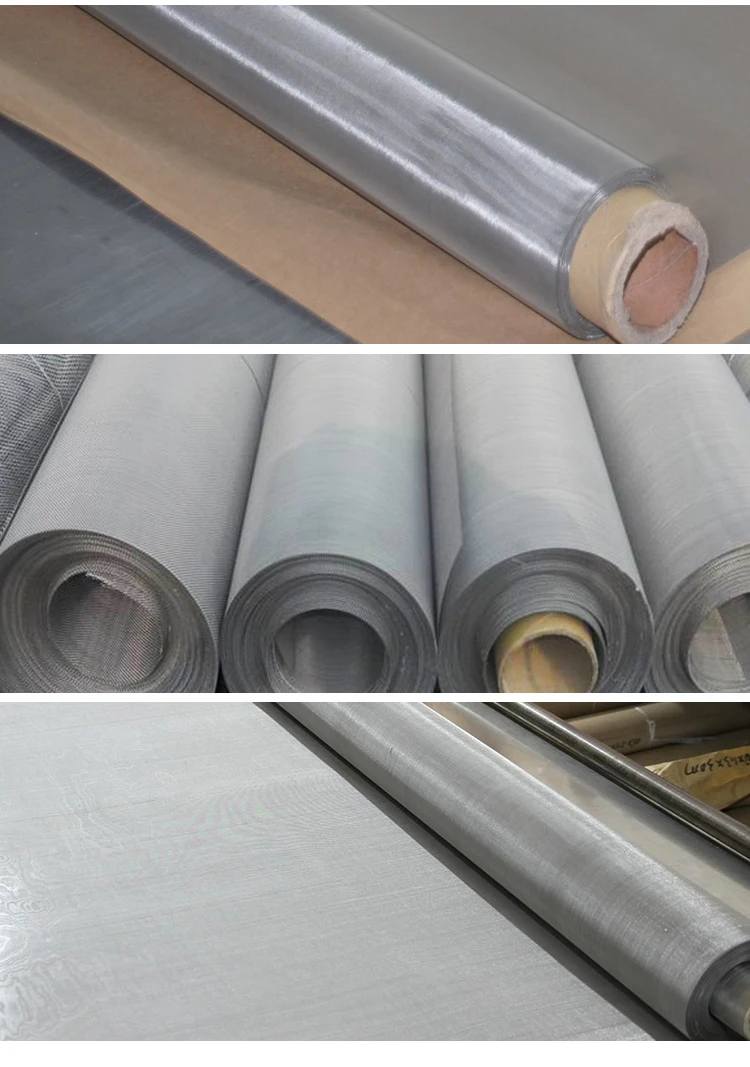

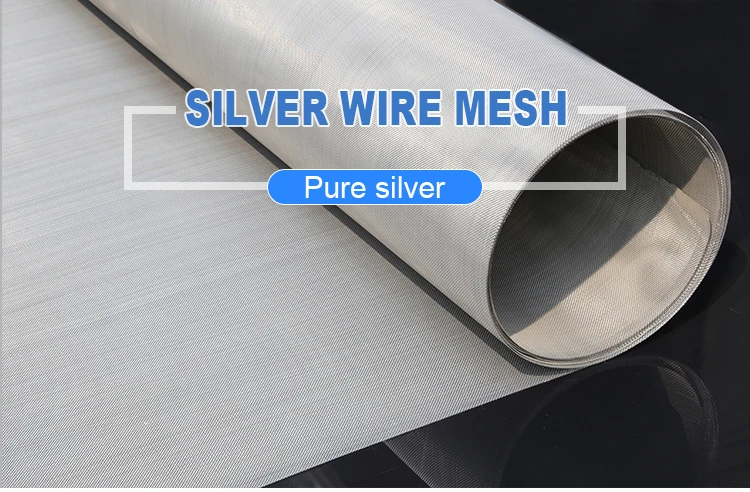

Silver wire mesh is manufactured from high quality pure silver wire,It&rsquos also called silver mesh, silver wire mesh, pure silver mesh, pure silver woven wire mesh,etc. The silver mesh is weaved through plain weave and twill weave into square meshes.

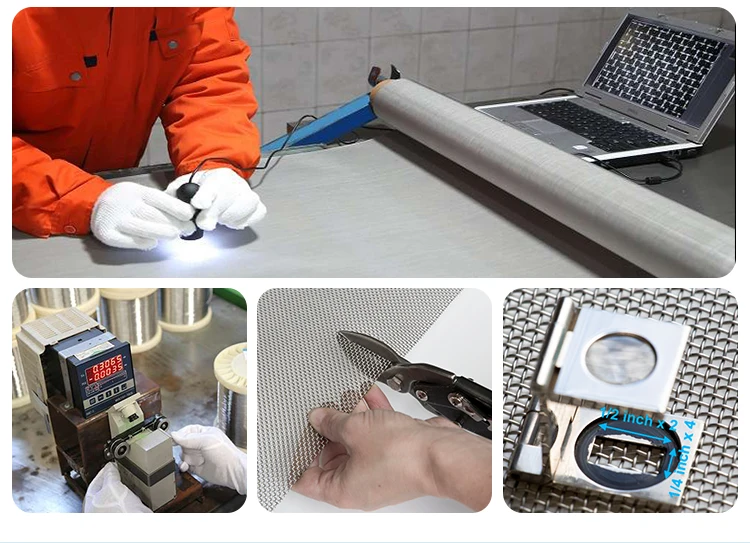

We have professional inspection team to inspect the mesh quality ,before the delivery, the material,mesh counts,wire diameter and other items of the product are tested,our products guarantee the quality.

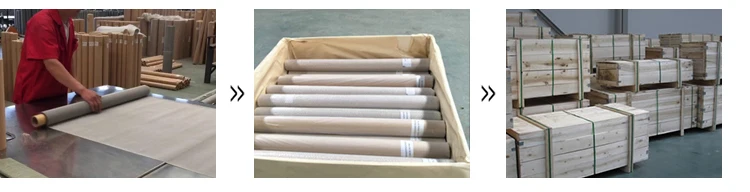

Packing detail:
Inside the roll with paper tube to reduce the pressure while loading then wrapped with plastic film as well as woven bag on the finished roll, final loaded in the strong wooden case.
Shipping:
we arrange the shipping according to Your quantity ,and make sure the product arrive at you safely.
1. If your quantity is small, like 5-100kgs, we advice international express, which is fast and convenient.
2.If your quantity is between 100-300kgs weight parcel, we advice air cargo.
3.If your quantity is for big volume and amount goods, sea cargo will be most favorable choice.
Q:What does the wire mesh price depend on ?
A:Pricing for wire mesh depend on many factors,such as wire diameter,mesh counts, weight per rolls,etc,If the specification is definite, then the price upon quantity required, Generally speaking, the quantity is larger ,the price is better. The most common way pricing is provided is by the square foot or square meter(depend on your routine).
Q:The wire mesh can be customized manufactured?
A:Yes,of course ,my friend, all the specification on this page we all can produce ,what's more,we can also produce according to your given specification .
Q:Is shipping included in the price?
A:Unless otherwise stated, pricing does not include shipping costs. As a rule, when pricing is provided, delivery is considered FOB Origin.
Q:If I want a sample ,what should I do ?
A:Sample is no problem for us, you can tell us directly ,we are able to offer samples for items readily available from stock. If your samples for non-stock, custom manufactured, or items sold only in full 100FT rolls may not be available to purchase as a sample. This is unable to accept returns for sample orders.
Q:I can&rsquot buy that big quantity ,so how about your MOQ order?
A:We do our best to maintain one of the lowest minimum order amounts in the industry. Our low minimum order is ideal for research and development projects, prototypes and small quantity requirement.
60 80 100 mesh 99.99% pure silver conductive woven wire mesh screen
| Specifications of sliver wire mesh | |||||
|
Mesh |
Wire Diameter |
Opening |
Opening |
||
|
inch |
mm |
inch |
mm |
Area % |
|
|
20 mesh |
0.014 |
0.35 |
0.036 |
0.91 |
51.8 |
|
20 mesh |
0.009 |
0.23 |
0.041 |
1.04 |
67.2 |
|
24 mesh |
0.014 |
0.35 |
0.028 |
0.71 |
44.2 |
|
28 mesh |
0.01 |
0.25 |
0.026 |
0.66 |
51.8 |
|
30 mesh |
0.011 |
0.28 |
0.022 |
0.55 |
44.8 |
|
30 mesh |
0.0065 |
0.16 |
0.027 |
0.68 |
64.8 |
|
35 mesh |
0.012 |
0.3 |
0.017' |
0.43 |
33.8 |
|
35 mesh |
0.01 |
0.25 |
0.019 |
0.48 |
42.4 |
|
40 mesh |
0.01 |
0.25 |
0.015 |
0.38 |
36 |
|
40 mesh |
0.0095 |
0.24 |
0.016 |
0.4 |
38.4 |
|
50 mesh |
0.009 |
0.23 |
0.011 |
0.28 |
30.3 |
|
50 mesh |
0.008 |
0.20 |
0.012 |
0.3 |
36 |
|
60 mesh |
0.0075 |
0.19 |
0.009 |
0.22 |
30.5 |
|
60 mesh |
0.0059 |
0.15 |
0.011 |
0.28 |
40.2 |
Silver wire mesh is manufactured from high quality pure silver wire,It&rsquos also called silver mesh, silver wire mesh, pure silver mesh, pure silver woven wire mesh,etc. The silver mesh is weaved through plain weave and twill weave into square meshes.
We have professional inspection team to inspect the mesh quality ,before the delivery, the material,mesh counts,wire diameter and other items of the product are tested,our products guarantee the quality.
Packing detail:
Inside the roll with paper tube to reduce the pressure while loading then wrapped with plastic film as well as woven bag on the finished roll, final loaded in the strong wooden case.
Shipping:
we arrange the shipping according to Your quantity ,and make sure the product arrive at you safely.
1. If your quantity is small, like 5-100kgs, we advice international express, which is fast and convenient.
2.If your quantity is between 100-300kgs weight parcel, we advice air cargo.
3.If your quantity is for big volume and amount goods, sea cargo will be most favorable choice.
Q:What does the wire mesh price depend on ?
A:Pricing for wire mesh depend on many factors,such as wire diameter,mesh counts, weight per rolls,etc,If the specification is definite, then the price upon quantity required, Generally speaking, the quantity is larger ,the price is better. The most common way pricing is provided is by the square foot or square meter(depend on your routine).
Q:The wire mesh can be customized manufactured?
A:Yes,of course ,my friend, all the specification on this page we all can produce ,what's more,we can also produce according to your given specification .
Q:Is shipping included in the price?
A:Unless otherwise stated, pricing does not include shipping costs. As a rule, when pricing is provided, delivery is considered FOB Origin.
Q:If I want a sample ,what should I do ?
A:Sample is no problem for us, you can tell us directly ,we are able to offer samples for items readily available from stock. If your samples for non-stock, custom manufactured, or items sold only in full 100FT rolls may not be available to purchase as a sample. This is unable to accept returns for sample orders.
Q:I can&rsquot buy that big quantity ,so how about your MOQ order?
A:We do our best to maintain one of the lowest minimum order amounts in the industry. Our low minimum order is ideal for research and development projects, prototypes and small quantity requirement.
