1) Including various types of processing parameters to meet the needs of different processes.
2) Flame and Plasma are separated in the control IO ports.
3) Support THC(Torch Height Control), two-level preheat, three-level pierce in flame mode.
4) Plasma arc feedback, positioning feedback, automatically shut down the arc at the corner.
5) Built-in plasma arc auto/manual turn high function: display actual arc pressure and set arc pressure, set THC parameter, check for collision/position successful signal, control arcing signal, check for location.
6) Plasma arc controlling supports two close arc THC ways of speed and distance to make the machine more stable and safer.
Bàn Cắt Plasma Cnc Máy Cắt Plasma Cnc Máy Cắt Plasma Kim Loại Tấm Cnc
5
999
Đã bán
76.102.500đ
71.029.000đ ~ 76.102.500đ
Kích thước: 1500x3000Loại động cơ: Động cơ bước
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: JIAXINSố Mô Hình: JX-1530
Điện áp: 3 pha 380VCông suất: 8.5kW
Kích thước (L * W * H): 3000x1500x1000Trọng lượng (KG): 800 KG
Năm: 2023Bảo hành: 1 Năm
Key Điểm Bán Hàng: Tự ĐộngÁp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Các trang trại, Xây dựng làm việc, Công Ty quảng cáo, Công nghiệp chế biến kim loại
Phòng Trưng Bày Trí: Việt Nam, Thái Lan, Colombia, Romania, Malaysia, ÚcTiếp Thị Loại: 2023 sản phẩm nóng
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ
Độ dày cắt: 0.5-15m mTần số điện: 50Hz
Công suất Plasma: 60A hoặc 100ATốc độ cắt: 0-8000mm/phút
Chuyển tập tin: Giao diện USBVòng cung: Hồ quang không bị ảnh hưởng nổi bật
Vật liệu chế biến: Sắt, thép tấm nhôm, mạ kẽm shieets, tấm TitanSau bán hàng dịch vụ cung cấp: Phụ tùng miễn phí
Sau khi dịch vụ bảo hành: Hỗ trợ trực tuyến

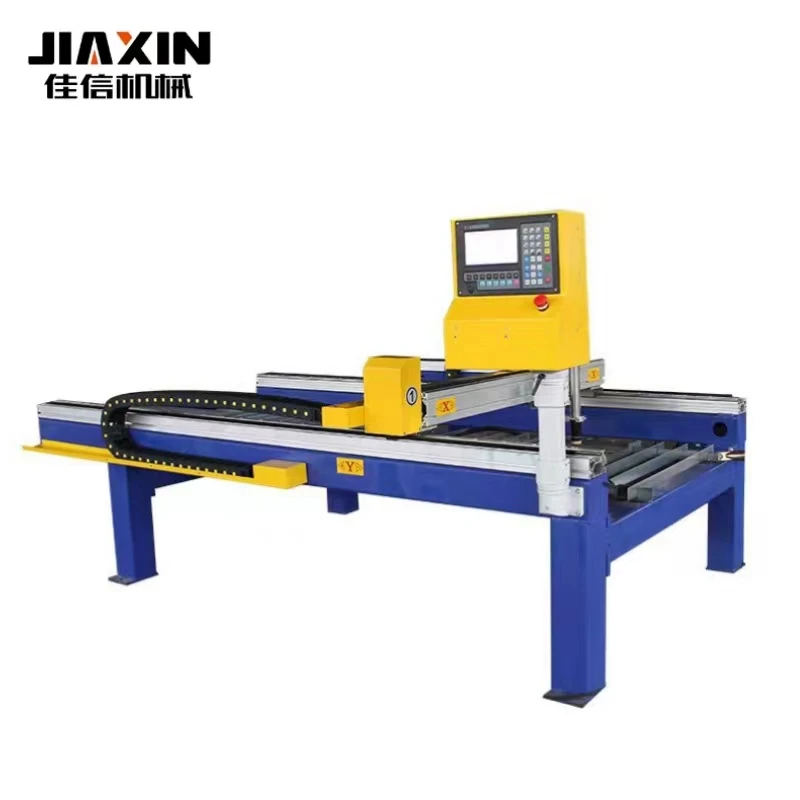

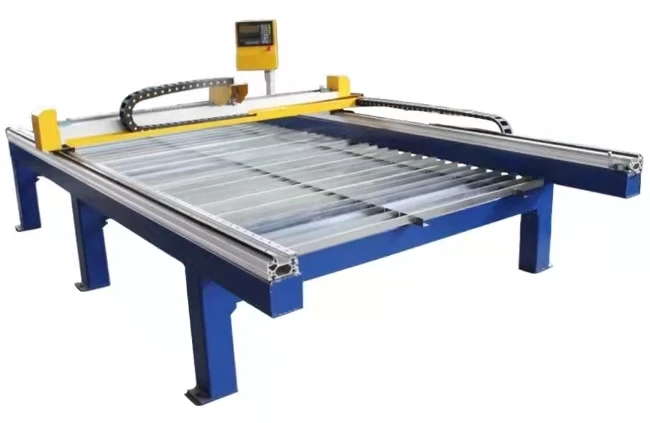

Product Overview
TABLE PLASMA CUTTING MACHINE INSTRUCTION
TABLE CNC plasma/flame cutting system can cut any flat shape parts composed of straight lines and arcs. The graphic is static and
dynamic, easy to learn, can be programmed directly on the machine, or can be drawn on a computer or attached by using a ready-made
CAD file. The gifted software is directly converted into a G code program file, and is automatically cut by copying it to the
operating system through a USB flash drive.
TABLE gantry type double-sided drive structure, exquisite system structure, high degree of automation, simple operation,
convenient maintenance, high reliability, easy cutting from sheet metal to large thickness steel plate, the product is widely used
in metal sheet cutting in various manufacturing fields. The cutting process can cut carbon steel, stainless steel, alloy steel,
aluminum and other non-ferrous metal sheets.
dynamic, easy to learn, can be programmed directly on the machine, or can be drawn on a computer or attached by using a ready-made
CAD file. The gifted software is directly converted into a G code program file, and is automatically cut by copying it to the
operating system through a USB flash drive.
TABLE gantry type double-sided drive structure, exquisite system structure, high degree of automation, simple operation,
convenient maintenance, high reliability, easy cutting from sheet metal to large thickness steel plate, the product is widely used
in metal sheet cutting in various manufacturing fields. The cutting process can cut carbon steel, stainless steel, alloy steel,
aluminum and other non-ferrous metal sheets.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
Product Description
Cutting area | 1200*1200mm 1500*3000mm or customize |
Cutting mode | Plasma cutting |
Cutting thickness | 1-40mm |
Voltage | 220V 50/60HZ |
Motor | Stepper motor |
Controller | StartShaphon brand |
- Machine can cut any flat shape parts composed of straight lines and arcs.
2.The graphic is static and dynamic, easy to learn, can be programmed directly on the machine, or can be drawn on a computer or attached by using a ready-made CAD file. The gifted software is directly converted into a G code program file, and is automatically cut by copying it to the operating system through a USB flash drive.
3.Advantage: single-side driving structure, exquisite system structure ,high degree of automation, simple operation, convenient maintenance, easy cutting from sheet metal to large thickness steel plate.
4.Application: machine can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal sheets.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Effective cutting area | 1500*3000mm |
2 | Lifer range | 120 mm |
3 | Working speed | 0-6000mm/min |
4 | Cutting thickness | According to plasma power source |
5 | Intersection offset | ±1.0mm |
6 | Straightness | ±0.5mm |
7 | Roundness | ±1.0mm |
8 | Diagonal error | ±1.0mm |
9 | Repeatability | ±0.5mm |
10 | Machine marking accuracy | ≦0.5mm |
11 | Motor and driver | 3 sets Leadshine motor and driver |
12 | Controller | Fangling F2100T |
13 | Cutting mode | Plasma and Flame |
14 | Software | STARCAM or FASTCAM |

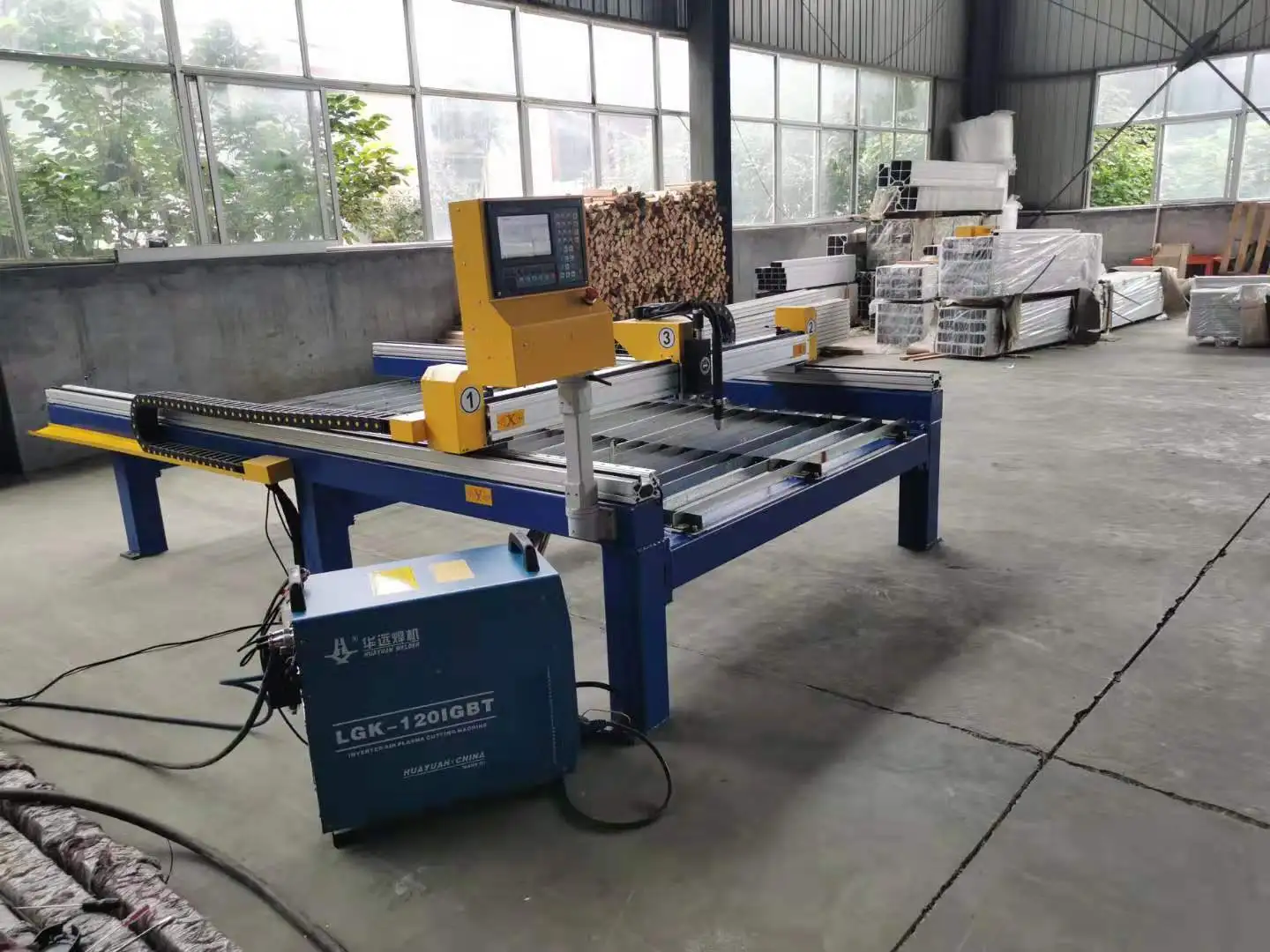

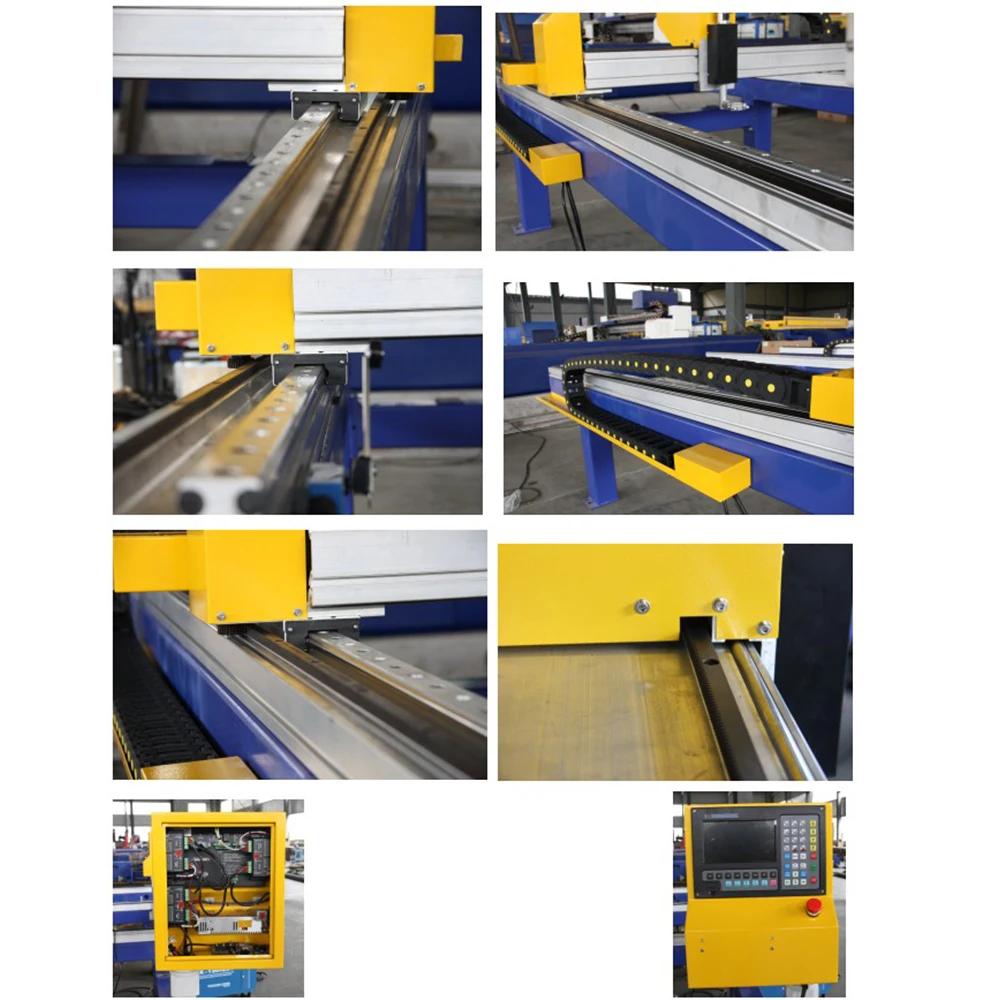

Detailed Images
PRODUCT CONFIGURATION

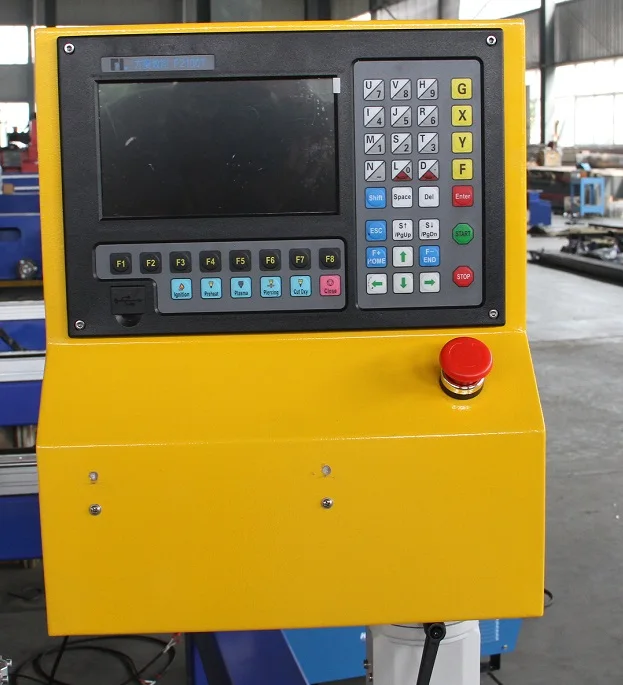

F2100T controller

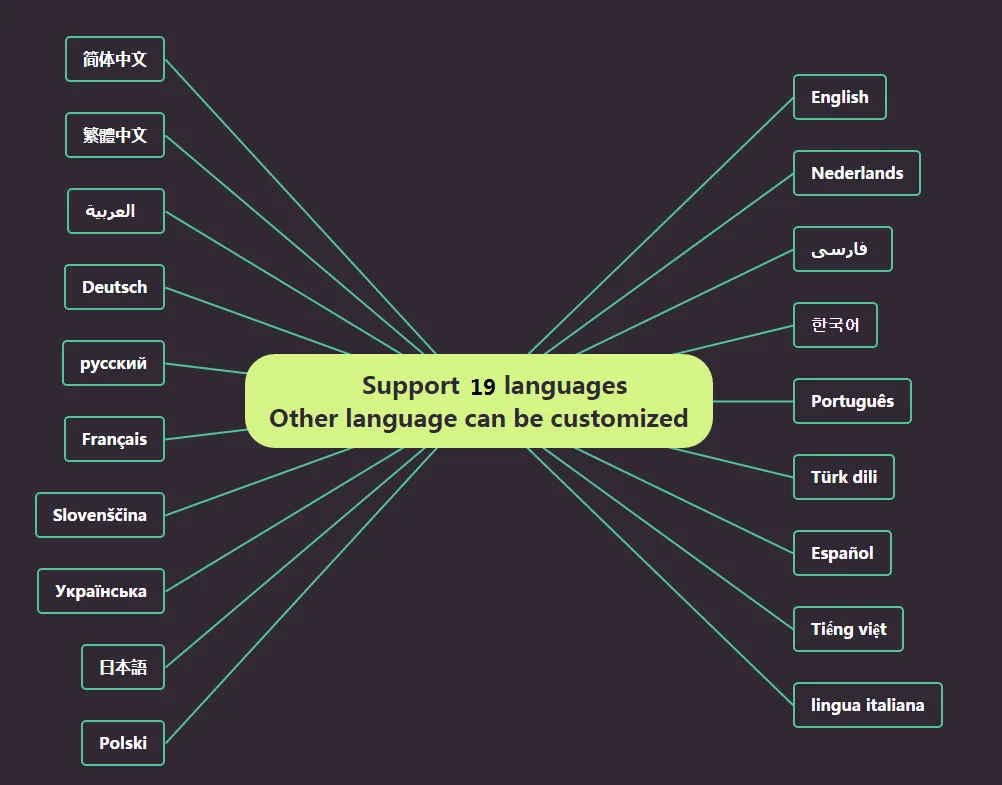

CNC controller are with international standard, can support 19 languages including english.

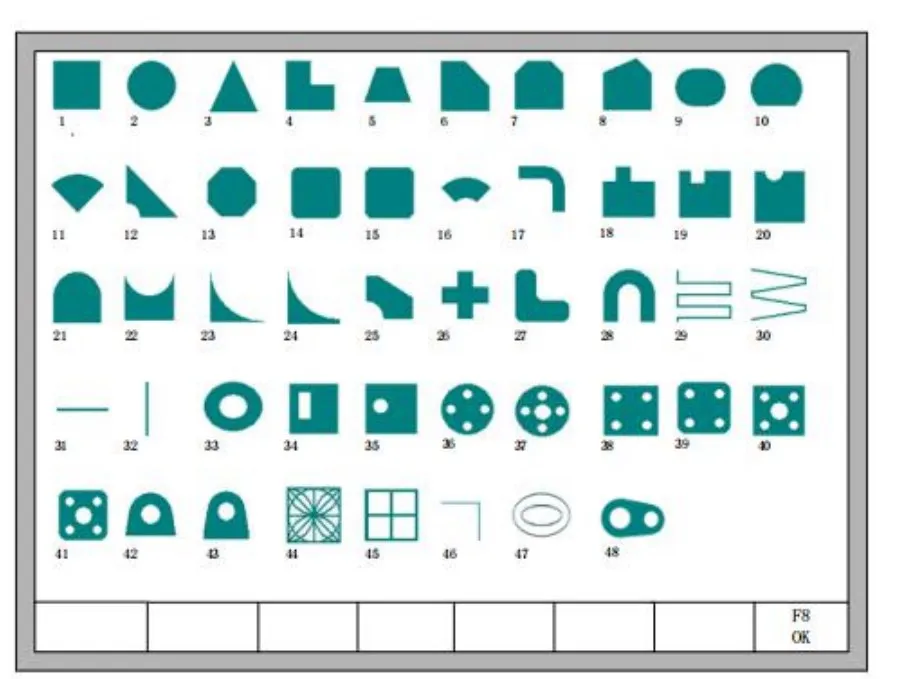

There are 48 kinds of graphics in the control system, and other graphics can be designed and imported at will.

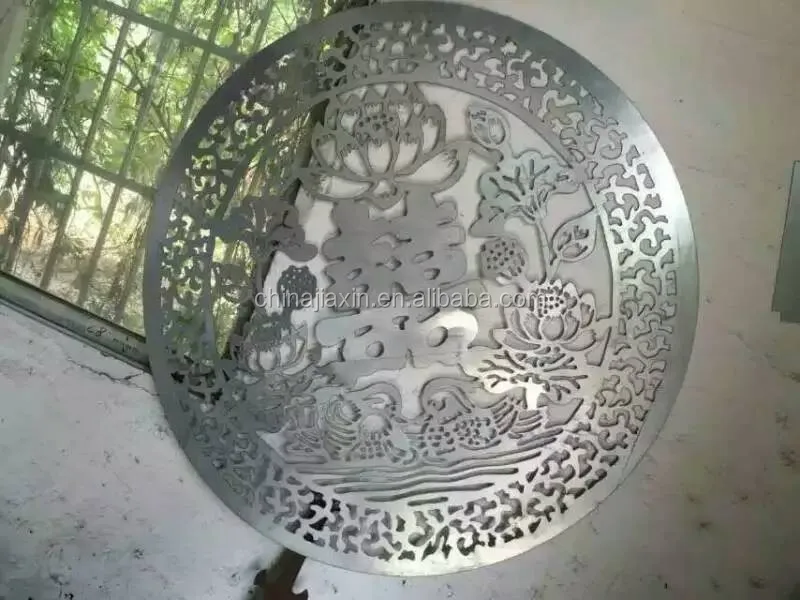

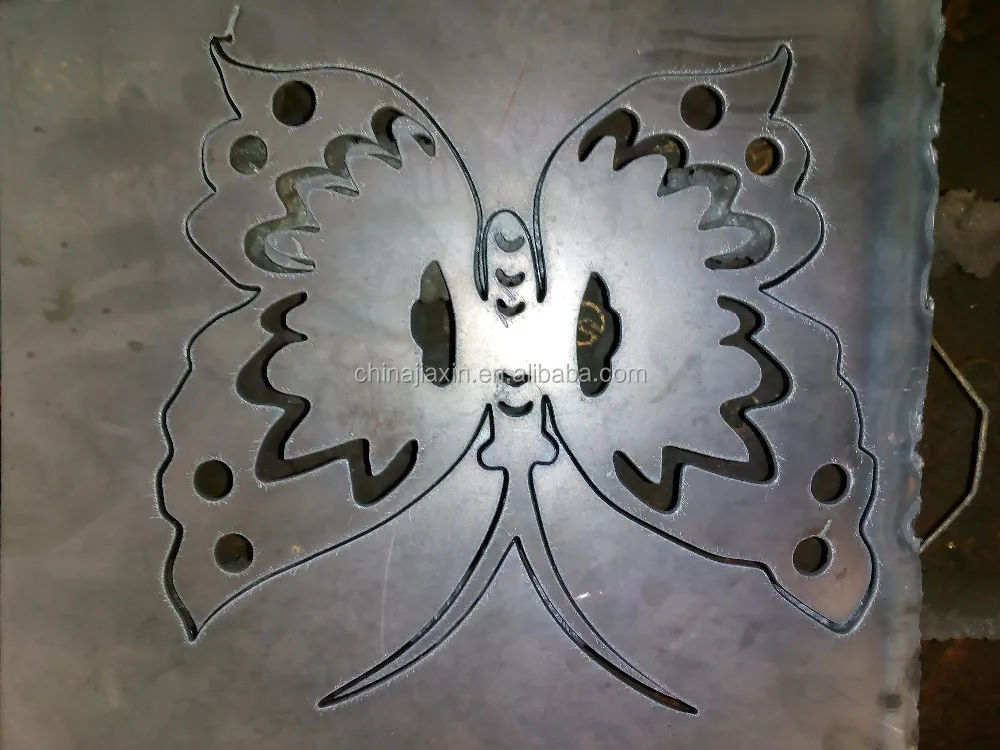

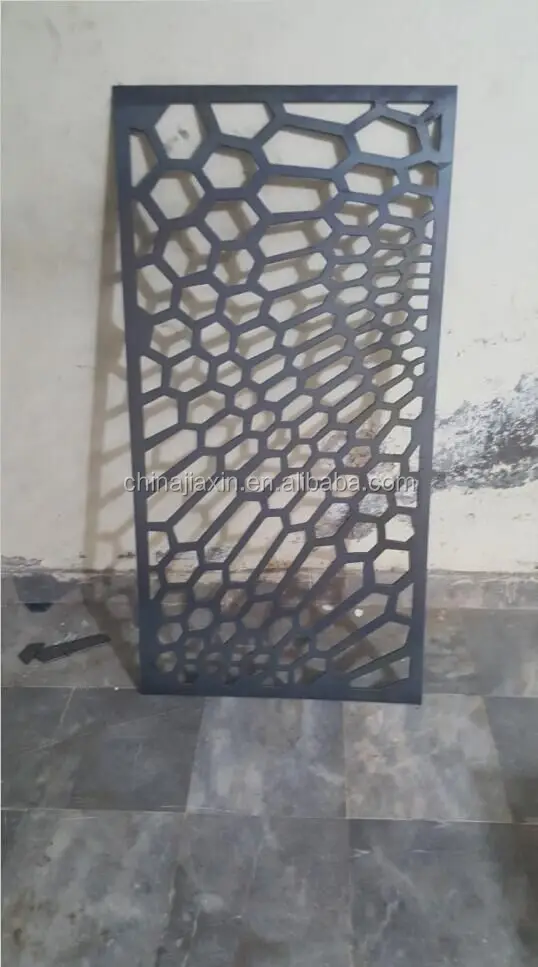

cutting example

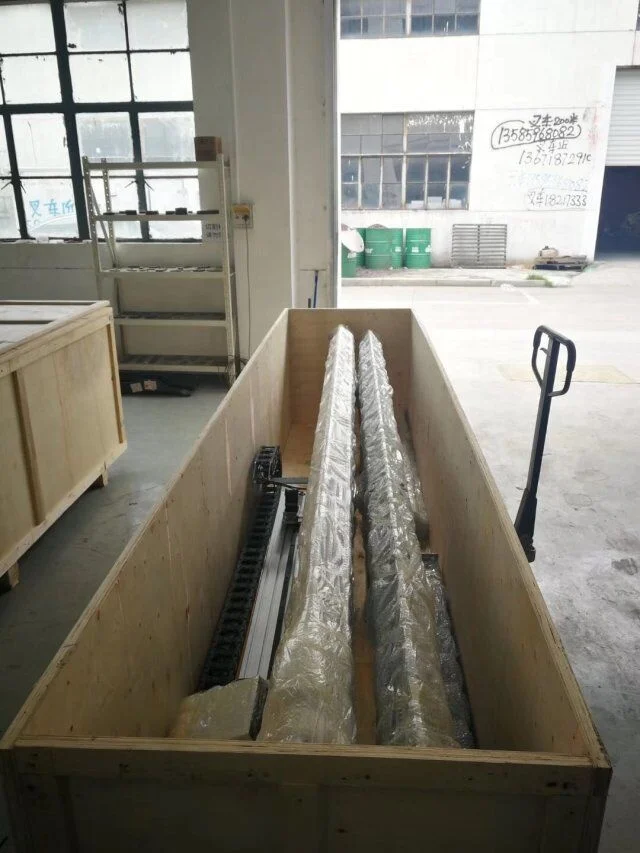

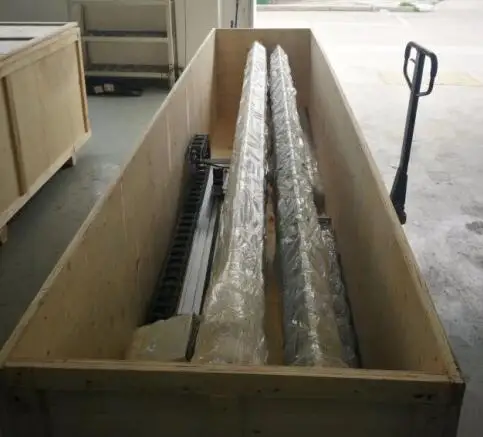

Packing & Delivery
SIMILAR PRODUCTS

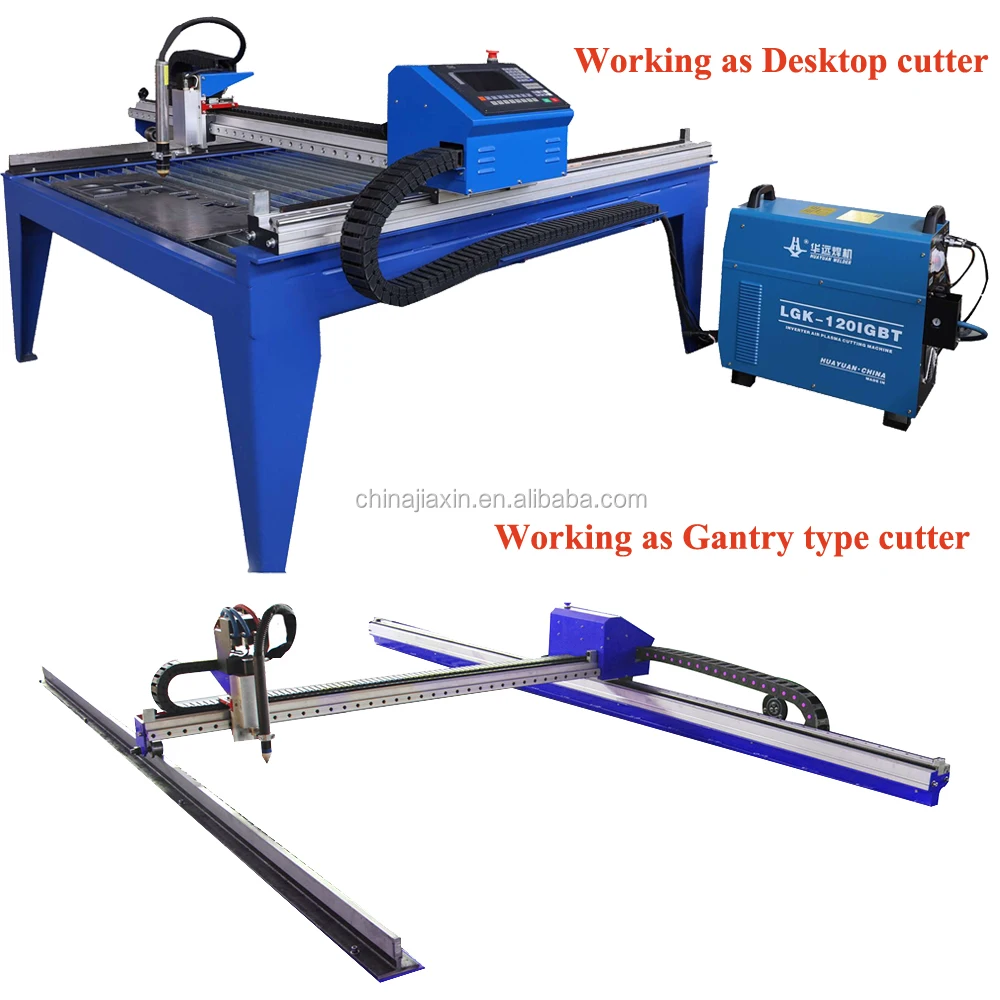

Gantry CNC plasma cutting machine
Suitable for big size cutting, could install more cutting torches to working at same time, to improve working speed.

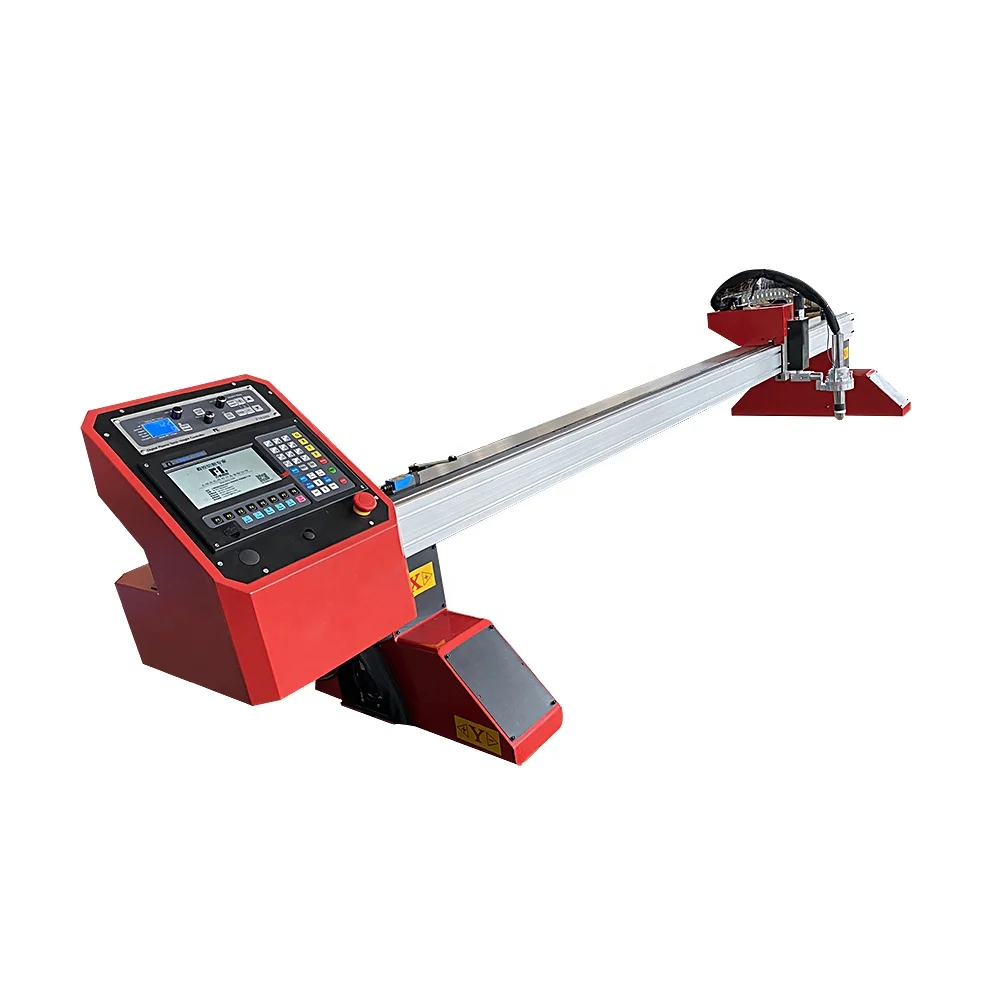

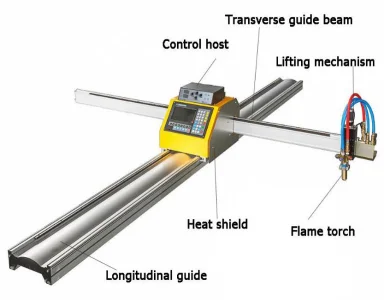

Portable type CNC plasma cutting machine
Flame cutting and plasma cutting, wide function in very low price, also could move and adapt different working places

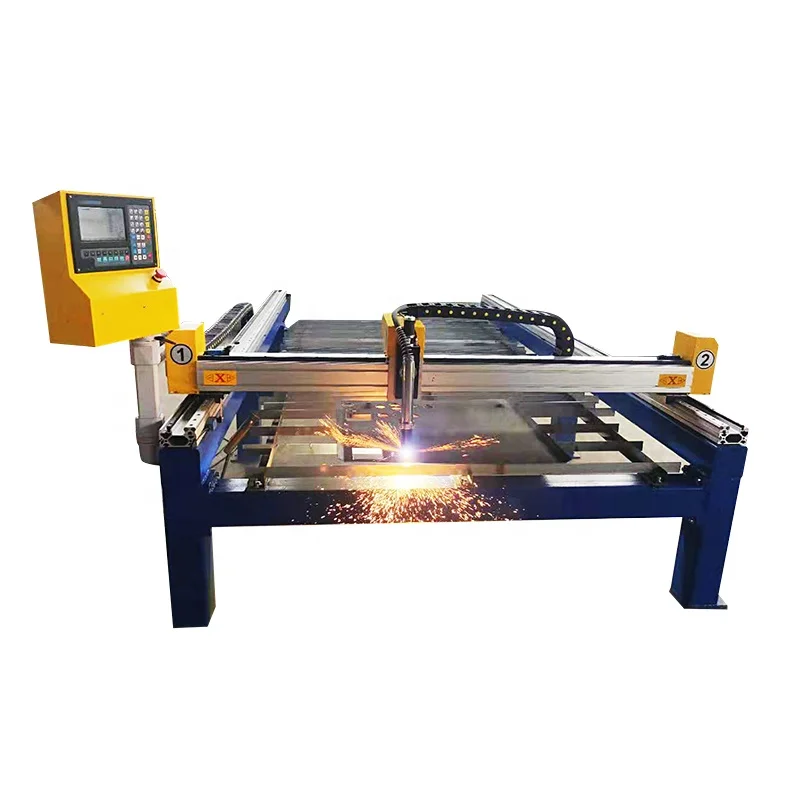

Desktop CNC plasma cutter with servo motor
Equiped with Panasonic servo motors, high precision linear guide and gear rack
this machine suitable for high accurate cutting, in very high cutting speed.
FAQ
1. Where is your factory located? How can I visit there?
Our factory is located in Jining City, Shandong Province, China. You can visit us by air to Qufu airport, or by the high-speed
rail. All the customers, from home or abroad, are warmly welcome to visit us!
2. What's the quality of your products?
We are very focused on the quality of the products, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours.Our factory has gained CE, ISO9001 authentication.
3. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
4. What other things also need after we bought your machines?
(1) With flame cutting: oxygen and acetylene or propane
(2) With plasma cutting: air compressor. Plasma power is purchased by us, so that we can debug online, and we all need very good plasma power to ensure quality.
5. What are your payment terms?
We support T/T, L/C and so on. Other ways can also be received after we both sides discussion and agreement.
6. All products have a warranty?
YES, Our warranty term is One Year.
Our factory is located in Jining City, Shandong Province, China. You can visit us by air to Qufu airport, or by the high-speed
rail. All the customers, from home or abroad, are warmly welcome to visit us!
2. What's the quality of your products?
We are very focused on the quality of the products, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours.Our factory has gained CE, ISO9001 authentication.
3. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.
4. What other things also need after we bought your machines?
(1) With flame cutting: oxygen and acetylene or propane
(2) With plasma cutting: air compressor. Plasma power is purchased by us, so that we can debug online, and we all need very good plasma power to ensure quality.
5. What are your payment terms?
We support T/T, L/C and so on. Other ways can also be received after we both sides discussion and agreement.
6. All products have a warranty?
YES, Our warranty term is One Year.
Certifications
