Bán Chạy! Máy Hàn MIG 220V 250 Amp
Bán Chạy! Máy Hàn MIG 220V 250 Amp
Bán Chạy! Máy Hàn MIG 220V 250 Amp
Hot sale! 220V 250 amp MIG welder machine
IGBT inverter technoloy,energy saving.
PWM pulse width control technology,special performance,accurate current control,stable arc passing.
Slow wire feeding,arc end with small balls clean,electronic and inductance regulating,shielding gas post
flow functions:well spatter control,good depth of fusion,good welding effect.

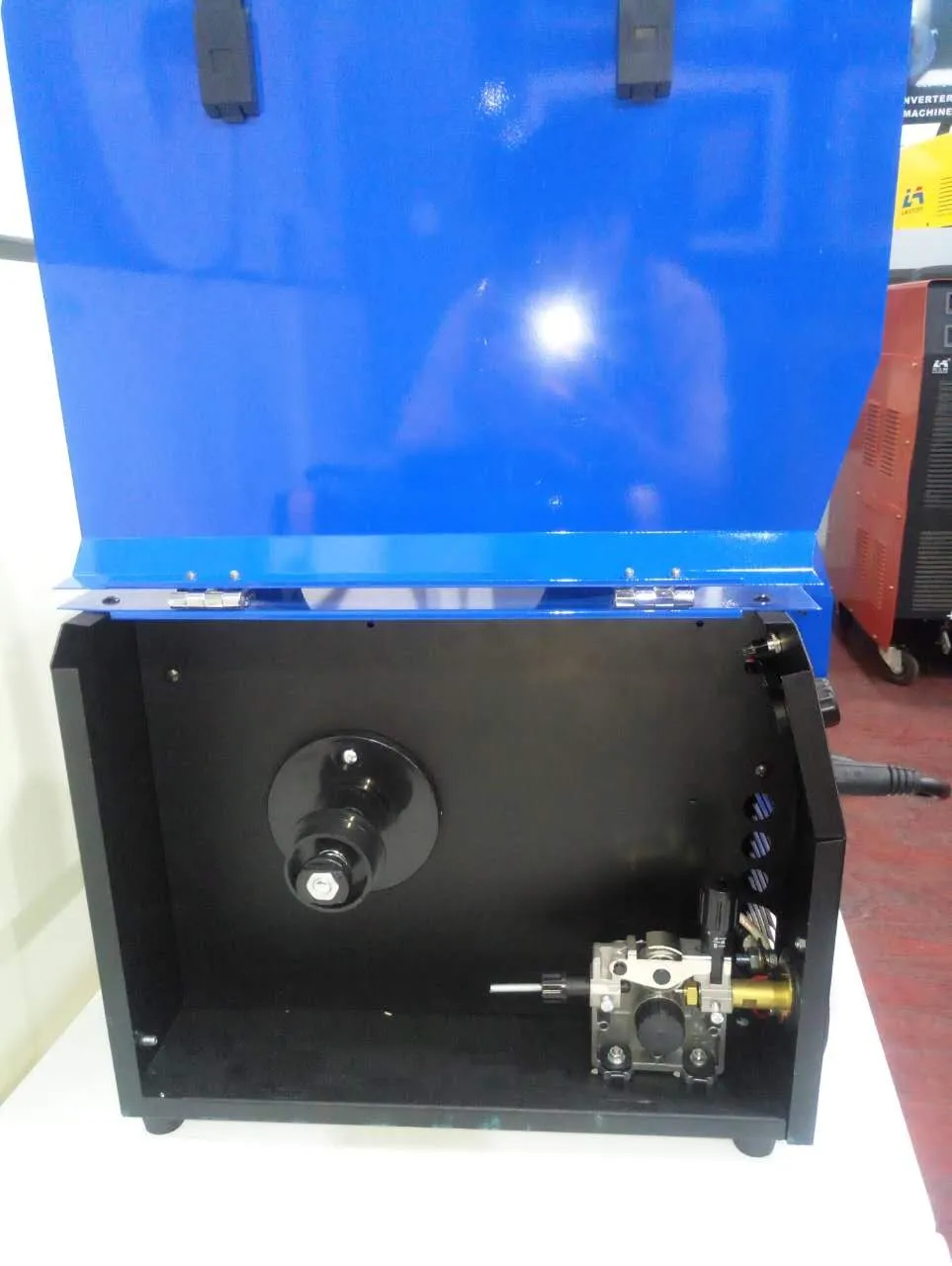

Over current,over heat,over load,over voltage protection.Special appearance wire feeder integrated,
porable.Suitable for welding mild steel,low alloy steel metal sheet.
What is the MIG welding machine?
In MIG/MAG welding,an arc is created with the power supply through the welding gun between the welding wire being fed and the work piece.The arc fuses the material being welded and the welding wire,thus creating the weld.the wire feeder continuously feeds welding wire through the welding gun throughout the welding process,the welding gun also provides shielding gas to the weld,the MIG and Mag welding methods differ from each in that MIG(metal active gas)welding uses an inert shielding gas,which does not participate in the welding process.
This MIG welding machine can be use for pipeline welding.
This MIG welding machine can be use for shipbuilding industry.
This MIG welding machine can be use for the building industry.
| MODEL | MIG-135 | MIG-175 | MIG-195 |
| Power voltage (V) | AC220V | AC220V | AC220V |
| Rated input capacity(KVA) | 4.1 | 6.8 | 7.6 |
| Rated intput current(A) | 18.7 | 31 | 35 |
| Actual output current(A) | 120 | 170 | 190 |
| no-load voltage (V) | 44 | 55 | 55 |
| Duty cycle(%) | 60 | 30 | 30 |
| Efficiency(%) | 80 | 80 | 80 |
| power factor | 0.73 | 0.73 | 0.73 |
| Insolation class | F | F | F |
| Protect class | IP21S | IP21S | IP21S |
| Usable wire(mm) | 0.6-0.8 | 0.6-1.0 | 0.6-1.0 |
| N.W.(KG) | 10 | 11.4 | 11.5 |
| Dimension(mm) | 480*220*340 | 480*240*370 | 480*240*370 |
you can choice the kraft box,the kraft box will be with the left and right foams.
you can choice the colour box,and also this box will with the left and right foams.
you can choice the honeycomb,this package is very strong so this honeycomb without the foams.
Payment
1.Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
2.LC AT SIGHT
Delivery time
Generally it is 25-30days after confirm the design and deposit.and also it's according to the quantity.
