Bán Hot Dây Thép Không Gỉ Dây Lưới Net Web Lưới Độ Dốc Bảo Vệ Mạng Bird Aviary Net Cáp Dây Lưới Cho Zoo Bao Vây

5
999
Đã bán
86.961đ
25.343đ ~ 86.961đ
Nơi xuất xứ: Hebei, ChinaVật liệu: Dây thép không gỉ

Loại: Dây lưới, Mùa xuân, Dệt Kim dây lưới, thắt nút & ferruledỨng dụng: Bảo vệ lưới, lưới kiến trúc, hàng rào lưới, Vườn thú, trang trại, hiệu ứng nhà kính

Weave (US): Weave đồng bằngKỹ thuật: Dệt

Số Mô Hình: wire rope meshNhãn hiệu: Qunkun

Chế Biến Dịch Vụ: DệtThời Gian giao hàng: 15-21 Ngày

Tên sản phẩm: Dây thép không gỉ Dây Lưới Net/dốc bảo vệ mạngChứng nhận: ISO 9001:2008

Cách khóa thẻ: Thép không gỉ khóa/Hợp kim nhôm khóa/dệt cáchTính năng: Bền

Sử dụng: Bảo vệ lưới, lưới kiến trúc, hàng rào lưới, Vườn thú, trang trại, hiệu ứng nhà kínhHình dạng lỗ: Loại dệt, loại ferrule mở và Loại tay áo liền mạch

Tên: Dây cáp thép không gỉ lướiLợi thế: Chất lượng cao với giá tốt.

Kích thước: 7x7,7x19




Hot sale stainless steel wire rope mesh net web net slope protection network Bird Aviary net Cable Wire Mesh For Zoo Enclosure

Product Description

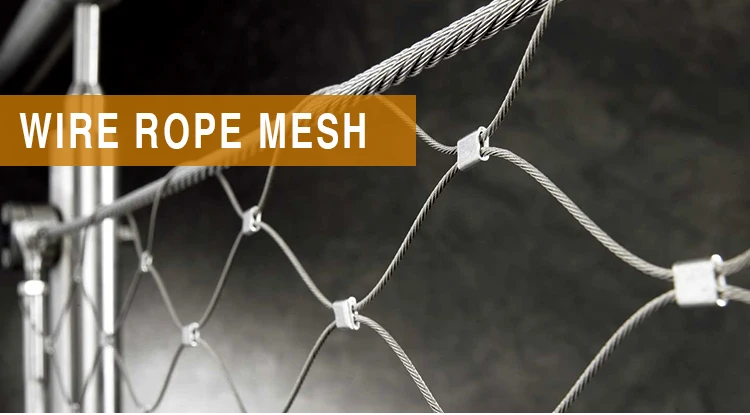

WIRE ROPE MESH (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.

Cable diameter

Mesh opening size

Nominal break

inch

mm

inch

mm

lbs.

1/8

3.2

4x4

102x102

1600

1/8

3.2

3x3

76x76

1600

1/8

3.2

2x2

51x51

1600

3/32

2.4

4x4

102x102

920

3/32

2.4

3x3

76x76

920

3/32

2.4

2x2

51x51

920

5/64

2.0

3x3

76x76

676

5/64

2.0

2x2

51x51

676

5/64

2.0

1-1/2x 1-1/2

38x38

676

1/16

1.6

3x3

76x76

480

1/16

1.6

2x2

51x51

480

1/16

1.6

1-1/2x 1-1/2

38x38

480

1/16

1.6

1x1

25.4x25.4

480

3/64

1.2

1-1/2x 1-1/2

38x38

270

3/64

1.2

1x1

25.4x25.4

270

3/64

1.2

4/5x4/5

20x20

270

Main Featuers:

1.The mesh is clipped to the cable.

2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested &ndash especially suitable for facades.
4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.
5.Anti-corrosive,resist the rust,can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material,safety,environmental protection.

Product Display

Technology

The type of stainless steel rope mesh

1. Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter.

2.Ferruled mesh is of the same physical properties with the knotted mesh,the only difference is in the combination style,the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Flexible Stainless Steel Cable Mesh

Type

Knotted cable mesh

Ferrule cable mesh






Combination

Inter-woven

Seamless ferrule

Hole pattern

90 degree diamond hole

60 degree diamond hole

Material

SS304,316,316L,etc

Cable diameter

1 ~ 4 mm

Cable structure

7 × 7 (1.5 mm,2 mm or 2.5 mm),7 × 19 (3 mm,4 mm)

Diamond size

20 ~ 200 mm

Mesh Orientation

Horizontal,Vertical

Feature

Quality material,High flexibility,Anti-corrosion,Longevity,Cost effectiveness,Easy

Product Features

Application

Stainless steel wire rope mesh used for wide range of application: bird net, zoo, greenhouse, airport, fencing, decoration in hall, green wall series and so on. It is safe, light weight, long service life, high-strength, etc.

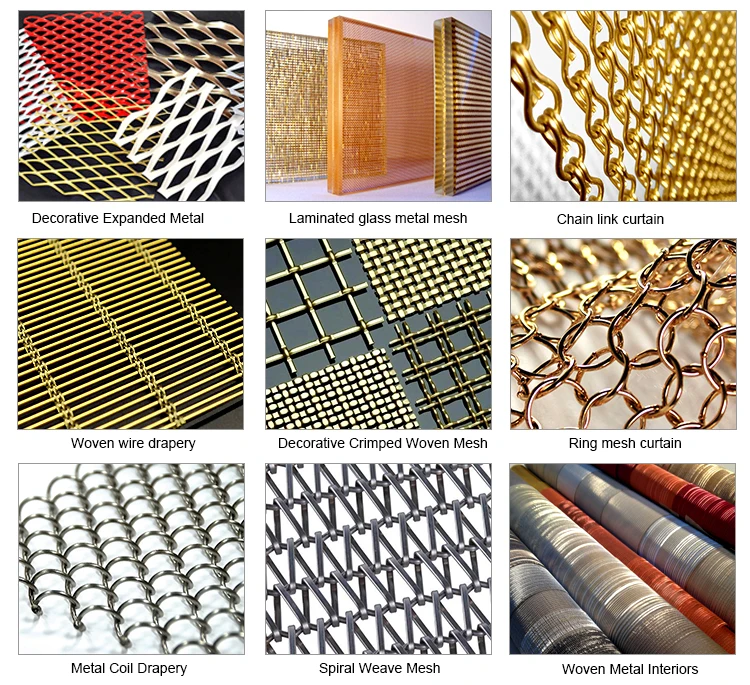

Related products

OurServices

Our Factory

FAQ

Q:How to make a inquiry of metal mesh curtains?

A:You need to provide material, aperture diameter, wire diameter, coil length & mesh panel width and the quantity to ask an offer, you can also indicate if you have any special requirement.   We'll provide formal quotatiom list after your inquiry received.

Q:Could you provide mesh curtains sample ? How long does the sample need to be prepared?

A:Yes, we can provide sample.Sample production time is 5~7 days.

Q:Can you tell me how to install the mesh curtains?

A:Yes, we can provide installation instructions and videos.

Q:Can you provide customized services?

A:Yes,we can. We can produce according to your needs, and can recommend you a cost-effective product for you.

Q:What is your MOQ ?

A:There is no minimum order quantity, we will do the best to support you.
