Thông tin

Số Mô Hình: HF500,HF503,HF503MProduct name: Copolyester

ứng dụng: Thiết bị y tế, vỏ thiết bị nhỏmàu: Trong suốt

vật liệu: HạtĐặc trưng: Kháng hóa chất, BPA free

Nhãn hiệu: DawnNơi xuất xứ: Shandong, China

Product Description

Our PCTG granules product series include HF500, HF503, HF503M, etc., which have high light transmittance, high chemical resistance, excellent toughness, and higher temperature resistance than PETG granules. Petg plastic raw materials widely used in medical devices, small appliances shell and other fields.

Specification

PCTG HF500 is a BPA plasticizer-free PCTG co-polyester environmentally friendly material with high transparency, chemical resistance and improved toughness. HF500 meets FDA requirements and can be used in applications such as transparent housings for small appliances.

TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard
TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard	MECHANICAL
Tensile Stress, break, 50 mm/min	50.1	MPa	ISO527
Tensile Strain, break, 50 mm/min	452.3	%	ISO527
Flexural Stress, break, 50mm in Span, Crosshead Speed: 2 mm/min	72.8	MPa	ISO178
Flexural Modulus, 50 mm in Span, Crosshead Speed: 2 mm/min	1634	MPa	ISO178
IMPACT	Value	Unit	Standard
Izod Impact, unnotched,80104mm	9.7	KJ/m2	ISO180/1A
Izod Impact, notched,80104mm	112.5	KJ/m2	ISO180/1A
THERMAL	Value	Unit	Standard
HDT/0.45 Mpa, Edgewise Postion, 12712.76.4 Span=100mm	75	°C	ASTM D648
BASIC	Value	Unit	Standard
Melt Mass-Flow Rate (MFR)(250℃,2.16Kg)	20-24	g/10min	ASTM D1238
INJECTION	Value	Unit
Drying Temperature	60-70	°C
Drying Time	6-8	hr
Suggested Max Moisture	0.03	%
Rear Temperature	210-240	°C
Middle Temperature	230~250	°C
Front Temperature	235~250	°C
Nozzle Temperature	240~255	°C
Process (Melt) Temperature	240-250	°C

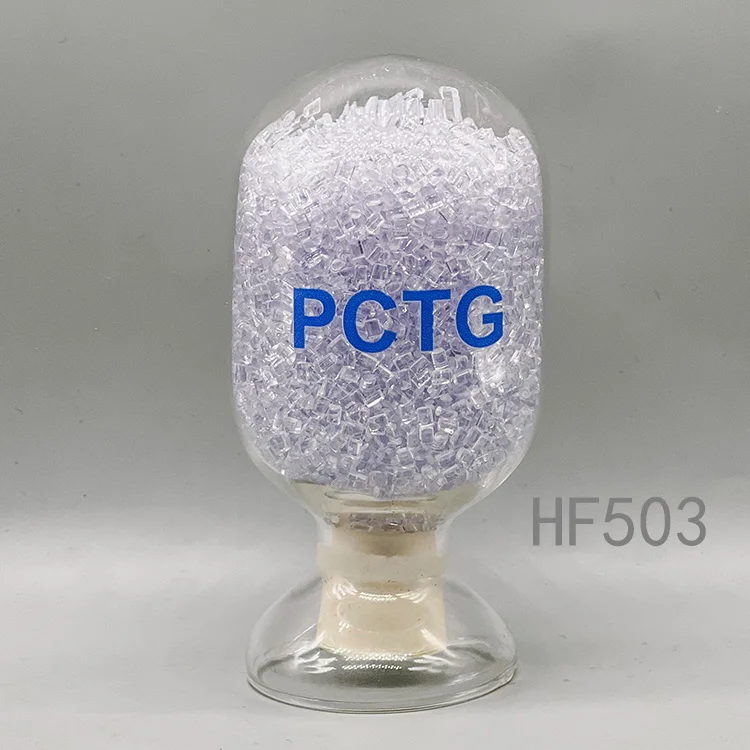

PCTG HF503 is a BPA free plasticizer PCTG co-polyester environmentally friendly material with high transparency, chemical resistance and improved toughness. PCTG HF503 meets FDA requirements and can be used for applications such as e-cigarette cartridges and food containers.

TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard
TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard	MECHANICAL
Tensile Stress, break, 50 mm/min	54.2	MPa	ISO527
Tensile Strain, break, 50 mm/min	273.4	%	ISO527
Flexural Stress, break, 50mm in Span, Crosshead Speed: 2 mm/min	72.1	MPa	ISO178
Flexural Modulus, 50 mm in Span, Crosshead Speed: 2 mm/min	1520.9	MPa	ISO178
IMPACT	Value	Unit	Standard
Izod Impact, unnotched,80104mm	40.7	KJ/m2	ISO180/1A
Izod Impact, notched,80104mm	106.2	KJ/m2	ISO180/1A
THERMAL	Value	Unit	Standard
HDT/0.45 Mpa, Edgewise Postion, 12712.76.4 Span=100mm	82	°C	ASTM D648
BASIC	Value	Unit	Standard
Melt Mass-Flow Rate (MFR)(250℃,2.16Kg)	24-28	g/10min	ASTM D1238
Density	1.23-1.25	g/cm³	ASTM D792
INJECTION	Value	Unit
Drying Temperature	80-85	°C
Drying Time	6-8	hr
Suggested Max Moisture	0.03	%
Rear Temperature	240-250	°C
Middle Temperature	245~250	°C
Front Temperature	250~260	°C
Nozzle Temperature	250~260	°C
Process (Melt) Temperature	250~260	°C

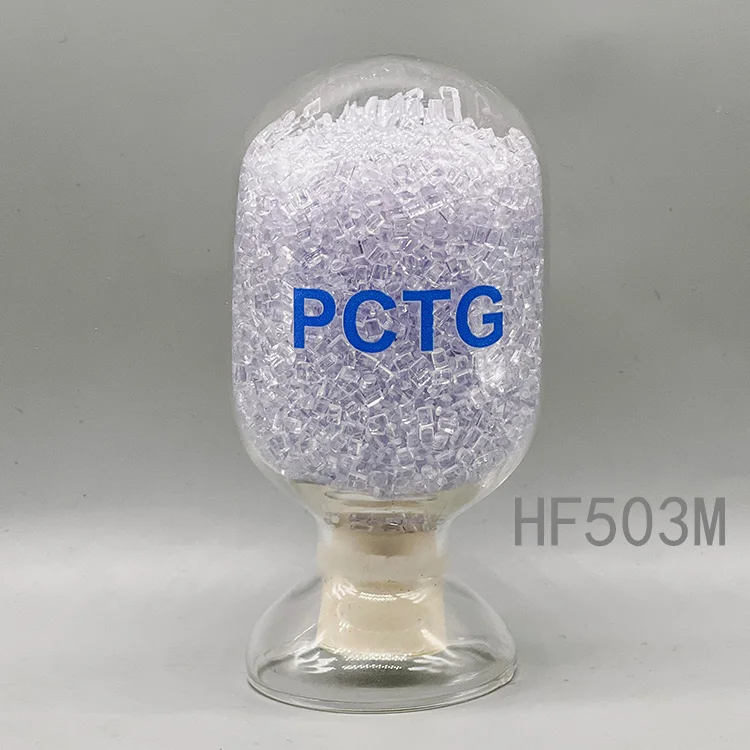

PCTG HF503M is a BPA plasticizer-free PCTG co-polyester environmentally friendly material with high transparency, chemical resistance and improved toughness. PCTG HF503M is specially designed for medical applications.

TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard
TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard	MECHANICAL
Tensile Stress, break, 50 mm/min	46.0	MPa	ISO527
Tensile Strain, break, 50 mm/min	270.0	%	ISO527
Flexural Stress, break, 50mm in Span, Crosshead Speed: 2 mm/min	70	MPa	ISO178
Flexural Modulus, 50 mm in Span, Crosshead Speed: 2 mm/min	1520	MPa	ISO178
IMPACT	Value	Unit	Standard
Izod Impact, unnotched,80104mm	40	KJ/m2	ISO180/1A
Izod Impact, notched,80104mm	100	KJ/m2	ISO180/1A
THERMAL	Value	Unit	Standard
HDT/0.45 Mpa, Edgewise Postion, 12712.76.4 Span=100mm	82	°C	ASTM D648
BASIC	Value	Unit	Standard
Melt Mass-Flow Rate (MFR)(250℃,2.16Kg)	24-28	g/10min	ASTM D1238
Density	1.21	g/cm³	ASTM D792
INJECTION	Value	Unit
Drying Temperature	110	°C
Drying Time	4	hr
Suggested Max Moisture	0.03	%
Rear Temperature	240-250	°C
Middle Temperature	245~250	°C
Front Temperature	250~260	°C
Nozzle Temperature	250~260	°C
Process (Melt) Temperature	250~260	°C

Why Choose Us

Company Profile

FAQ

1. who are we? We are the verified Pro Supplier in Alibaba. We are based in Shandong, China,.We are one company integrated industry and trade. No matter the products we manufacture or trade, high quality products and competitive price always will be provided for you. 2. how can we guarantee quality? Always a pre-production sample before mass production Always final Inspection before shipment 3.what can you buy from us? Titanium Dioxide (Tio2), Polypropylene (PP), Polyethylene (PE), PBAT, PBT, Polyvinyl Chloride (PVC),PS, PET, TPU ,TPV ,TPE, TPR, TPO , Meltblown PP, Nonwoven fabric, Modified Material, Masterbatch, HNBR, PETG, PCTG, Customized plastic bags, Customized plastic bottles, 4. why should you buy from us not from other suppliers? Polymer & Chemical Material Solution Expert Plastic Trade China TOP2 Polymer New Materials industry China TOP3 Meltblown PP Global TOP1 TPV Global TOP3 China TOP1 HNBR Global TOP3 PETG/PCTG World leader 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,DDP； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF Accepted Payment Type: T/T, L/C At Sight, L/C 90 Days.,Credit Card Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
