Bộ chuyển mạch Ethernet công nghiệp Gigabit 12 cổng MOXA E1212-T-HV-T 8 cổng PoE Plus 802.3at 30W Đầu vào tương tự IP67 để sử dụng ngay

875

Đã bán

5.000.784đ

Số lượng

Đơn vị

1 Bộ

Chọn loại hàng (ví dụ:màu sắc ,kích thước)

Thông số sản phẩm

Danh Mục

Cổng vào ra (I/O)

Thuế VAT

Giá có VAT

5.000.784đ

Mã

m4QVQJ9hBj

Nhãn hiệu

Update

Xuất xứ

Update

Mô tả sản phẩm

Specification

Family Information

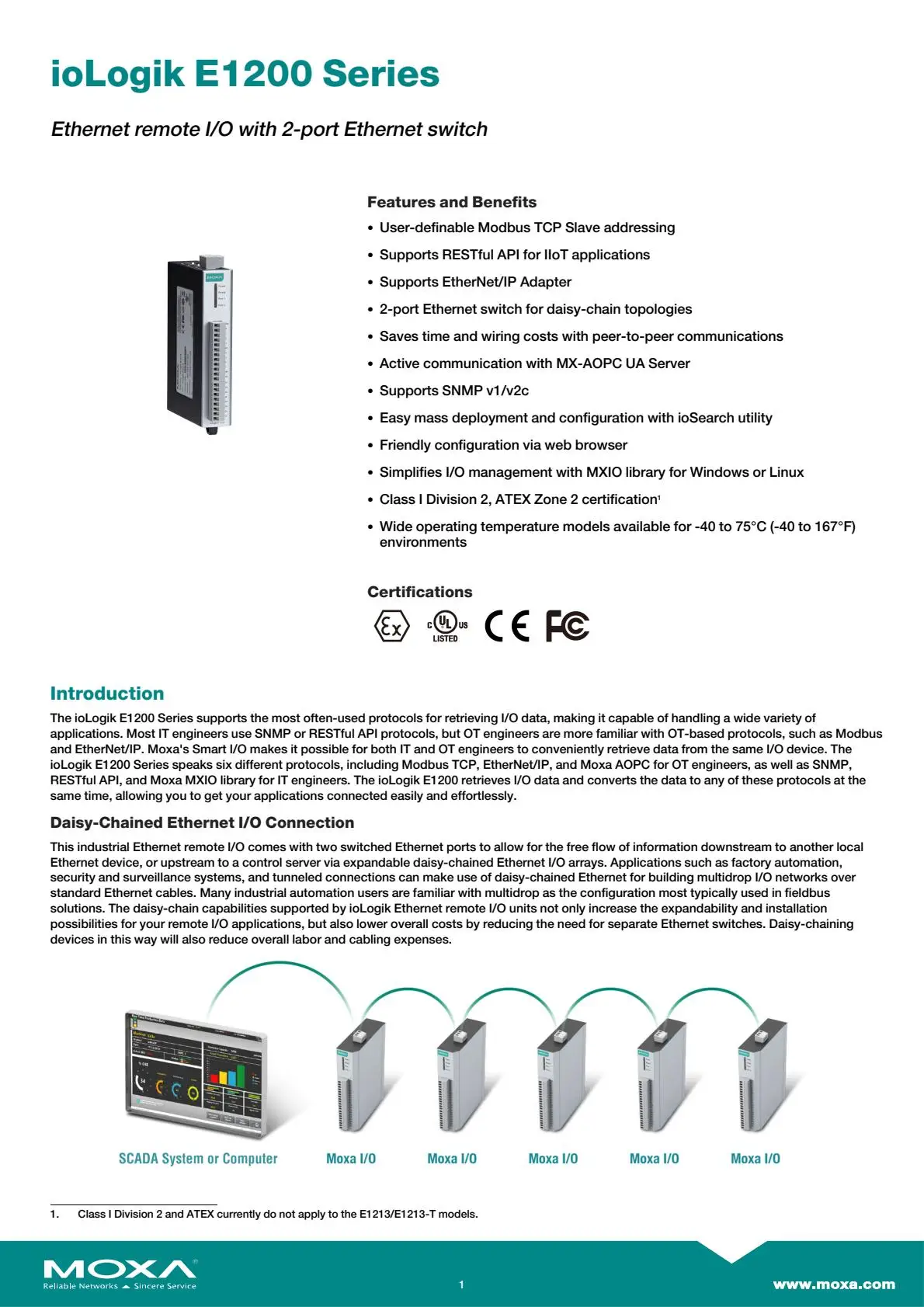

These remote I/O units with digital and analogue inputs and outputs can be easily connected, controlled and monitored via
Ethernet.
* Easy monitoring and control via Ethernet network
* Digital and analogue input monitoring and temperature sensors
* Controls digital and analogue outputs and relay contacts
* Supports OPC for active communication with SCADA systems

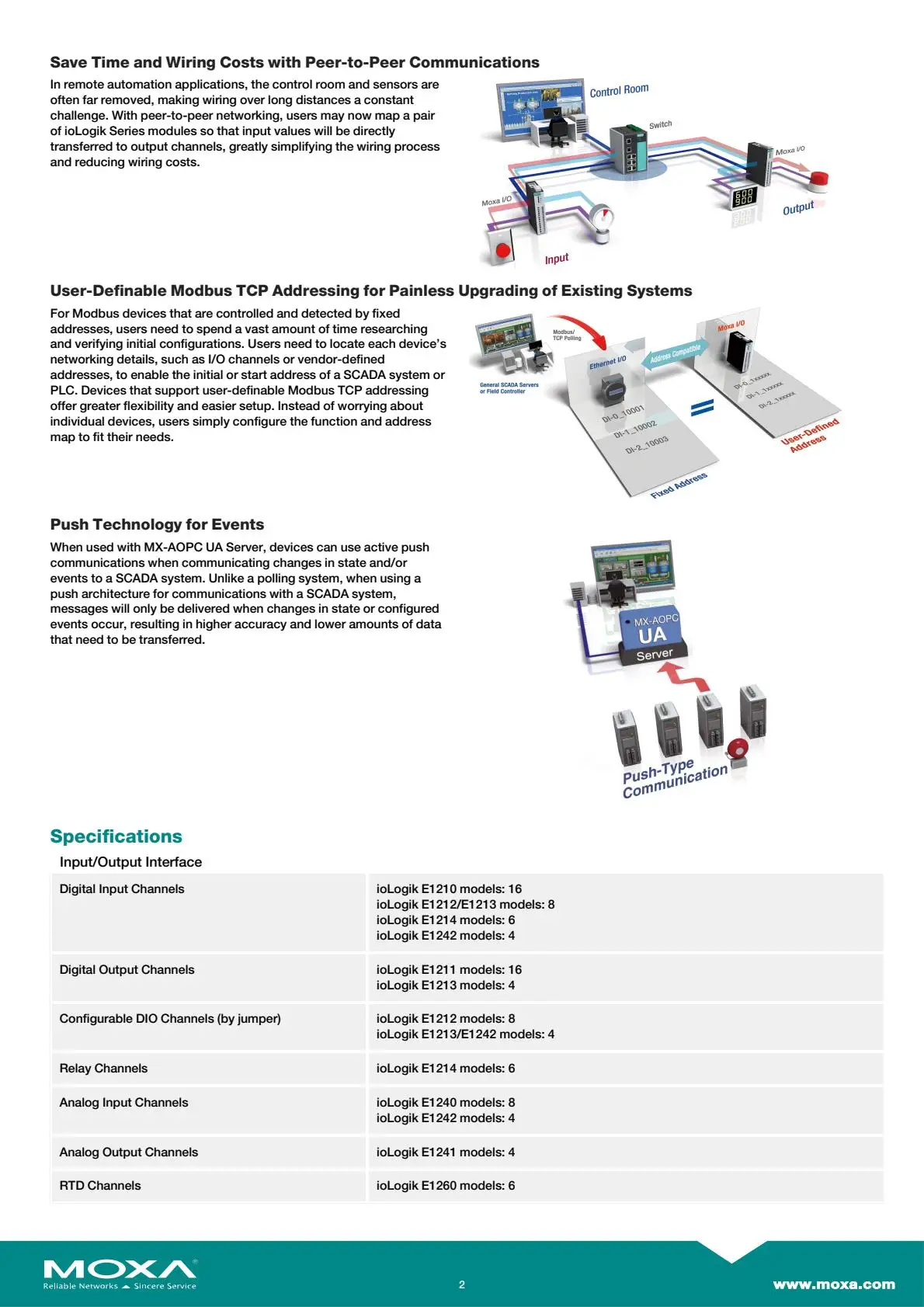

* Peer-to-peer mode for easy autonomous control between I/O units
* User-defined Modbus/TCP addressing
* MXIO library for easy programming with C++/Visual Basic in Windows/WinCE/Linux
* Easy configuration via web browser
* Two Ethernet ports for easy daisy chain routing, no switch required

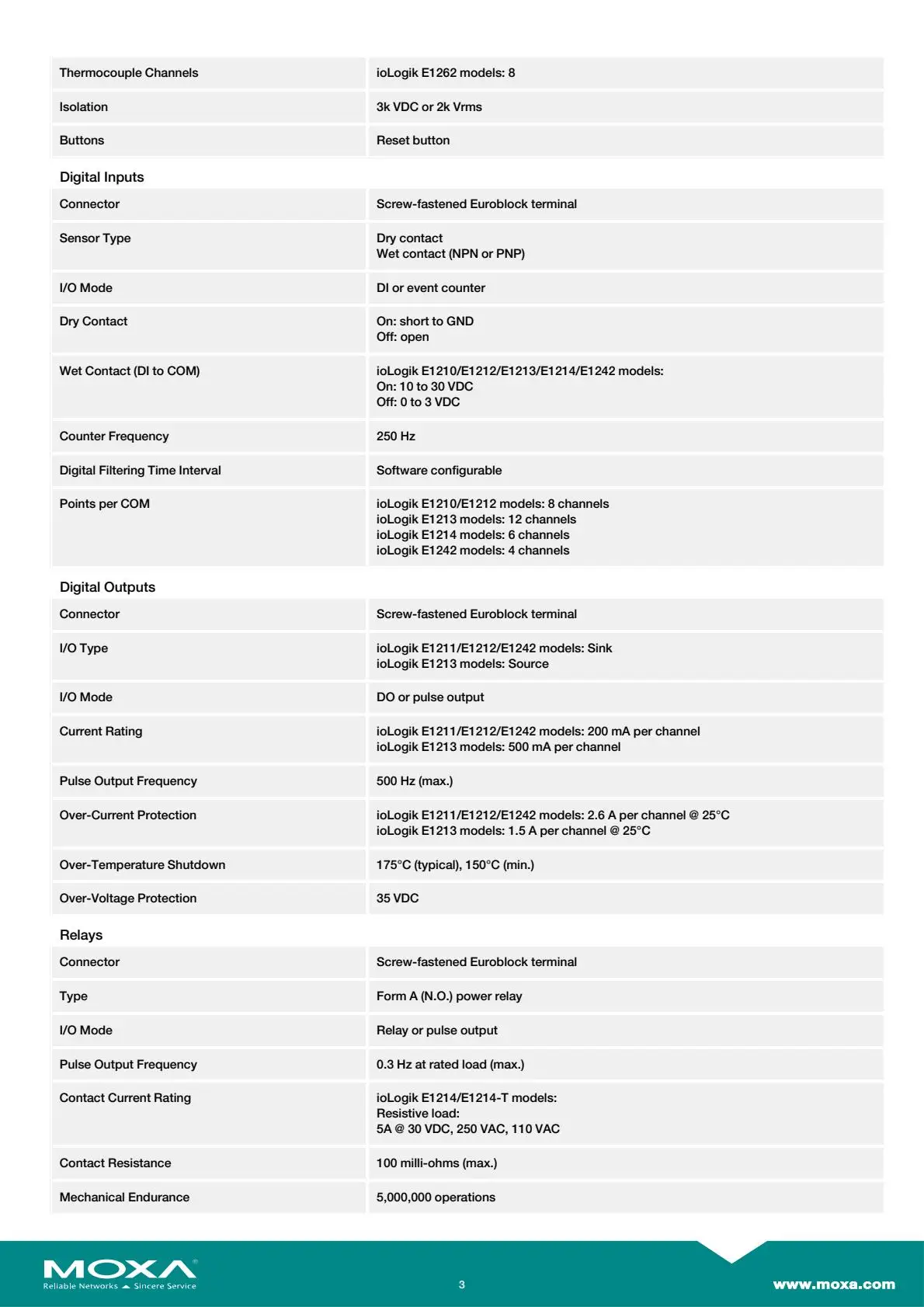

* Digital Input Channels * 8 * Configurable DIO Channels (by jumper) * 8 * Isolation * 3k VDC or 2k Vrms * Buttons * Reset button * Connector * Screw-fastened Euroblock terminal * I/O Type * Sink * I/O Mode * DO or pulse output * Current Rating * 200 mA per channel * Pulse Output Frequency * 500 Hz (max.) * Over-Current Protection * 2.6 A per channel @ 25°C * Over-Temperature Shutdown * 175°C (typical), 150°C (min.) * Over-Voltage Protection * 35 VDC	* Connector * Screw-fastened Euroblock terminal * Sensor Type * Dry contact Wet contact (NPN or PNP) * I/O Mode * DI or event counter * Dry Contact * On: short to GND Off: open * Wet Contact (DI to COM) * On: 10 to 30 VDC Off: 0 to 3 VDC * Counter Frequency * 250 Hz * Digital Filtering Time Interval * Software configurable * Points per COM * 8 channels * 10/100BaseT(X) Ports (RJ45 connector) * 2, 1 MAC address (Ethernet bypass) * Magnetic Isolation Protection * 1.5 kV (built-in)

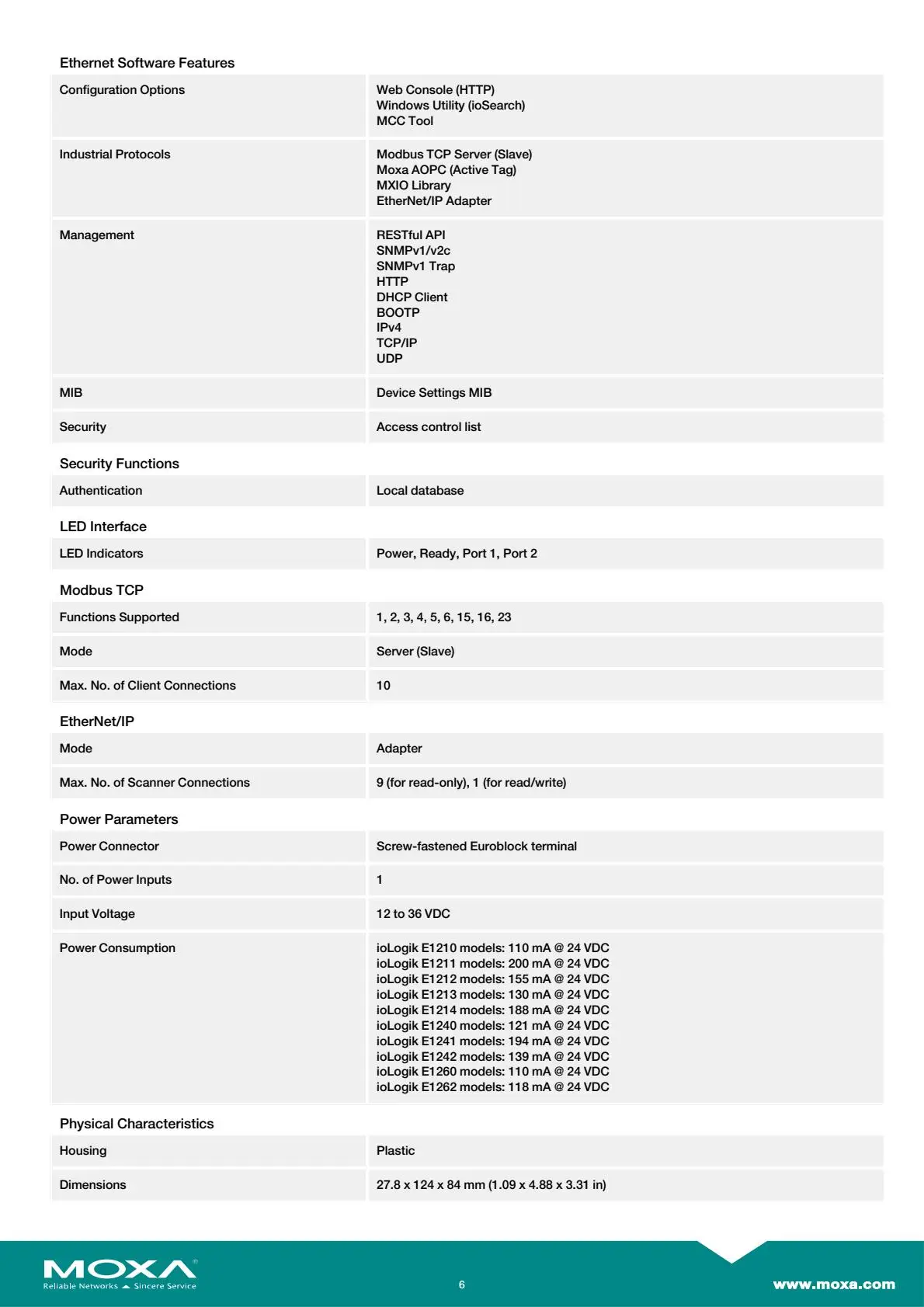

* Configuration Options * Web Console (HTTP) Windows Utility (ioSearch) MCC Tool * Industrial Protocols * Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library EtherNet/IP Adapter * Management * RESTful API SNMPv1/v2c SNMPv1 Trap HTTP DHCP Client BOOTP IPv4 TCP/IP UDP * MIB * Device Settings MIB * Security * Access control list	* Housing * Plastic * Dimensions * 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) * Weight * 200 g (0.44 lb) * Installation * DIN-rail mounting Wall mounting * Wiring * I/O cable, 16 to 26 AWG Power cable, 12 to 24 AWG * Operating Temperature * -40 to 75°C (-40 to 167°F) * Storage Temperature (package included) * -40 to 85°C (-40 to 185°F) * Ambient Relative Humidity * 5 to 95% (non-condensing)
