Bộ định tuyến không dây WIFI 6 New SE3000H 3000Mbps băng tần kép, cổng Gigabit, tường lửa VPN, hỗ trợ 128 người dùng, dành cho gia đình và doanh nghiệp

Main Chip

Hi5671Y(CPU)+Hi5622(Wi-Fi)+KCT8239(2.4G FEM)+KCT8531(5G FEM)
High-performance enterprise-level chip

CPU Frequency

ARM dual-core 1.2 GHz

Memory

256MB

Flash

SPI NAND 128MB

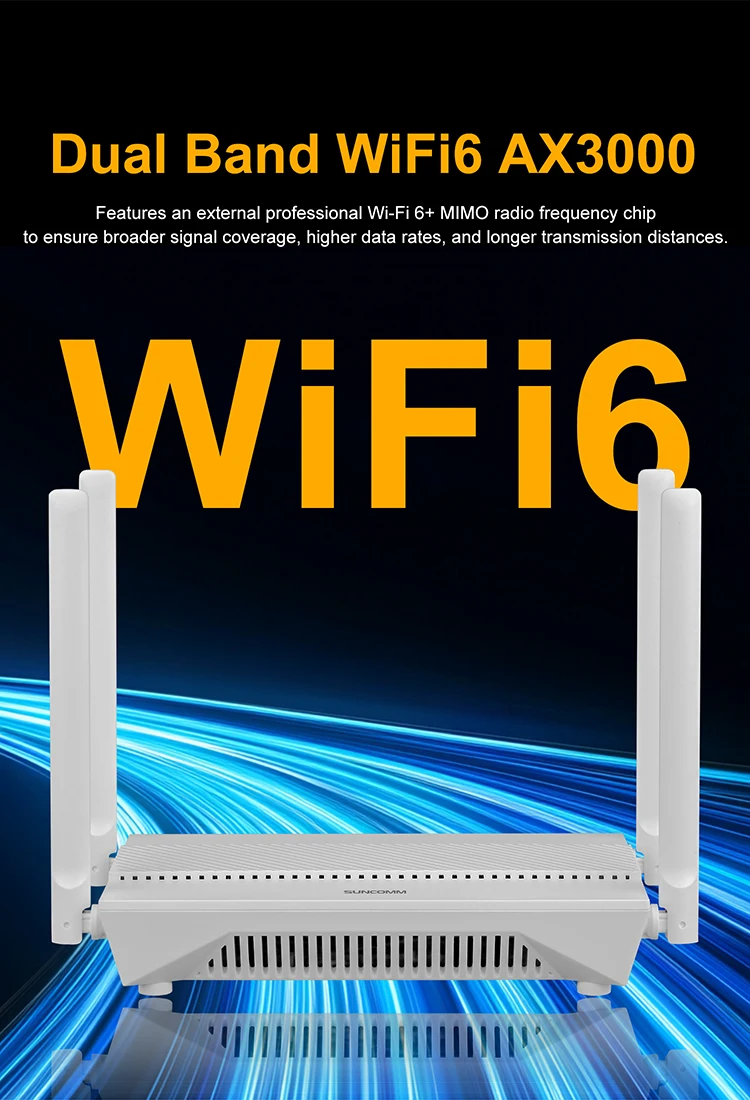

Wireless Technology

2.4G WiFi: 2x2 802.11b/g/n/ax, with a theoretical maximum speed of 574Mbps.
5.8G WiFi: 3x3 802.11a/n/ac/ax, supporting up to 2402Mbps theoretical peak rate.
High-Speed Technologies:
Ø 1024QAM for ultra-high-speed access rates and OFDMA for ultra-dense user connectivity.
Ø OFDMA/MU-MIMO for efficient uplink/downlink data handling in high-device density environments.
Ø BSS Color spatial reuse to reduce interference and enhance spectral efficiency.
Advanced Signal Processing:
Ø Space-time block coding (STBC) and low-density parity-check (LDPC) for error correction and reliability.
Ø Transmit/receive beamforming (Beamformer TX/RX) to improve signal strength and coverage.
Power-Saving Features:
Single-antenna standby, dynamic MIMO power-saving, enhanced automatic power-save
transmission (APSD), and per-packet power control to optimize energy efficiency without compromising performance.

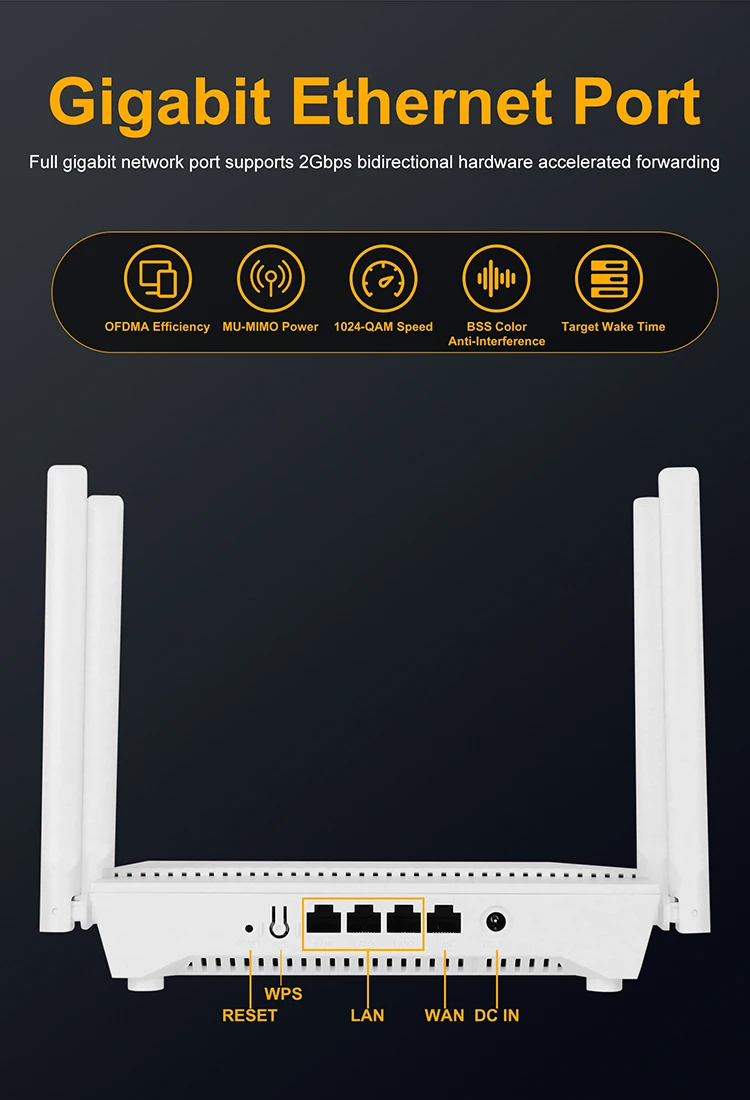

Interfaces

- WAN*1/LAN*3 10/100/1000Mbps adaptive
- DC power interface compatible with power plug with outer diameter of 5.5mm, inner diameter of 2.1mm, and length above 9.5mm

Buttons

Reset Button: Press and hold for 6 seconds to factory reset the device.

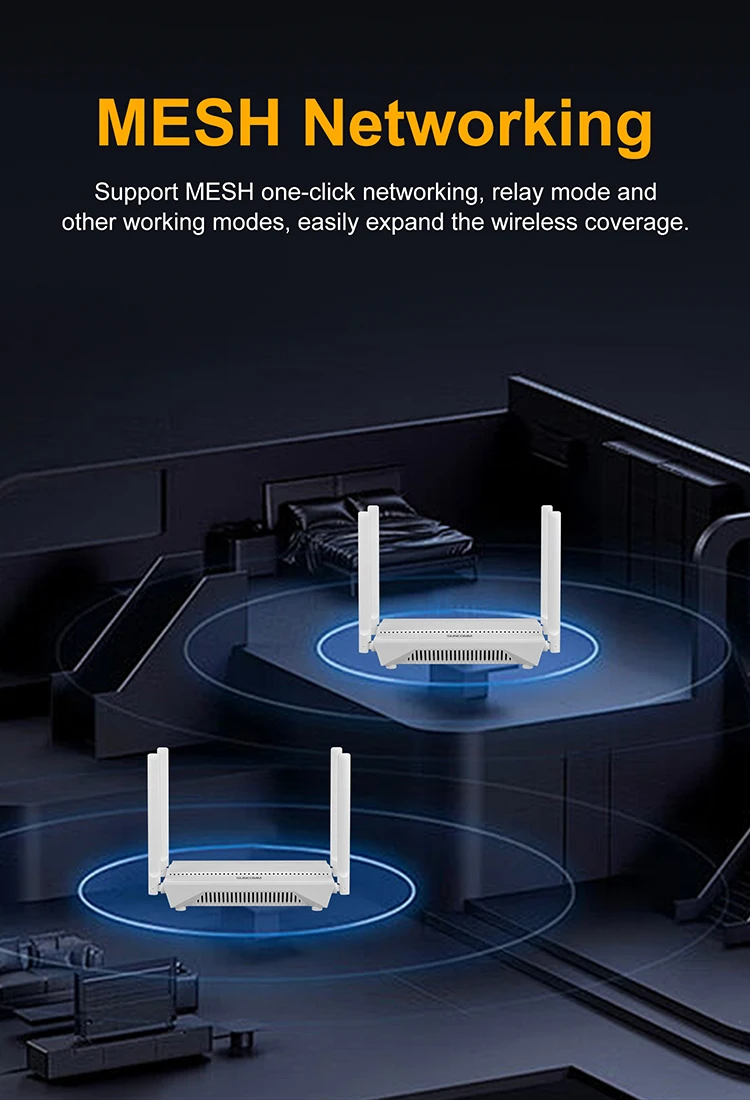

WPS/MESH Button: Enable effortless password-free Wi-Fi connectivity and one-touch MESH network setup.

Indicator

Status indicator

Antennas

- External 2.4G 5dBi rubber rod antennas * 2
- External 5G 5dBi rubber rod antennas * 2

Power

DC 12V/1A, positive outer and negative inner

Operating/Storage Temperature

-10℃～45℃/-20℃～70℃

Operating/Storage Humidity

10% to 90% (non-condensing) / 5% to 90% (non-condensing)

Frequency Range

2.4G：2.4~2.4835GHz
5G: UNII-1: 5.15~5.35GHz/ UNII-2: 5.47~5.725GHz / UNII-3: 5.725~5.825GHz

Channel

2.4G: 1、2、3、4、5、6、7、8、9、10、11、12、13
5G: 36、40、44、48、52、60、64、149、153、157、161、165

Modulation

802.11b: DSSS (DQPSK, DBPSK, CCK)
802.11g: OFDM (BPSK, QPSK,16-QAM)
802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)
802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM)
802.11ax: OFDMA (BPSK,256-QAM, 1024-QAM)

Transmission Rate

802.11b: Up to 11Mbps
802.11g: Up to 54Mbps
802.11n: Up to 300Mbps (2.4G)
802.11ac: Up to 866Mbps (5G)
802.11ax: 2.4G: Up to 574Mbps / 5G: Up to 2402Mbps

Work Mode

Router、Bridge、WISP、AP+Client、AP+WDS

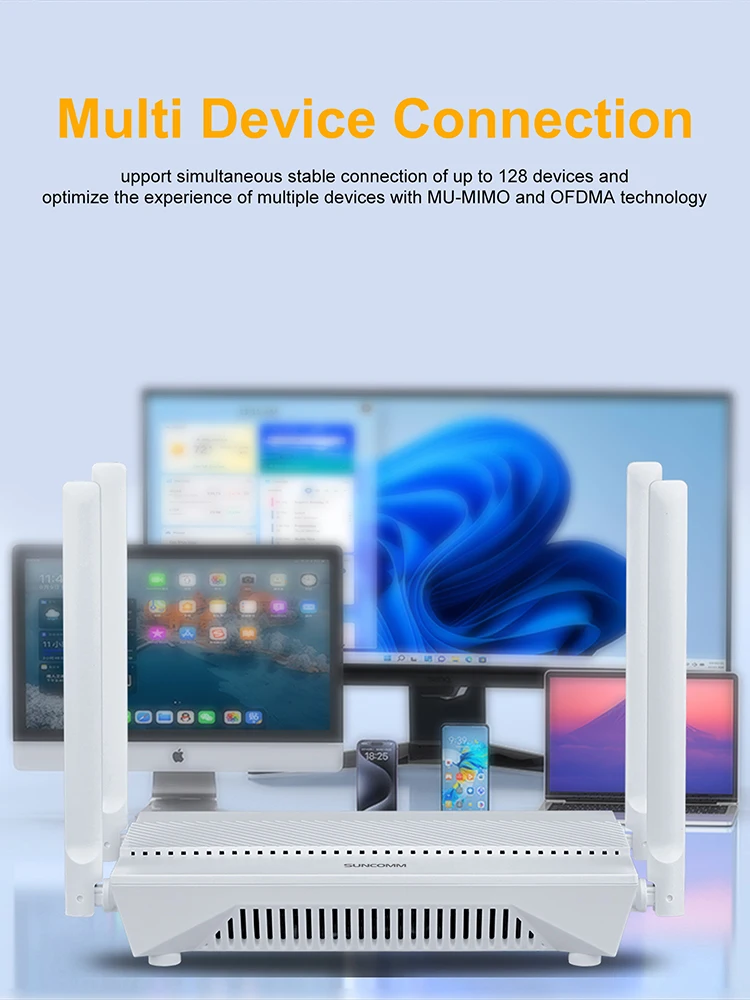

Number of connected users

128 Users

Management mode

WEB remote management / Cloud platform WEB remote management

Routing Status

- Internet: WAN, LAN, Network Interfaces Status
- Router: Routing Information, WiFi Information
- User List: Main Network Users, Guest Network Users

Internet Settings

Internet Setup
  Modes: Router Mode, Bridge Mode, WISP,AP+Client, AP+WDS
  Connection Types: Dynamic IP, PPPoE(Broadband Dial-Up), Static IP
  DNS Settings: Automatic, Manual Input IPv6 Configuration
  WAN:
Ø Enable/Disable Switch
Ø Connection Types: Dynamic IP, Static IP
Ø DNS Settings: Automatic, Manual Input
  LAN:
Ø Client Address Modes: SLAAC,DHCPv6,DHCPv6/SLAAC, None
Manual Prefix Setup

WiFi Settings

WiFi: Dual-band Integration, Country or Region
2.4G&5G WiFi: Status Switch, Hide SSID Switch, WiFi Name, WiFi Password, Security, Encryption Mode, Wireless Protocol, Wireless Channel, Txpower

More Features

Network:
  LAN Setup: LAN IP Address, Subnet Mask, DHCP Server Switch, Starting IP Address, Ending IP Address，Lease time, Primary DNS, Secondary DNS
  DHCP List
Wireless:
  Black And White List Switch, Mode(Blacklist/Whitelist), Blacklist And Whitelist
  WPS 2G/5G WPS Switch, 2G/5G PBC, 2.4G/5G WPS Status
  Mesh Configuration Switch, Role(Auto/Master/Agent), Current Role
  Wireless Advanced Configuration High Performance Mode, Band Streering, WLAN QoS, WiF5 Compatibility Mode, Health Model(Switch,Strategy Time)
  Network Advanced: DDNS, IPTV, Static IP Assignment, Guest Network, Parental Control, VPN Client, Hardware NAT, Network Tools,UPnP, Static Route, IGMP Proxy, Flow Control, ARP Binding
Features: Safety, ALG, Port Forwarding, DMZ Settings, MAC Filtering, IP Filtering, DDOS
Management: System Time, User Info, Black & Upgrade, Restart &Reset, Led, System Log Router Topology Diagram
Application: Intranet Penetration

Setup Wizard

Network, WiFi, Summary
