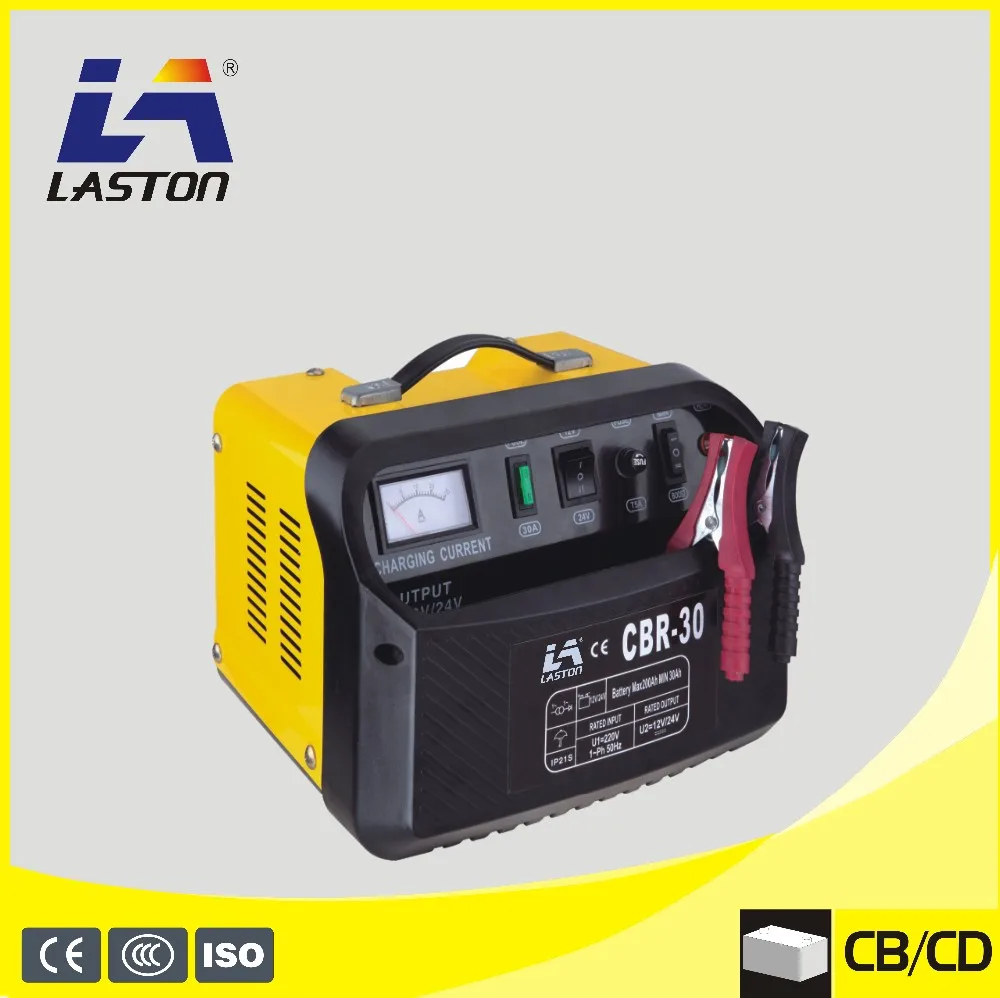

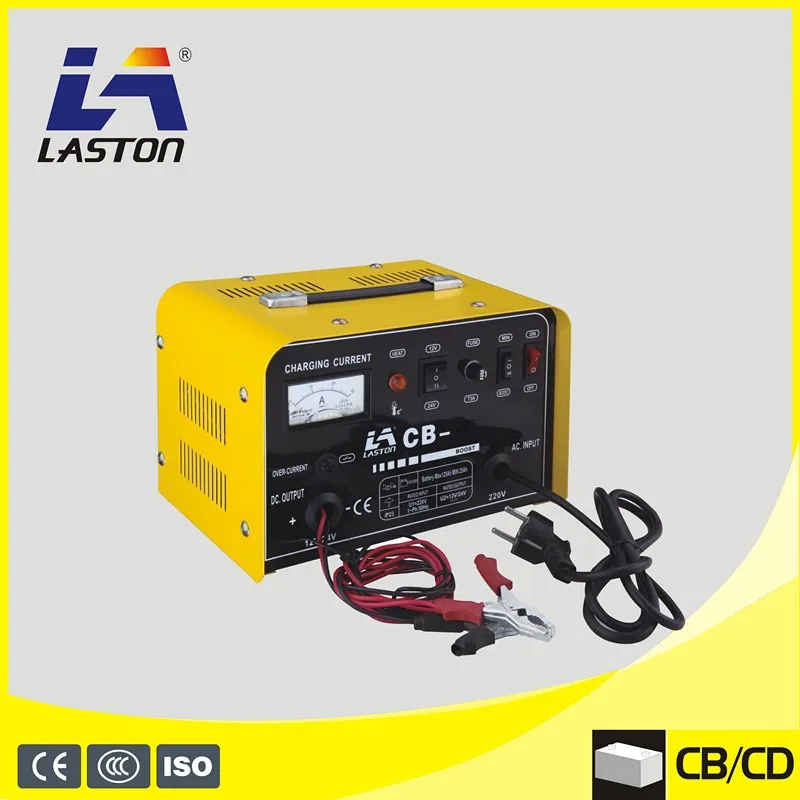

Portable Car Battery Charger 12/24V SINGLE-PHASE CB-30
Main Features
1) Single-phase,potable battery chargers for charging lead-acid btteries with 12/24v voltage.
2) Equipped with ammeter.
3) Protected against overload and polarity revesal.
4) Equipped with selector for normal or quick charging.
| ITEM | CB-25 | CB-30 | CB-40 | CB-50 |
| POWER VOLTAGE(V) | 220V | 220V | 220V | 220V |
| FREQUENCY(HZ) | 50 | 50 | 50 | 50 |
| RATED CAPACITY(W) | 240/360 | 260/480 | 360/720 | 480/960 |
| CHARGING VOLTAGE(V) | 12/24V | 12/24V | 12/24V | 12/24V |
| RATED CURRENT(A) | 25 | 30 | 40 | 50 |
| SUITABLE BATTERY(Ah) | 25-150 | 30-200 | 35-300 | 40-400 |
| PROTECTION CALSS | IP21S | IP21S | IP21S | IP21S |
| INSULATION CALSS | H | H | H | H |
| DIMENSION(CM) | 29*25*22 | 29*25*22 | 31*28*24 | 31*28*24 |
| WEIGHT(KG) | 5.6 | 7.1 | 8.3 | 10.4 |
Product Application
Battery charger is used to charge lead-acid battery in small cars and trucks.it is worked by transformer to lower the voltage.rectifier to rectify and then charge lead-acid battery by connecting overload protector on two heads of the battery.it has very simple and reliable circuit,lowers the machine faulty rate to min.Battery charger also has fast and slow charging switch,can fast charge battery and also protect from overcharging.when battery is discharging .the over current protector can protect machine from being damaged by big current.the machine is good looking ,novel and protable.

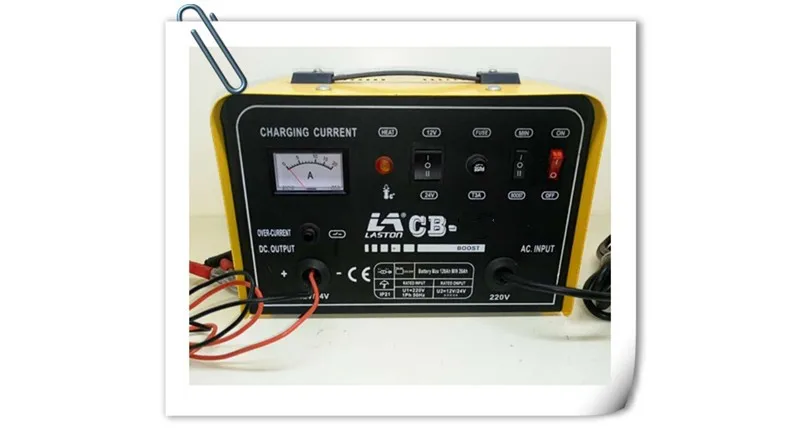

FRONT PANEL SHOW
Name: CB-30
Brand: LASTON
Original: CHINA
We can do the customized desigh about the front panel,it can show your model and your brand.

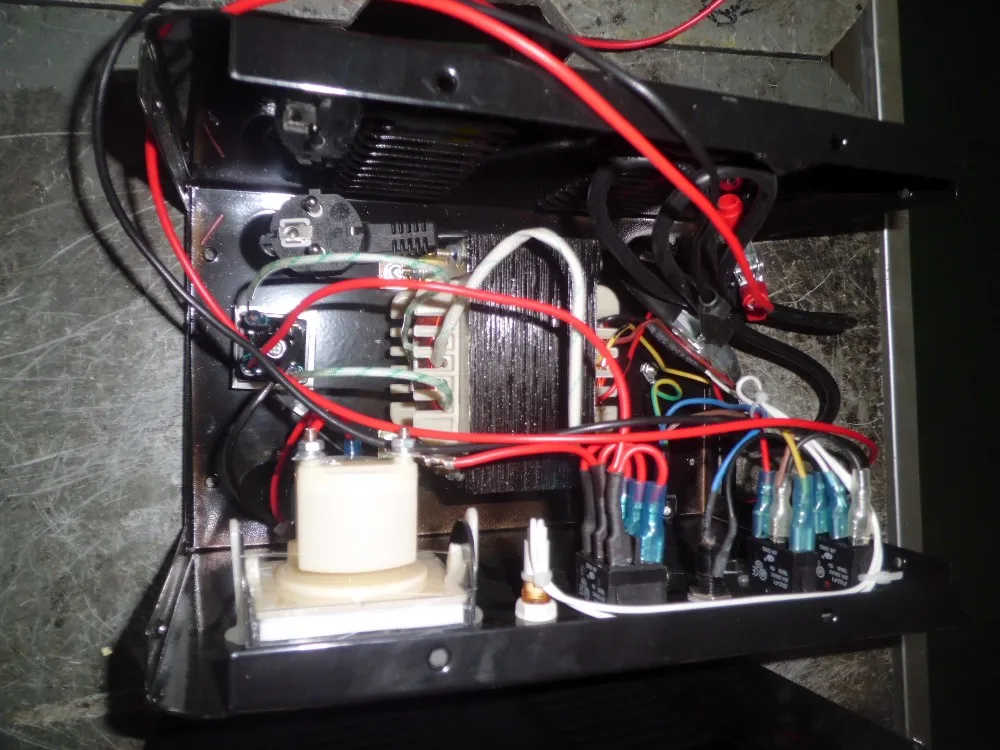

TRANSFORMER
Name: CB-30
Brand: LASTON
Original: CHINA
Inside is the transformer,and it is made by aluminum ,also we can do the copper.
Handle
Name: CB-30
Brand: LASTON
Original: CHINA
This model CB-30 use the soft handle and this handle makes it more comfortable to carry.
BACK PANEL SHOW
Name: CB-30
Brand: LASTON
Original: CHINA
All the battery charger will be test by our professional IQC before delivery.
when the IQC finished the test and the machine has past the test then they will print a sticker on the back of the machine.
About the colour
Our factory colour is yellow 116C,but we also can do your colour,just need you to tell us the panton colour number or the sample.
| Packaging | |
| Size | 290 (L) * 255 (W) * 220 (D) |
| Weight | 7.1kgs |

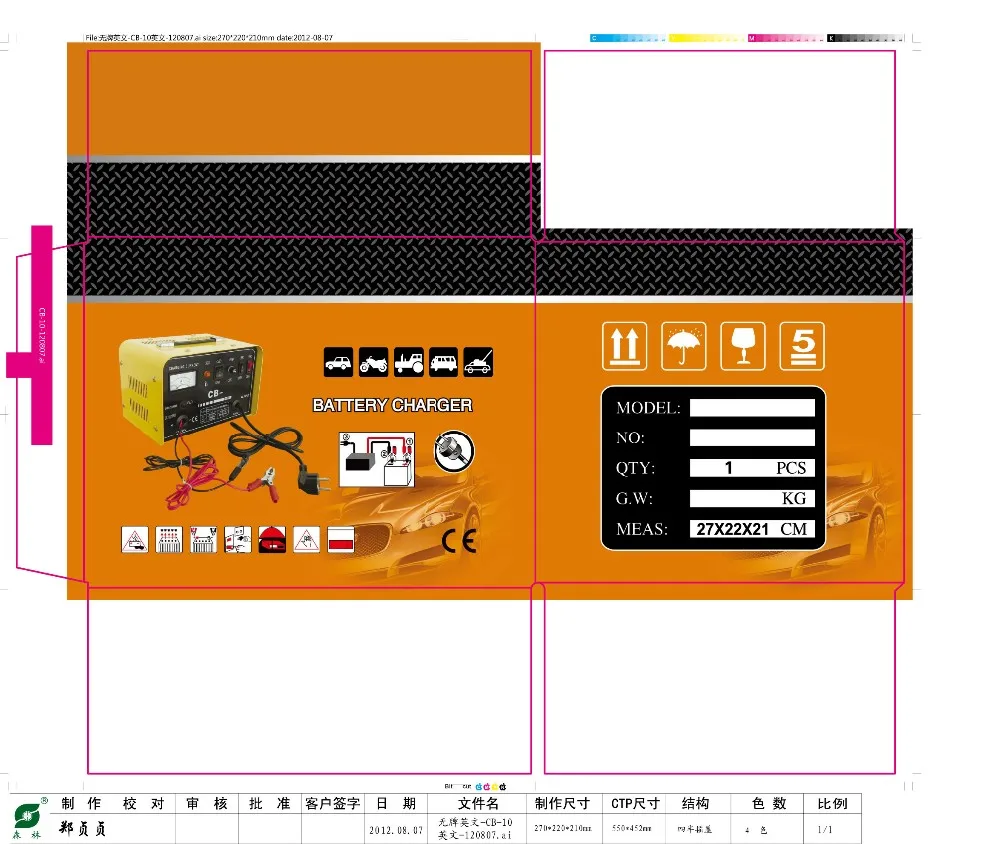

| Packaging Details | The normal package is colour box(Size: L*W*H). one battery charger will be packaged in one colour box,and if your quantity enough to 500pcs then you can do your design and brand of the colour box. |

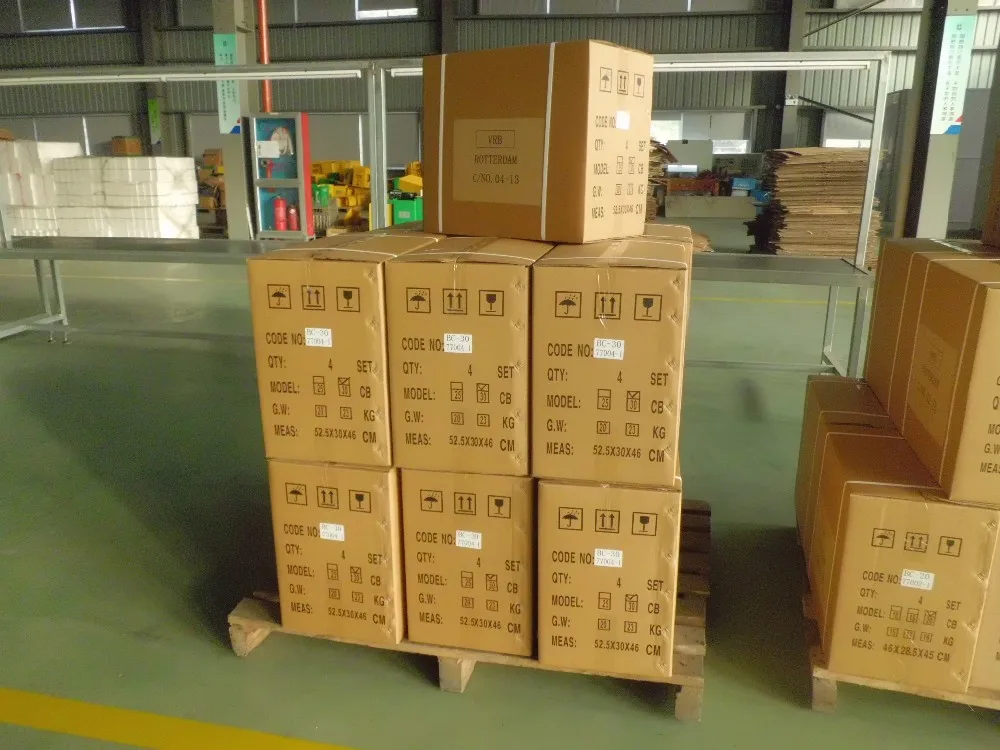

| Packaging | |
| Size | 500(L) * 351 (W) * 470 (D) |
| Weight | 30kgs |
| Packaging Details | 4 CTNS colour box will be packaged in one big kraft box,double package can protect the machine not damaged during the transit. |
Payment
1.Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
2.LC AT SIGHT
Delivery time
Generally it is 25-30days after confirm the design and deposit.and also it's according to the quantity.
