Introduction
Feed extruder machine is feed extrusion equipment. A variety of shapes can be produced, and molds can be customized according to requirements. The product outlet is equipped with a variable frequency rotary cutting device, which can adjust the blade rotation speed to control the cutting speed and length. Feed extruder machine has high output and stable operation. The main components are made of alloy materials and refined through heat treatment. It has the characteristics of high wear resistance and long service life.
Application
Feed extruder machine uses corn, soybean (bean cake) animal scraps, etc. as raw materials, and is suitable for the production of feed with different pet flavors such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, minks, foxes, etc.
Feed extruder machine is suitable for farmers and small and medium-sized feed factories.The feed is neatly formed and smooth, it floats on the water surface without sinking for more than 12 hours, does not pollute water sources, and sterilizes to reduce fish diseases.
Features
1. The density of pet feed and aquatic feed can be controlled.
2. Dry puffing process adopts self-heating method and does not require steam system.
3. The screw design has powerful self-cleaning function
4. Variable speed cutting head, adjustable gap between cutter and template.
5. The machine has novel design, compact structure and high production efficiency.
Parameter
| Model | Productivity (t/h) | Host power (kw) | Feeding power(kw) | Spiral diameter(mm) | Cutting power(kw) | Weight |
| GD-PDFM-40 | 0.04-0.05 | 5.5kw (220v) |
0.4 | &Phi40 | 0.4 | 350kg |
| GD-PDFM-50 | 0.08-0.09 | 11kw (380v) |
0.4 | &Phi50 | 0.4 | 350kg |
| GD-PDFM-60 | 0.12-0.15 | 15 | 0.4 | &Phi60 | 0.4 | 450kg |
| GD-PDFM-702 | 0.18-0.20 | 18.5 | 0.4 | &Phi70 | 0.4 | 490kg |
| GD-PDFM-80 | 0.3-0.35 | 22 | 0.55 | &Phi80 | 0.55 | 600kg |
| GD-PDFM-100 | 0.4-0.5 | 37 | 1.1 | &Phi90 | 1.5 | 800kg |
| GD-PDFM-120 | 0.60-0.70 | 55 | 1.1 | &Phi120 | 2.2 | 950kg |
| GD-PDFM-135 | 0.75-0.8 | 75 | 1.1 | &Phi133 | 2.2 | 950kg |
| GD-PDFM-160 | 1.0-1.2 | 90 | 1.5 | &Phi160 | 2.2 | 1200kg |
| GD-PDFM-200 | 1.8-2.0 | 110 | 2.2 | &Phi160 | 2.2 | 1450kg |
Q1 What is a feed extruder?
A:A feed extruder is a piece of equipment used for processing animal feeds. It alters the physical and chemical properties of feed ingredients through high-temperature, high-pressure conditions and mechanical shear forces to enhance their solubility, digestibility, and texture, thereby improving feed utilization by animals.
Q2 How does a feed extruder work?
A:A feed extruder works by pushing feed ingredients into an extrusion screw and then subjecting them to high temperatures and pressures to extrude the materials. During extrusion, the materials expand and generate heat, causing starch gelatinization and protein denaturation, thereby increasing their solubility and digestibility.
Q3 Can the price be much lower?
A:Our MOQ is the very reasonable price for 1 set, but with big order, we can apply to our Manager to provide a proper discount.
The more quantity ordered, the lower the price.
If you become our foreign distributor, we will provide you with a negotiated price
Q4 Can I have different models with different price?
A:Yes, there have different models according to different raw material and different capacity.
Q5 Do you offer oversea installation?
A: We'll send professional installation engineer to help you install the equipment, as well as train your workers freely.

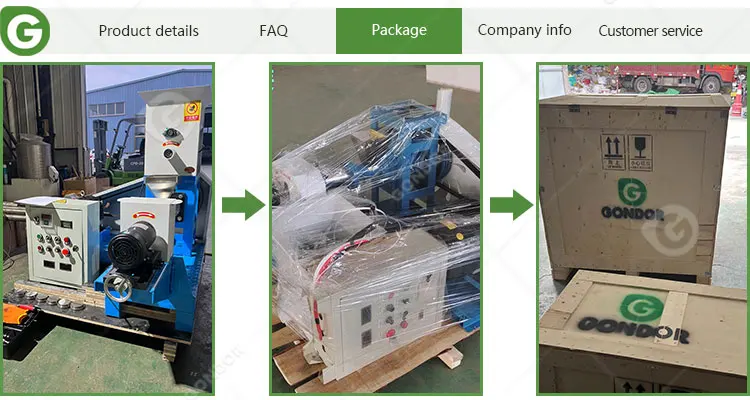

Installing waterproof membrane to reduce dust and water pollution.
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation.
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
1. 24- hour communication service
2. Fast logistics will provide you a smooth delivery service
3. One-year warranty and lifetime technical support
4. New design or product recommendation
5. Attend international Fair to negotiate with customer face to face
6. Offer official invitation if you come to China
7. Reception service,help you to book good hotel
