Chất lượng cao 6 trục hàn cánh tay robot chân không công nghiệp cho ngành công nghiệp xây dựng
Chất lượng cao 6 trục hàn cánh tay robot chân không công nghiệp cho ngành công nghiệp xây dựng
Chất lượng cao 6 trục hàn cánh tay robot chân không công nghiệp cho ngành công nghiệp xây dựng
5
999
Đã bán
114.508.895đ
103.626.238đ ~ 114.508.895đ
Yêu thích
Chất lượng cao 6 trục hàn cánh tay robot chân không công nghiệp cho ngành công nghiệp xây dựng
5
999
Đã bán
114.508.895đ
103.626.238đ ~ 114.508.895đ
Nơi xuất xứ: Shandong, ChinaNhãn hiệu: JIAXIN
Ứng dụng: weldingCác tính năng: Multi function
Điều kiện: MớiBảo hành: 1 year
Kích thước (L * W * H): 150*120*80Điện áp: 220V
Áp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Nhà Máy sản xuất, Xây dựng làm việc, Năng lượng & Khai Thác Mỏ, Công Ty quảng cáoTrọng lượng (KG): 172 KG
Phòng Trưng Bày Trí: Không cóVideo Gọi Đi-Kiểm Tra: Cung Cấp
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpTiếp Thị Loại: Multi Function Industrial Robot
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ

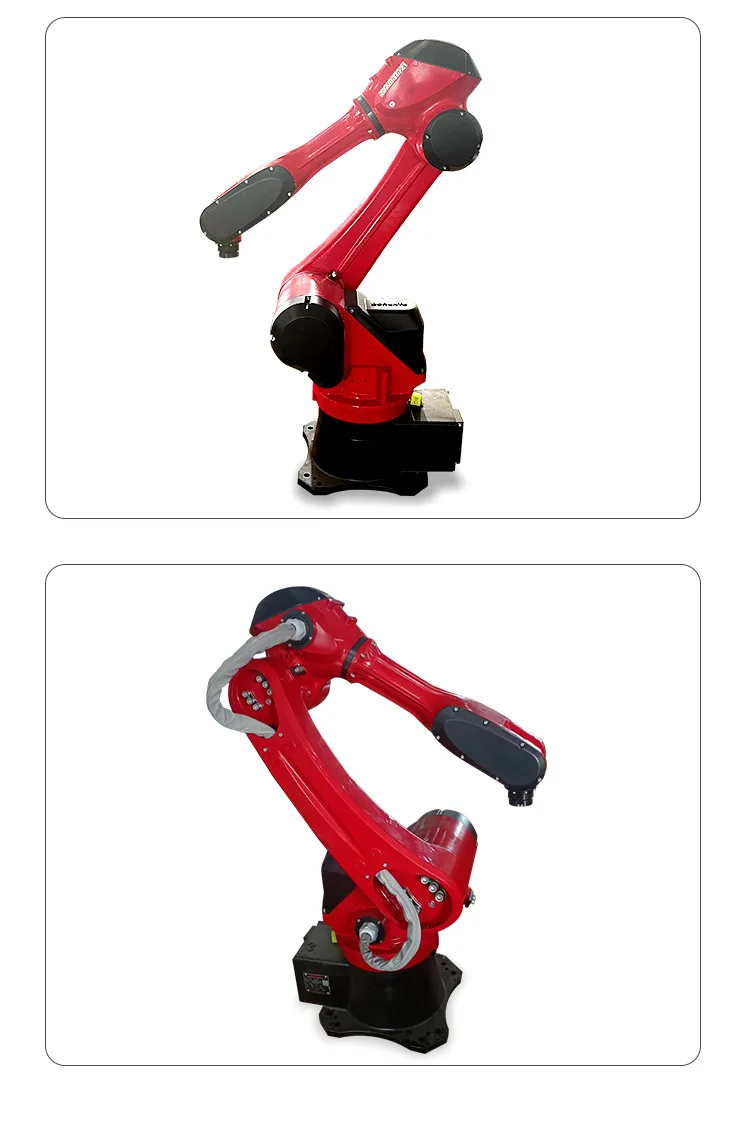

Product Description













Specification
Model No. | JX10-1440 | |
Controlled axis | 6-DOF | |
Max payload | 10 kg | |
Max stroke | 1440mm | |
IP Level | J1, J2-IP56 J3, J4, J5, J6-- IP67 | |
Installation mode | Floor type, ceiling type | |
Robot mass | 172 kg | |
Repeatability | ±0.05 mm | |
Welding machines | ● Standard: Aotai NBC-350R (MIG/MAG/CO2) | |
● Optional: Aotai NBC-350RL (low spatter) | ||
● Optional: Aotai NBC-350RL (low spatter) | ||
Welding current | 350A/500A | |
Welding torch | Standard air-cooling torch with built-in anti-collision protection | |
Travel range | ||
J1 axis S | ±160° | |
J2 axis L | +80°~-145° | |
J3 axis U | +145°~-75° | |
J4 axis R | ±190° | |
J5 axis B | +50°~-210° | |
J6 axis T | ±230° | |
Travel speed | ||
J1 axis S | 199.5 ˚/s | |
J2 axis L | 159.3 ˚/s | |
J3 axis U | 199.5 ˚/s | |
J4 axis R | 392 ˚/s | |
J5 axis B | 272 ˚/s | |
J6 axis T | 1000 ˚/s | |

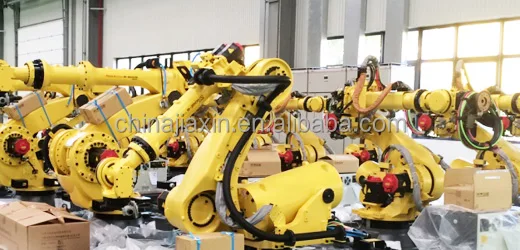

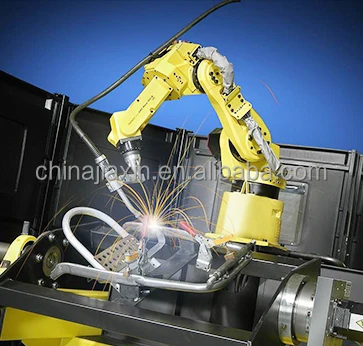

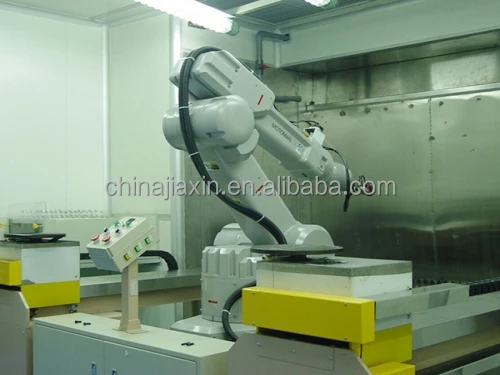

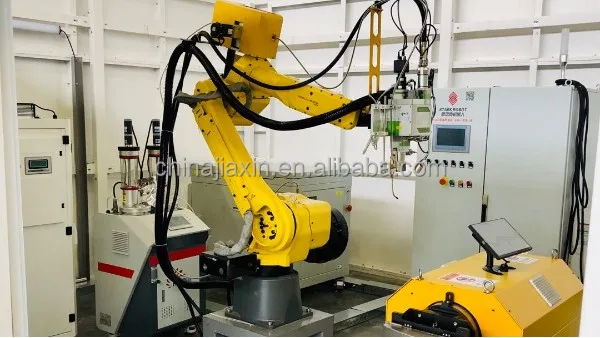

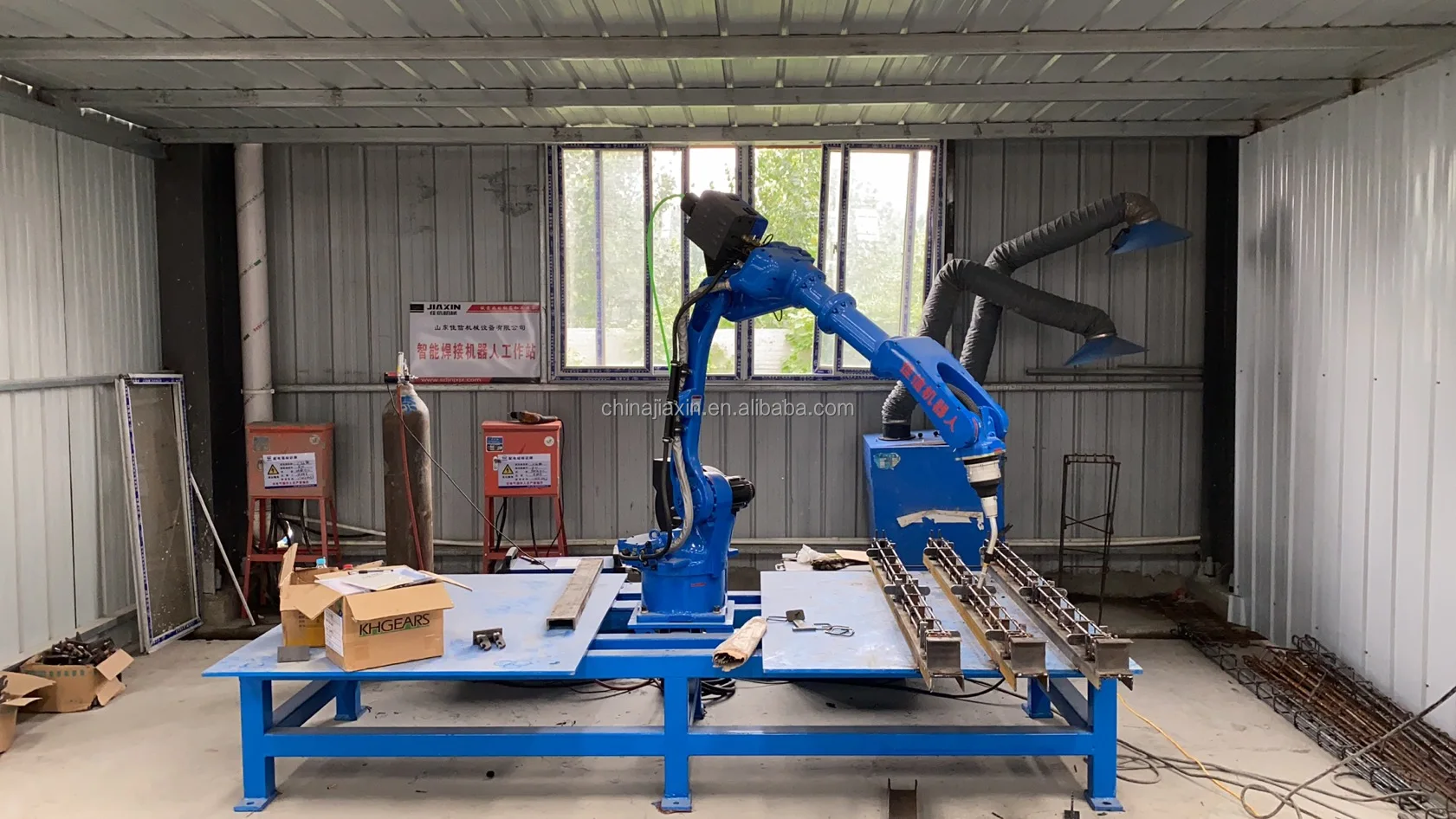

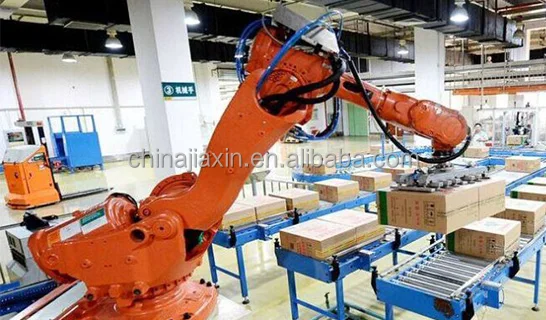

Working pictures











Company Profile






From a roll with factory has developed into a production cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality first" business philosophy To customers as the management aim of god. Through the nationwide sales and service network, improve the pre-sale, sale, after-sales service Through the sincere cooperation to provide you with excellent products and efficient service.



FAQ
1. who are we?
We are based in Shandong, China, start from 2013,sell to South America(24.00%),Oceania(23.00%),Southeast Asia(19.00%),Mid East(19.00%),Western Europe(7.00%),North America(3.00%),Africa(2.00%),Eastern Asia(2.00%),Central America(00.00%),Eastern Europe(0.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
3.what can you buy from us?
CNC Cutting Machine,Bending Machine
4. why should you buy from us not from other suppliers?
Capable of producing cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality f
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2013,sell to South America(24.00%),Oceania(23.00%),Southeast Asia(19.00%),Mid East(19.00%),Western Europe(7.00%),North America(3.00%),Africa(2.00%),Eastern Asia(2.00%),Central America(00.00%),Eastern Europe(0.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
3.what can you buy from us?
CNC Cutting Machine,Bending Machine
4. why should you buy from us not from other suppliers?
Capable of producing cold treatment steel processing equipment, prestressed equipment, miniature crane five series more than 30 kinds of products such as large-scale manufacturing enterprises.We are always in line with "the good faith management, quality f
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese
