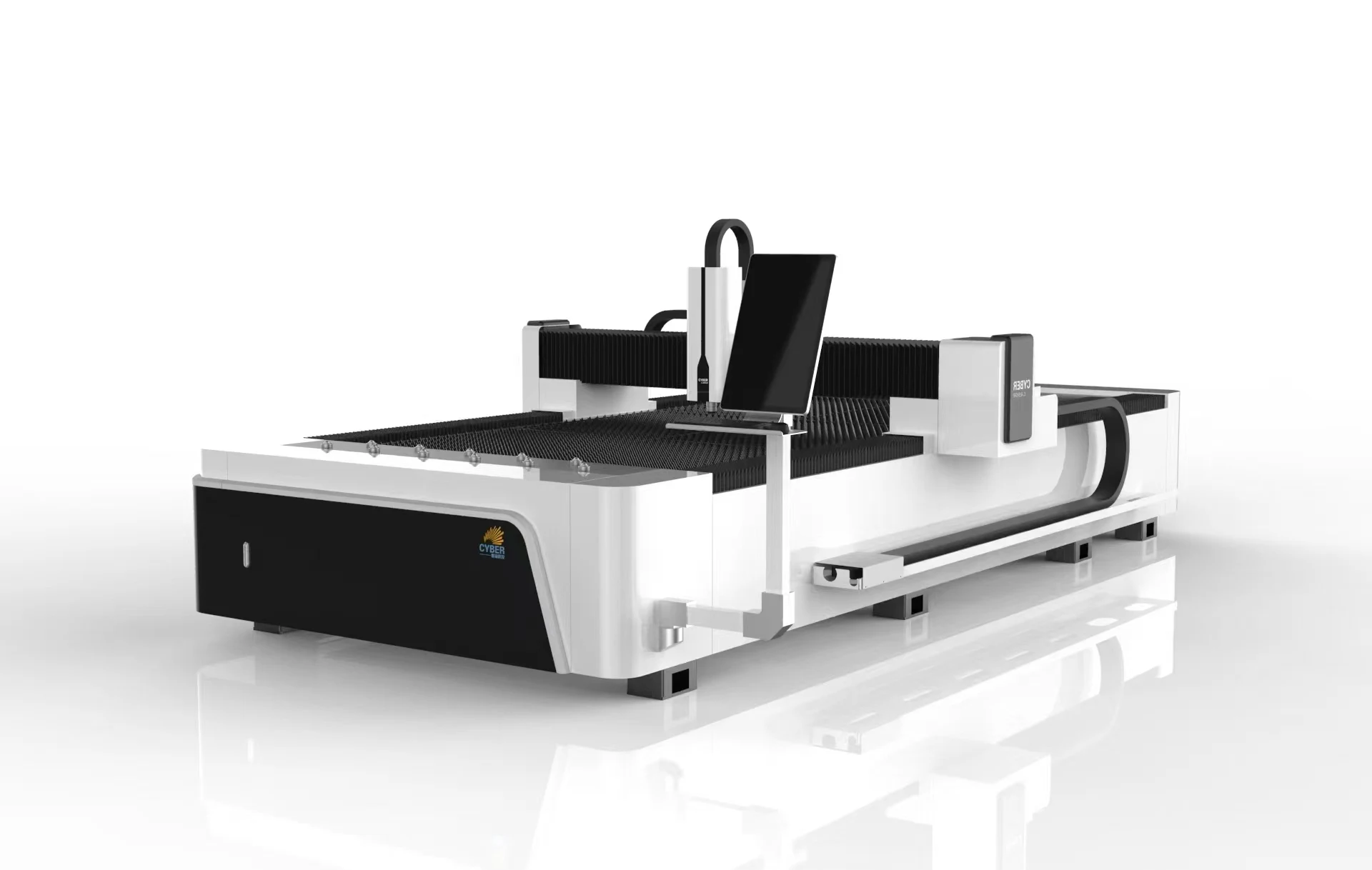

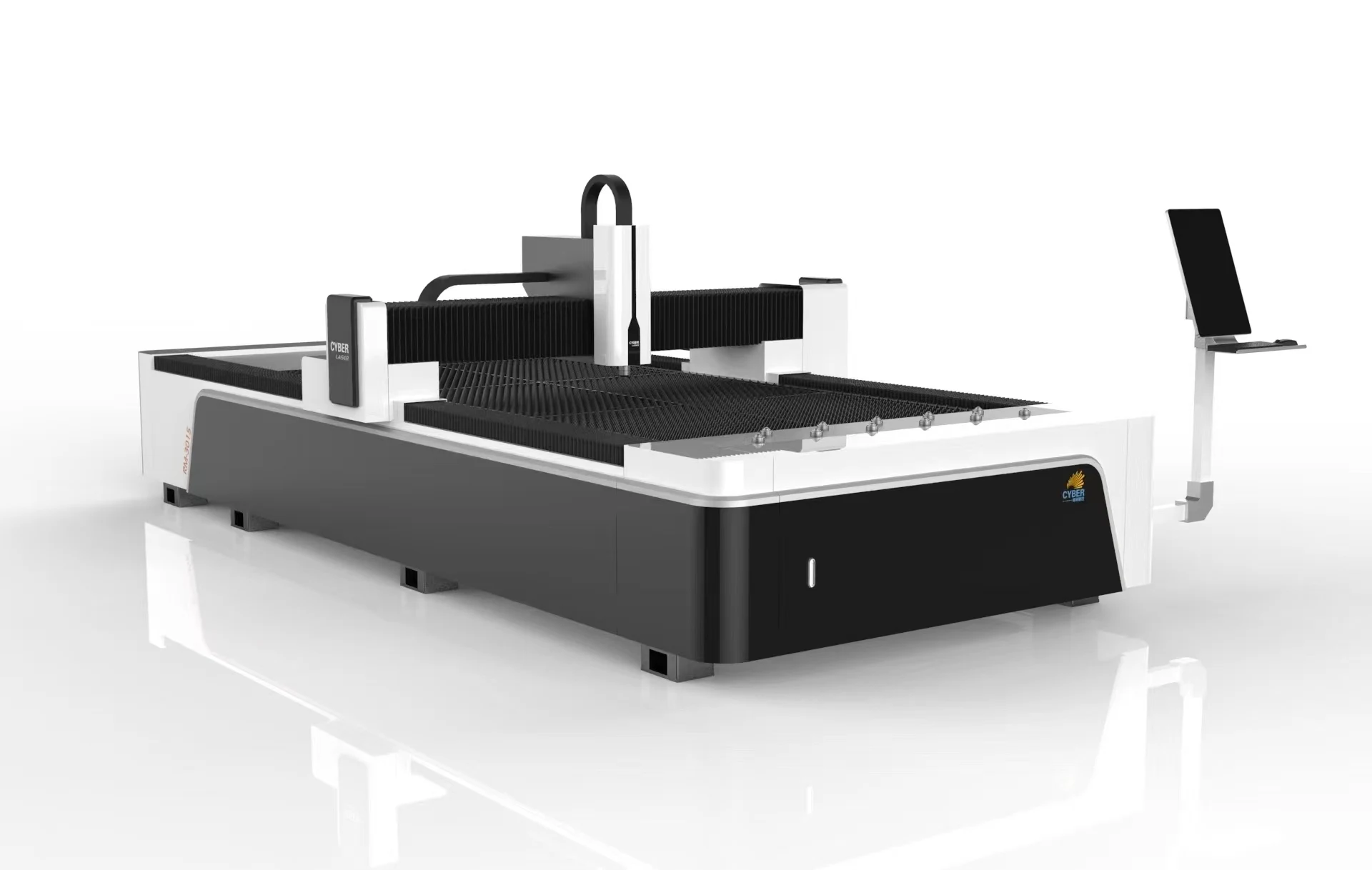

1000W 2000W 3000W Fiber laser cutting machine CNC laser cutting machine for steel metal
1. High perfeomance. Fiber transmission can make sure the same quality cutting effect in every point of the material
2. High efficiency. Fast cutting speed, photoelectric conversion rate is about 35%(CO2 photoelectric conversion rate is about 7%)
3. Low gas consumption. It has the cutting technology specially for steel board and produce no gas when cutting.
4. Low power consumption. Environment-friendly and energy-saving, low power consumotion(reduce 20%-30% power compared with CO2 laser cutting machine)
5. Maintenance free. Fiber transmission without reflection lens, can save time in light path adjustment.
6. Fiber exerts its features better in thin metal sheet cutting. Such as 1mm stainless steel, its cutting speed reach 12m/min. While 2mm stainless steel cutting speed readuce to 3.5m/min. The thicker metal sheet, the lower of the machine efficiency.
|
Model |
JX-3015G |
|
Working Area |
3000mm*1500mm |
|
Laser Power |
1000W to 20000W |
|
Laser Wavelength |
1060nm-1080nm |
|
Cutting Speed |
0-60m/min |
|
Gross Power |
20KW-30KW |
|
Cutting Thickness |
14mm/18mm/20mm/24mm |
|
Positioning Accuracy |
±0.03mm/m |
|
Reposition Accuracy |
±0.02mm/m |
|
Max Velocity of Movement |
169m/min |
|
Cooling Mode |
Water Cooling |
|
Supply Power |
3 phase 380V/50HZ 20KVA-30KVA |
|
Application Materials |
Sheet Metal |
1.Q: Are you a factory or trading company?
A:We are a manufacturer with export license,you could get factory price from us.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q: Can you do OEM?
A: Yes, we can do OEM products.
It's no problem.
4.Q:How can I get some samples?
A:1,We are honored to offer you samples. New clients are supposed to pay for the courier
cost, the samples are free for you, this charge will be deducted from the payment for formal
order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon Fedex,
UPS, DHL, TNT, etc. to have the samples collected or inform us your DHL collection account.
Then you can pay the freight direct to your local carrier company.
