Mô tả sản phẩm
Nơi xuất xứ: HENANĐiều kiện: Mới
Video Gọi Đi-Kiểm Tra: Cung CấpMáy Móc Báo Cáo Thử Nghiệm: Cung Cấp
Tiếp Thị Loại: 2024 sản phẩm nóngBảo Hành Của Core Thành Phần: 6 Tháng
Core Thành Phần: Động Cơ, Động Cơ, BơmNhãn hiệu: BEDO
Hiệu quả Khối lượng: Theo mô hình khác nhauKích thước (L * W * H): 1600*1800*2200m m
Điện áp: 220V/380V/tùy chỉnhCông suất (HP): 5kW
Bảo hành: 1 NămKey Điểm Bán Hàng: Dễ dàng để Hoạt Động
Áp dụng Các Ngành Công Nghiệp: May mặc Cửa Hàng, Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Thực phẩm và Đồ Uống Nhà Máy, Nhà hàng, Nhà Sử Dụng, Bán lẻ, Thực phẩm Cửa Hàng, In ấn Cửa Hàng, Xây dựng làm việc, Năng lượng & Khai Thác Mỏ, Thực phẩm và Đồ Uống Cửa Hàng, KhácPhòng Trưng Bày Trí: Ai Cập, Canada, Thổ Nhĩ Kỳ, Vương Quốc Anh, Hoa Kỳ, Ý, Đức, Philippines, Peru, Ả Rập Saudi, Ấn Độ, Thái Lan, Maroc, Nam Hàn Quốc, Tiểu Vương Quốc Ả Rập Thống Nhất, Colombia, Algérie, Sri Lanka, Bangladesh, Nam Phi, Kazakhstan, Uzbekistan, Tajikistan, Malaysia
Trọng lượng (KG): 1200Tên: Than sinh học máy than hoạt tính công nghệ lò Lò
Loại: Không khói gỗ chip carbonization lòMô hình: BD-TH500
Thời gian cacbon hóa: 12-14 giờLợi thế: Tiết kiệm thời gian cacbon hóa
Được trang bị: Hệ thống làm sạch khóiĐược sử dụng cho vật liệu: Gỗ đăng nhập, vỏ dừa, tre, than bánh gỗ, vỏ cọ
Sử dụng sản phẩm cuối cùng: Làm than bánhDịch vụ: 24 giờ trực tuyến
Màu sắc: Yêu cầu của khách hàng
Wood Branch Coconut Shell Hemp Rod Carbonization Furnace Biochar Machine Activated Carbon Technology Kiln Furnace
Product Description
Horizontal carbonization furnace in the original carbonization furnace on the basis of the increase of flue gas recovery device, flue gas recovery can reach, to smoke-free dust. Horizontal carbonization furnace has the effect of one machine and two uses, the material can be directly carbonized, also can be made after the first rod carbonization. The carbon yield of raw materials is more than 40%-60%, and the yield of finished products is more than 95%. Save time and labor, one person can operate several carbonization furnaces at the same time.
Horizontal carbonization furnace carbonization time is short, improve work efficiency. And suitable for a variety of materials carbonization process, the combustible gas can be fully utilized, no pollution to the environment, to achieve energy conservation and environmental protection.
Specification
Brief description of the smoke treatment system:
1.Smoke treatment irrigation is also used on the carbonization furnace shunt irrigation, the two irrigation is an irrigation, but on the basis of the original and added a valve and smoke pipe lengthen, increased the water treatment, has become a irrigation of two functions, is convenient to operate.
2.The smoke treatment system is the two air holes on the carbonization furnace, the tail smoke from firewood and the residual smoke of the carbonization furnace are treated, and the white smoke comes out after the treatment.
3.Water pump:smoke treatment system is mainly the use of four machine washing way to deal with the smoke, so that the impurities in the smoke are cleaned (such as wood tar, wood vinegar), into white smoke discharge.
4.Recycle water.
5.Valves:each stove can be installed 2 pieces 130 type valves, so that the operation of each stove is easy to use.
6.Fan: motor 7.5KW.
2.The smoke treatment system is the two air holes on the carbonization furnace, the tail smoke from firewood and the residual smoke of the carbonization furnace are treated, and the white smoke comes out after the treatment.
3.Water pump:smoke treatment system is mainly the use of four machine washing way to deal with the smoke, so that the impurities in the smoke are cleaned (such as wood tar, wood vinegar), into white smoke discharge.
4.Recycle water.
5.Valves:each stove can be installed 2 pieces 130 type valves, so that the operation of each stove is easy to use.
6.Fan: motor 7.5KW.

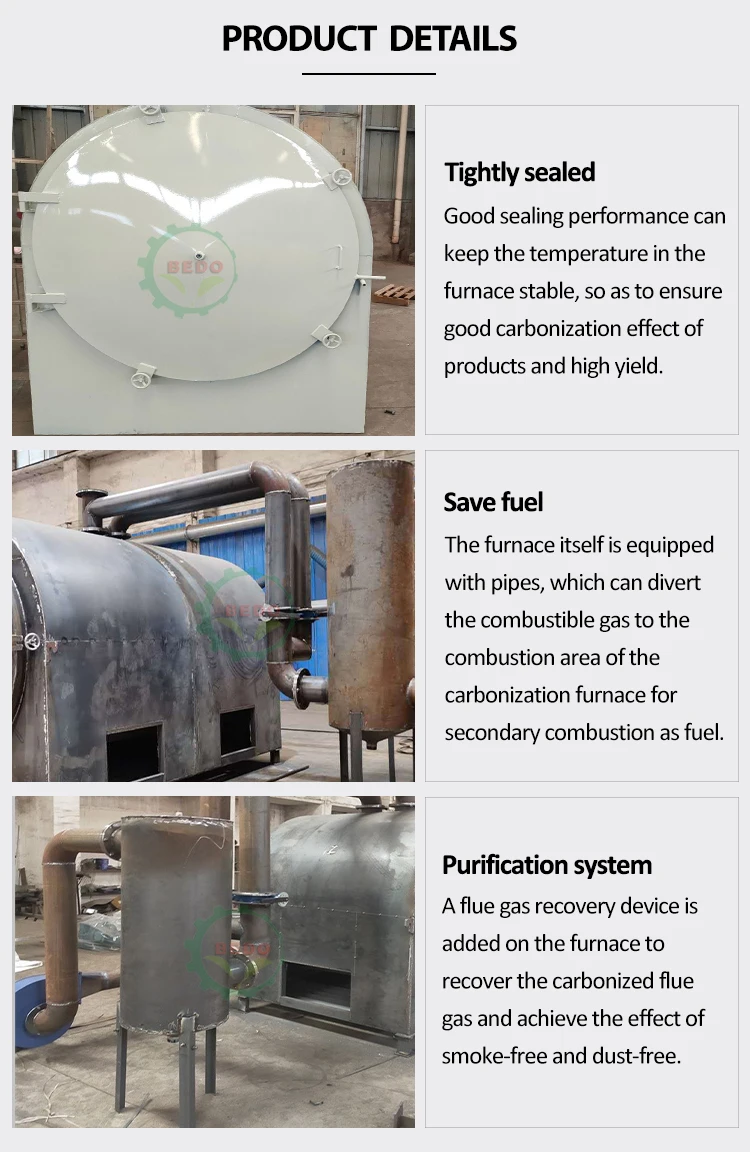

Details Images
Horizontal manufacturing process: low temperature moisture drainage, high temperature carbon refining.
The carbonization furnace is a horizontal manufacturing process, the carbonization furnace has a total three layers of structure,and there are light insulation materials in the middle of the sandwich, which can keep the temperature in the furnace does not emit.
The carbonization furnace is a horizontal manufacturing process, the carbonization furnace has a total three layers of structure,and there are light insulation materials in the middle of the sandwich, which can keep the temperature in the furnace does not emit.
Technical Data
Model | Capacity | Interior Size | Heat Treatment Time | Size | Weight |
BD-TH200 | 400kg/d | 800*1500 | 8-10h | 1700*1000*1200mm | 450kg |
BD-TH300 | 600kg/d | 1000*1500 | 10-12h | 1600*1500*1800mm | 850kg |
BD-TH500 | 1000kg/d | 1000*1800 | 12-14h | 1600*1800*2200mm | 1200kg |
BD-TH1000 | 2000kg/d | 1800*2800 | 14-16h | 3100*1600*2400mm | 2800kg |
BD-TH2000 | 4000kg/d | 2000*3500 | 16-18h | 4100*1900*2500mm | 4000kg |
BD-TH3000 | 6000kg/d | 2200*4500 | 18-20h | 5600*2400*2800mm | 6300kg |

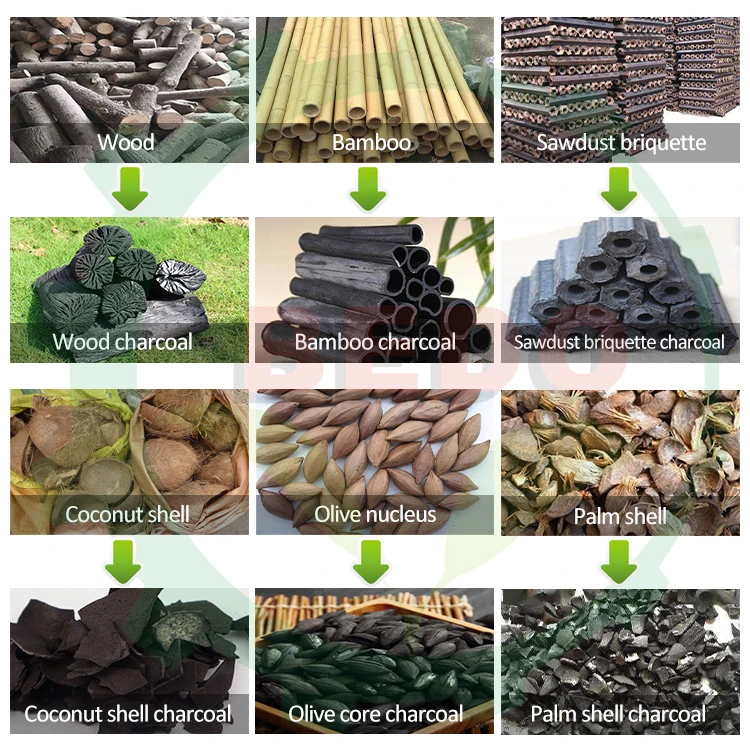

Raw Materials and Final Production
Original charcoal: Chinese fir, tung, poplar,pine, hard wood and other wood are burned by carbonized log charcoal furnace into charcoal.
Bamboo charcoal: Bamboo charcoal has loose porous structure, its molecular density porous, quality, hard. Have strong adsorption capacity, can purify air, eliminate peculiar smell, hygroscopic mildew, bacteriostatic insect repellent.
Mechanism charcoal: the use of abandoned branches, coconut shell, sawdust, rice husk, peanut shell, mechanism charcoal through high temperature and high pressure extrusion molding, carbonization into the furnace.
Olive carbon: olive carbon is common wood carbon combustion time companion, olive carbon after carbonization, smokeless combustion, durable burning resistance.
Advantages
Advantages of continuous carbonization furnace:
1. Easy to operate and maintain, more safety, energy saving. 2. High carbonization rate, no smoking, little pollution, high efficiency.
3. Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization, 6-8 hours per stove and can work continuously.
4. The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continually warming the stove, and it will save 70% energy consumption and recycle 95% smoke.

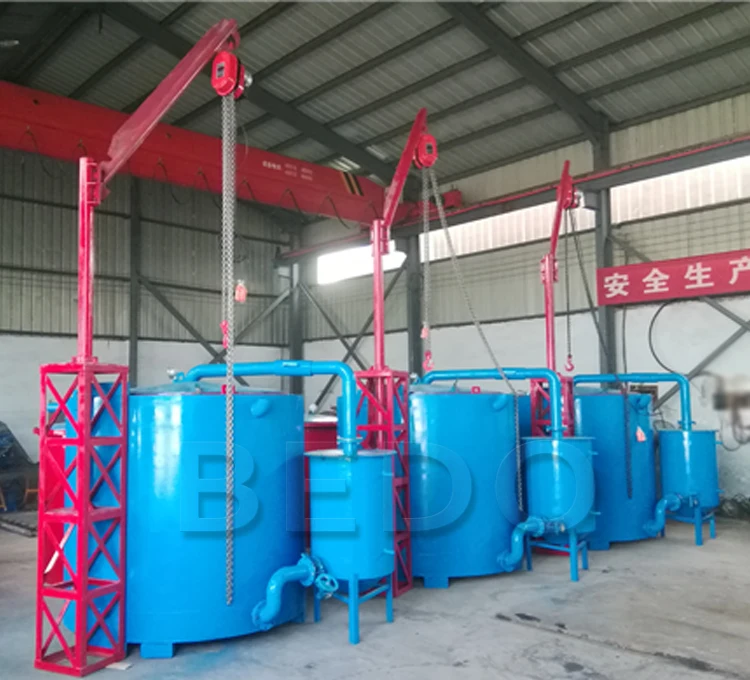

Working principle of our continuous carbonization furnace:
Put the raw material into the inner stove, hoist it into the outer stove for carbonizing, when one inner stove finished the
carbonization, hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the
similar process for the third inner stove.
Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.
carbonization, hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the
similar process for the third inner stove.
Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.

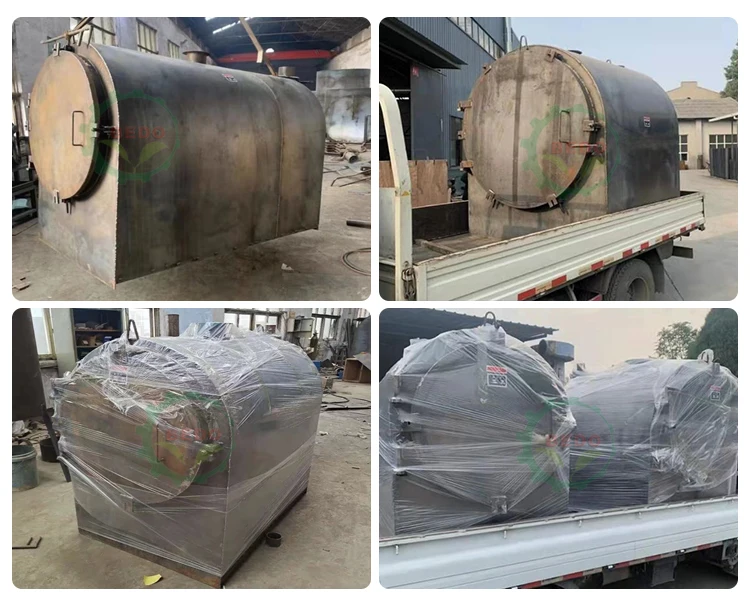

Packing & Delivery
Packaging
For one set charring kiln, it is packed by waterproof cloth, then packed in the container.
For more than two sets charring kiln, it is nude packing, packed in the full container.
Payment term
1. Payment: T/T, Western Union 50% TT payment in advance, 50% TT pay the balance before delivery.
2. Warranty: 12 months for the main machine, 4-6 months for the parts.
3. Delivery time: Within 7-10 days for single machine after getting the down payment 25-35 days for the whole production line after getting the down payment.
For one set charring kiln, it is packed by waterproof cloth, then packed in the container.
For more than two sets charring kiln, it is nude packing, packed in the full container.
Payment term
1. Payment: T/T, Western Union 50% TT payment in advance, 50% TT pay the balance before delivery.
2. Warranty: 12 months for the main machine, 4-6 months for the parts.
3. Delivery time: Within 7-10 days for single machine after getting the down payment 25-35 days for the whole production line after getting the down payment.
