Shanghai Fangling brand Control system
with 7 inch touchscreen, with built - in 48 figures, you could choose pattern from these figures directly, very convenient.
CNC Plasma cắt kim loại máy cắt plasma cắt cắt 60A xách tay CNC Plasma cắt
999
Đã bán
68.018.783đ
68.018.783đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
68.018.783đ
nRFsU7alYU
Mô tả sản phẩm
Kích thước: 1500*6000m mLoại động cơ: Động cơ bước
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: JIAXINSố Mô Hình: JX-1560
Điện áp: 220V/380VCông suất: 0.85 kg
Kích thước (L * W * H): 6500*300*300mm, 500*500*550mmTrọng lượng (KG): 120 KG
Bảo hành: 1 nămKey Điểm Bán Hàng: Dễ dàng để Hoạt Động
Áp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Xây dựng làm việc, Công Ty quảng cáoPhòng Trưng Bày Trí: Brasil, Peru, Ấn Độ, Nga, Thái Lan, Maroc, Colombia, Algérie
Tiếp Thị Loại: Sản Phẩm Mới 2020Máy Móc Báo Cáo Thử Nghiệm: Cung Cấp
Video Gọi Đi-Kiểm Tra: Cung CấpBảo Hành Của Core Thành Phần: 1 Năm
Core Thành Phần: Động Cơ, Hướng dẫn tuyến tính, đường sắt ngang, trạm nângTên sản phẩm: Jiaxin xách tay CNC Plasma Máy cắt kim loại
Sau bán hàng dịch vụ cung cấp: Kỹ sư có sẵn để phục vụ máy móc ở nước ngoàiMàu sắc: Tùy chỉnh
Độ dày cắt: 6-160m mKhu vực làm việc: 1500mm * 6000m m
Di chuyển chính xác: ± 0.2 mm/mPhần mềm: Fastcam hoặc stacam
Trọng lượng: 120kgSau khi dịch vụ bảo hành: Hỗ trợ trực tuyến
Chứng nhận: Iso
Product Description
The portable CNC plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal with plasma cutting can configurate according to your requirements, thus it is widely applied in industries, such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) The formation of advertising word processing line. Dozens of times higher than that of traditional craft processing effciency.

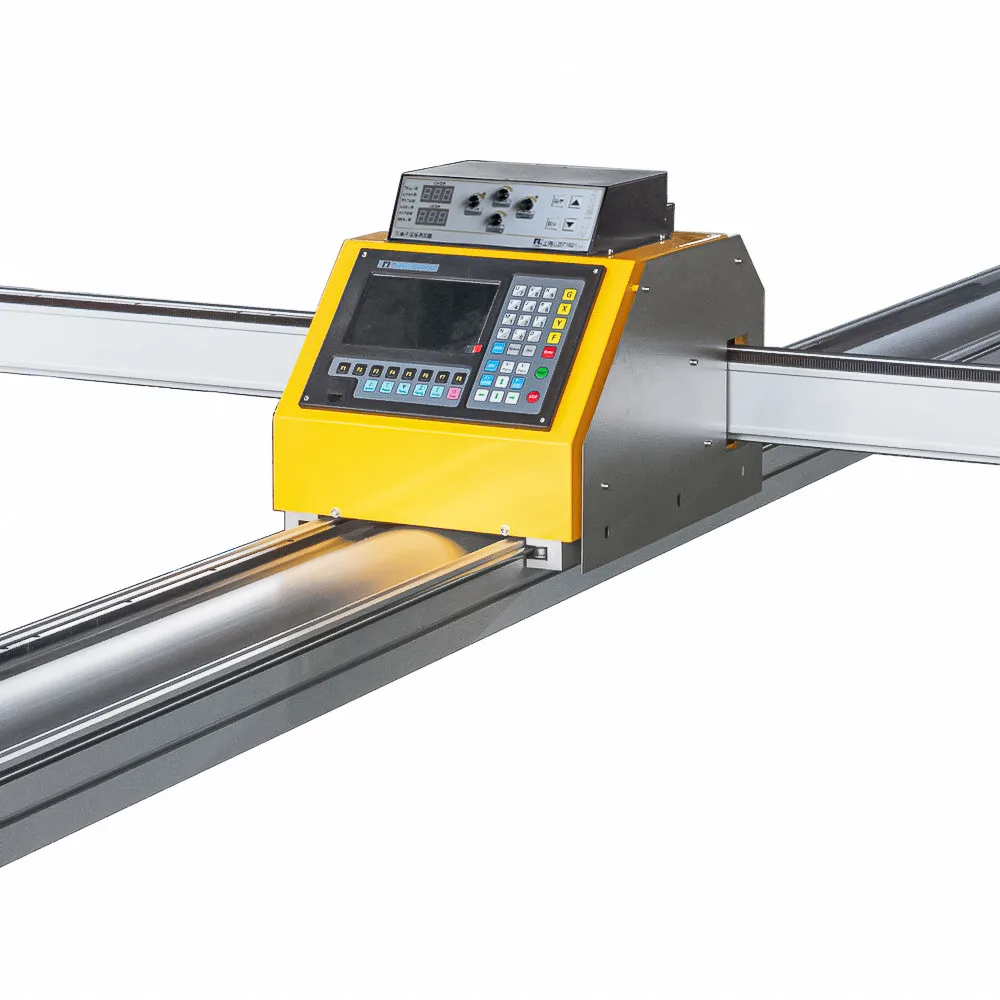

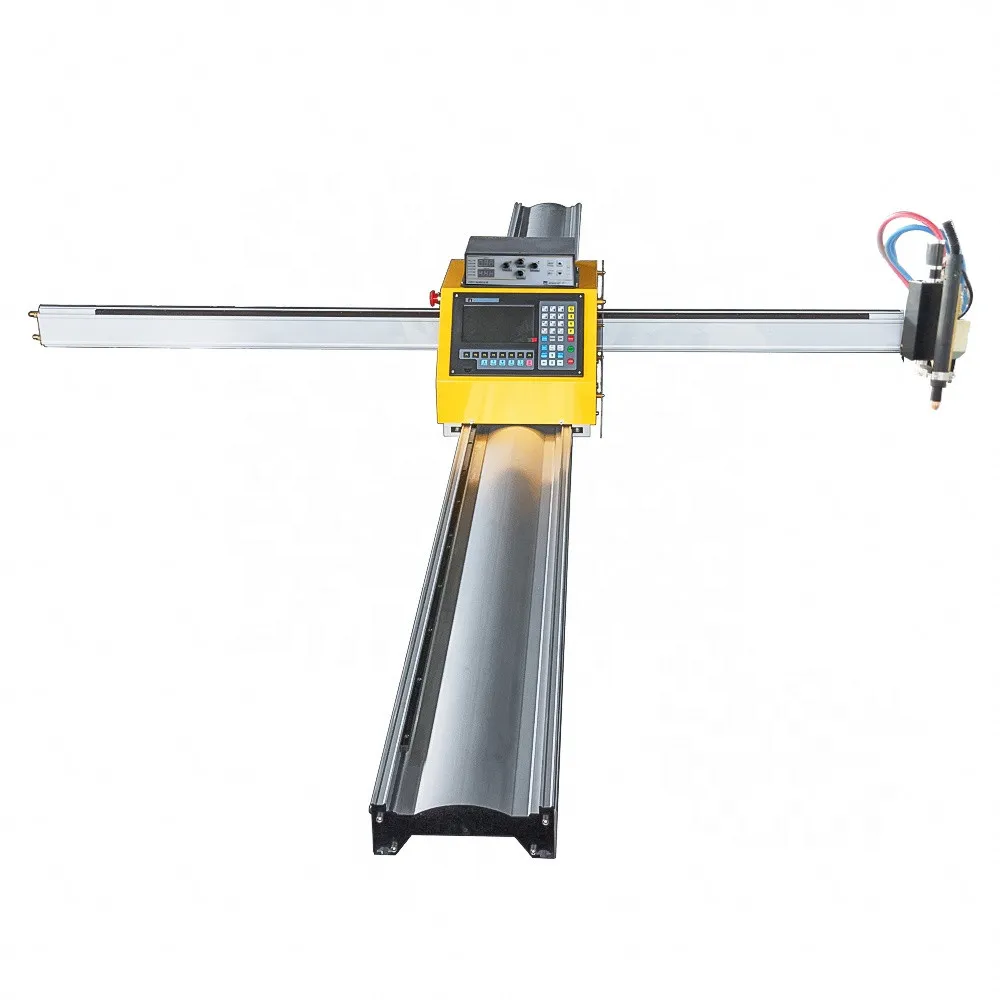

Portable numerical control flame/plasma cutting machines can be programmed to cut any plane shape parts composed of beeline and arc, which are the same as large gantry cutting machines. It is equipped with a 5.7 inch LED with dynamic and static graphical display. It is directly perceived and very easy to learn. It can be programmed to cut parts directly, and also can be operated in computer translating instructions into a program file by CAD program, and then deducting it via U hardware. The standard positioning of this machine is flame cutting, external hanging plasma cutter is also workable.
Detailed Images
CNC System F2100B
Shanghai Fangling brand Control system
with 7 inch touchscreen, with built - in 48 figures, you could choose pattern from these figures directly, very convenient.

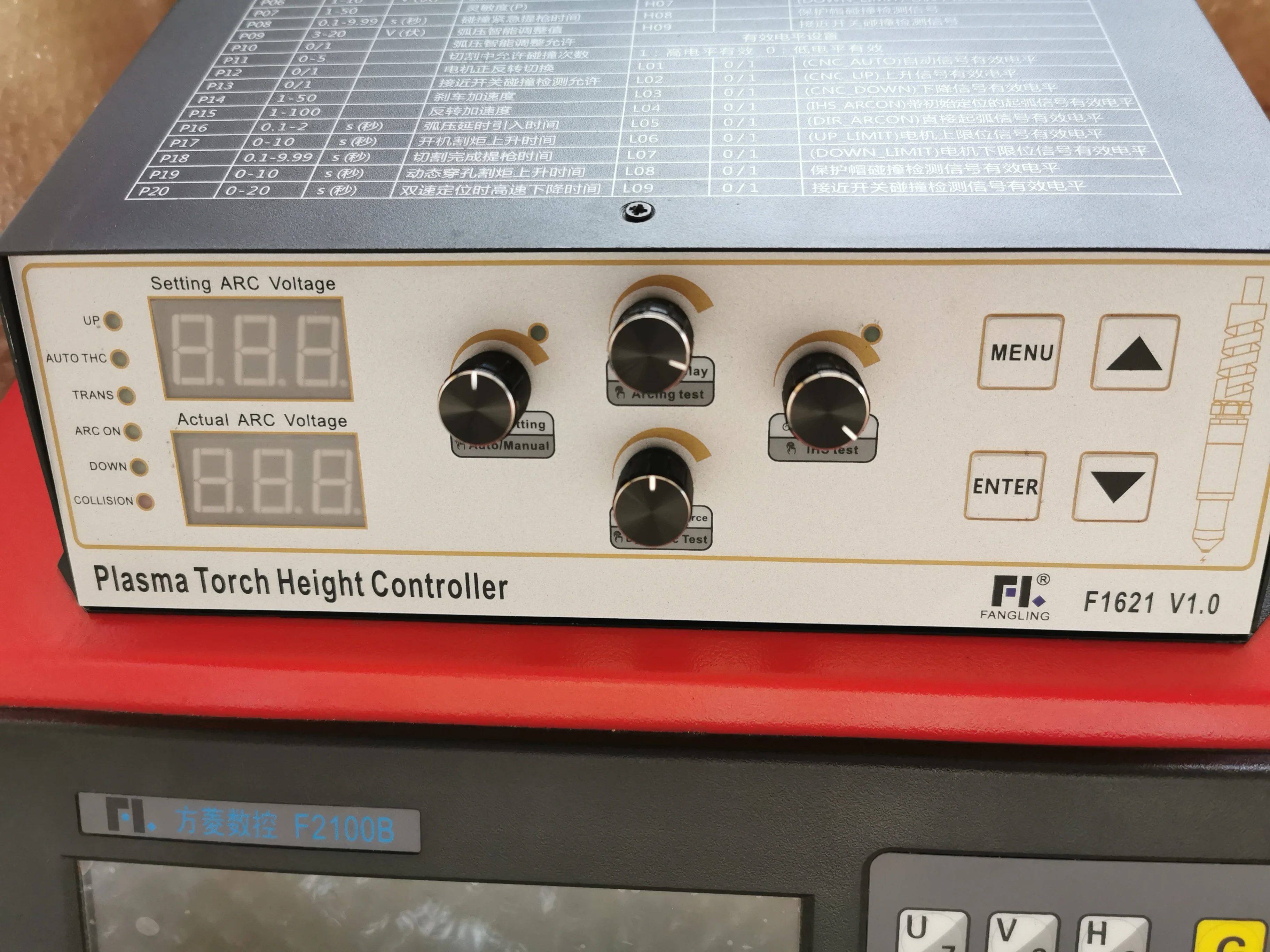

If metal sheets are rugged, should use
THC to adjust distance from torch to metal
surface.
Chinese best brand plasma power source
200A
Use soft switch inverter technology, to make cutting current very stable
Cutting current rise slowly, reduce consumption of cutting parts
Has a wide adaptability to grid voltage
Unique dust-proof design, high reliability
Compact structure, small volume, light weight, can be installed on many kinds CNC machines
- Big size Track
use high precision linear guide, and light weight alloy-aluminum horizontal rail, not easy become deformation.

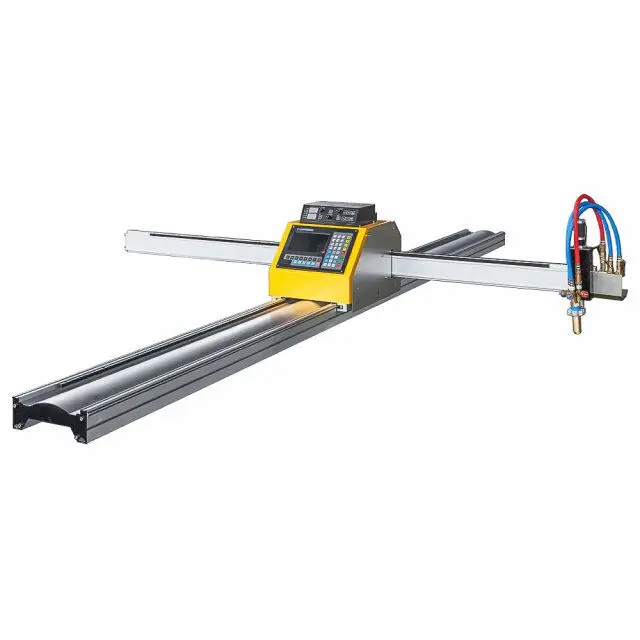

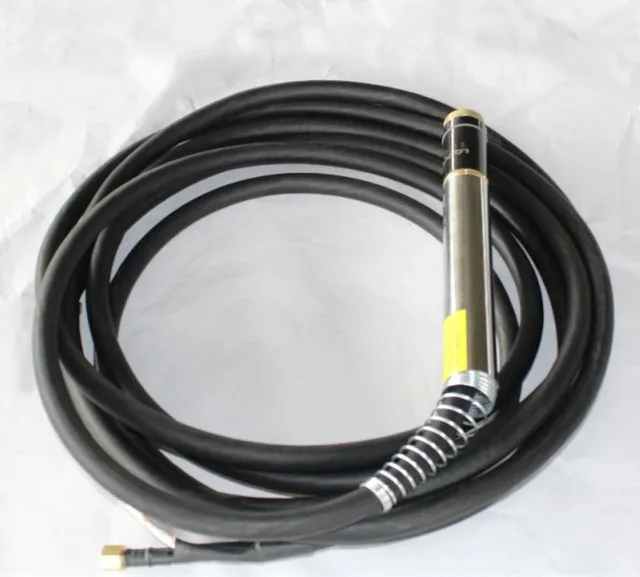

Fine Cutting torch
Flame cutting torch is fixed, plasma cutting torch is mobile type.
Flame torch and plasma torch could be changed very easily.
Size Information
Technical Parameters
1 | Model | JX-1560 |
2 | Power source | AC 220/380±10%VAC 50/60Hz |
3 | Cutting mode | O2/C3H8 or C2H2 |
4 | Effective cutting range(mm) | 1500*6000 |
5 | Input Voltage | 220V, 50HZ |
6 | Cutting speed(mm/min) | 0-8000mm/min |
7 | Cutting thickness(Flame) | 6-160 mm (O2/C3H8 or C2H2) |
8 | Cutting thickness(Plasma) | According to plasma power source |
9 | Move precision | ±0.2mm/m |
10 | Plasma THC | YES |
11 | Processing thickness(mm) | 0.3-32mm |
12 | Cutting system | Shanghai Fangling F2100B control system |
13 | Host weight(kg) | 19 |
14 | Gas pressure(Mpa) | Max.0.1 |
15 | Oxygen pressure(Mpa) | Max.0.7 |
16 | Type of gas | C3H8 C2H2 |
17 | Emergency stop | Yes |
18 | Working temperature | -5~45℃ |
19 | Plasma power | Chinese brand IGBT Plasma sources 200A |
20 | ARC | Untouched arc striking |
21 | Processing Materials | Iron, stainless steel, carbon steel, copper sheets aluminum sheets, galvanized sheets, Titanium plates and other kinds metal |

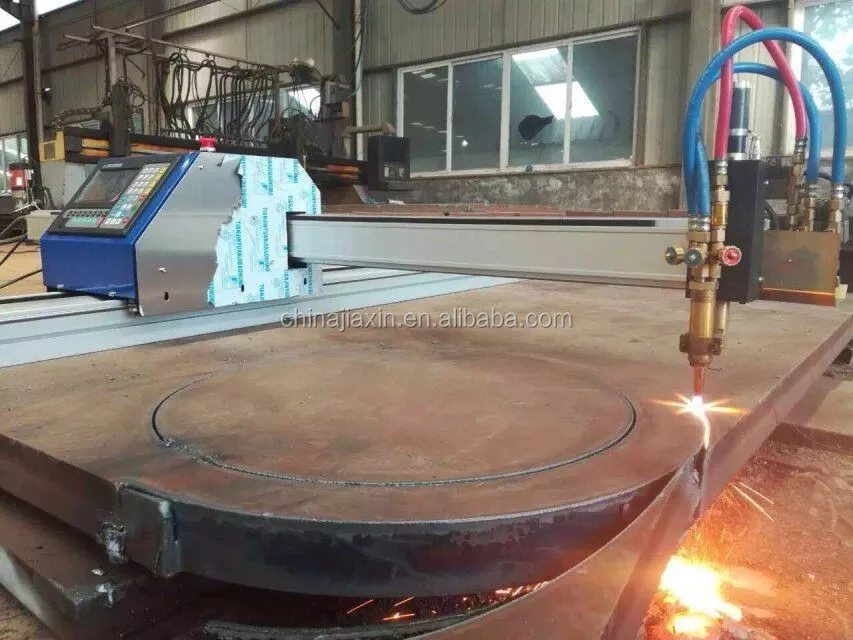

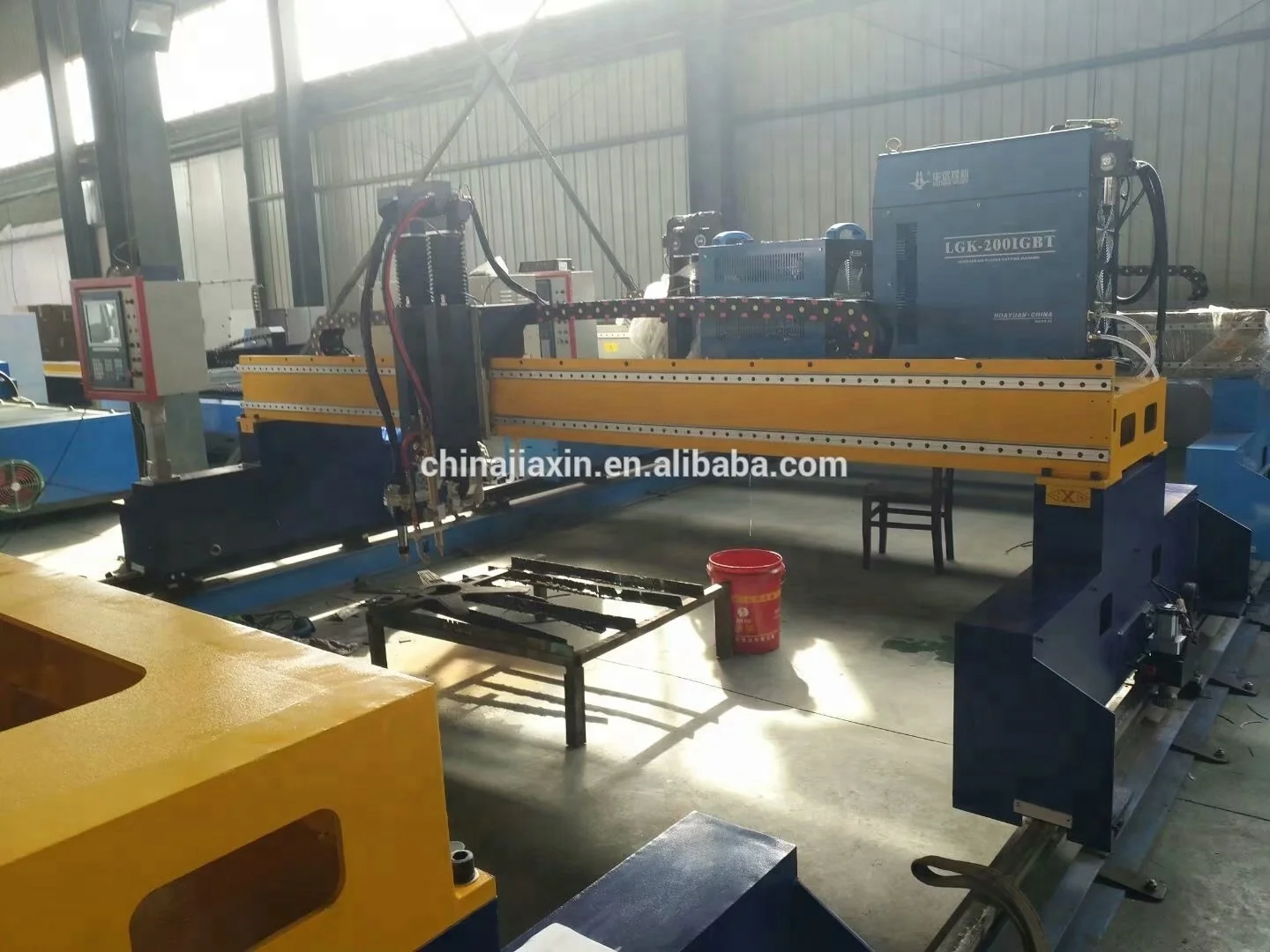

Working pictures
JX-1530, JX-1560 used to cut 0mm to 160mm metal sheets, the metal sheet could be iron, stainless steel, aluminum, copper, Titanium, tin and many other kinds metal. Widely used in trucks, trailers, motorcycles, pressure vessls, general machinery, steel structure, ship and so on.

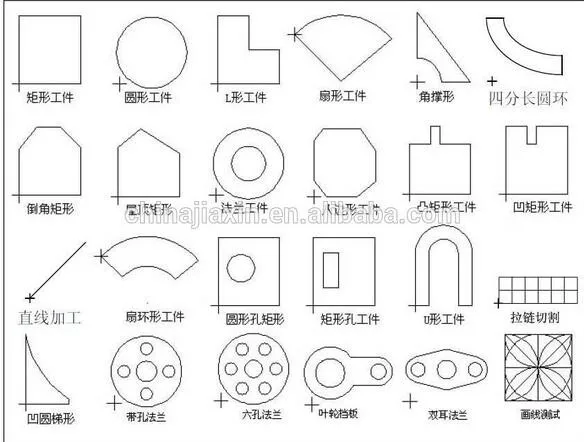

System optional graphics of our cnc plasma cutting machine.
Related Products
Packing&Shipping
One machine picked in 2 or 3 wooden cases. Shipped by sea by LCL, or by truck, by air.
Company Introduction
Shandong Jiaxin Machinery Equipment Co.,Ltd.located in the hometown of Confucius and Mencius-Jining City, northwest of excellent transport location for communication between business and customers to provide a great convenience and fast.
Science and technology are primary productive forces"continuous advancement of technology is the development of the eternal source of power. The factory after nearly 20 years of development from a roller mold factory into a large-scale production of cold. Hot-rolled steel processing equipment. CNC steel processing equipment five series more than thirty kinds of products manufacturer enterprises.
We have always adhered to the "integrity of management, quality first&rdquo business philosophy customer for Gud's business objectives. Through a nationwide sales and service network, improve the pre-sale, selling service and after sale service sincere cooperation by providing quality products and efficient service for you.
Our Services & Strength
1.Pre-Sales Service:
1)Inquiry and consulting support.
2)We provide you the friendly English user manual and testing video free.
3)24 hours technical support by email or calling.
2.After-Sales Service:
1)Video of operating the machine are available.
2)12 months warranty quality guarantee and charge free technical support forever.
3)Free training to make sure you master the operating of machine.
FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What&rsquos the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
