Công nghiệp Gỗ chipper Shredder sứt mẻ chi nhánh máy nghiền Trống Gỗ chipper máy
999
Đã bán
180.140.993đ
172.717.600đ ~ 180.140.993đ
180.140.993đ
172.717.600đ ~ 180.140.993đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
172.717.600đ
mnsvPBGeuB
Mô tả sản phẩm
Áp dụng Các Ngành Công Nghiệp: Khách Sạn, Vật Liệu xây dựng Cửa Hàng, Nhà Máy sản xuất, Thực phẩm và Đồ Uống Nhà Máy, Các trang trại, Xây dựng làm việc, Thực phẩm và Đồ Uống Cửa Hàng, Khác, Công Ty quảng cáoPhòng Trưng Bày Trí: Ai Cập, Canada, Thổ Nhĩ Kỳ, Vương Quốc Anh, Hoa Kỳ, Philippines, Peru, Ả Rập Saudi, Indonesia, Pakistan, Nga, Thái Lan, Kenya, Argentina, Chile, Colombia, Algérie, Romania, Nam Phi, Kazakhstan, Kyrgyzstan, Nigeria, Tajikistan, Úc
Điều kiện: MớiLoại: Gỗ Chipper
Sử dụng: Làm gỗ thành dăm gỗĐiện Loại: Điện
Nơi xuất xứ: Henan, ChinaNhãn hiệu: BEDO
Kích thước (L * W * H): 1540*1240*1420M Mtrọng lượng: 3200 KG
Bảo hành: 1 nămTiếp Thị Loại: 2024 sản phẩm nóng
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 6 ThángCore Thành Phần: Động Cơ, Động Cơ
Tên: Gỗ chipper Shredder gỗ chipper máyKích thước đầu vào: 170*430m m
Số lưỡi dao: 2 miếng cho chipper gỗMax. Đường kính: 170m m
Công suất động cơ chính: 37kWĐiện áp: 380V hoặc tùy chỉnh được thực hiện
Cấu trúc: Cho ăn con lăn, băng tải, động cơ, vv.Tốc độ Con lăn dao: 590 lượt
Nguồn cấp dữ liệu con lăn động cơ điện: 3 + 3kwNguyên liệu thô: Chi nhánh gỗ bản ghi gỗ
Industrial Wood Chipper Shredder Chipping Branch Crusher drum wood chipper Machine
Product Description
The Drum wood chipper machine is used for processing wood logs or tree branches into 20mm-40mm wood chips for various wood products industries and plants. Known as wood cutting machine, wood chipper belongs to wood processing equipment series. Wood drum chipper is widely used in particleboard mill, medium or high-density fiberboard factory, biomass power plant, wood pellet plants and other industrial production factories.
Specification
Features of Drum Wood Chipper:
1. Different model with different feeding size and different capacity.
2. The final size of wood chips with size of 8-50mm or depend on customers&rsquo request.
3. The machine design with 6m feeding conveyor, 12m discharging conveyor and electric cabinet for easy operation.
4. Durable blades. Easy operation and maintain.
1. Different model with different feeding size and different capacity.
2. The final size of wood chips with size of 8-50mm or depend on customers&rsquo request.
3. The machine design with 6m feeding conveyor, 12m discharging conveyor and electric cabinet for easy operation.
4. Durable blades. Easy operation and maintain.
Model | BD-BX215 | BD-BX216 | BD-BX218 | BD-BX2113 |
Inlet size(H*W) | 170*430mm | 250*540mm | 310*700mm | 400*700mm |
Blades number | 2pcs | 2pcs | 2pcs | 2pcs |
Knife roller speed | 592turn | 590turn | 590turn | 420turn |
Max. Diameter | 170mm | 200mm | 300mm | 380mm |
Wood chip size | 25-35mm | 30-35mm | 25-35mm | 25-35mm |
Capacity | 3-5t | 5-8t | 12-15t | 20-30t |
Main motor power | 37kw | 55kw | 110kw | 220kw |
Feed roller motor power | 3+3kw | 3+4kw | 3+4kw | 7.5+7.5kw |
Oil pomp motor power | 1.5*1kw | 1.5*1kw | 1.5*1kw | 3*1kw |
Weight | 3200kg | 4300kg | 7000kg | 11800kg |
Outline Dimension | 1470*1550*970mm | 2000*1900*1650mm | 2670*2150*1900mm | 3670*2517*2050mm |
Conveyor motor power | 3kw | 3kw | 4kw | 7.5kw |
The above technical parameters are just for your reference. You can choose any one model for your reference. If you are not satisfied with it, we also have other types of crushing machines for you. And we can also offer OEM service. Any questions about wood chipper, please don't hesitate to contact me.
Details Images

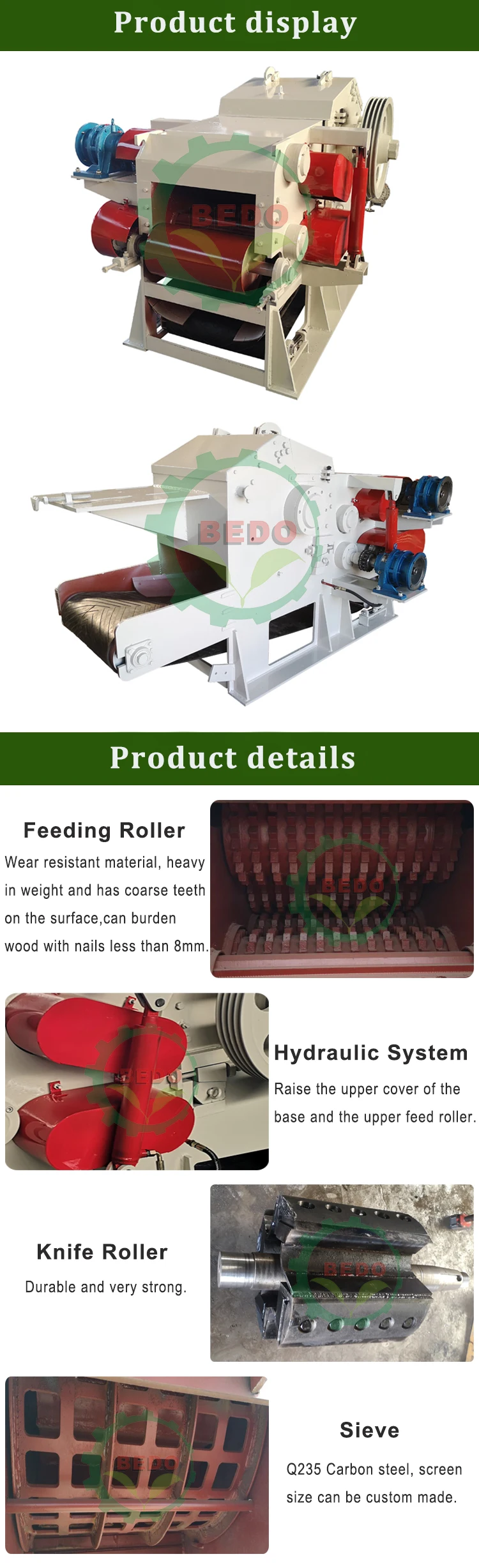

Industrial wood drum chipper is made up of machine body, knife roller, the upper and lower feed roller, conveyor belt, hydraulic system.it adopts high strength steel plate welded together, is the supporting basis of the whole machine.Install two or three, four flying knives in the knife roller. Using the fly-knife bolt specially manufactured to fix these fly-knives on the knife roller through the pressure block. According to different thickness of cutting materials, the upper feed roller can fluctuate within a certain range with the aid of hydraulic system. Qualified wood chips fall down through the sieve holes, and are discharged from the bottom large wood chips will be cut again within the machine.
Raw Materials and Final Production
Packing & Delivery
1. Packing: Standard export wooden case. Shipping mark on the wooden case.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
Company Profile
Henan Bedo Machinery Equipment Co.,LTD is a pioneer company in the field of manufacturing Wood Machinery, and Feed Machinery. Such as wood chipper, wood hammer mill, fish feed pellet machine, animal feed pellet machine,etc. In order to make our products attract more and more people, we have been improving technology and developing new products. We are looking forward to establishing business relationships with more and more customers from all over the world.
FAQ
1. Can the final size of wood chips be adjusted?
Yes. It can be adjusted according to customer's request.
2. Is it designed with conveyor?
Yes. This wood chipper is designed with 6m feeding conveyor, 12m discharging conveyor and electric cabinet.
3. Can i get some discount if i buy this machine from your company?
Yes. We will give you the most favourable price if buy more than two sets, the big discount will be given.
4. What is your payment term?
50% TT payment in advance, 50% TT payment before shipment.
5. How long is your delivery time?
Within 15 working days after your down payment.
For more questions, please feel free to contact us.
Yes. It can be adjusted according to customer's request.
2. Is it designed with conveyor?
Yes. This wood chipper is designed with 6m feeding conveyor, 12m discharging conveyor and electric cabinet.
3. Can i get some discount if i buy this machine from your company?
Yes. We will give you the most favourable price if buy more than two sets, the big discount will be given.
4. What is your payment term?
50% TT payment in advance, 50% TT payment before shipment.
5. How long is your delivery time?
Within 15 working days after your down payment.
For more questions, please feel free to contact us.
