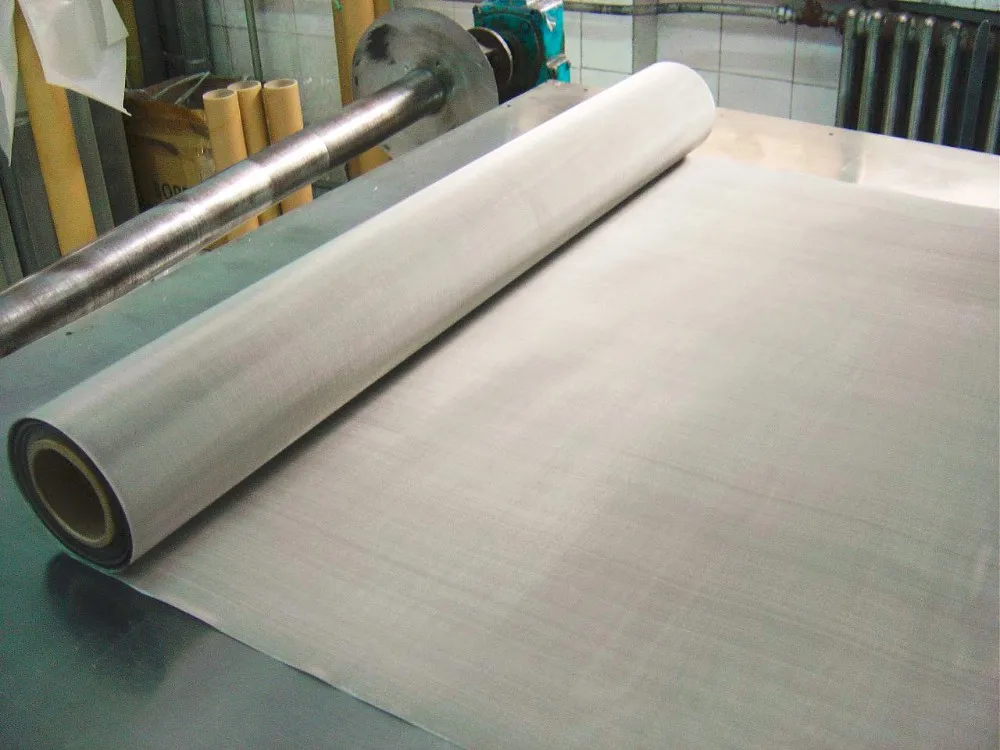

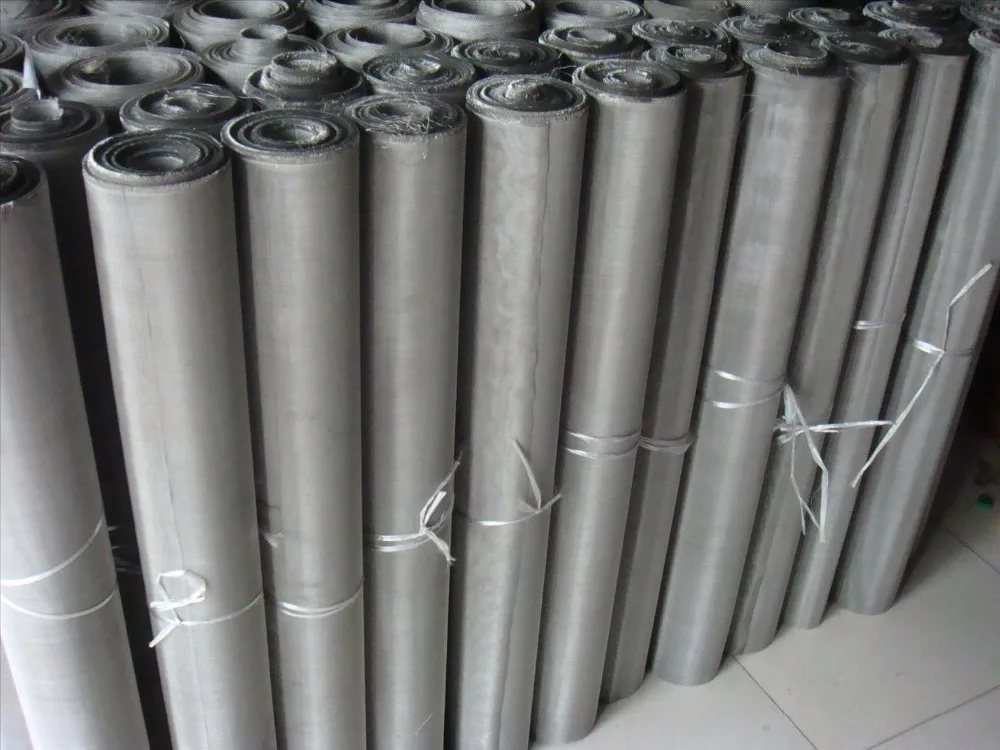

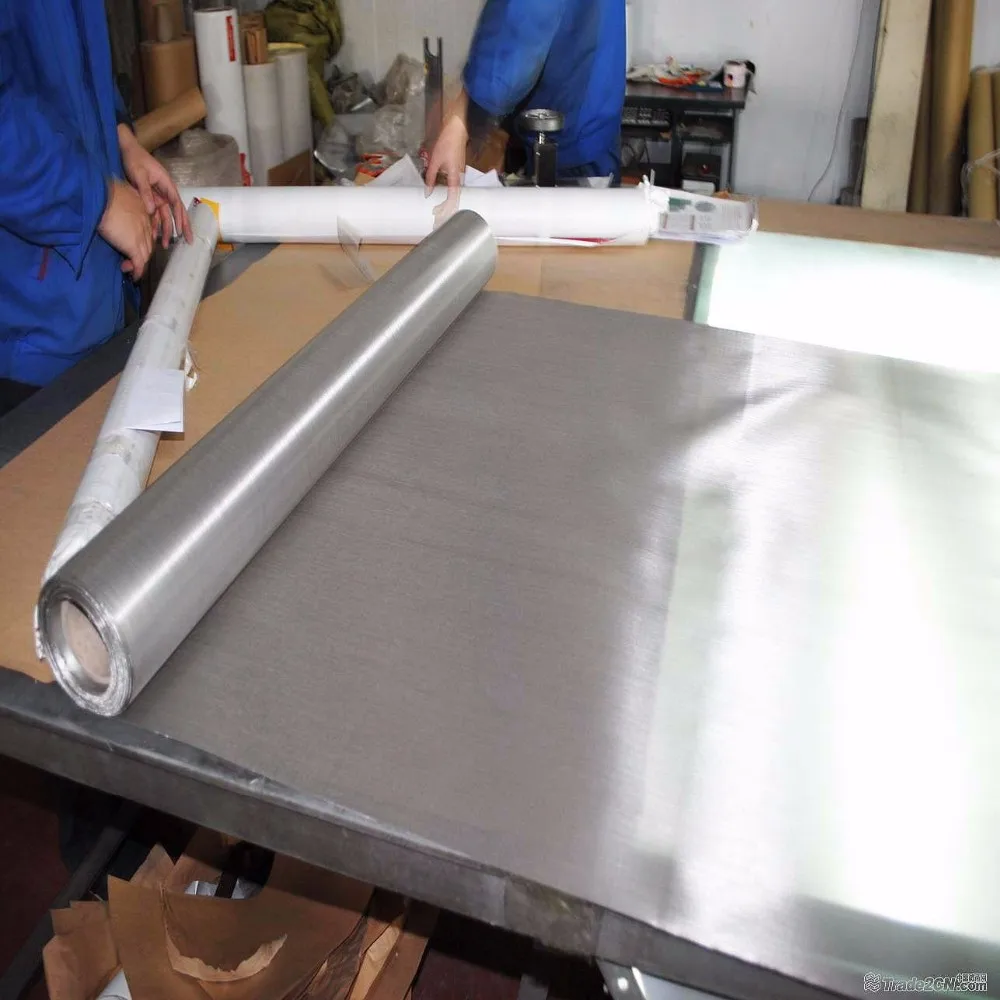

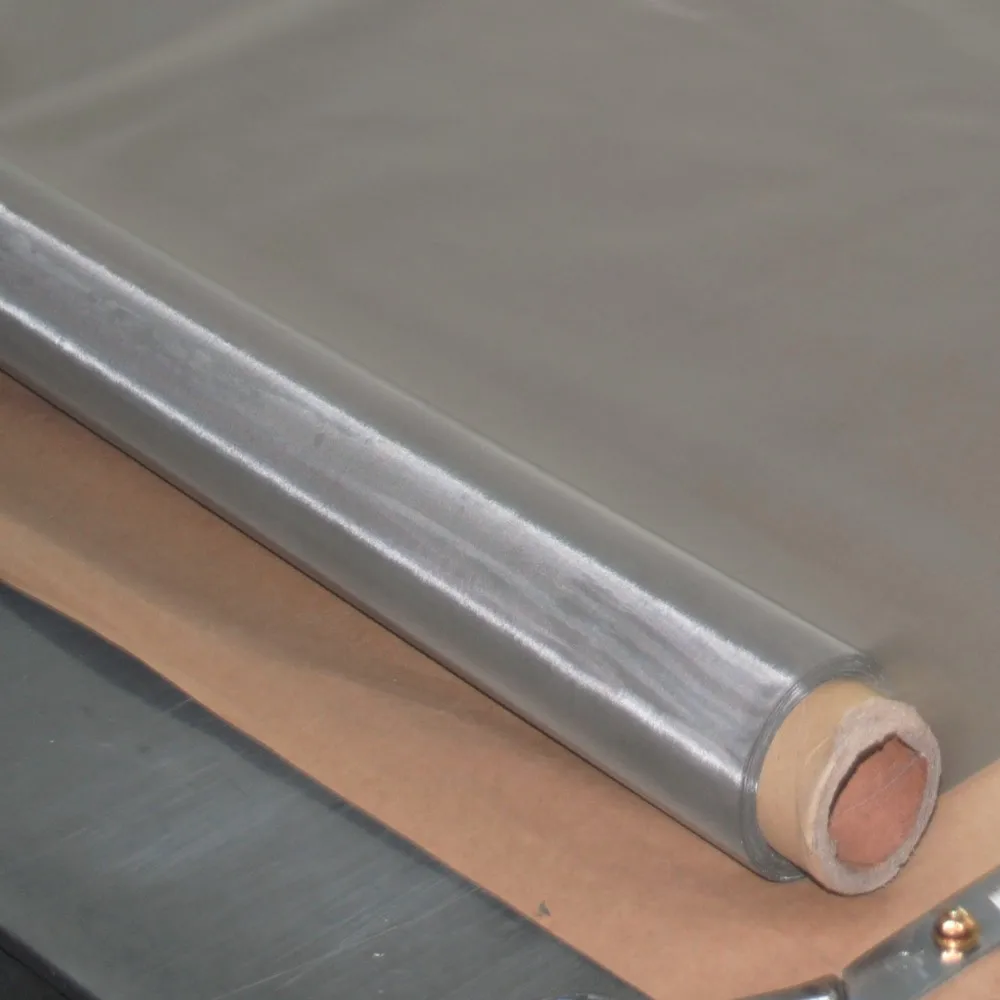

cực tốt 25 micron tổ ong lưới dây thép không gỉ
cực tốt 25 micron tổ ong lưới dây thép không gỉ
cực tốt 25 micron tổ ong lưới dây thép không gỉ
Material | SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc. | ||
Wire diameter | 0.018-2.03mm | ||
Woven style | plain weave,twill weave,dutch weave,reversed dutch weave,crimped weave | ||
Mesh counts | Plain weave wire mesh can be woven up to 400 mesh. Twill weave wire mesh can be woven from 30 to 635 mesh. | ||

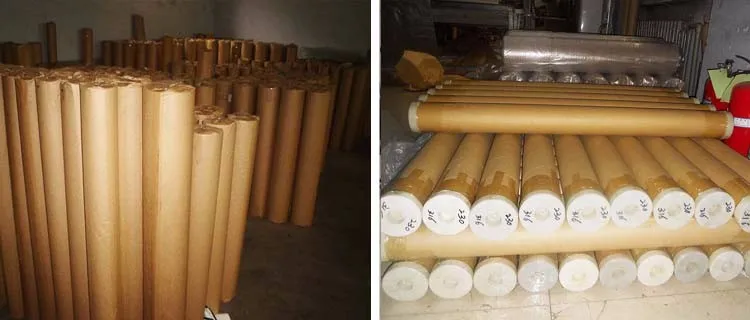

Packaging Details | inner kraft, outside plastic cloth, put into wooden pallet or case | ||
Application | Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets. | ||
Type | Mesh/Inch | Wire diameter (inch) | OPen Area | Weight (LB) /100 Square Foot |
Plain,Twill Wire Mesh | 1 × 1-635 × 635 | 0.0008"-0.08" | 25 to 84.6 | 2.53 to 41.1 |
Type | Mesh/Inch | Wire diameter (inch) | Absolute Filtration Finess &mum | Nominal Filtration Finess &mum |
Plain Dutch Weave Wire Mesh | 8 × 85 - 80 × 400 | 0.014'' × 0.0126''- 0.0049'' × 0.0028'' | 318-340 to 43-48 | 250-255 to 35-40 |
Twill Duntch Weave Wire Mesh | 20 × 250 - 500 × 3200 | 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' | 110-120 to 8-9 | 98-105 to 2-3 |
Customer Service
Fast and Accurate Quotes
Best Value, Quality Products
10 Year Warranty on most Products
Custom Design
As every project is different, we can manufacture to your specifications to ensure your unique design ideas

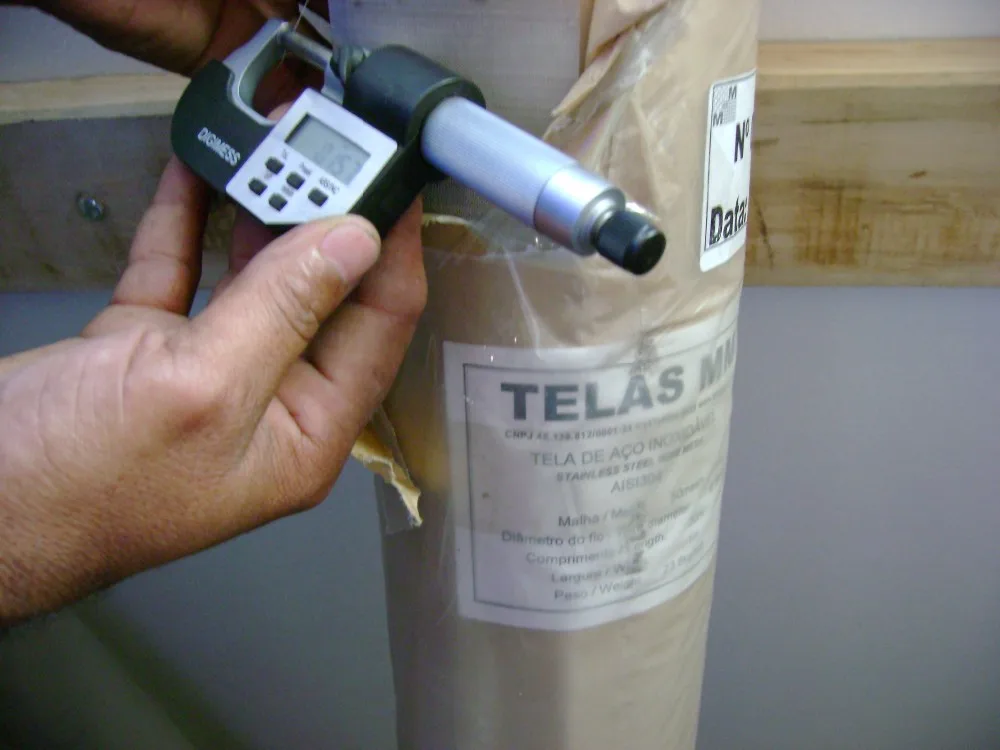

Quality Inspection
We have our own quality control department to provide special quality testing for our customers.
Q: Are you a manufacturer?
A: Yes,we have specialized in this field for about 10 years experience.
Q: Could you provide sample ?
A: Yes,we can provide sample in half A4 size together with our catalogue.
But the courier charge will on your side.
We'll send back the courier charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepae enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: How do you ship the finished wire mesh?
Usually by sea.
Q: What is the payment?
We usually use the T/T,L/C,D/P,Western Union.
