Di động cnc plasma cutter không gỉ nhẹ thép tấm máy cắt
Portable cnc plasma cutter stainless mild steel plate cutting machine
| No. | Technical specification of Portable CNC Flame Plasma cutter | |||
| 1 | Model | JX-1525 | JX-1530 | JX-1660 |
| 2 | Power source | AC 220/110V±10%VAC 50/60Hz | ||
| 3 | Cutting mode | Plasma/flame cutting | ||
| 4 | Effective cutting range(mm) | 1500*2500 | 1500*3000 | 1600*6000 |
| 5 | Input Voltage | 220V, 50HZ | ||
| 6 | Cutting speed(mm/min) | 0-8000mm/min | ||
| 7 | Cutting thickness(Flame)(mm) | 6-160 (O2/C3H8 or C2H2) | ||
| 8 | Move precision | ±0.2mm/m | ||
| 9 | Torch | Flame, electric height adjustment(±60mm) | ||
| 10 | Processing thickness(mm) | 0.5-30mm(according to power source capacity) | ||
| 11 | Cutting system | Start control system | ||
| 12 | Host weight(kg) | 45 | ||
| 13 | Total weight(kg) | 100 | 120 | 150 |
| 14 | Gas pressure(Mpa) | Max.0.1 | ||
| 15 | Oxygen pressure(Mpa) | Max.0.7 | ||
| 16 | Type of gas | C3H8 C2H2 | ||
| 17 | Emergency stop | Yes | ||
| 18 | Working temperature | -5~45℃ | ||
| 19 | Power | 350w | ||
| 20 | Plasma power |
63A to 200A, or USA plasma cutter According to metal sheet thickness |
||
| 21 | ARC | Untouched arc striking | ||
| 22 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates | ||

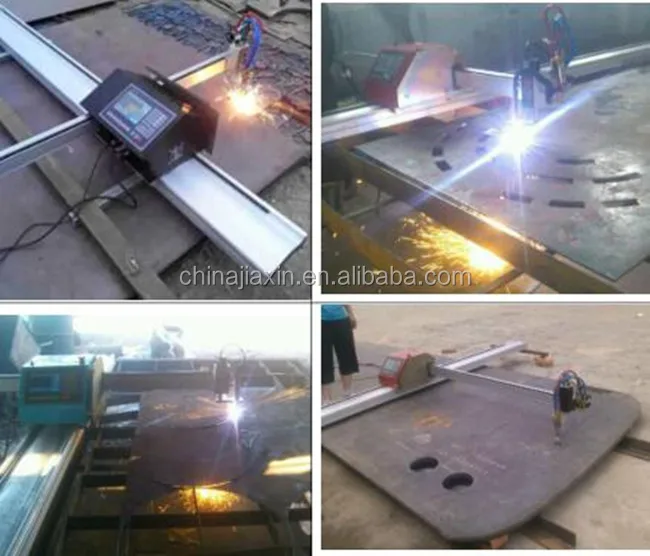

This Portable CNC Flame Plasma cutter machine can cut mild steel with oxy fuel gas cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

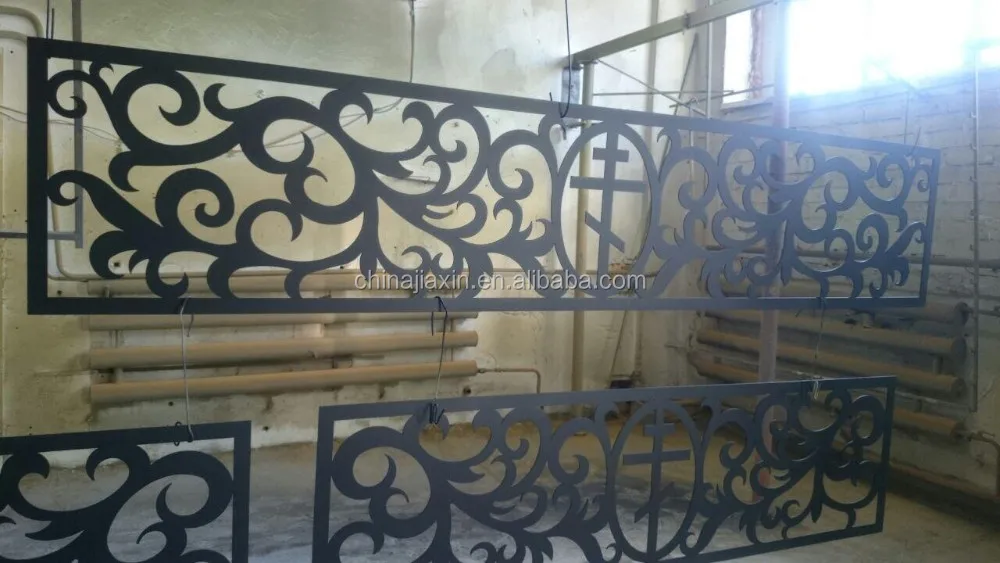

Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
1.Smart design,can be moved everywhere you need.
2.big power motor,can cut both thin and thick metal plate with fast speed and guarantee the cutting quality.
3.The CNC controller box is new design,this system is more stable when the machine working.
4.Smart cut,cut all shapes from AutoCad.
5.Control system is Shanghai Fangling brand F2100,which is very popular in China,
with large graphics library,and easy to learn to operate. This software can support 9 kinds languages, like English,Russian and Spanish. And the most important is it can be Expanded to 4 axis.
6.Prompt delivery,with 3-7 days,operate video for installation.
