Đôi Đầu Uốn CNC Tự Động Bàn Đạp Máy Uốn Tự Động Cho Ăn Trung Tâm Uốn
Đôi Đầu Uốn CNC Tự Động Bàn Đạp Máy Uốn Tự Động Cho Ăn Trung Tâm Uốn
Đôi Đầu Uốn CNC Tự Động Bàn Đạp Máy Uốn Tự Động Cho Ăn Trung Tâm Uốn

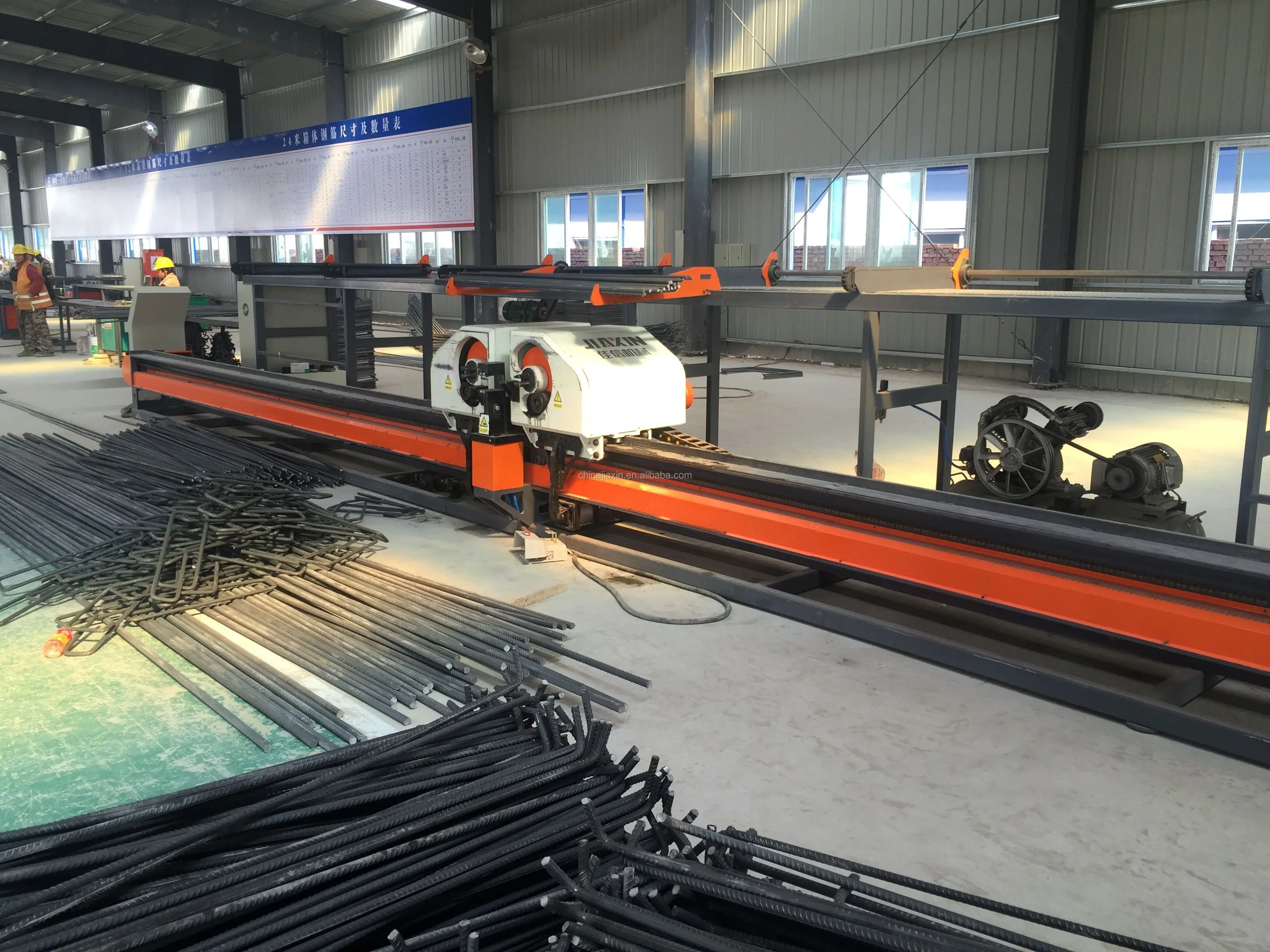

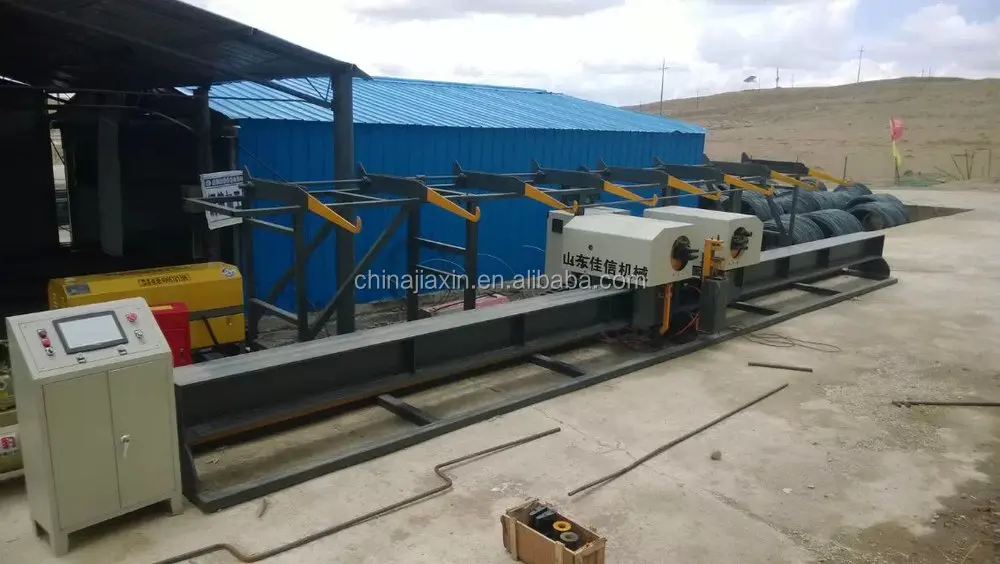

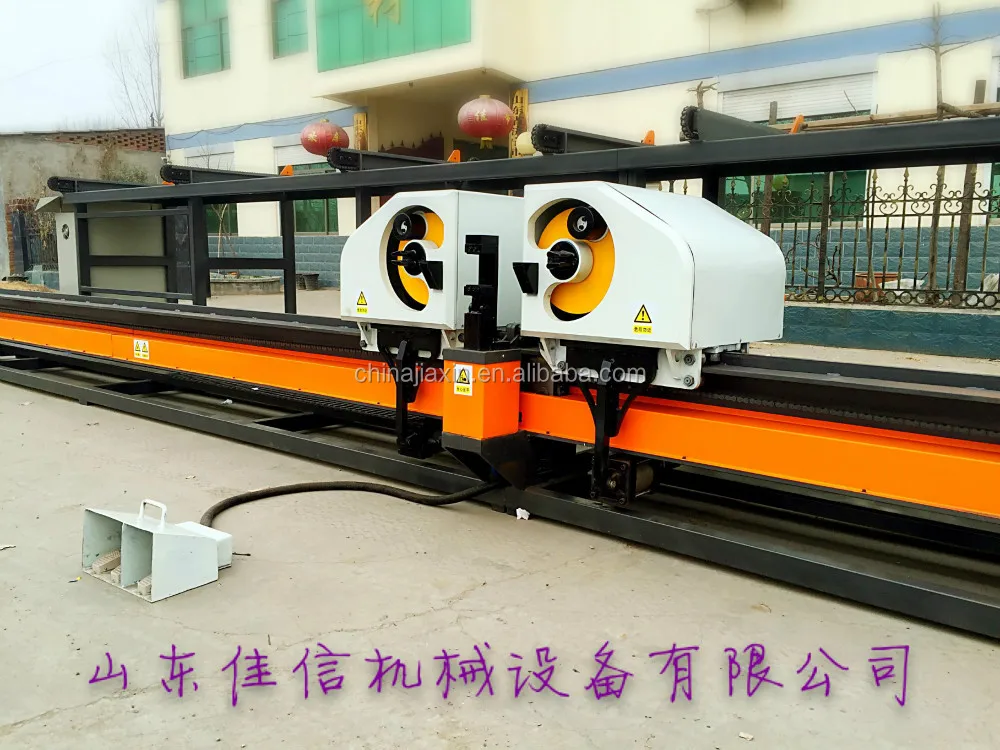

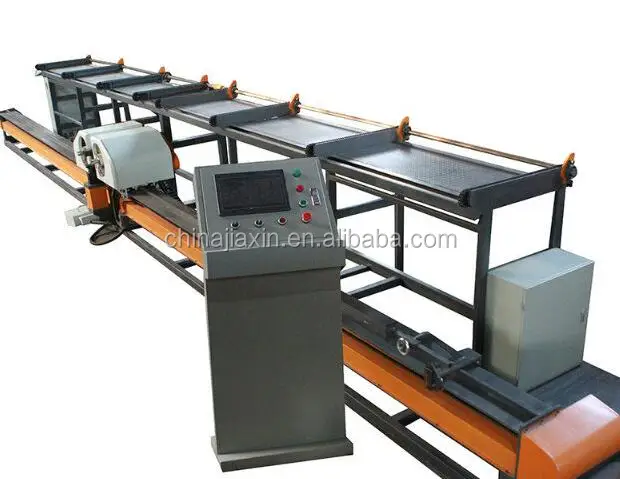

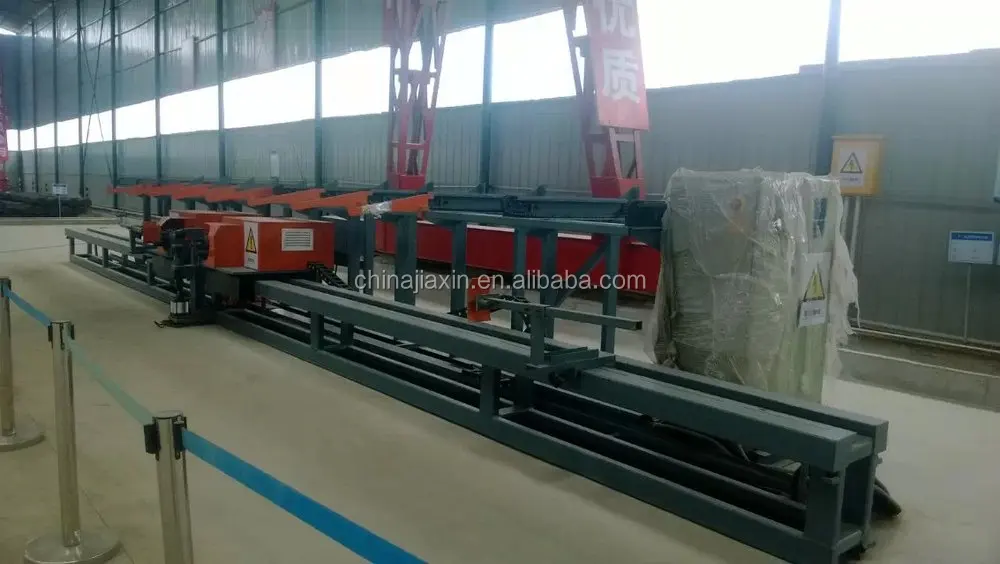

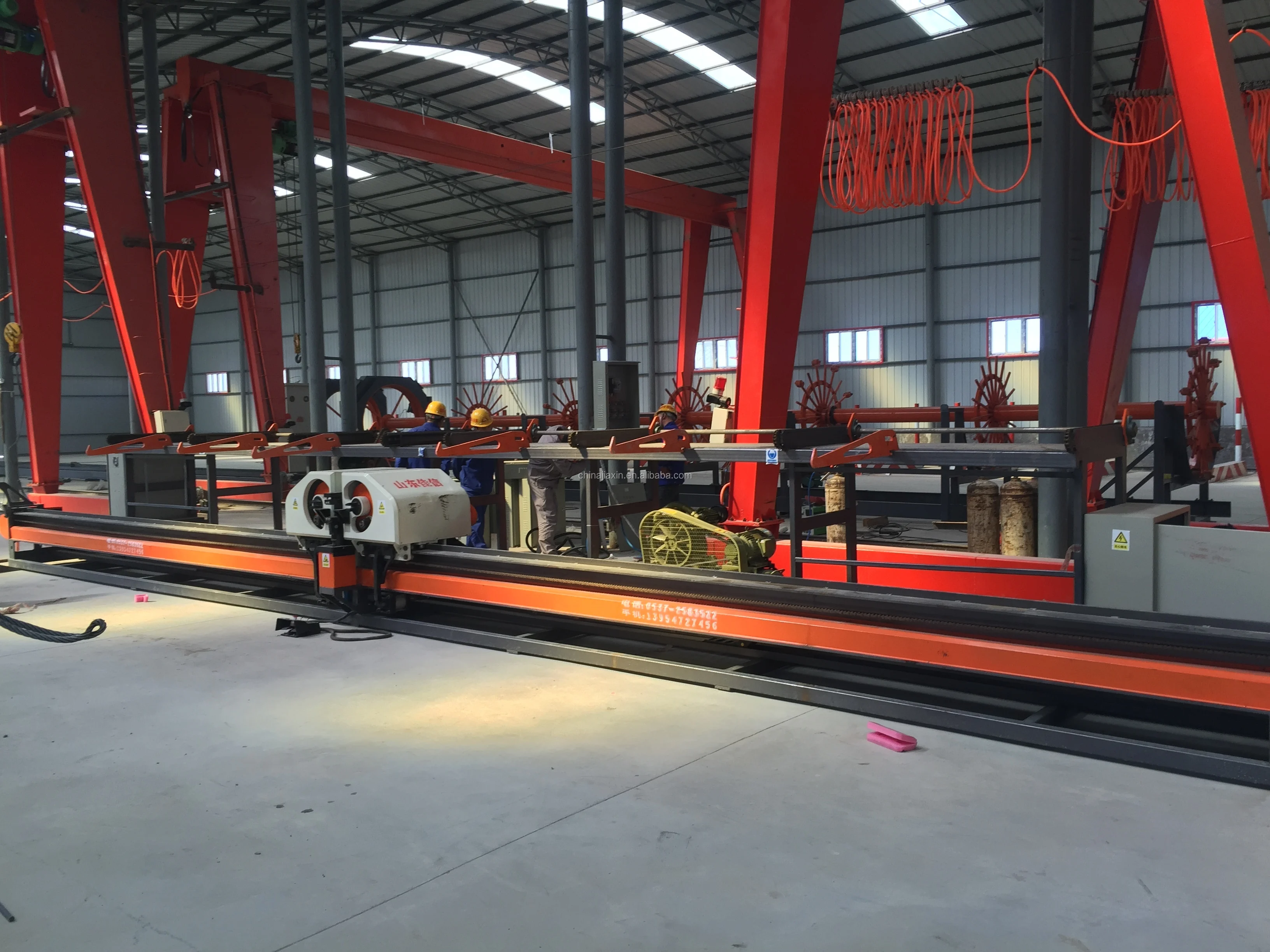

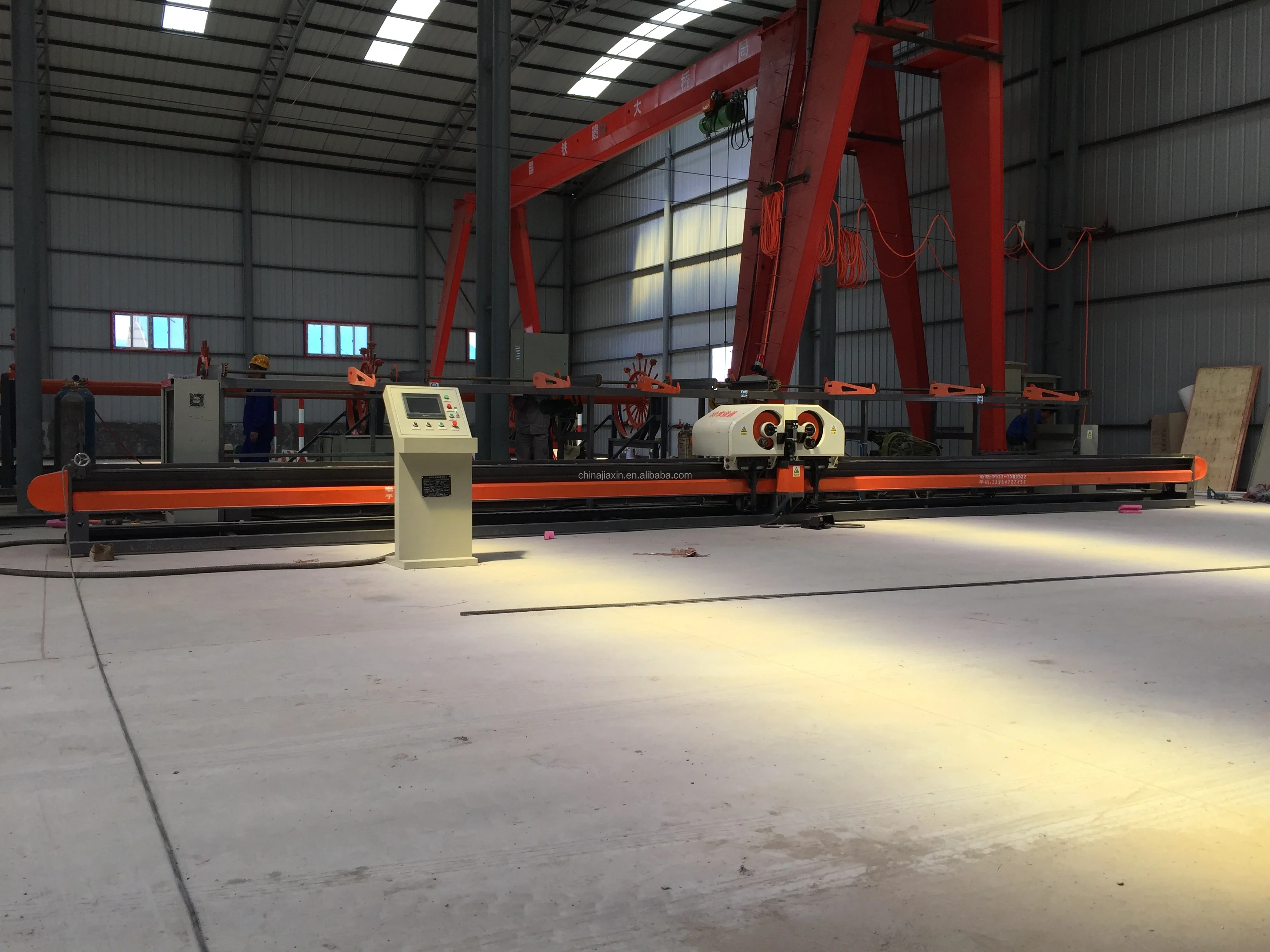

CNC rebar stirrup bender machine
1, imported PLC and CNC control system controller with touchscreen interface,
could save hundreds graphics.
2, easy to operate, could bend more angles within one rebar loop.
3, locking reinforcement bar flexible,to make sure bending precision.
4, bending panel is wear-resisting,by heat treatment, have longer working life.
5, bending spindle controlled by servo system, will provide high bending accuracy.
6, this machine could set bending length easily by moving bending spindle.
7, whole machine is integrated, high quality moving track.
8, retractable bending axle realize both-way bending.
9, Use heavy loading auto-feeding shelf for large batch materials.
10, high working efficiency, could bending many bars at same time.
11, could process 5500pcs reinforcement bars at one day, working efficiency is 10 times compare
with traditional equipment.could instead of 12 workers.
13, bending reinforcement bars &phi10mm to &phi32mm with high precision, low labor cost.
|
Model |
G2L32 |
||||||||||
|
Machine dimension |
12000mm(L)*2200mm(W)*1600mm(H) |
||||||||||
|
Max. bending angle(0) |
Up bending angle(°) |
180 |
|||||||||
|
Down bending angle(°) |
-120 |
||||||||||
|
Max. Length scope of the stirrup side |
10000mm |
||||||||||
|
Min. Length scope of the stirrup side |
90mm |
||||||||||
|
Min. Space between stirrup side |
(&phi10),(520mm) |
||||||||||
|
(&phi32),(580mm) |
|||||||||||
|
Length precision |
±2mm |
||||||||||
|
Angle precision |
±0.5mm |
||||||||||
|
Method to change bending speed |
Control by international brand CNC servo motor |
||||||||||
|
Total power rating |
14kw |
||||||||||
|
Voltage |
380V/50Hz |
||||||||||
|
Moving speed of bending head |
0.5-1(m/s) |
||||||||||
|
Working temperature |
-5&mdash40 degree |
||||||||||
|
Air route pressure |
0.6 Mpa |
||||||||||
|
Processing ability |
Bar diameter &phi(mm) |
10 |
12 |
14 |
16 |
20 |
22 |
25 |
28 |
32 |
|
|
Quantity of bars (pcs) |
6 |
5 |
4 |
3 |
2 |
2 |
1 |
1 |
1 |
||
|
Total weight |
5500 kg |
||||||||||
1, warranty period 1 year from B/L date.
2, within warranty period you could get spare parts for free.
3, You could get free training in our factory.
4, 24 hours technical support by Email, calling or door-to-door service.
Move your finger to leave a inquiry, let's talk more details.
CNC rebar stirrup bender machine
1, imported PLC and CNC control system controller with touchscreen interface,
could save hundreds graphics.
2, easy to operate, could bend more angles within one rebar loop.
3, locking reinforcement bar flexible,to make sure bending precision.
4, bending panel is wear-resisting,by heat treatment, have longer working life.
5, bending spindle controlled by servo system, will provide high bending accuracy.
6, this machine could set bending length easily by moving bending spindle.
7, whole machine is integrated, high quality moving track.
8, retractable bending axle realize both-way bending.
9, Use heavy loading auto-feeding shelf for large batch materials.
10, high working efficiency, could bending many bars at same time.
11, could process 5500pcs reinforcement bars at one day, working efficiency is 10 times compare
with traditional equipment.could instead of 12 workers.
13, bending reinforcement bars &phi10mm to &phi32mm with high precision, low labor cost.
|
Model |
G2L32 |
||||||||||
|
Machine dimension |
12000mm(L)*2200mm(W)*1600mm(H) |
||||||||||
|
Max. bending angle(0) |
Up bending angle(°) |
180 |
|||||||||
|
Down bending angle(°) |
-120 |
||||||||||
|
Max. Length scope of the stirrup side |
10000mm |
||||||||||
|
Min. Length scope of the stirrup side |
90mm |
||||||||||
|
Min. Space between stirrup side |
(&phi10),(520mm) |
||||||||||
|
(&phi32),(580mm) |
|||||||||||
|
Length precision |
±2mm |
||||||||||
|
Angle precision |
±0.5mm |
||||||||||
|
Method to change bending speed |
Control by international brand CNC servo motor |
||||||||||
|
Total power rating |
14kw |
||||||||||
|
Voltage |
380V/50Hz |
||||||||||
|
Moving speed of bending head |
0.5-1(m/s) |
||||||||||
|
Working temperature |
-5&mdash40 degree |
||||||||||
|
Air route pressure |
0.6 Mpa |
||||||||||
|
Processing ability |
Bar diameter &phi(mm) |
10 |
12 |
14 |
16 |
20 |
22 |
25 |
28 |
32 |
|
|
Quantity of bars (pcs) |
6 |
5 |
4 |
3 |
2 |
2 |
1 |
1 |
1 |
||
|
Total weight |
5500 kg |
||||||||||
1, warranty period 1 year from B/L date.
2, within warranty period you could get spare parts for free.
3, You could get free training in our factory.
4, 24 hours technical support by Email, calling or door-to-door service.
Move your finger to leave a inquiry, let's talk more details.
