Mô tả sản phẩm

Product Details

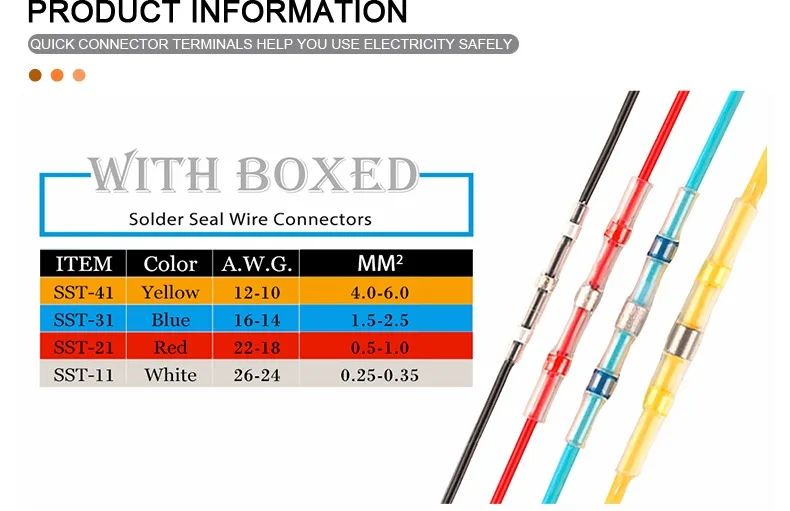

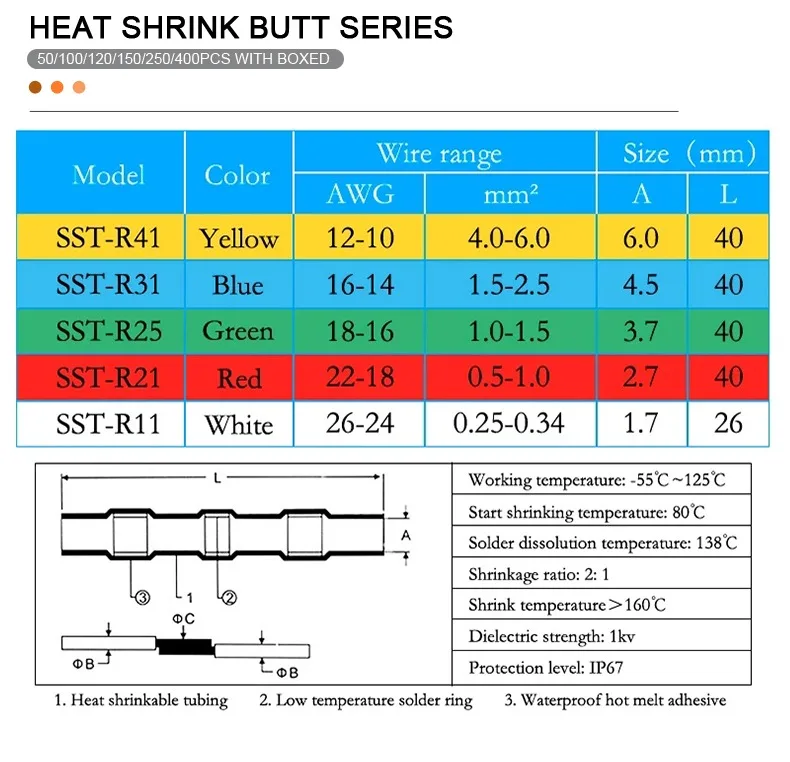

1. Terminals Specification

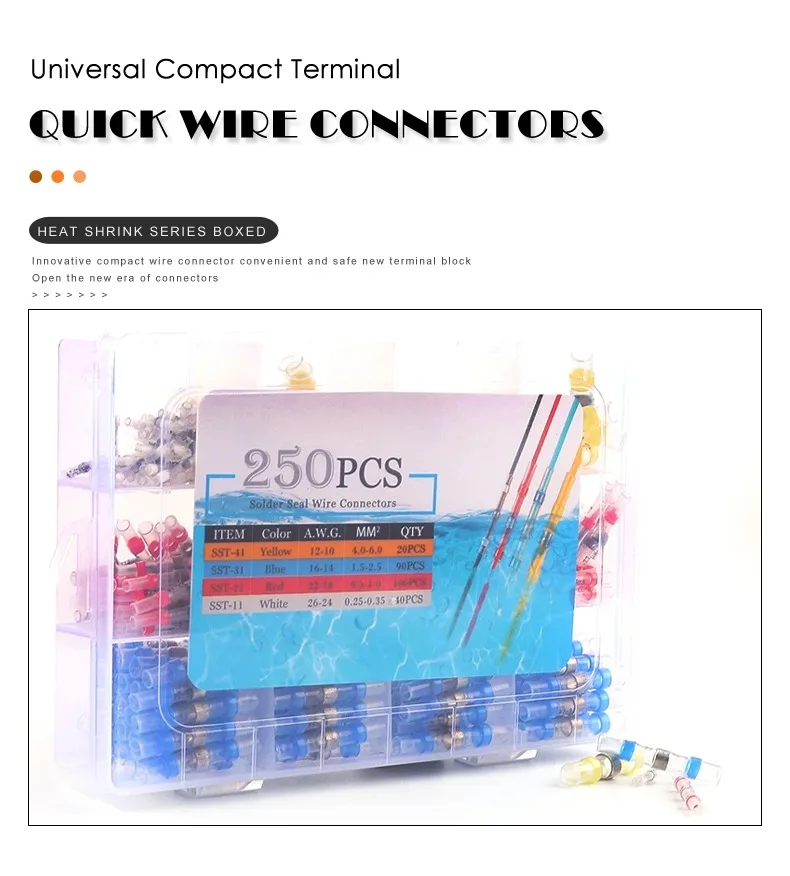

Boxed Heat Shrink Butt Crimp Terminals Waterproof Solder Seal Electrical Docking Connectors Wire Cable Splice Terminal Kit

White: 0.25-0.34mm²/26-24AWG
Red: 0.5-1.0mm²/22-18AWG
Blue: 1.5-2.5mm²/16-14AWG
Yellow: 4.0-6.0mm²/12-10AWG

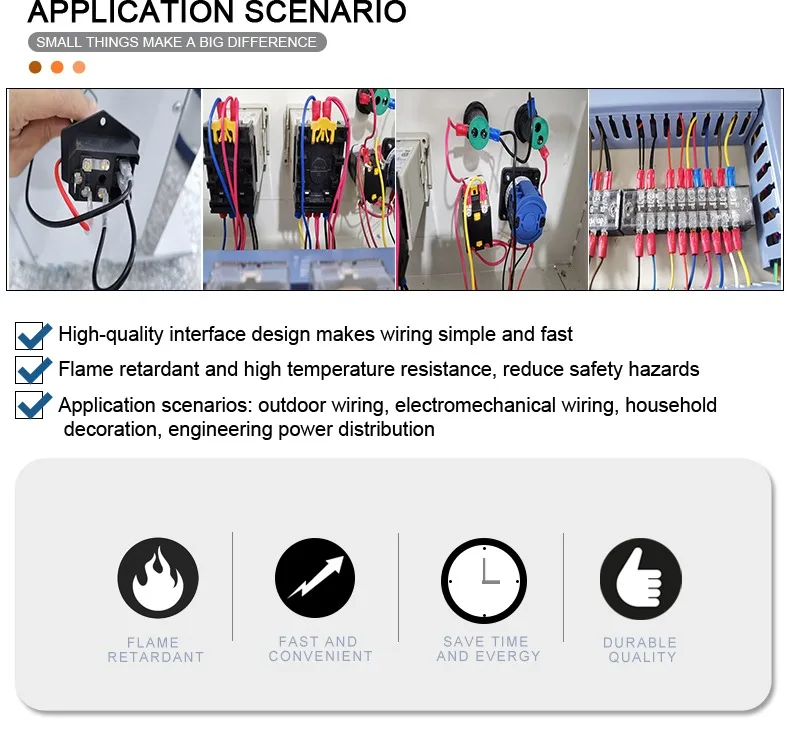

You are working on your boat, vehicle, home or scientific project, our heat shrink solder and seal connectors will ensure solid
soldering, increased current flow and weatherproof connections every time

Features:
1.Shrinkage Ratio 2:1

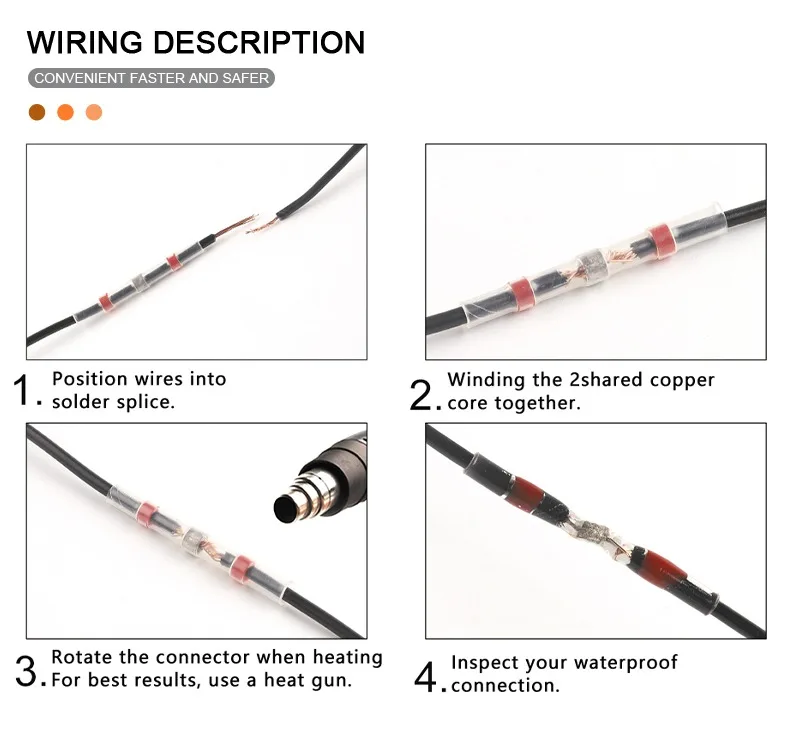

2.An easy One-Step Wire Connections.
3.Color coded connector tubing.
4.Polyolefin heat shrink butt connectors improve Pullout Strength.
5.High-quality wire connectors in Seal, Strain Relief, Cable Check and Insulation.
6.Melted Solder ensures wires Strongly Connected and avoids wires slipping out from the terminal.
7.Comply with all Relevant Standards: ROHS, ISO 9001:2008, SGS and CE standards.
