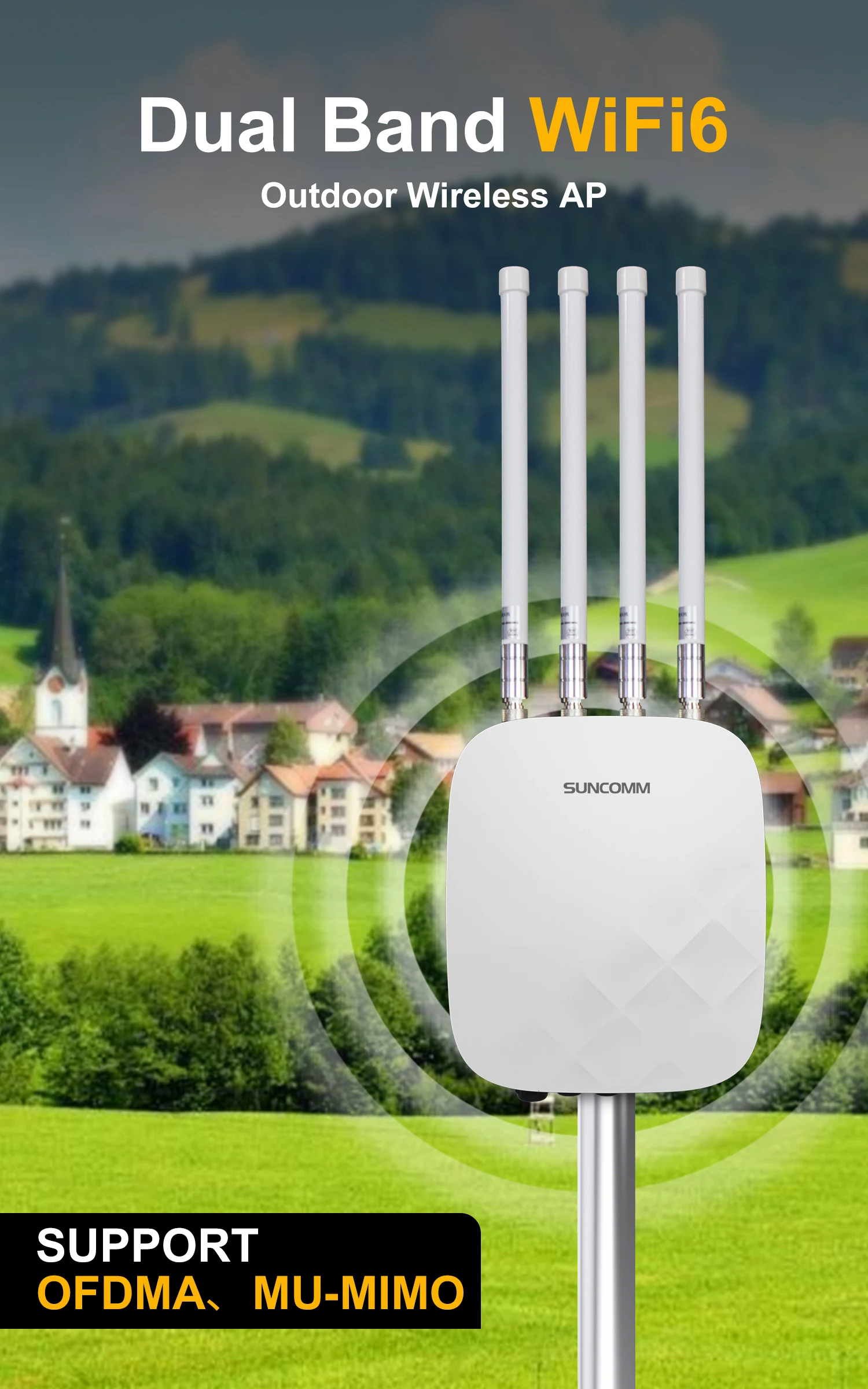

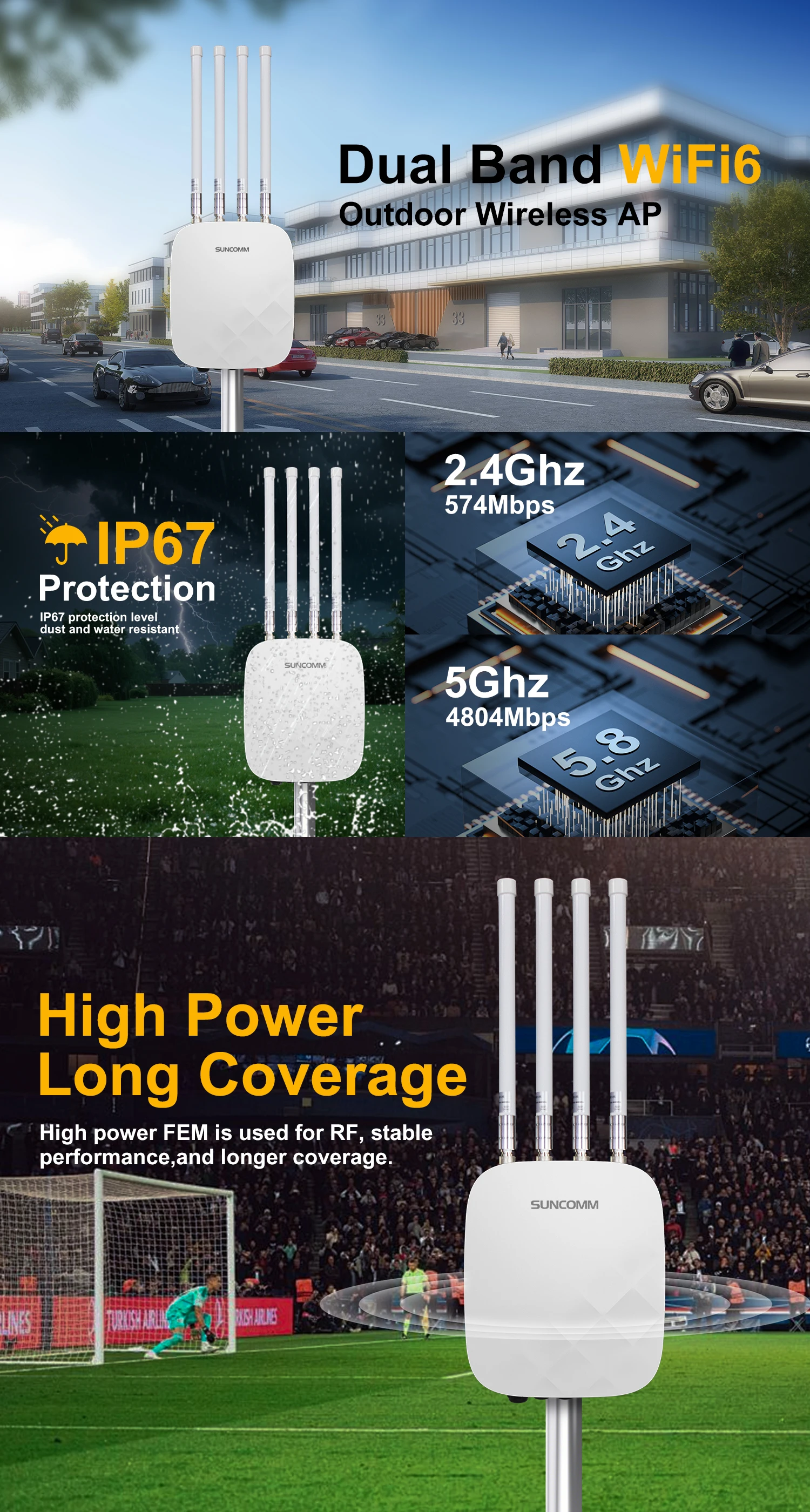

Dual Band Wifi 6 doanh nghiệp ngoài trời điểm truy cập không dây 360 ° sét tăng bảo vệ Gigabit cổng Ethernet bên ngoài

Product Model

AP9

CPU

IPQ5018+QCN9024+QCA8337

Flash

SPI NOR 8MB SPI NAND 128MB

DDR3L

External 512MB * 1

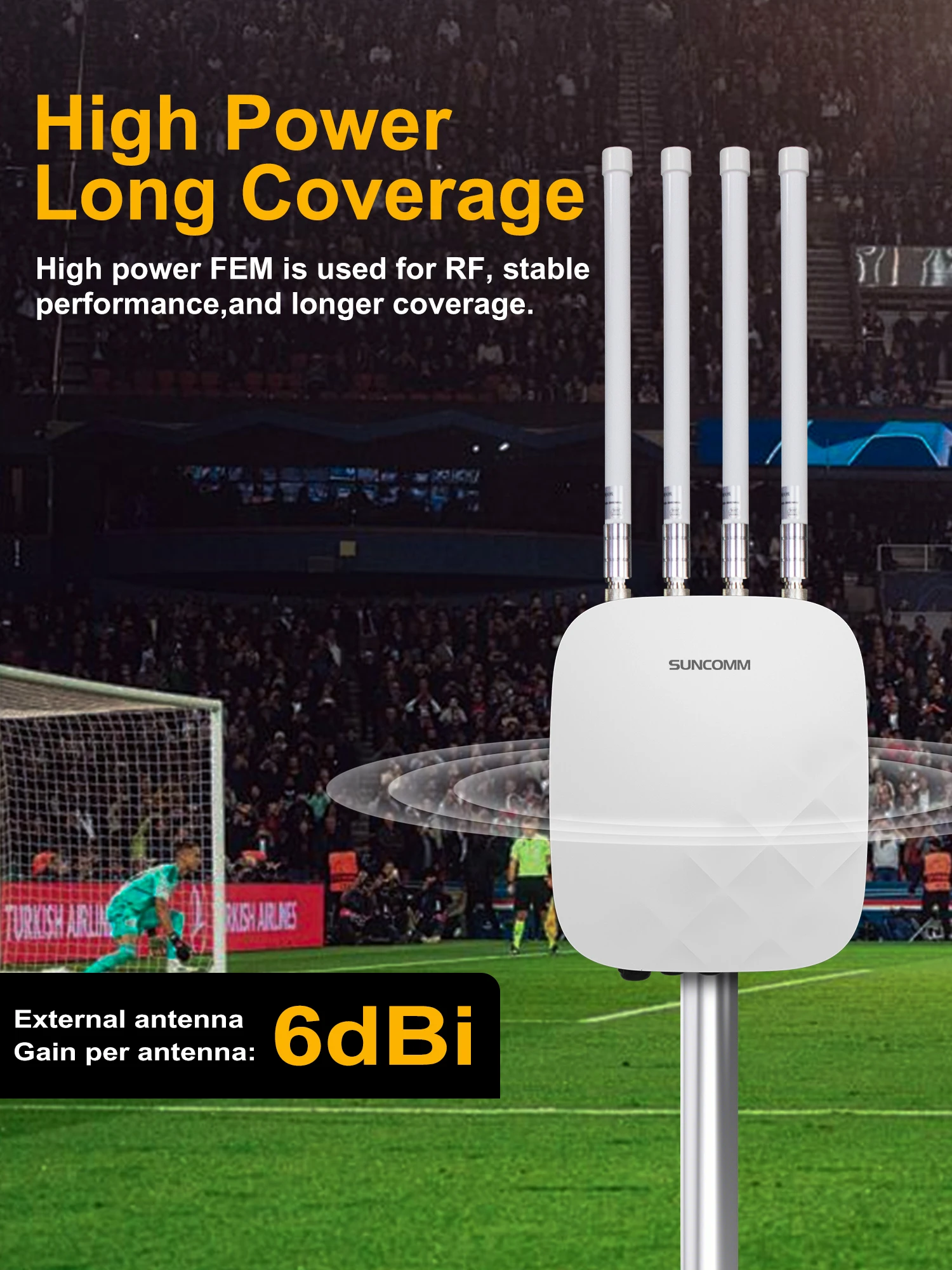

External dual band antenna

2* 2.4GHz/5.8GHz omnidirectional antennas, each with a gain of 6dBi

External 5GHz antenna

2*5.8G omnidirectional antennas, each with a gain of 6dBi

2.4G working frequency band

2.4GHz – 2.484GHz

2.4G WIFI Transmission Protocol

802.11 b / g / n /ax

5G working frequency band

5.150GHz～5.850GHz

5G WIFI transmission protocol

802.11 a / n / ac /ax

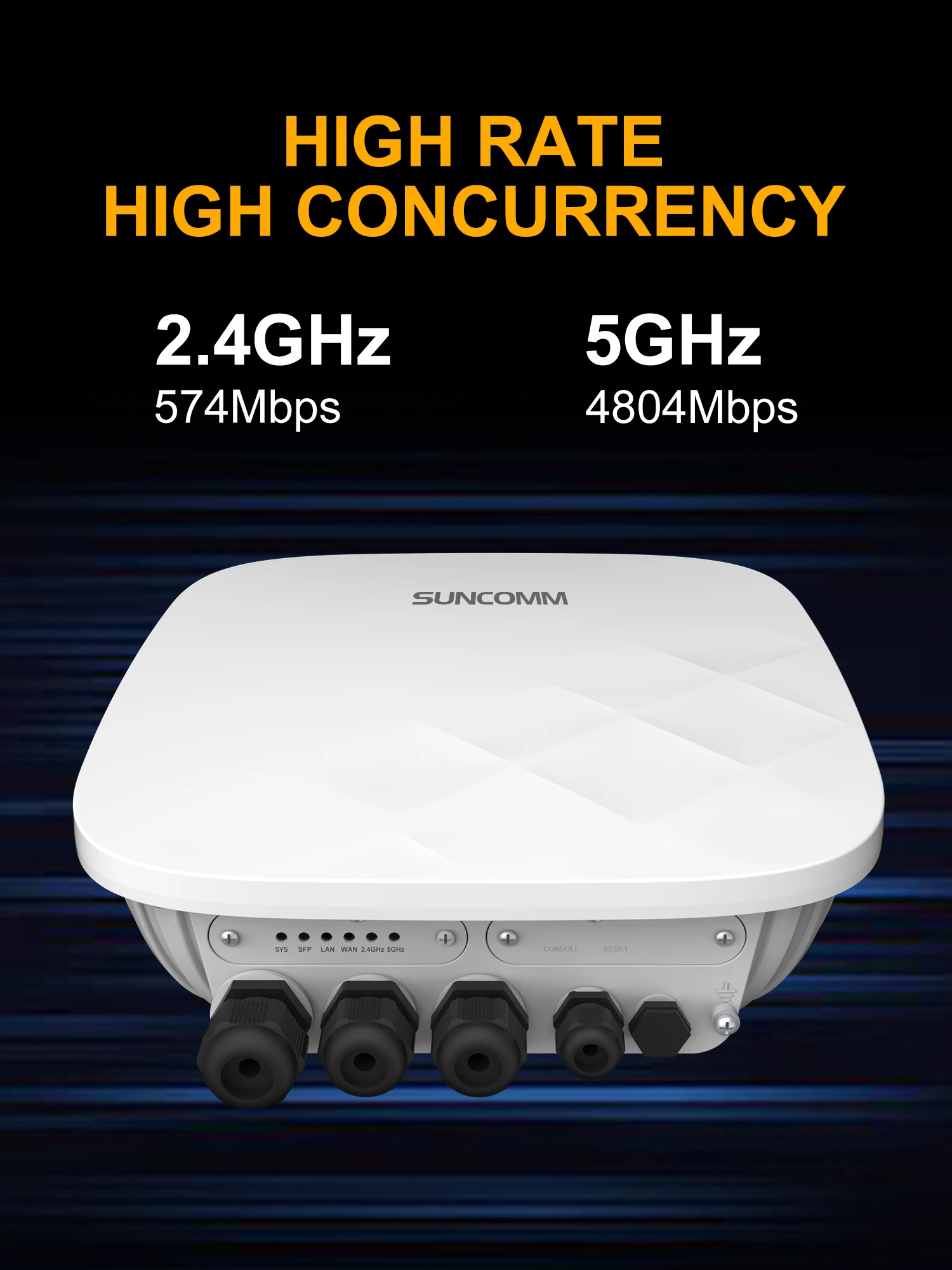

Maximum speed

2.4G provides a maximum access speed of 574Mbps, while 5G provides a maximum access speed of 4800Mbps

Maximum support for wireless access

192

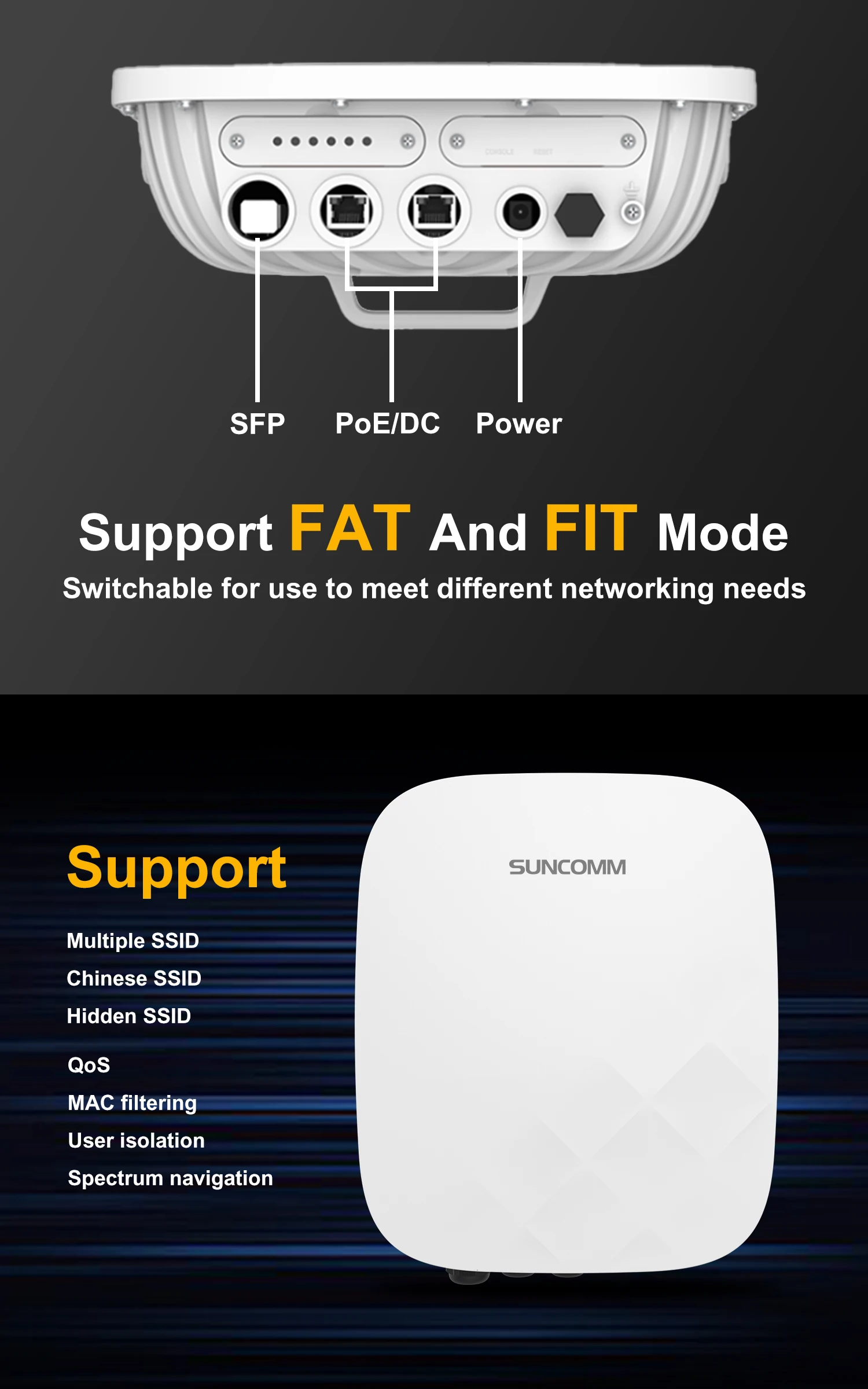

Interface

1×10/100/1000Mbps SFP optical port
1×10/100/1000Mbps WAN port, support PoE 48V input
1×10/100/1000M adaptive LAN port

Button

Reset button (press and hold for 6-10 seconds to restore to factory default settings)

Status indicator

WAN port light: Silkscreen WAN: single green light on the front; always on for UP, off for Down, flashes when there is data
LAN port light: Silkscreen LAN: single green light on the front; always on for UP, off for Down, flashes when there is data
WiFi light: Silkscreen WiFi: Green/blue dual color on the front; 2.4GHz is always green when turned on, off when turned off, and flashes when there is data; 5GHz is always blue when turned on, off when turned off, and flashes when there is data
SFP interface light: Silkscreen SFP: single green light on the front; always on for UP, off for Down, flashing when there is data
Power/SYS: Silk-screen SYS: Red/green dual colors on the front; the red light is always on immediately after power is turned on,
and the red light goes out and the green light is always on after the system starts.

Power supply

PoE 802.3bt, DC2.0 12V/3A

Power consumption

<45W

Dimensions

318.4mm × 269.4mm × 90.2mm

Protection level

IP67

Work Environment

Working temperature: -40°C to 70°C
Storage temperature: -40°C to 70°C
Humidity: 5% to 95% (no condensation)

Home page

Working modes: Fat AP mode and Thin AP mode

Wireless AP download rate, wireless AP upload rate, runtime

Device information, device description, intranet information, WIFI information

Support mode

Gateway mode: the device connects to the WAN through the WAN port and then uses static IP, DHCP or PPPOE to access the Internet

AP mode: The device covers wireless network signals to other clients and devices, and uses Ethernet to connect to other routers to access the wide area network

Wireless function

SSID Broadcast

Number of SSIDs: 4 (2.4GHz)+4 (5GHz), supporting Chinese SSIDs

Hide SSID function

Wireless encryption: OPEN, WPA/WPA2PSK-TKIPAES, WPA3PSK-TKIPAES

Wireless MAC address filtering: supports whitelist

Spectrum navigation (5G priority)

WiFi timed shutdown function

User isolation: wireless network isolation, AP internal isolation

Transmission power setting

Wireless client quantity limit

QoS：WMM

Network function

Connection method: Static address, obtained from management server, obtained from gateway

DHCP Server: It can be a built-in DHCP server or an external DHCP server

Cloud platform server

Firewall function

PPPOE function: Supports PPPOE dial-up function

Equipment Management

Backup configuration information

Restore configuration information

Restore factory settings

Restarting includes scheduled restarts and immediate restarts

Firmware update

Time management includes system display of time and time synchronization

system log

Fat thin AP switching function
