Ép phun lớp PETG nhựa virgen particules PETG Pallet Tấm Nhựa nguyên liệu chai cấp rõ ràng PETG hạt

999

Đã bán

42.356đ

34.968đ ~ 42.356đ

Đặc trưng: BPA-free/kháng hóa chất/Độ trong suốt caoSố Mô Hình: HF100I, HF300N, HF300HI, HF300C

Product name: Copolypesterứng dụng: Bao bì mỹ phẩm/hộp đựng thực phẩm

màu: Trong suốtvật liệu: Hạt PETG

Nhãn hiệu: DawnNơi xuất xứ: Shandong, China

Product Description

Our co-polyester product line includes PCT/PCTG/PETG raw materials.PETG product series include HF100I, HF300N, HF300HI, HF300C, etc., which are characterized by BPA-free, high transparency, chemical resistance and low haze. Widely used in cosmetic packaging, food containers, extruded film, sheet and other fields.

Specification

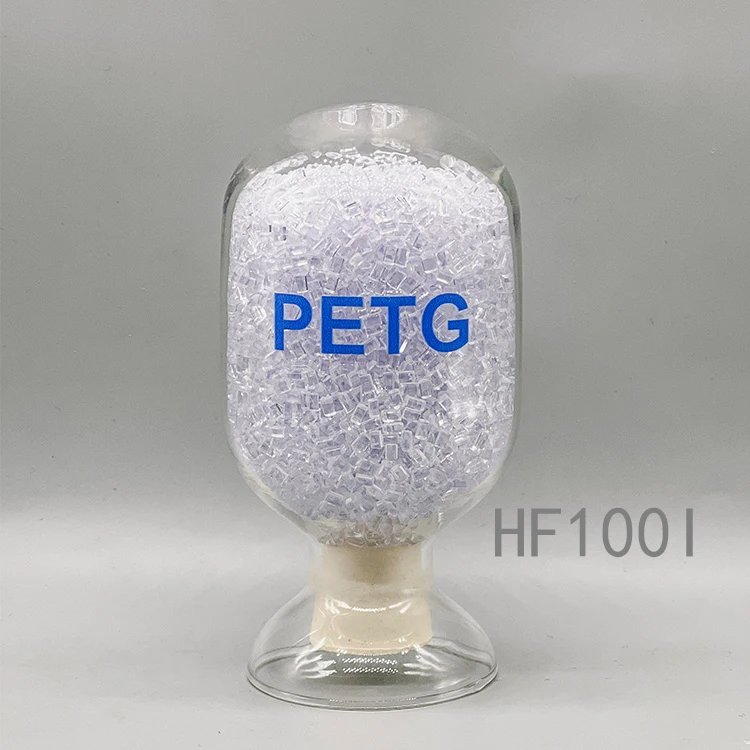

HF100I is an environmentally friendly BPA-free modified PET material with better injection molding processability than ordinary PET.

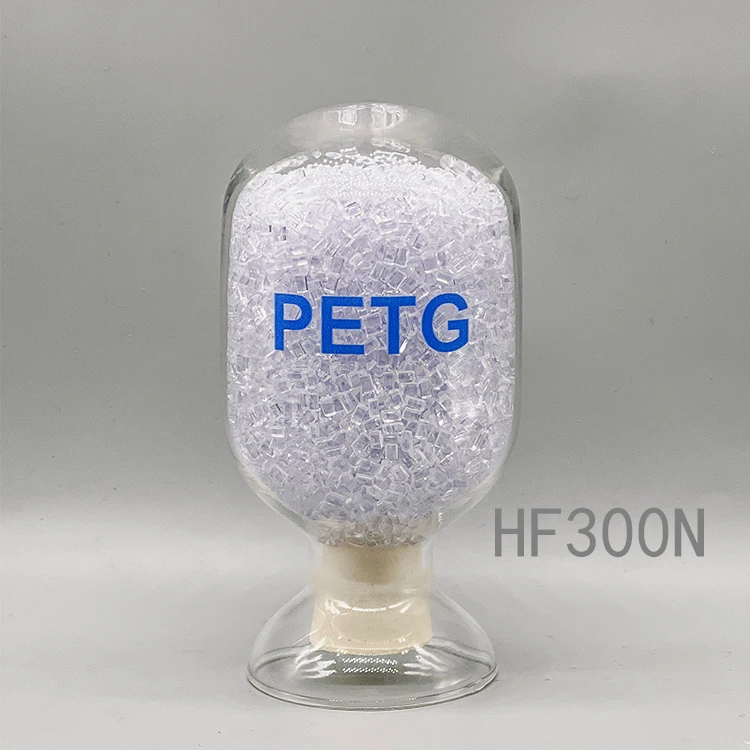

HF300N is an environmentally friendly BPA-free PETG material with good transparency and chemical resistance, which can be used in sheet, film and 3D printing applications.

HF300C and HF300HI are environmentally friendly BPA-free PETG materials with good transparency and chemical resistance, which can be used for cosmetic containers and food containers.

TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard
TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard	MECHANICAL
Tensile Stress, break, 50 mm/min	55.0	MPa	ISO527
Tensile Strain, break, 50 mm/min	150.0	%	ISO527
Flexural Stress, break, 50mm in Span, Crosshead Speed: 2 mm/min	70	MPa	ISO178
Flexural Modulus, 50 mm in Span, Crosshead Speed: 2 mm/min	2050.00	MPa	ISO178
IMPACT	Value	Unit	Standard
Izod Impact, unnotched,80104mm	3.0	KJ/m2	ISO180/1A
Izod Impact, notched,80104mm	5.0	KJ/m2	ISO180/1A
THERMAL	Value	Unit	Standard
HDT/0.45 Mpa, Edgewise Postion, 12712.76.4 Span=100mm	68	°C	ASTM D648
BASIC	Value	Unit	Standard
Mold Shrinkage	0.3-0.5	%	ASTM D1238
Density	1.33	g/cm³	ASTM D792
OPTICAL	Value	Unit	Standard
Haze (1mm)	1	%	ASTM D1003
Total Transmittance (1mm)	89	%	ASTM D1003
INJECTION	Value	Unit
Drying Temperature	65	°C
Drying Time	6-8	hr
Suggested Max Moisture	0.03	%
Rear Temperature	210-220	°C
Middle Temperature	220~235	°C
Front Temperature	235~250	°C
Nozzle Temperature	240~255	°C
Process (Melt) Temperature	240-260	°C

TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard
TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard	MECHANICAL
Tensile Stress, break, 50 mm/min	50.0	MPa	ISO527
Tensile Strain, break, 50 mm/min	80.0	%	ISO527
Flexural Stress, break, 50mm in Span, Crosshead Speed: 2 mm/min	70	MPa	ISO178
Flexural Modulus, 50 mm in Span, Crosshead Speed: 2 mm/min	2100.00	MPa	ISO178
IMPACT	Value	Unit	Standard
Izod Impact, unnotched,80104mm	5.0	KJ/m2	ISO180/1A
Izod Impact, notched,80104mm	6.8	KJ/m2	ISO180/1A
THERMAL	Value	Unit	Standard
HDT/0.45 Mpa, Edgewise Postion, 12712.76.4 Span=100mm	70	°C	ASTM D648
BASIC	Value	Unit	Standard
Melt Mass-Flow Rate (MFR)(250℃,2.16Kg)	＜10	g/10min	ASTM D1238
Density	1.29	g/cm³	ASTM D792
OPTICAL	Value	Unit	Standard
Haze (1mm)	1	%	ASTM D1003
Total Transmittance (1mm)	89	%	ASTM D1003
INJECTION	Value	Unit
Drying Temperature	65	°C
Drying Time	8	hr
Suggested Max Moisture	0.03	%
Rear Temperature	210-220	°C
Middle Temperature	220~235	°C
Front Temperature	235~250	°C
Nozzle Temperature	220~250	°C
Process (Melt) Temperature	210~250	°C

TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard
TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard	MECHANICAL
Tensile Stress, break, 50 mm/min	56.6	MPa	ISO527
Tensile Strain, break, 50 mm/min	306.4	%	ISO527
Flexural Stress, break, 50mm in Span, Crosshead Speed: 2 mm/min	84.5	MPa	ISO178
Flexural Modulus, 50 mm in Span, Crosshead Speed: 2 mm/min	2046.2	MPa	ISO178
IMPACT	Value	Unit	Standard
Izod Impact, unnotched,80104mm	7.6	KJ/m2	ISO180/1A
Izod Impact, notched,80104mm	12.9	KJ/m2	ISO180/1A
THERMAL	Value	Unit	Standard
HDT/0.45 Mpa, Edgewise Postion, 12712.76.4 Span=100mm	68	°C	ASTM D648
BASIC	Value	Unit	Standard
Melt Mass-Flow Rate (MFR)(250℃,2.16Kg)	13-17	g/10min	ASTM D1238
Density	1.29	g/cm³	ASTM D792
OPTICAL	Value	Unit	Standard
Haze (1mm)	1	%	ASTM D1003
Total Transmittance (1mm)	89	%	ASTM D1003
INJECTION	Value	Unit
Drying Temperature	60-65	°C
Drying Time	6-8	hr
Suggested Max Moisture	0.03	%
Rear Temperature	210-220	°C
Middle Temperature	220~235	°C
Front Temperature	235~250	°C
Nozzle Temperature	220~255	°C
Process (Melt) Temperature	210~255	°C

TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard
TYPICAL PROPERTIES MECHANICAL	Value	Unit	Standard	MECHANICAL
Tensile Stress, break, 50 mm/min	74	MPa	ISO527
Tensile Strain, break, 50 mm/min	18	%	ISO527
Flexural Stress, break, 50mm in Span, Crosshead Speed: 2 mm/min	103	MPa	ISO178
Flexural Modulus, 50 mm in Span, Crosshead Speed: 2 mm/min	2400	MPa	ISO178
IMPACT	Value	Unit	Standard
Izod Impact, unnotched,80104mm	3.5	KJ/m2	ISO180/1A
Izod Impact, notched,80104mm	4.7	KJ/m2	ISO180/1A
THERMAL	Value	Unit	Standard
HDT/0.45 Mpa, Edgewise Postion, 12712.76.4 Span=100mm	68	°C	ASTM D648
BASIC	Value	Unit	Standard
Melt Mass-Flow Rate (MFR)(250℃,2.16Kg)	40-46	g/10min	ASTM D1238
Density	1.29-1.30	g/cm³	ASTM D792
OPTICAL	Value	Unit	Standard
Haze (1mm)	＜1	%	ASTM D1003
Total Transmittance (1mm)	89	%	ASTM D1003
INJECTION	Value	Unit
Drying Temperature	60-65	°C
Drying Time	6-8	hr
Suggested Max Moisture	0.03	%
Rear Temperature	210-220	°C
Middle Temperature	220~235	°C
Front Temperature	235~250	°C
Nozzle Temperature	220~255	°C
Process (Melt) Temperature	210~255	°C

Why Choose Us

Company Profile

FAQ

1. who are we? We are the verified Pro Supplier in Alibaba. We are based in Shandong, China,.We are one company integrated industry and trade. No matter the products we manufacture or trade, high quality products and competitive price always will be provided for you. 2. how can we guarantee quality? Always a pre-production sample before mass production Always final Inspection before shipment 3.what can you buy from us? Titanium Dioxide (Tio2), Polypropylene (PP), Polyethylene (PE), PBAT, PBT, Polyvinyl Chloride (PVC),PS, PET, TPU ,TPV ,TPE, TPR, TPO , Meltblown PP, Nonwoven fabric, Modified Material, Masterbatch, HNBR, PETG, PCTG, Customized plastic bags, Customized plastic bottles, 4. why should you buy from us not from other suppliers? Polymer & Chemical Material Solution Expert Plastic Trade China TOP2 Polymer New Materials industry China TOP3 Meltblown PP Global TOP1 TPV Global TOP3 China TOP1 HNBR Global TOP3 PETG/PCTG World leader 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,DDP； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF Accepted Payment Type: T/T, L/C At Sight, L/C 90 Days.,Credit Card Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
