Introduction
The sausage binding machine is made of food-grade SUS304 stainless steel, small in size, high in efficiency and easy to operate. The control system is composed of a touch screen and a servo control system. It has two production modes: manual and automatic continuous. In the automatic continuous mode, the production efficiency is higher, saving time and effort. The intuitive touch screen control screen can set the production speed, the number of laps of thread binding, the time of dragging intestines and other parameters, and can also carry out output statistics on production. It has the incomparable advantages of traditional semi-automatic binding machines, and has high cost performance. The mechanical structure adopts numerical control processing, which is compact in structure, high in precision, and has a good waterproof function. The almost maintenance-free structure makes your production worry-free. It is the best choice for small and medium-sized food enterprises.
Application
This machine is specially designed for the production of sausages, ham sausages, crispy sausages, breakfast sausages, European-style grilled sausages, and volcanic stone grilled sausages. It has high efficiency and good quality.
This machine is widely used in leisure food factory equipment, Chinese restaurant equipment, meat processing factory, food processing factory and other units.
Features
1. It works automatically, and there is no need for human guards when working.
2. Advanced thread binding mechanism, no damage to the casing.
3. Adopt advanced servo motor and touch screen automatic control system, automatic, high speed and stable.
4. Made of stainless steel, small in size, high in efficiency and easy to operate.
5. The fuselage is fully CNC processed, with higher assembly precision and more stable operation.
6. All adopt high-speed bearings, which make the work more reliable.
7. The body is fully waterproof, effectively preventing electrical equipment from entering water.
8. Modular structure design, convenient and fast disassembly and assembly, and more convenient maintenance.
Parameter
|
Model |
Voltage |
Power |
Productivity (section/min) |
Single casing size (mm) |
Adapt casing diameter(mm) |
Size |
Weight |
|
GD-S |
220V |
1.5kw |
10-100 adjustable |
30-300 |
&phi9-35 |
1100*500*900mm |
88kg |
|
GD-AS |
220V |
2kw |
10-100 adjustable |
30-300 |
&phi9-35 |
1100*500*900mm |
100kg |
|
GD-AD |
220V |
3.5kw |
10-450 adjustable |
10-300 |
&phi9-28 |
1100*850*1250mm |
280kg |
Q1 What are your advantages compared with your competitors?
A:With rich industry experience and strict Product Quality Control systems, we provide:
(1) High-quality and stable machine
(2) High-quality customer service and after-sales service with prompt response
(3) Fast and timely delivery
Q2 Are you manufacturer?
A:Yes, we are manufacturer with more than 10 years' experience, and focus on the production of such machinery.
Q3 Do you have English Manual for each machinery?
A:Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
Q4 What is the packaging method?
A:The export packaging is wooden box packaging to prevent the product from being damaged.
Q5 How to install after I receive the machine?
A: Our engineers can provide online tutoring, don't worry.

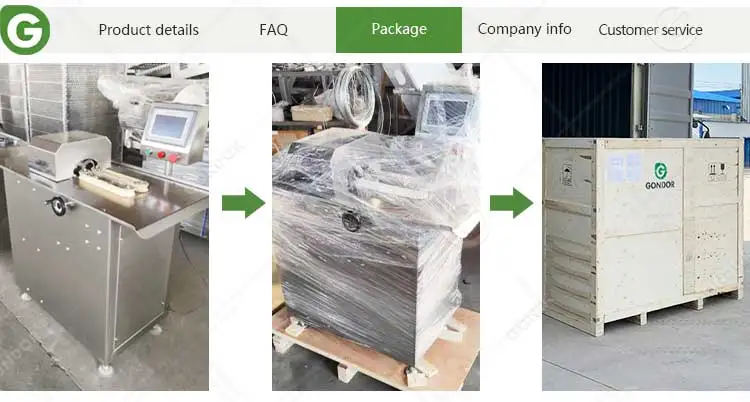

Installing waterproof membrane to reduce dust and water pollution.
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation.
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
1. 24- hour communication service
2. Fast logistics will provide you a smooth delivery service
3. One-year warranty and lifetime technical support
4. New design or product recommendation
5. Attend international Fair to negotiate with customer face to face
6. Offer official invitation if you come to China
7. Reception service,help you to book good hotel
