Điều kiện: MớiLoại máy: Hàn Tay Máy
Áp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Nhà Sử Dụng, Xây dựng làm việc, Năng lượng & Khai Thác MỏPhòng Trưng Bày Trí: Không có
Video Gọi Đi-Kiểm Tra: Cung CấpMáy Móc Báo Cáo Thử Nghiệm: Không Có Sẵn
Tiếp Thị Loại: Sản Phẩm Mới 2020Bảo Hành Của Core Thành Phần: 1 Năm
Core Thành Phần: Động CơNơi xuất xứ: China
Nhãn hiệu: LQBảo hành: 1 Năm
Key Điểm Bán Hàng: Thấp Chi Phí Bảo TrìTrọng lượng (KG): 16
Điện áp: 220VTên sản phẩm: CO2 hàn tự động máy kéo
Chức năng: Hàn Thép TấmVật Liệu hàn: Thép Carton
Mức độ: Bán-Máy tự độngChế độ hàn: CO2
Tốc Độ hàn: 0.15 ~ 1m/phútĐiện áp đầu vào (V): 220V/50 ~ 60HZ

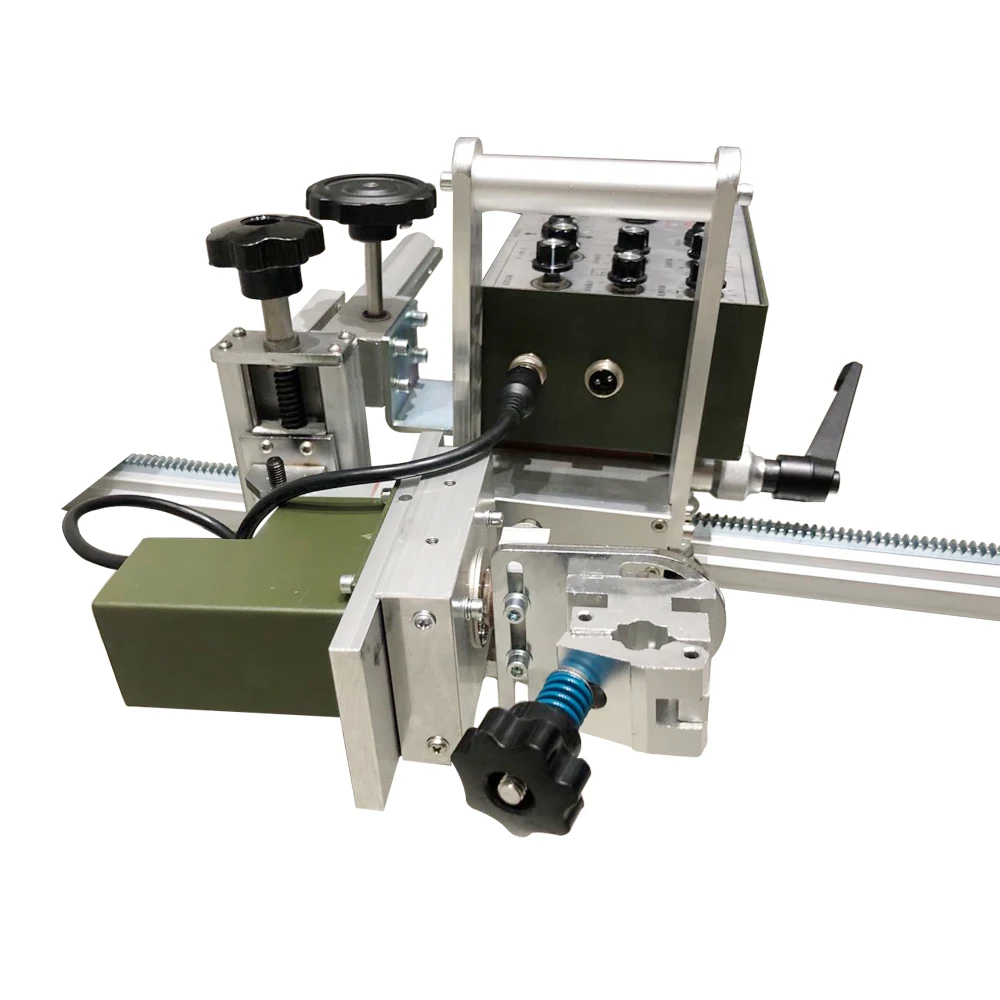

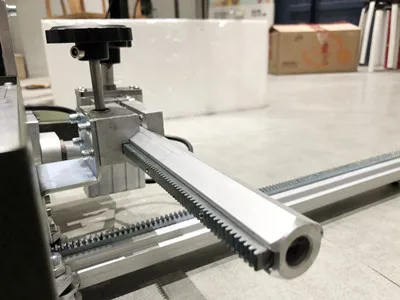

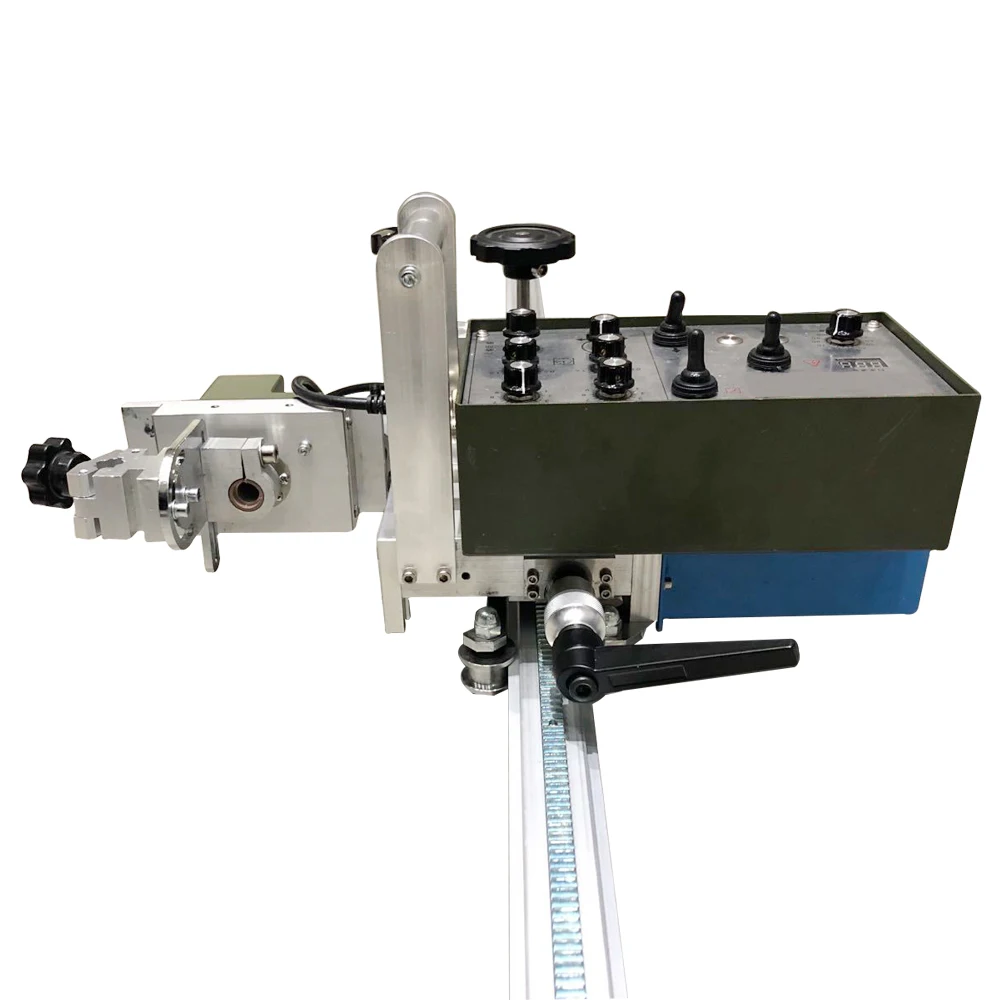

Auto Welding Tractor Auto welding carriage Swing-type Welding Tractor made in China
CO2 welding automatic tractors(carriages) are widely used in ship, bridge, locomotive, steel structure, petrochemical industry and so on. It is suitable for welding various structures, such as reinforced steel plate, ribbed plate, cross section, box girder,etc.
main advantages
* Reduce labor intensity and improve working environment
* Improve working efficiency, 1.5 times as much as manual welding
* Avoid the bad weld quality caused by human factors,Generally speaking, the defective rate of manual operation is about 20%,
There is no bad welding rate caused by human factors when adopting automatic welding tractor, therefore the comprehensive
benefit is nearly 200% higher than that of manual welding.
* A high degree of automation to ensure the stability of welding quality
* Not very skilled workers can also operate
Item | No | Content | Remarks |
| Power | AC 220V，50/60Hz | |
| Outline size | 500 x355 x 243mm | W×L×H |
| Weight | 10.6Kg | |
| Drive mode | Drive by rack | Digital display |
| Walk speed | 0~1040mm/min | |
| Torch adjust range | Up and down | 55mm |
| 7 | Front and back | 55mm |
| 8 | Operation angle | 360° |
| | Left and right | 215mm |
| | Angle in process | ±90° |

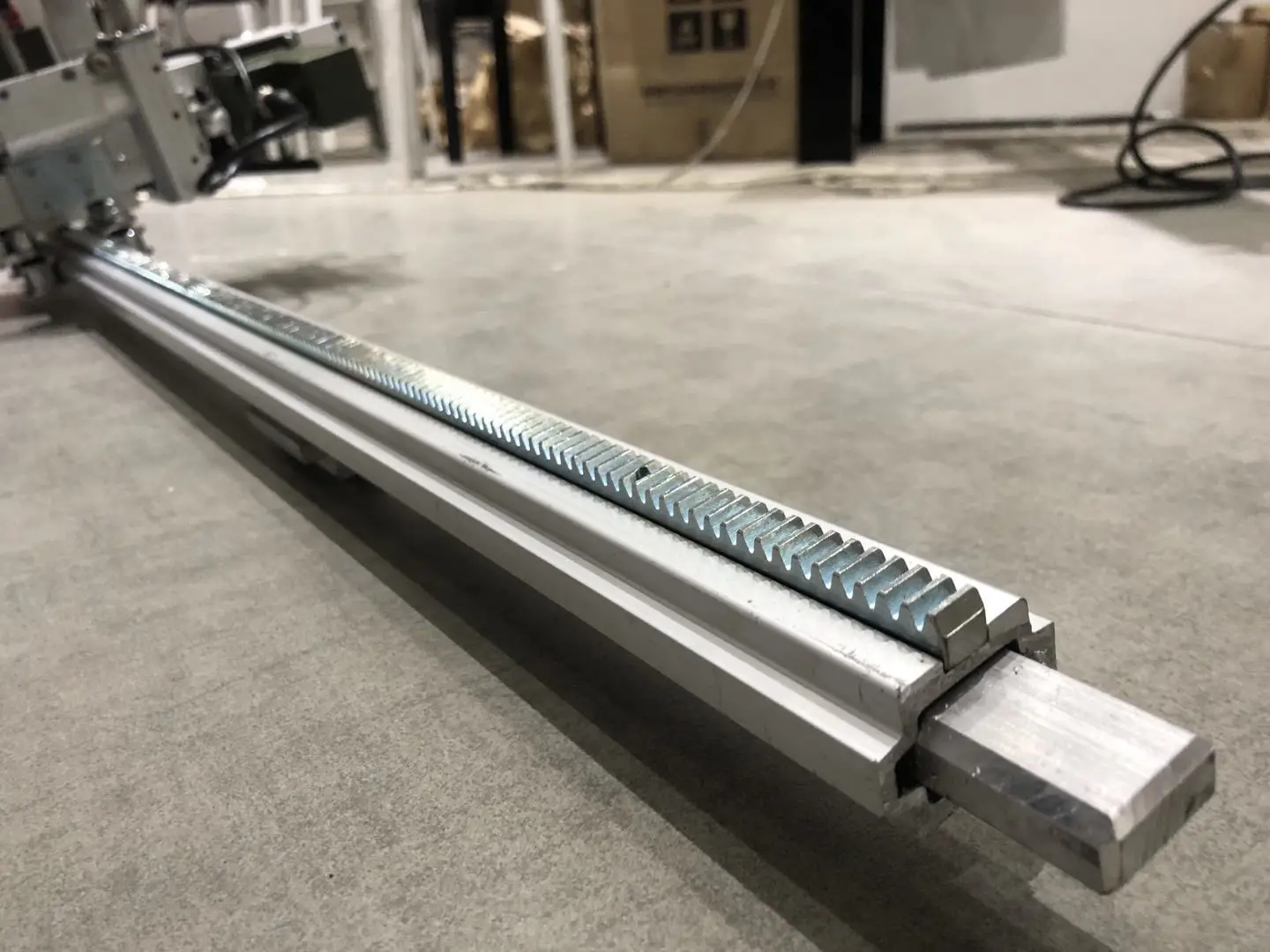

| Install mode | Magnet dismantle type | |
| Outline size | 42×29.3 ×1500mm | W×H×L |
| Material | Aluminum | |
| Weight | 6kg | Including magnets |
Swing
Parameter | Swing speed | 0-1520mm/min | |
| Swing amplitude | ±8mm | |
| Left-right residence time | 0-2s | |
| Center position | ±5mm | |
