Giá rẻ xách tay CNC Plasma ngọn lửa tấm kim loại máy cắt điều khiển giá
5
999
Đã bán
6.345.036đ
6.091.235đ ~ 6.345.036đ
Nơi xuất xứ: Shandong, ChinaỨng dụng: Máy cắt Plasma CNC
Điều kiện: MớiÁp dụng Các Ngành Công Nghiệp: Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Bán lẻ, Xây dựng làm việc, Công Ty quảng cáo
Video Gọi Đi-Kiểm Tra: Cung CấpMáy Móc Báo Cáo Thử Nghiệm: Cung Cấp
Tiếp Thị Loại: Sản Phẩm Mới 2020Nhãn hiệu: Shanghai Fangling
trọng lượng: 4Bảo hành: 1 Năm
Phòng Trưng Bày Trí: Không cóCore Thành Phần: PLC, Áp
Tên sản phẩm: Bộ điều khiển cắt plasma f2100bTính năng: Bền
Sử dụng: Đèn pin Plasma cầm tayMàu sắc: Đen
Đóng gói: Hộp cartonSau bán hàng dịch vụ cung cấp: Hỗ trợ kỹ thuật Video
Product Description

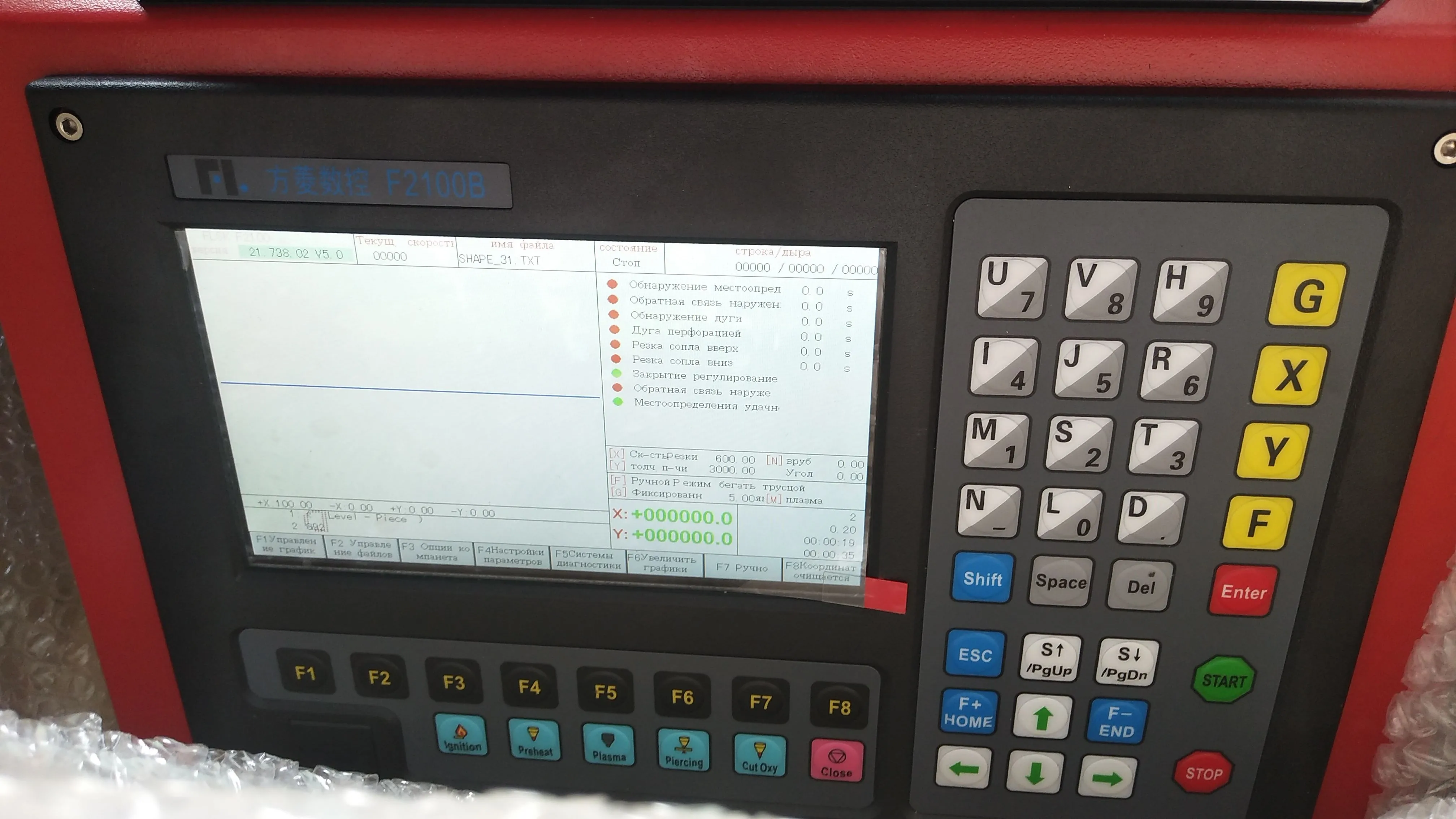

Shanghai Fangling brand F2100B control system
Detailed Images
P80 black wolf plasma cutting torch head

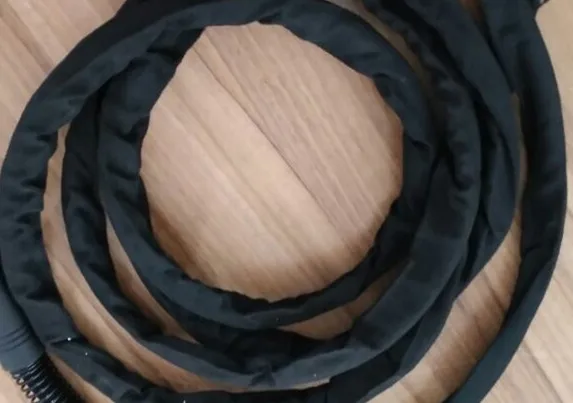

Copper wire of cutting torch

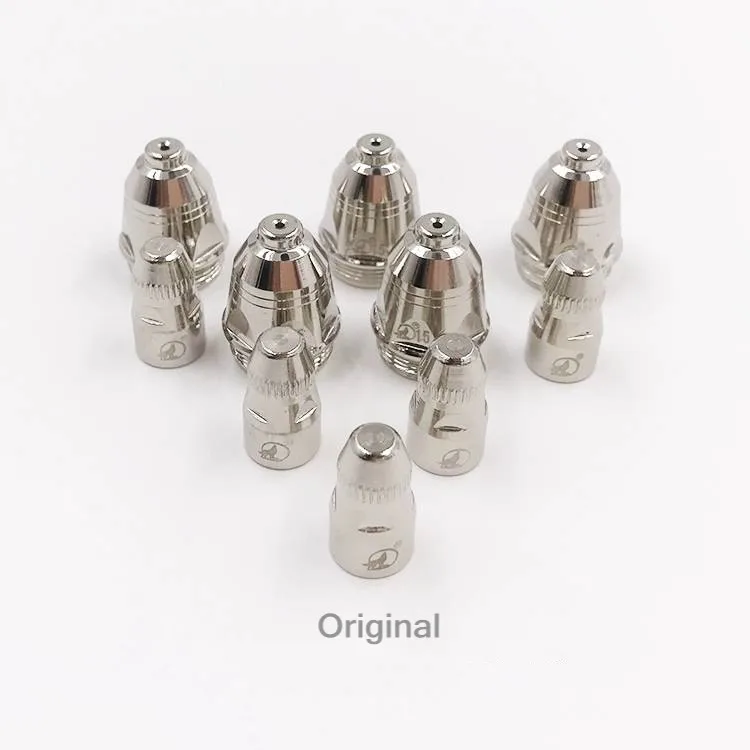

Cutting nozzle and electrode

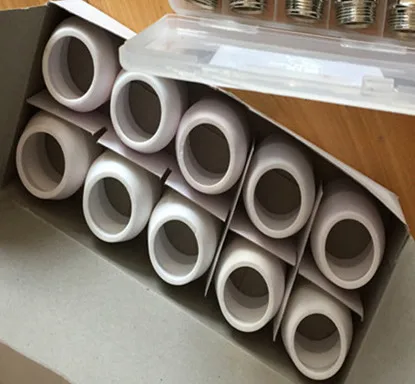

Porcelain cap
Size Information
Standard configuration of Air plasma power source.
Technical index
● Number of control axes: 2-axis linkage (three-axis or four-axis can be customized)
● Control accuracy: ±0.001mm
● Coordinate range: ± 99999.99mm
● Maximum pulse frequency: 200KHz Maximum operating speed: 15m/min
● Maximum number of program lines: 80,000 lines
● The largest single program: 4M
● Time resolution: 10ms
● System working power: DC +24V direct current power input, the power is greater than 80W.
● System working environment: temperature -10℃ to +60℃ relative humidity 0-95% non-condensing
● The maximum power of the drive arc voltage increase motor: 45W (Note: only with T system). If you need more power, you can choose up to 200W.
System interface
● DB15 core male head two-axis motor drive interface
● DB25 core female head 16-channel photoelectric isolation output, the maximum reverse current is 300mA
● DB25 core male connector 16-channel photoelectric isolation input, the maximum input current is 300mA
● Built-in USB interface on the front panel, convenient for users to transfer cutting code
● Optional standard DB9 core male serial port RS232 interface
Hardware Configuration
● Display: F2100B, 7-inch 800*480 high-resolution 16 million colors color high-brightness LCD screen
F2300A, 10.4-inch 800*600 high-resolution 16 million color high-brightness LCD screen
F2300B, 10.4-inch 800*600 high-resolution 16 million color high-brightness LCD screen
F2400B, 10.4-inch 800*600 high-resolution 16 million color color high-brightness LCD screen
F2500A, 15-inch industrial VGA high-brightness LCD screen
F2500B, 17-inch industrial VGA high-brightness LCD screen
F2500TF-B, 17-inch 800*600 high-resolution industrial LCD screen, 260,000 color LCD display
F2600, no display, but supports standard VGA interface display
● Memory: 64M SDRAM
● User program space: 256M
● Main frequency: 400MHZ system main frequency
● USB: USB1.1 interface front, supports at least 16GB USB flash drive.
● Keyboard: PCB film keyboard
● Chassis: The all-steel structure is completely shielded, which can truly prevent electromagnetic radiation, anti-interference, and anti-static.

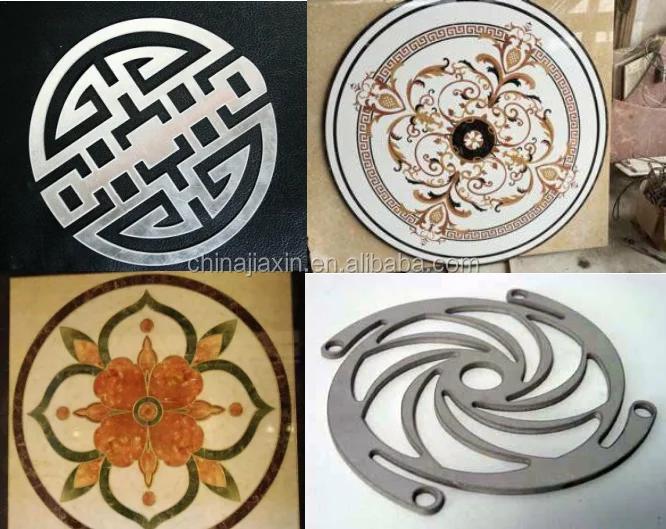

Working pictures
Application of P80 Handheld Plasma Cutting Torch:
This hand cutting Torch can be used for hand plasma cutting machine and plasma power source.
This hand cutting Torch can be used for hand plasma cutting machine and plasma power source.

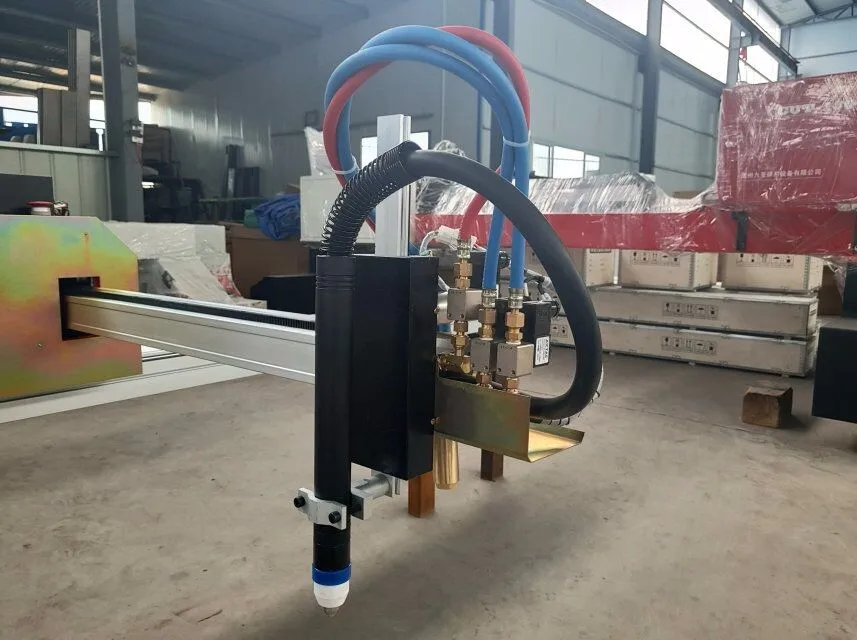

Gantry CNC cutting machine is a kind of cutting and blanking equipment with extremely wide application. The professional mechatronics equipment combined with computer and software can cut any shape of plate or tube workpiece, improve cutting quality and efficiency, and increase material utilization. The stability of the cutting rate and cutting quality reduces the labor intensity of workers.
CNC Plasma cutting: It is a processing method that uses the heat of a high-temperature plasma arc to partially melt or evaporate the metal at the incision of the workpiece, and uses the momentum of the high-speed plasma to remove the molten metal to form an incision.
Related Products

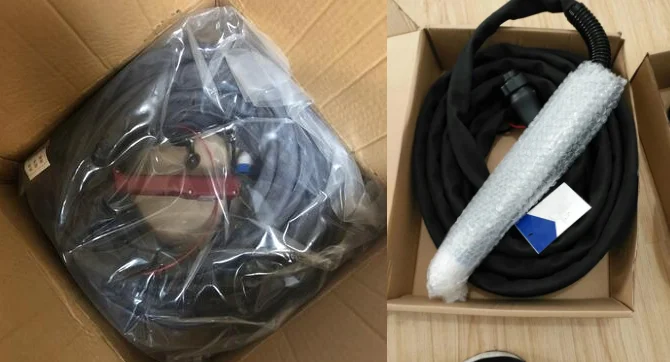

Packing&Shipping

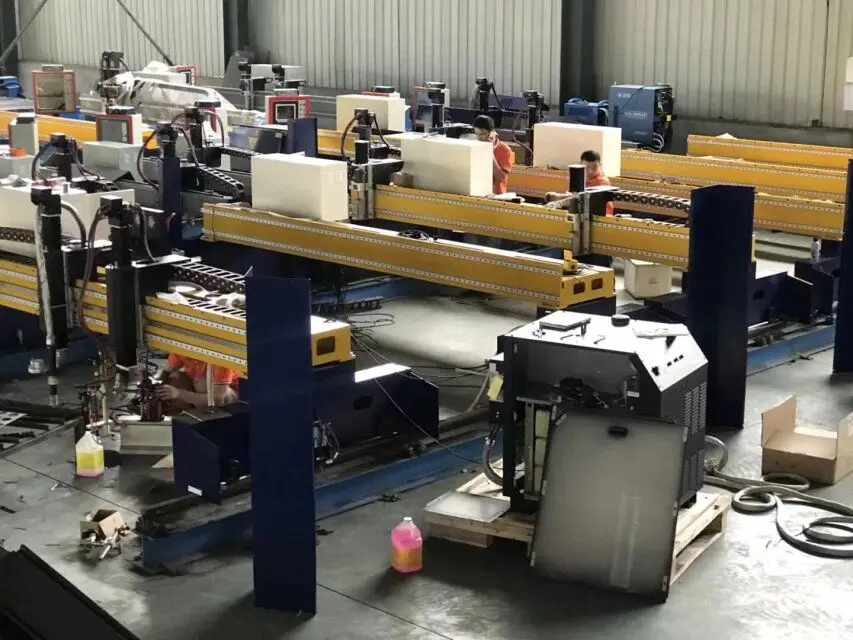

Company Introduction
Shandong Jiaxin Machinery Equipment Co.,Ltd.located in the hometown of Confucius and Mencius-Jining City, northwest of excellent transport location for communication between business and customers to provide a great convenience and fast.
Science and technology are primary productive forces"continuous advancement of technology is the development of the eternal source of power. The factory after nearly 20 years of development from a roller mold factory into a large-scale production of cold. Hot-rolled steel processing equipment. CNC steel processing equipment five series more than thirty kinds of products manufacturer enterprises.
We have always adhered to the "integrity of management, quality first&rdquo business philosophy customer for Gud's business objectives. Through a nationwide sales and service network, improve the pre-sale, selling service and after sale service sincere cooperation by providing quality products and efficient service for you.
Our Services & Strength
1.Pre-Sales Service:
1)Inquiry and consulting support.
2)We provide you the friendly English user manual and testing video free.
3)24 hours technical support by email or calling.
2.After-Sales Service:
1)Video of operating the machine are available.
2)12 months warranty quality guarantee and charge free technical support forever.
3)Free training to make sure you master the operating of machine.
FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What&rsquos the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
