Giá thấp ODM 24-0-24 10VA để 10000va 220V Điện hình xuyến biến áp cho bộ khuếch đại âm thanh
Giá thấp ODM 24-0-24 10VA để 10000va 220V Điện hình xuyến biến áp cho bộ khuếch đại âm thanh
Giá thấp ODM 24-0-24 10VA để 10000va 220V Điện hình xuyến biến áp cho bộ khuếch đại âm thanh

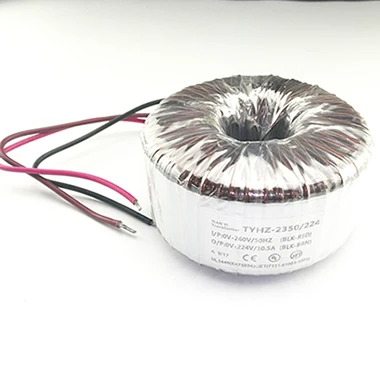

Low price ODM 24 - 0 - 24 10va to 10000va 220V power toroidal transformer for audio amplifiers
Electrical Performance
| No. | Testing Item | Reference Standard |
| 1 | Pri exciting current | 15 mA below (AC230V) |
| 2 | Sec no-load voltage | 26.9V±0.4V |
| 3 | Sec loading voltage | 24V±0.4V |
| 4 | Temperature rise | 60K below (B class insulation) Full loading 6 hours |
| 5 | Hi-pot test | 5 mA below (AC4000V/5S Pri-Sec&Core) |
| 6 | Insulation resistance | 100MΩ Min (DC500V/5S Pri-Sec) |
| 7 | Impulse wave | 1500V/2 times (No short circuit) |
| 8 | Inter-layer withstand voltage | 60 mA below (400Hz/800V/10S) |
Tianyi Electronics Technology, Ltd. is a reliable partner with 25 years of expertise in project work and project implementation of technical system solutions for public sector clients and renowned industrial companies, and is specialized in developing and producing complex electromechanical components. We offer the following services:
Our strength lies in quick, economical and high-quality solutions. We have been supplying solutions for designing, sampling, engineering, producing transformers for 25 years. We understand how to optimize and cut the cost in accordance to the detailed application.
l Attractive price structure especially for small quantities. 20% Lower price than other manufacturer.
l Individual solution adapted to your application, we accept custom power from 10W to 10000W.
l Rapid production of your standard solution or specific solution due to a wide range of stored cores. Generally 2-3 weeks.
l In-house core production. We can rapidly make different size to core.
High quality manufacturing and testing in accordance to UL506&CSA,22.2, EN61558-2 and VDE etc
Established in 1992, Tianyi Electronics Technology, Ltd. Is a trusted global supplier to standard and custom electronic components. We offer our customers a full line of RoHS compliant product line, transformers, inductors, coils&chokes, and magnetic cores.
As a business, Tianyi engineers have the necessary expertise, extensive experience and advanced technical capability supplying solutions for design, sampling, prototyping, and manufacturing. More, our professional managers and experienced workers often allow us to produce highest quality, most economical products with the quickest delivery possible.
