Giấy Chứng Nhận CE Công Nghiệp Thép Không Gỉ Tấm Kim Loại Bảng Cnc Plasma Máy Cắt Với Nguồn Điện 120A
CE certificate Industrial stainless steel plate table cnc plasma metal cutting machine

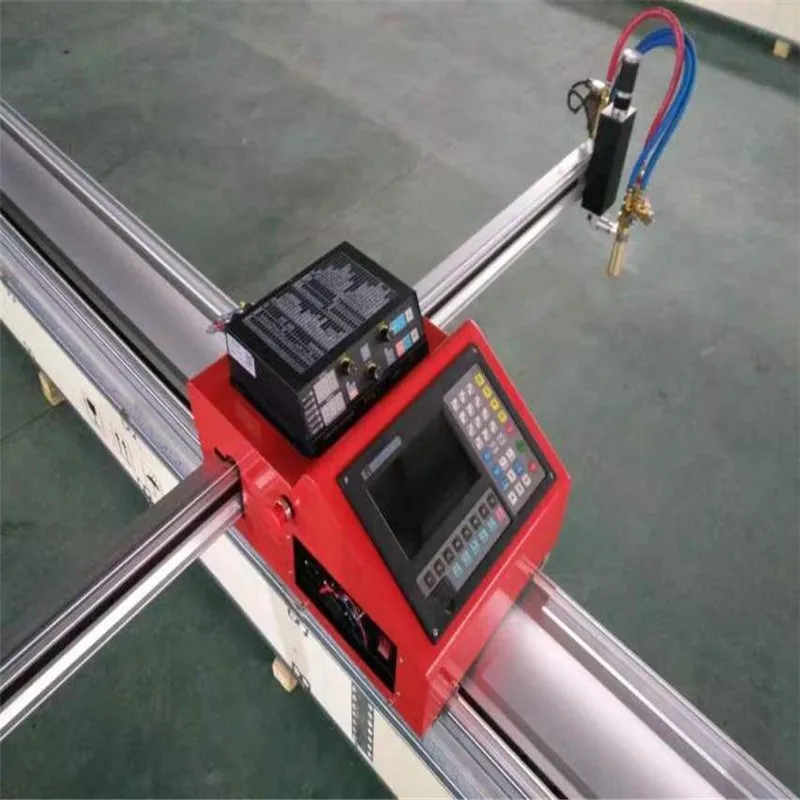

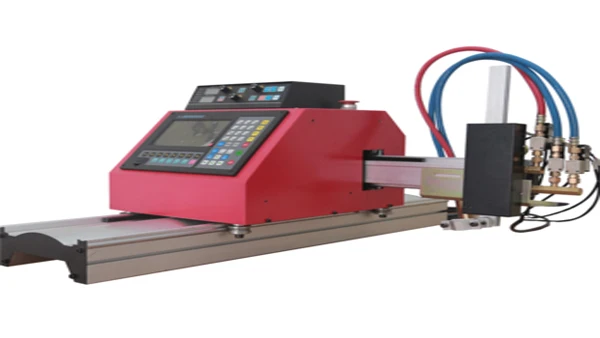

CNC cutting machine is a high-end machine numerical control plasma, flame cutting machine. Overall structure adopts imported high rigidity aluminum alloy materials moulding. compared with genenral portable cutting machine, with higher handing, stability, larger transverse cutting area is large, The longitudinal guide rail can be butted to extend.
Technical data
|
Unit price |
Machine can cut both by plasma and flame. Plasma can cut 0-15mm, flame can cut 1-100mm Huayuan is best famous brand in China. Machine can cut both by plasma and flame. |
|
Main parts |
1500*3000mm working area Shanghai Fangling controller, Star cam software Linear guide, big power stepper motor both flame and plasma cutting tools With LGK-100A huayuan brand plasma power source THC(Automatic torch height controller) |
|
Delivery time: |
10 days after get payment |
|
Package |
3 or 4 free-fumigation wooden case |
|
Shipping |
By sea by LCL, delivery from Qingdao port |
|
Payment term |
T/T or L/C in advance, or Assurance order through Alibaba. Assurance order trade term pls check: https://tradeassurance.alibaba.com/ |
|
Warranty: |
one year for whole machine, you could get spare parts within warranty period |
Technical data
|
Model |
JX-1530 |
|
Effective cutting range(mm) |
1500*3000MM |
|
Cutting speed (mm/min) |
50-4000(max. 4000) |
|
Input power source Machine body |
380V±10% VAC,50/60HZ Three phase 220V±10%V AC, 50/60HZ Single phase |
|
Flame cutting specification (for Oxy-fuel Cutting) |
|
|
Flame Cutting thickness (mm) |
1-100 (Oxygen + acetylene or propane) |
|
Torch height controller |
flame, electric height adjustment(±60mm) |
|
Flame cutting gas |
Oxygen+ propane or acetylene |
|
Cutting torch |
One piece flame cutting torch |
|
Plasma cutting specification (for Plasma Cutting) |
|
|
Plasma Cutting thickness (mm) |
0-15mm |
|
Torch height controller |
Plasma, Arc voltage height(THC) |
|
Plasma cutting gas |
N2, O2, compressed air |
|
Plasma cutter |
100A |
|
Cutting torch |
8m wire plasma torch |
|
CNC controller system |
FL2100B |
|
Motor |
Stepper motor |
|
Operation precision |
±0.2mm/m |
|
Guide length ×guide width ×guide thickness (mm) |
3500×273×60 |
|
Nesting software |
Starcam |
|
Gas pressure (Mpa) |
±0.5 |
|
Cutting tool Conversion Kit |
Flame cutting and plasma cutting can change easily. Flame cutting machine add power source, ARC, plasma torch to change into plasma cutting machine |
The Details of the CNC Plasma /Flame Cutting Machine:

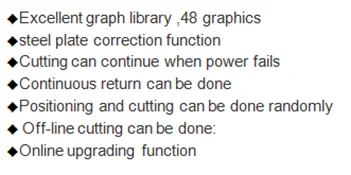

1. Control System:
Shanghai Fangling brand Control system.
with 7inch screen, with built - in 48 figures, you could choose pattern from these figures directly, very convenient you can draft various patterns using software like Starcam.
Interface has 9 languages(Chinese, English, Russian, Spanish, Portuguese, Nederland, French, Japanese, Korean)

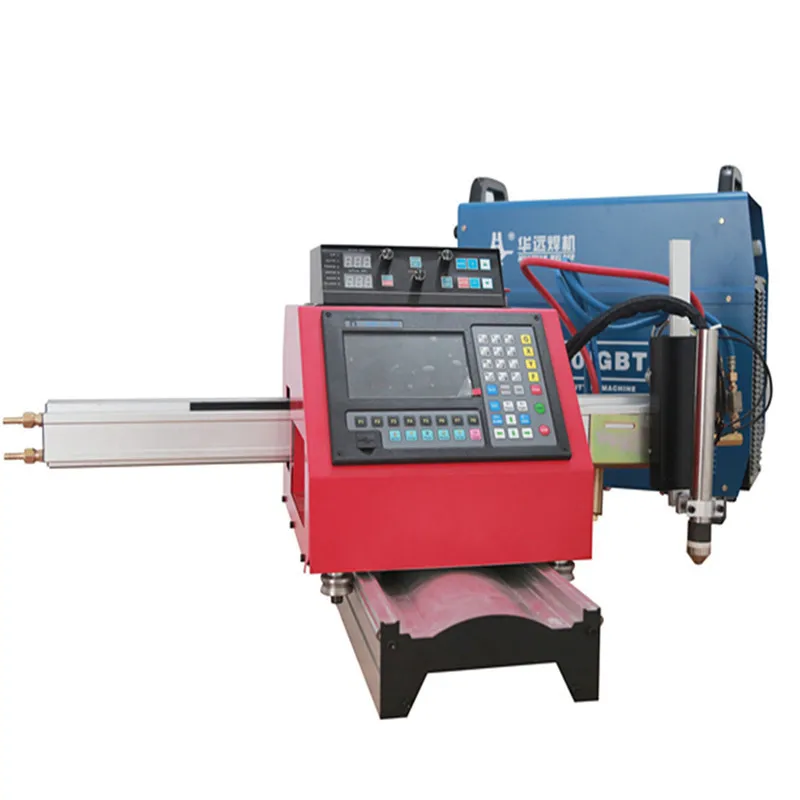

2. Power Source:
Chinese best brand LGK IGBT-100A plasma power source

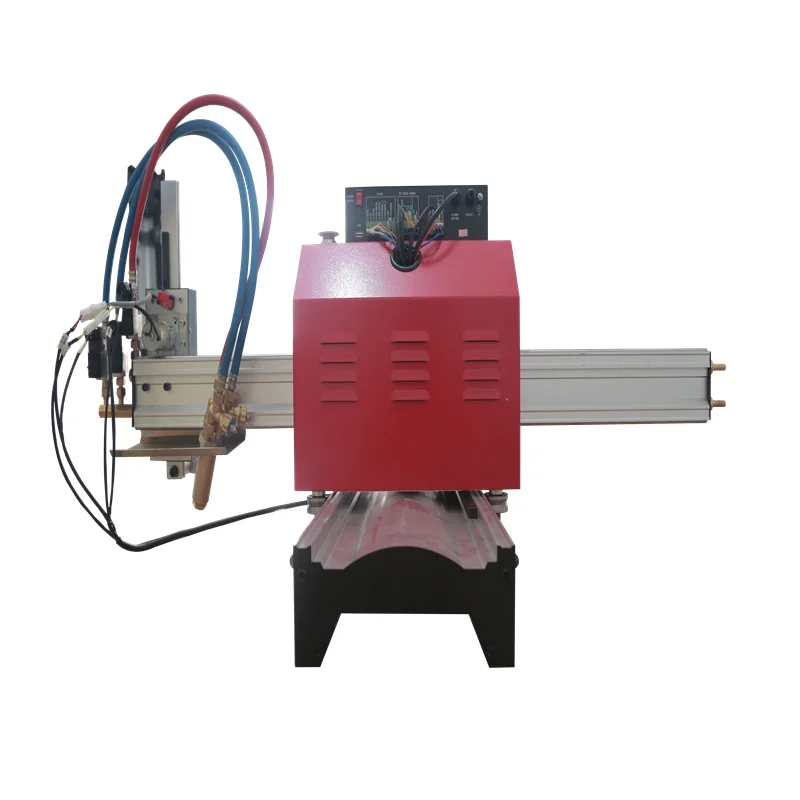

3. Machine Torch:
Plasma Torch Flame Torch
Oxygen(flame) and plasma cutting machine spare parts can change easily.
4. Guide
u Linear guide from Taiwan, high precision and more stable
u Rail is alloy-aluminum in light weight, not easy be deformation
u Stepper motor driver, START brand
u Axis type guide, reduce beam abrasion and make high precision
Big size Track, light weight alloy-aluminum horizontal rail, not easy become deformation, Stable, High precision

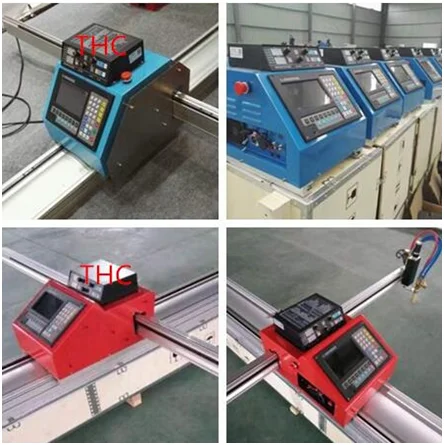

5. THC:
If metal sheets are rugged, should use THC to adjust distance from torch to metal surface.

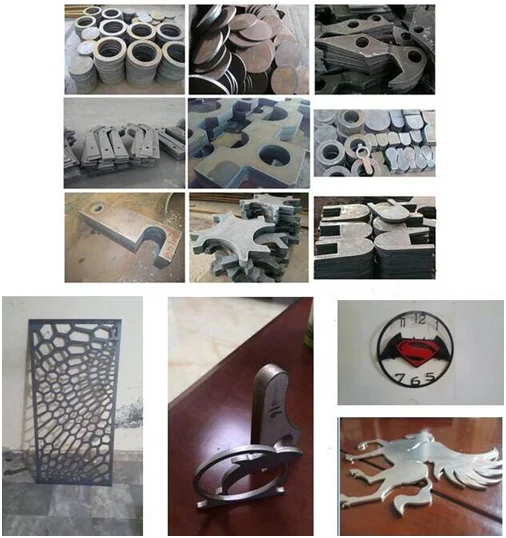

6. Cutting Sample:
|
One year warranty |
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
|
Vulnerable parts(Not covered by warranty) |
|
|
|
Cutting tip electrode |
|
Flame torch |
|
Plasma torch |
|
Protective cap |
|
Fixing sleeve |
