H chùm Máy cắt Plasma CNC cho dây chuyền sản xuất Kết Cấu Thép
H chùm Máy cắt Plasma CNC cho dây chuyền sản xuất Kết Cấu Thép
H chùm Máy cắt Plasma CNC cho dây chuyền sản xuất Kết Cấu Thép
5
999
Đã bán
719.371.565đ
616.607.823đ ~ 719.371.565đ
Yêu thích
H chùm Máy cắt Plasma CNC cho dây chuyền sản xuất Kết Cấu Thép
5
999
Đã bán
719.371.565đ
616.607.823đ ~ 719.371.565đ
Nơi xuất xứ: Shandong, ChinaNhãn hiệu: JIAXIN
Điều kiện: MớiLoại: CNC Máy Cắt Plasma
Video Gọi Đi-Kiểm Tra: Cung CấpMáy Móc Báo Cáo Thử Nghiệm: Cung Cấp
Tiếp Thị Loại: Sản phẩm mới 2023Bảo Hành Của Core Thành Phần: 1 Năm
Core Thành Phần: Động CơĐiện áp: 220V/380V
Công suất: 8.5kWKích thước (L * W * H): 1300*2500m m
Năm: 2023Bảo hành: 1 Năm
Key Điểm Bán Hàng: Dài Dịch Vụ Cuộc SốngÁp dụng Các Ngành Công Nghiệp: Nhà Máy sản xuất
Phòng Trưng Bày Trí: PakistanTrọng lượng (KG): 1500 KG
Sản phẩm nme: Máy cắt dầm HKích thước: Kích thước 14000*1800*2100
Loại động cơ: Động cơ servoSố mô hình: ZLH-600
Trọng lượng (kg): 1500kgQuyền lực: 63A 100A 120A 200A (tùy chọn)
Động cơ: Động cơ sevro động cơ
Product Description
Technical Information
1) Equipment model: ZLH-600

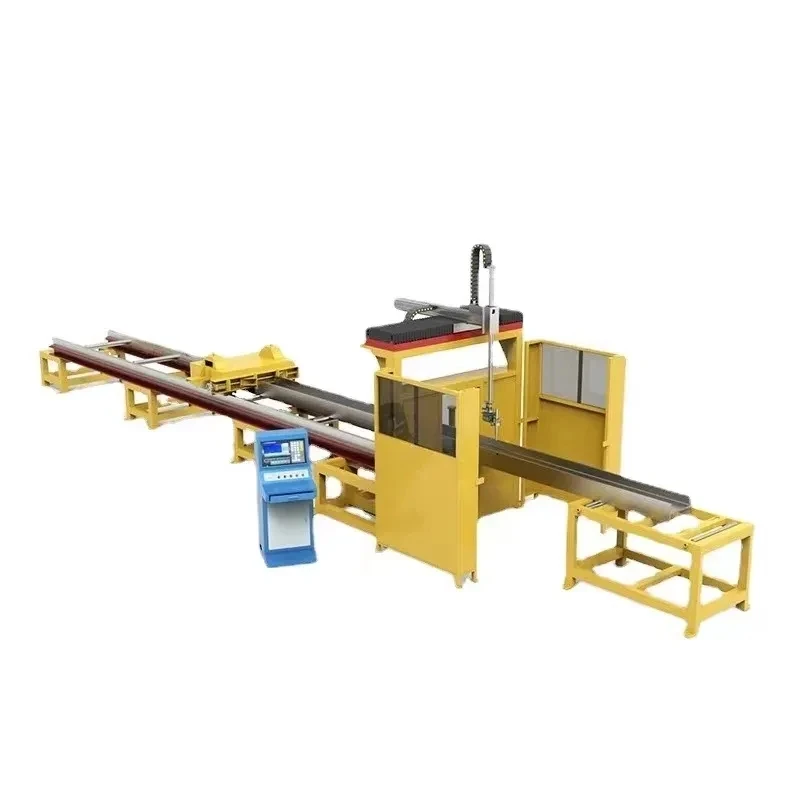

2) Equipment name: section steel CNC cutting machine
3) Equipment dimensions: 14000*1800*2100
4) Cutting range: H beam, I beam, channel steel, Angle steel.
5) Range of adaptation: web height 400mm (beyond the size should be informed)
6) System rated pressure: &le0.5MPs
7) Hydraulic oil model: L-HM-46

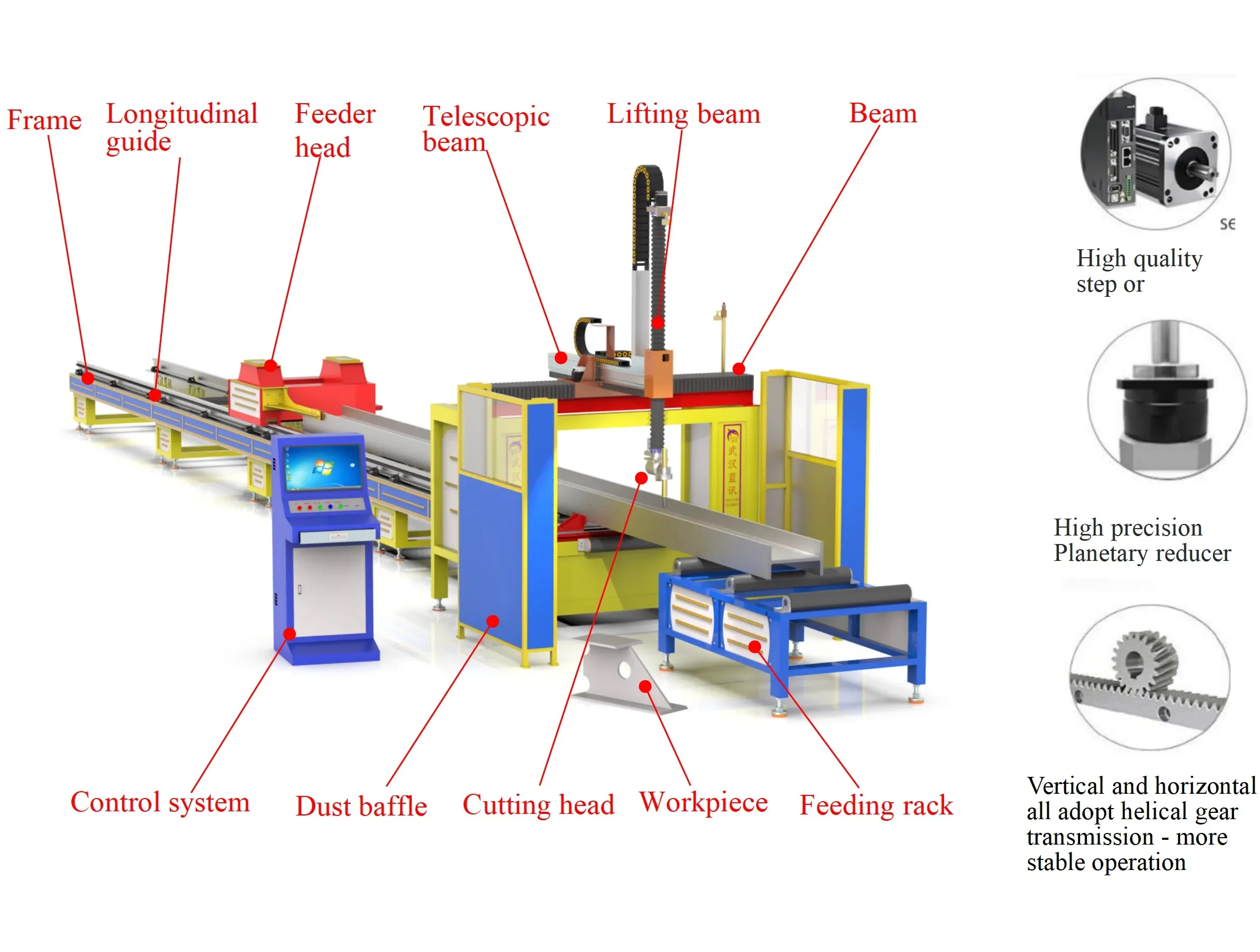

Part Name | Specifications | quantity | |
1 | Operation mode | 7 axis 5 linkage | |
2 | 6-axis control system for steel | 6-axis control system | 1 set |
3 | remote control | remote control | 1 set |
4 | Feeding servo motor, driver | 750W | 2 sets |
5 | Servo motor, driver | 400W | 3 sets |
6 | Servo motor, driver | 200W | 1 set |
7 | Planetary reducer | Humphrey | 6 sets |
8 | Guiding device | 1 set | |
9 | Automatic feeding device | 1 set | |
10 | Hydraulic clamping device | 2 sets | |
11 | lateral movement device | 1 set | |
12 | Longitudinal lifting shaft of torch | 1 set | |
13 | Machine head rotation device | 1 set | |
14 | Material receiving device | 1 set | |
15 | hydraulic oil pump | 1 set | |
16 | Number of hydraulic cylinders | 2 sets | |
17 | programmatically | System Gallery | Optional offline programming software |
18 | cutting method | Plasma |
Advantage
1, support H-beam, I-beam, channel steel, Angle steel and other materials cutting
2, the device is 7 axis 5 linkage, support end oblique cutting. The system controls the Angle of the gun for non-human swing, thus improving efficiency and ensuring cutting accuracy.
3, mobile feeding cylinder clamping, clamping force is greater than other manufacturers with cylinder clamping way, suitable for heavy H-beam and larger profile cutting
4, swing gun shaft with harmonic reducer, more stable, do not shake the gun
5, the feeding table adopts 24KG guide rail bilateral servo drive, no matter the length of feeding automatic one-time feeding in place, improve the feeding efficiency, ensure the accuracy of feeding.
Clamping way: clamping web height 100 to 600mm or 100 to 800mm H section steel convenient and fast Not by different abdominal
height artificial adjustment device, higher efficiency This push way is more stable and reliable than the upper and lower
clamping way
height artificial adjustment device, higher efficiency This push way is more stable and reliable than the upper and lower
clamping way
1, bilateral servo drive, better stability
2, matching is used on the laser bevel teeth, better than the peer straight teeth,
good smoothness, high precision Clamping way: clamping web height 100 to 600mm or 100 to 800mm H section steel convenient and fast Not by different abdominal height artificial adjustment device, higher efficiency
good smoothness, high precision Clamping way: clamping web height 100 to 600mm or 100 to 800mm H section steel convenient and fast Not by different abdominal height artificial adjustment device, higher efficiency
This equipment is 7 axes 5 linkage, can punch, cut, lock and end oblique cutting functions The effective stroke of X axis is about 1000mm.
If various round holes and kidney holes are cut within this range, they can be processed directly without multiple feeding, thus improving the processing
efficiency. This push way is more stable and reliable than the upper and lower clamping way
efficiency. This push way is more stable and reliable than the upper and lower clamping way

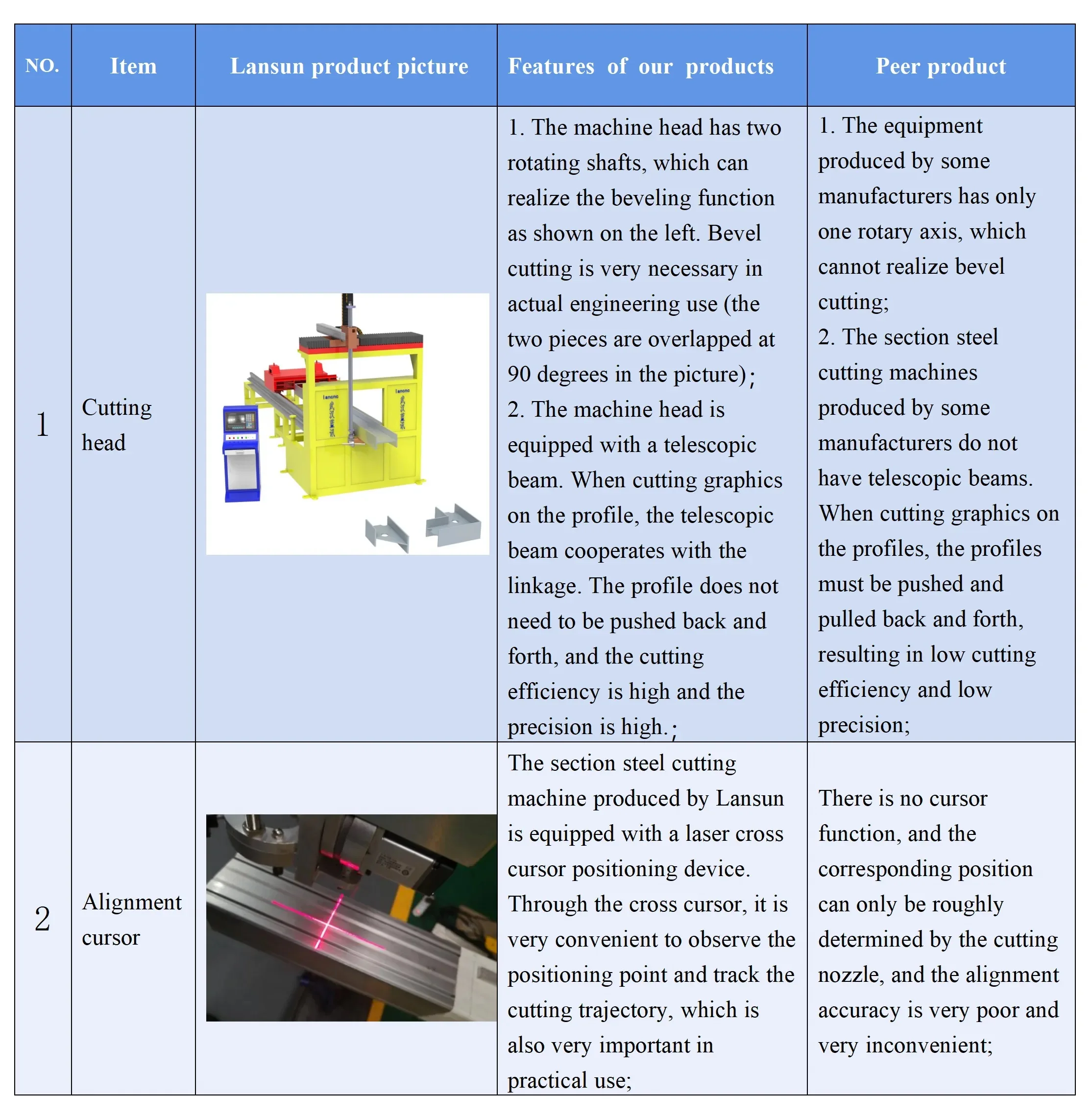

Section steel cutting machine is equipped with cutting point laser alignment and cutting track device, cutting point position laser indication function, convenient cutting point alignment and cutting track pre-demonstration and inspection

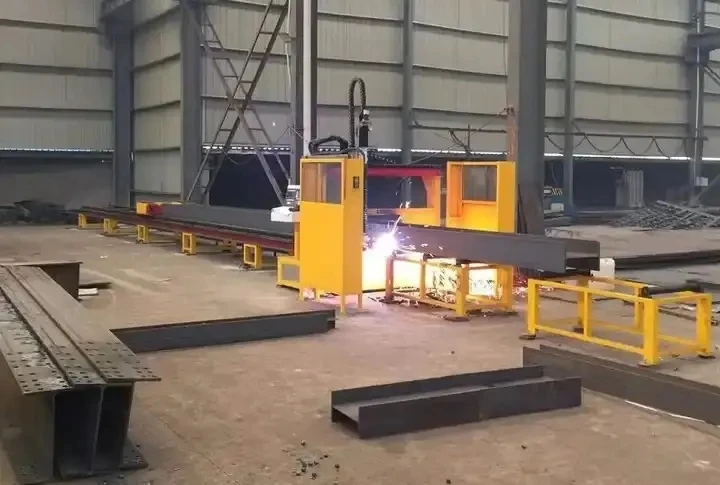

cutting example
