1, bilateral servo drive, better stability
2, matching is used on the laser bevel teeth, better than the peer straight teeth, good smoothness, high precision
H chùm thép máy cắt CNC
999
Đã bán
888.304.991đ
837.544.706đ ~ 888.304.991đ
888.304.991đ
837.544.706đ ~ 888.304.991đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
837.544.706đ
30udtznnsF
Mô tả sản phẩm
Kích thước: 100-600mmLoại động cơ: Servo Motor
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: JIAXINĐiện áp: 380V
Trọng lượng (KG): 2000 KGBảo hành: 12 tháng
Key Điểm Bán Hàng: Thấp Chi Phí Bảo TrìÁp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Xây dựng làm việc, Công Ty quảng cáo
Phòng Trưng Bày Trí: Không cóTiếp Thị Loại: Sản phẩm mới 2023
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ
Tên sản phẩm: Máy cắt Plasma CNCChế độ cắt: Cắt plasma
Độ dày cắt: 0.3-50mm, phụ thuộc vào nguồn PlasmaKhông khí làm việc: Khí nén
Tốc độ di chuyển: 6000 mm/phútNguồn điện plasma: 63A đến 400A
Product Description

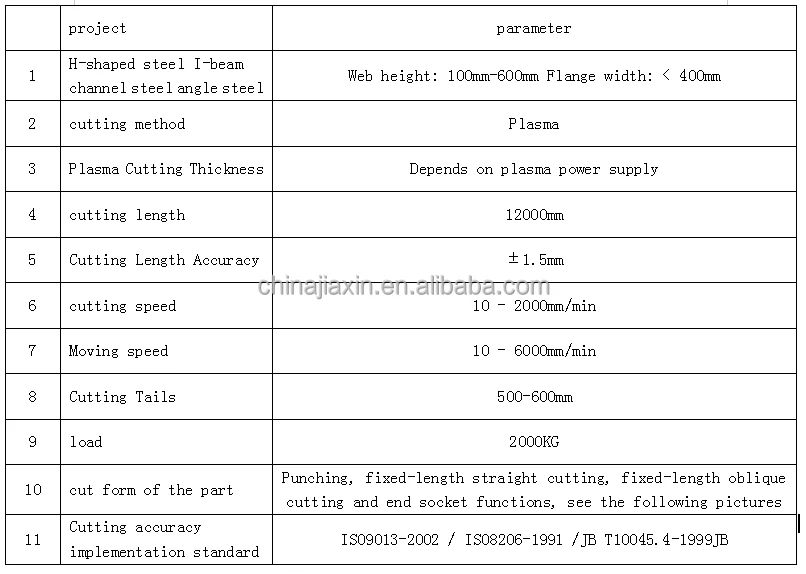

Technical Information
1) Equipment model: ZLH-600

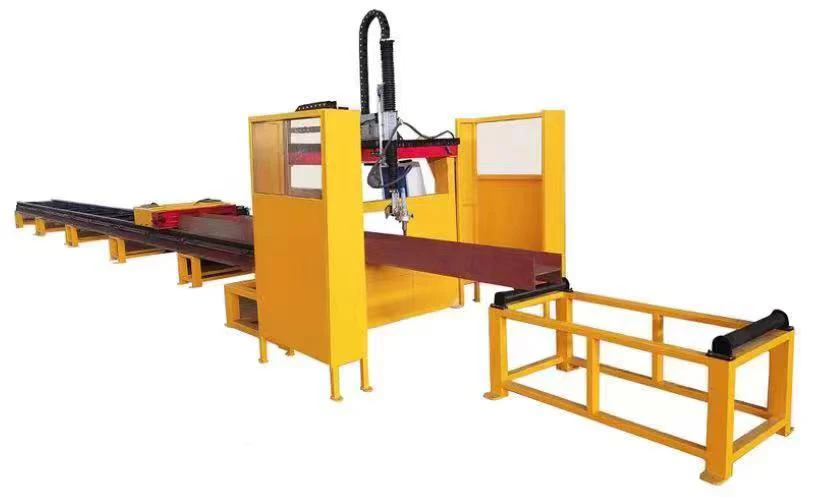

2) Equipment name: section steel CNC cutting machine
3) Equipment dimensions: 14000*1800*2100
4) Cutting range: H beam, I beam, channel steel, Angle steel.
5) Range of adaptation: web height 400mm (beyond the size should be informed)
6) System rated pressure: &le0.5MPs
7) Hydraulic oil model: L-HM-46
Part Name | Specifications | quantity | |
1 | Operation mode | 7 axis 5 linkage | |
2 | 6-axis control system for steel | 6-axis control system | 1 set |
3 | remote control | remote control | 1 set |
4 | Feeding servo motor, driver | 750W | 2 sets |
5 | Servo motor, driver | 400W | 3 sets |
6 | Servo motor, driver | 200W | 1 set |
7 | Planetary reducer | Humphrey | 6 sets |
8 | Guiding device | 1 set | |
9 | Automatic feeding device | 1 set | |
10 | Hydraulic clamping device | 2 sets | |
11 | lateral movement device | 1 set | |
12 | Longitudinal lifting shaft of torch | 1 set | |
13 | Machine head rotation device | 1 set | |
14 | Material receiving device | 1 set | |
15 | hydraulic oil pump | 1 set | |
16 | Number of hydraulic cylinders | 2 sets | |
17 | programmatically | System Gallery | Optional offline programming software |
18 | cutting method | Plasma |
Advantage
1, support H-beam, I-beam, channel steel, Angle steel and other materials cutting

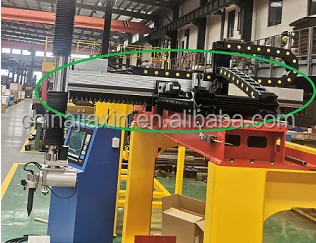

2, the device is 7 axis 5 linkage, support end oblique cutting. The system controls the Angle of the gun for non-human swing, thus improving efficiency and ensuring cutting accuracy.
3, mobile feeding cylinder clamping, clamping force is greater than other manufacturers with cylinder clamping way, suitable for heavy H-beam and larger profile cutting
4, swing gun shaft with harmonic reducer, more stable, do not shake the gun
5, the feeding table adopts 24KG guide rail bilateral servo drive, no matter the length of feeding automatic one-time feeding in place, improve the feeding efficiency, ensure the accuracy of feeding.

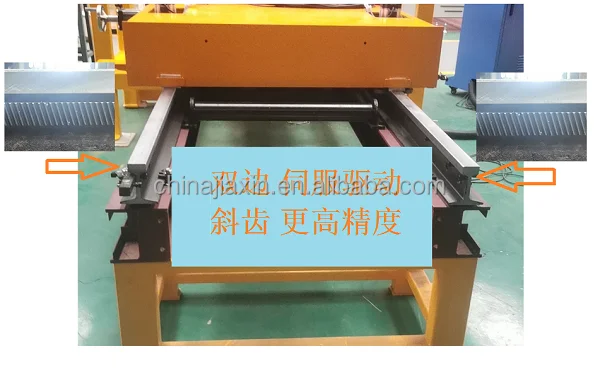

1, bilateral servo drive, better stability
2, matching is used on the laser bevel teeth, better than the peer straight teeth, good smoothness, high precision
Clamping way: clamping web height 100 to 600mm or 100 to 800mm H section steel convenient and fast Not by different abdominal
height artificial adjustment device, higher efficiency This push way is more stable and reliable than the upper and lower
clamping way
height artificial adjustment device, higher efficiency This push way is more stable and reliable than the upper and lower
clamping way
1, bilateral servo drive, better stability
2, matching is used on the laser bevel teeth, better than the peer straight teeth,
good smoothness, high precision Clamping way: clamping web height 100 to 600mm or 100 to 800mm H section steel convenient and fast Not by different abdominal height artificial adjustment device, higher efficiency
good smoothness, high precision Clamping way: clamping web height 100 to 600mm or 100 to 800mm H section steel convenient and fast Not by different abdominal height artificial adjustment device, higher efficiency

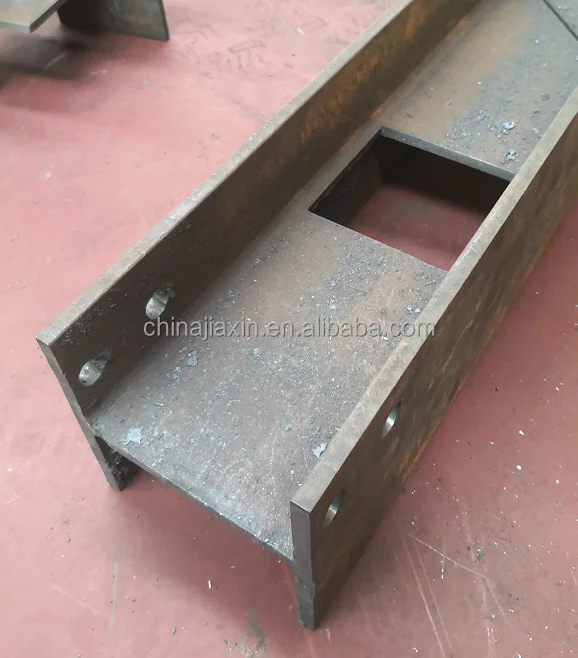

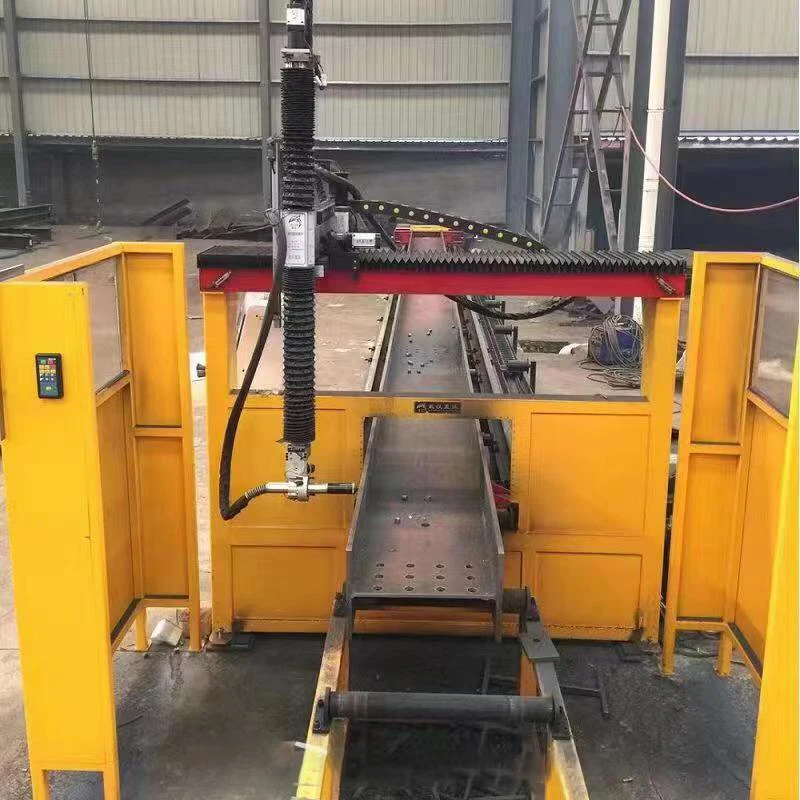

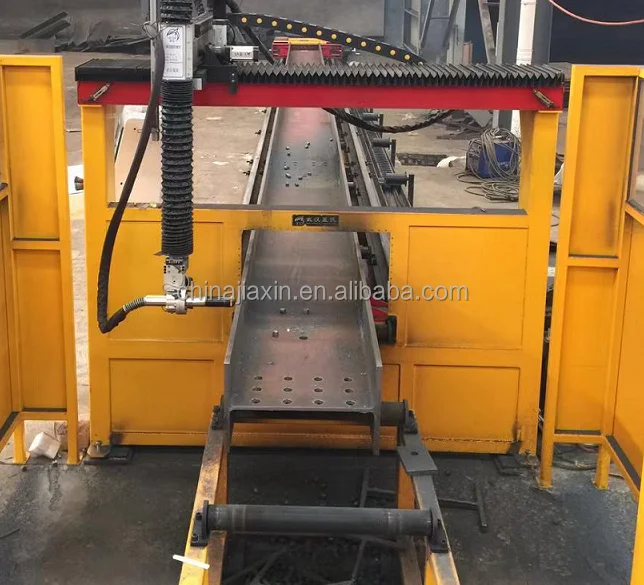

This equipment is 7 axes 5 linkage, can punch, cut, lock and end oblique cutting functions The effective stroke of X axis is about 1000mm.

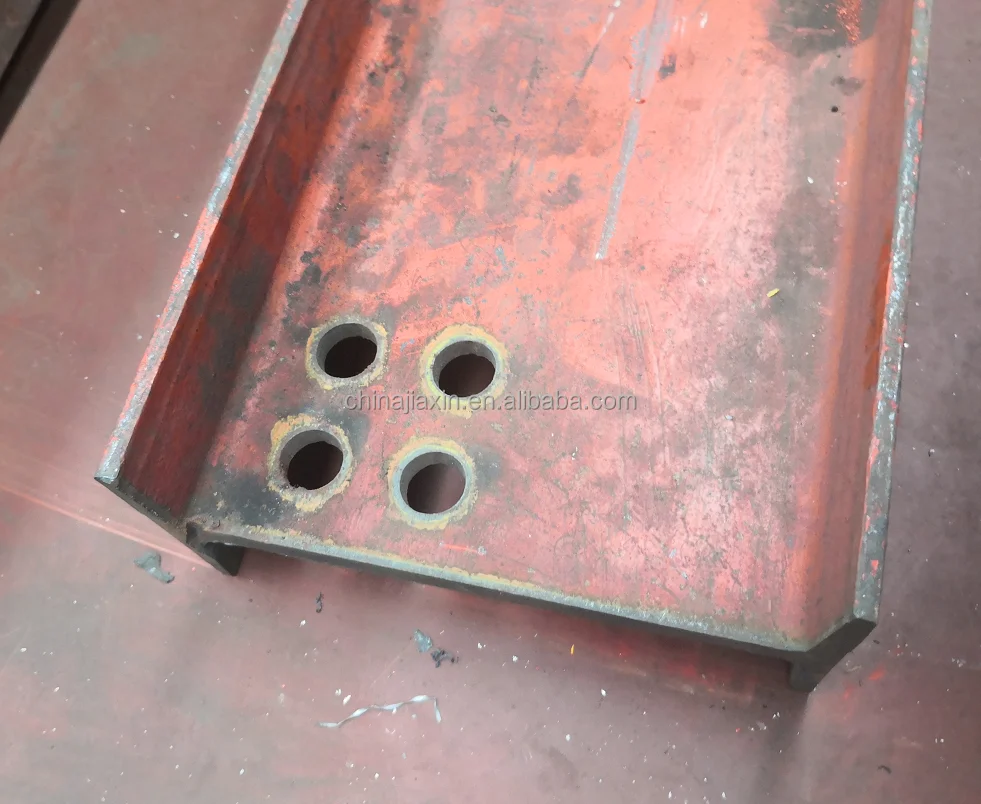

If various round holes and kidney holes are cut within this range, they can be processed directly without multiple feeding, thus improving the processing
efficiency. This push way is more stable and reliable than the upper and lower clamping way
efficiency. This push way is more stable and reliable than the upper and lower clamping way

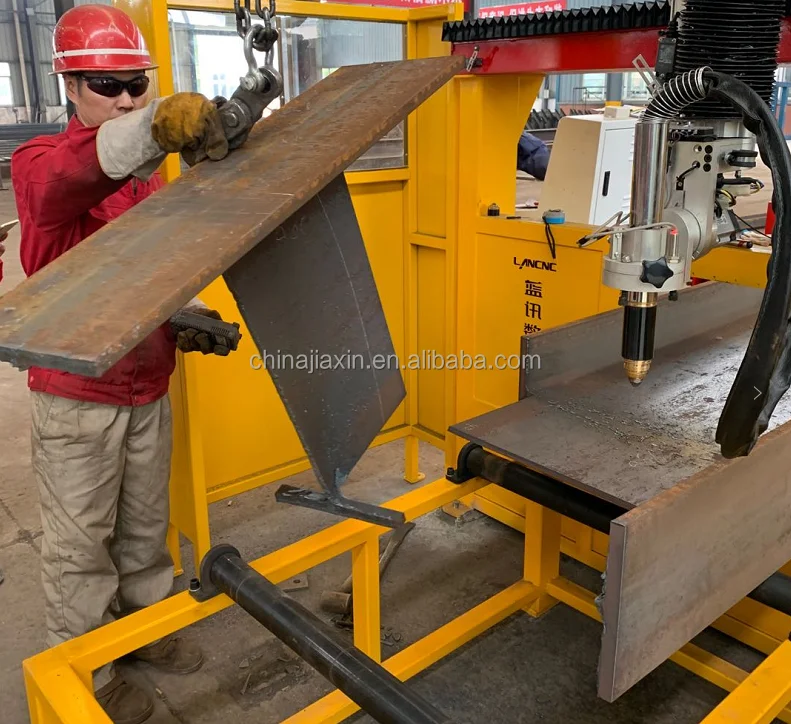

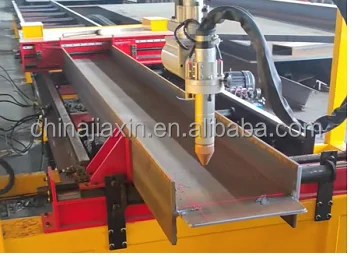

Section steel cutting machine is equipped with cutting point laser alignment and cutting track device, cutting point position laser indication function, convenient cutting point alignment and cutting track pre-demonstration and inspection

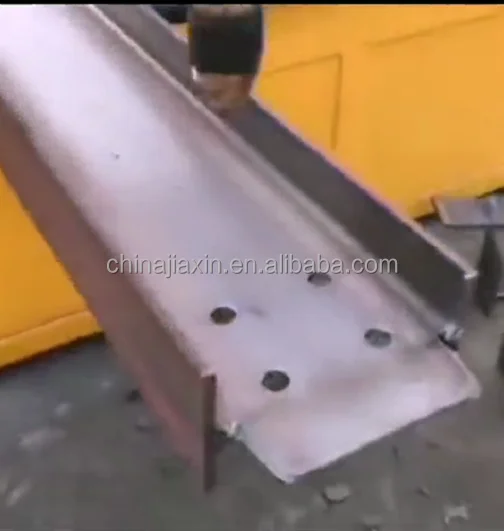

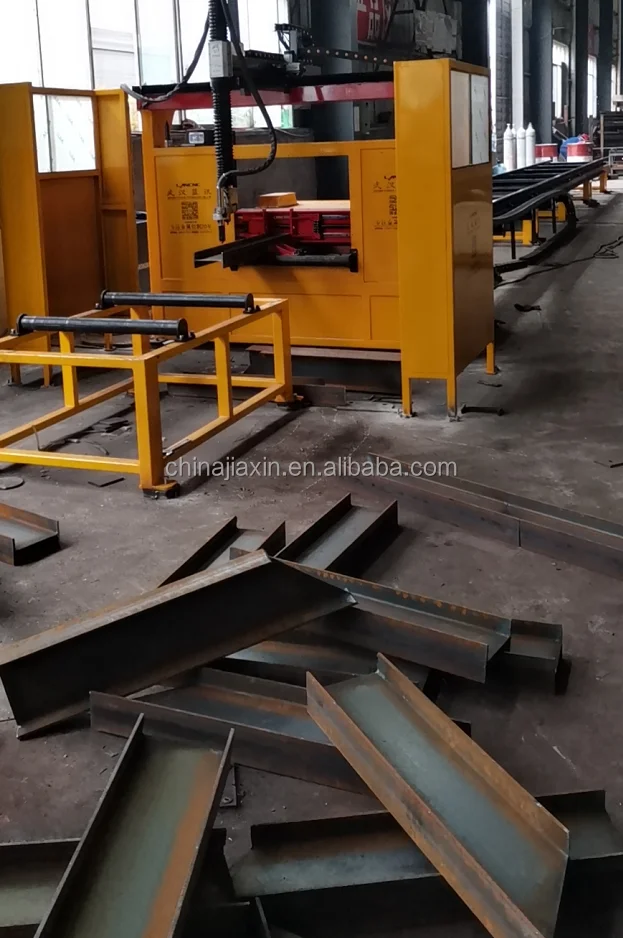

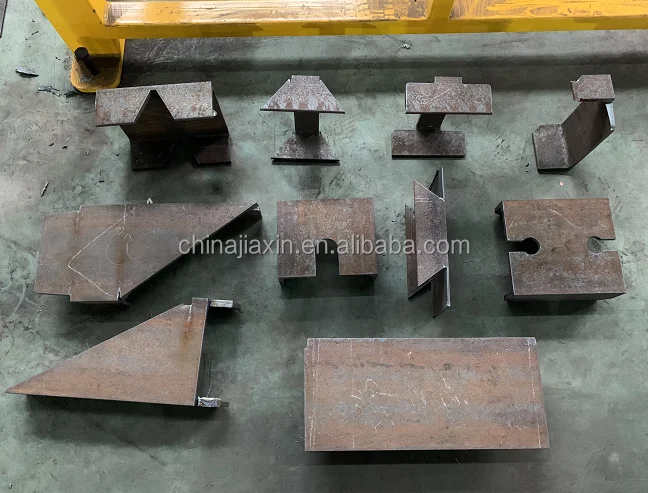

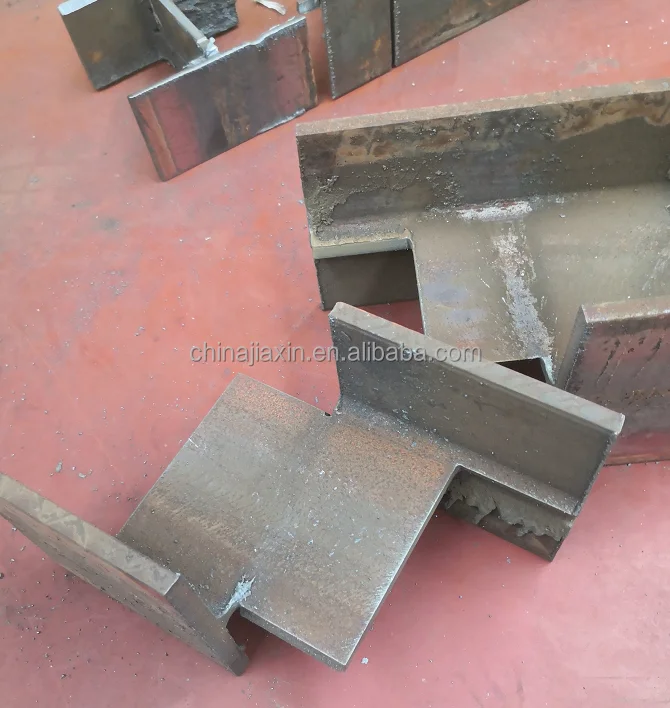

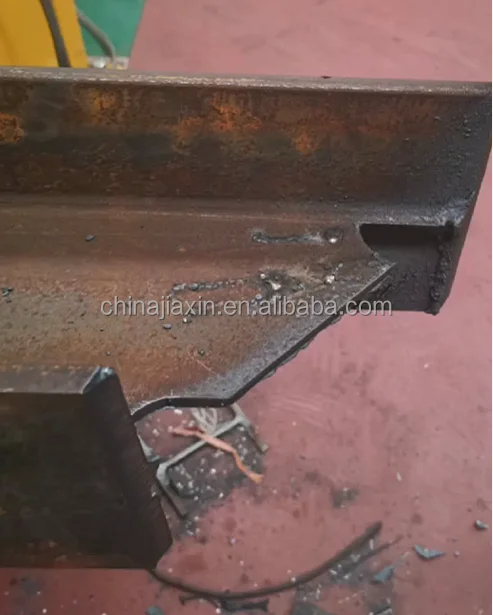

cutting example
