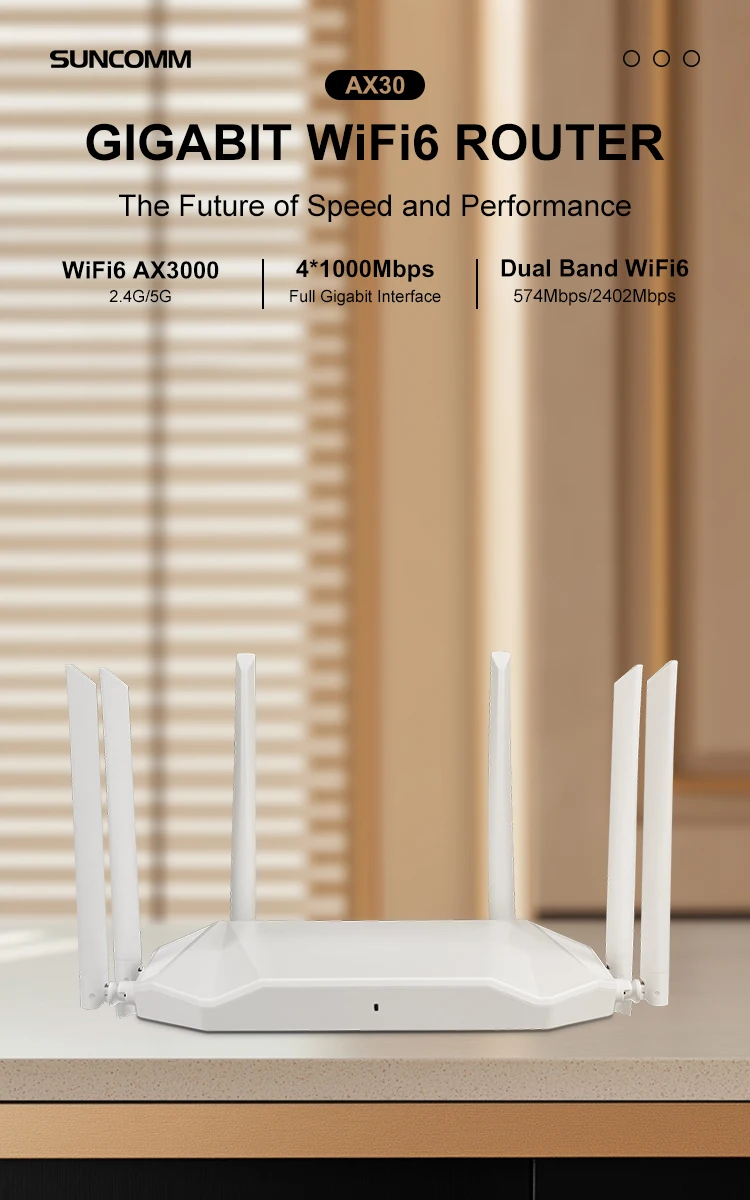

Hot bán ax30 Router không dây ax3000 Gigabit Port Dual band Wifi 6 lưới mạng tốc độ cao Internet Wifi Router cho trong nhà

chipset

MT7981BA+MT7976CN+MT7531AE(dual-core CPU 1.3GHZ)

Protocol standard

IEEE 802.11b, IEEE 802.11g, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac,
IEEE 802.11ax, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

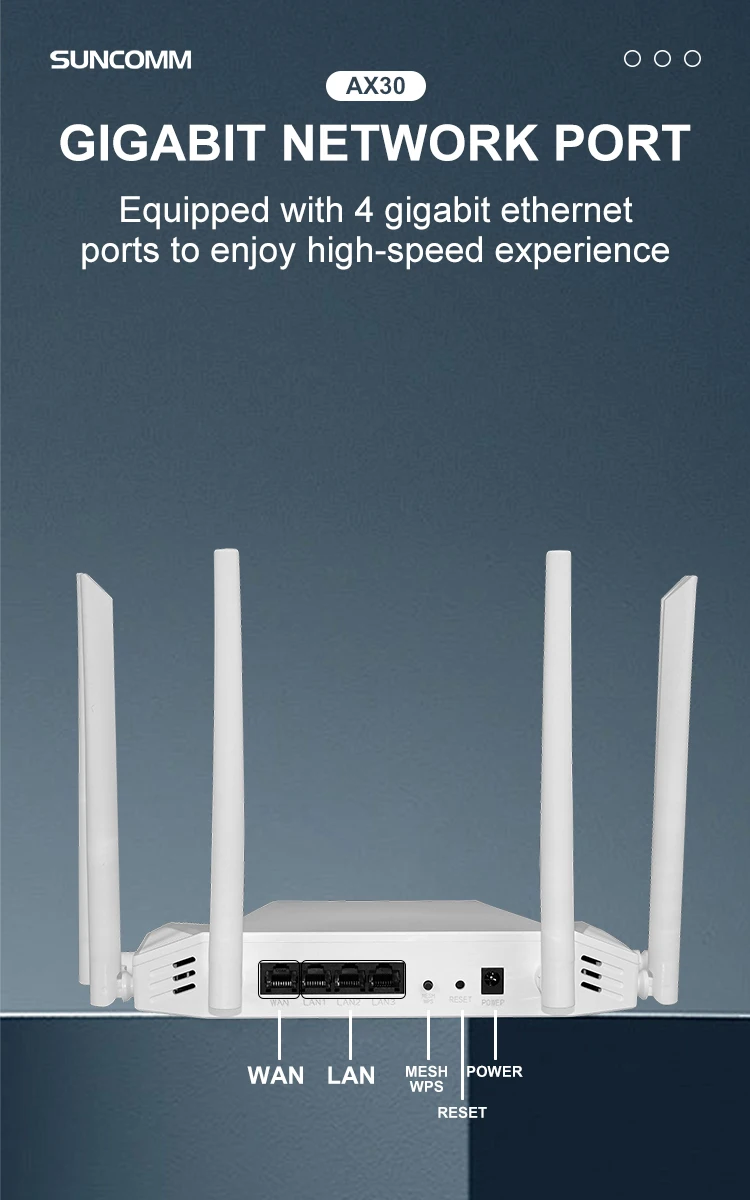

interface

1*10 /100M / 1000M WAN port, supports Auto MDI/MDIX
3*10/100M / 1000M LAN port, support Auto MDI/MDIX

button

MESH (press for 1 second)
Reset (press and hold for 5 seconds)

led

Three-color lamp design: green, red, blue

antenna

External omnidirectional 5dBi gain non-removable antenna

FLASH/RAM

128MB/256MB

power supply

DC 12V/1A

basic skills

Wireless enable / disable
SSID broadcast enable / disable
Channel selection: 1 ~ 13 (2.4G)
36 ~ 48 + 52~64+149 ~ 165 (5GHz)
2.4G bandwidth: 20MHz ,40MHz
5G bandwidth: 20MHz ,40MHz ,80MHz,160MHz

2.4G frequency

2412MHz ~ 2472MHz

5G frequency

5180~5240MHz、5250~5350MHz、5745MHz~5825MHz

wireless transfer speed

2.4G 2T2R up to 574Mbps
5G 2T2R up to 2402Mbps

Operating mode

AP / Router / Repeater

wireless security

wireless MAC address filtering
WPA-PSK, WPA2-PSK, WPA3 -SAE, WPA/WPA2 -PSK, WP A2- PSK/ WPA3 - SAE

Wi- Fi settings

Wi-Fi basic settings (dual frequency integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment)
Advanced Settings (Wireless Client Isolation, 802.11h, WMM Multimedia Acceleration)
Multi- SSID (SSID, encryption method, PWD, encryption algorithm)

mesh properties

mesh switch, role selection, networking mode, mesh-top

network settings

Support WAN port connection type: PPPOE, dynamic IP, static IP
MAC address clone, IPV6 settings, Radvd settings, IPTV settings, IGMP settings

LAN settings

DHCP server settings, Manage IP settings

virtual server

Firewall Settings, Port Forwarding, UPnP, DMZ

advanced settings

Traffic statistics, D DNS settings, QoS settings

System Management

System status, time setting, password management, configuration management, firmware upgrade, scheduled restart, system log

System Tools

Traffic Statistics
System log
time zone setting
Local WEB management control configuration
File import and export
Web software upgrade

size

264.6*161.7*36MM

Use environment

Operating temperature：0 ℃ to 40 ℃
Storage temperature : -40 ℃ to 70 ℃
Working humidity: 10% to 90%RH non-condensing
Storage humidity: 5% to 90%RH Does not condense
