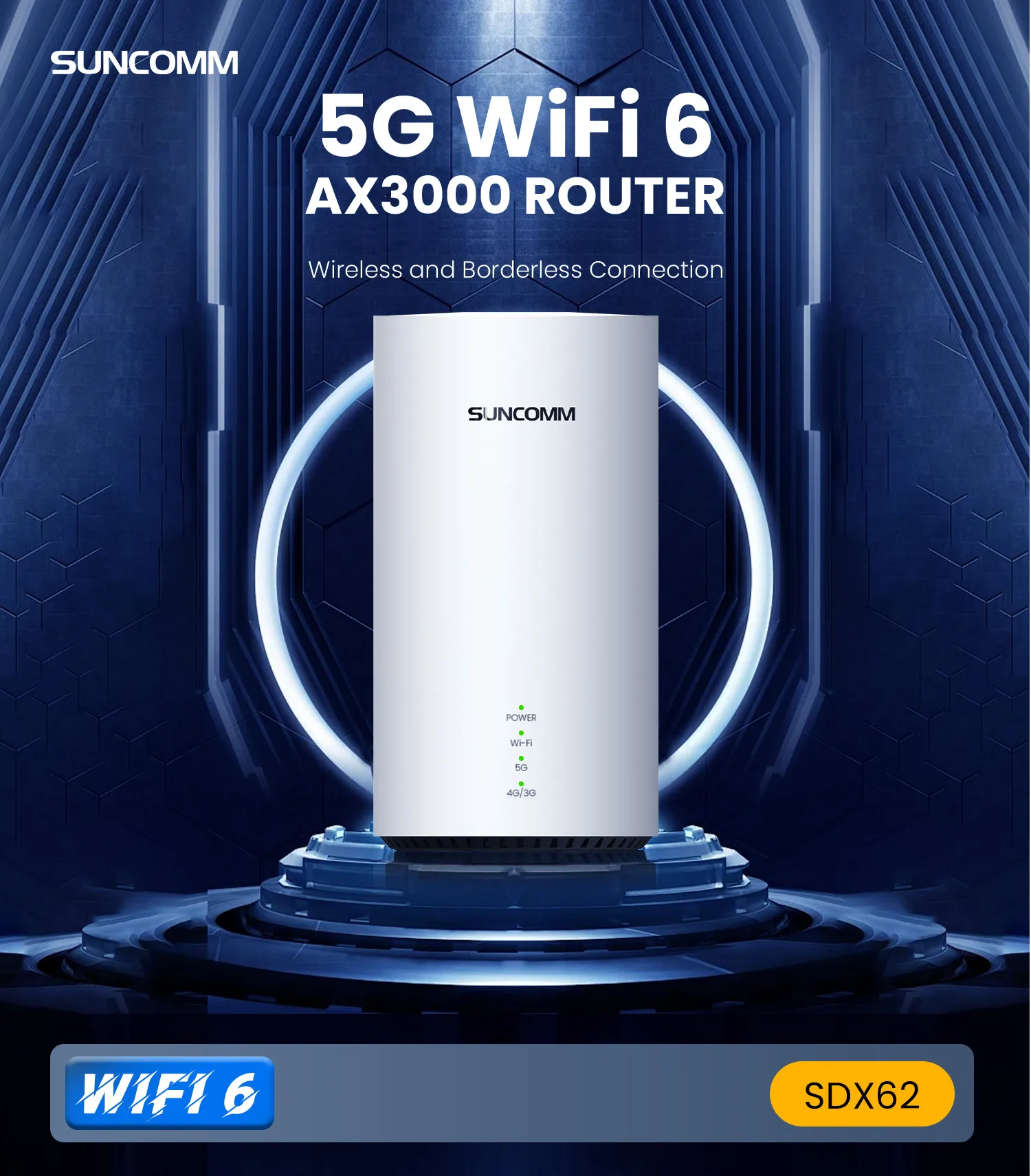

Hot bán sdx62 5g CPE Sim Router ax3000 X62 5g NR wifi6 băng tần kép WPS VPN VoIP VoLTE 128 người Dùng 5g CPE

SDX62 is a wireless gateway integrating NR/LTE and high-speed Ethernet uplink access, providing users with
flexible data access and voice services.

SDX62 is a multi-user 5G wireless gateway suitable for home or small office environment. It supports multiple
users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi-enabled devices
can access the Internet. 5G CPE can be used to set up specific networks and share network connections anywhere
via cellular connections or Ethernet connection.

SDX62 adopts Qualcomm SDX62 platform, supports 3GPP Release 16, terminal downlink up to 4.9Gbps, and
uplink up to 0.9Gbps. Support Qualcomm WiFi6 2.4G and 5.8 DBDC up to 3Gbps

Technical Standard

Compatible with LTE, Sub6, 802.11 a/b/g/n/ac/ax

EA version: 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n77/n78
LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
UMTS: B1/B5/B8

SA version: 5G: n2/n5/n7/n8/n12/n13/n28/n66/n38/n40/n41/n77/n78
LTE: B2/B4/B5/B7/B8/B12/B13/B28/B66/B38/B40/B41/B42/B43
UMTS:B2/B4/B5/B8

NA version: 5G: n2/n5/n12/n13/n14/n25/n26/n29/n30/n41/n48/n66/n71/n77/n78
LTE:B2/B4/B5/B12/B13/B14/B25/B26/B29/B30/B41/B42/B43/B48/B66/B71
UMTS:B1/B2/B4/B5/B8

WIFI

2.4GHz&5.8GHz, WIFI 2*2 MIMO, 802.11 a/b/g/n/ac/ax, DBDC AX3000

Maximum Data Throughput

5G SA NSA mode
• 5G NR: (DL/UL) 4.9Gbps/900Mbps
• LTE: (DL/UL) 1.6Gbps/200Mbps

Receive Diversity

Support Receive Diversity

MIMO

DL 4x4 MIMO

Chipset

Qualcomm SDX62+WCN6856

Memory

Modem: 8+8Gbit

Power Consumption

<18W

Power Voltage

DC12V / 1.5A

USIM/SIM

4FF SIM card
support SIM/USIM/UIM, standard 6 PIN SIM card interface,
support 3V SIM card and 1.8V SIM card; internal push-pull SIM slot

LED

Power Indication; Wi-Fi Indication; 5G Indication LED; 4G Indication LED

USB

USB 2.0

Antenna

LTE/NR Antenna*8, Wi-Fi*2，N41/77/78/79 11dBi High Gain, Smart antenna selection，
2*TS-9 external antenna is optional（support band n38/n40/n41/n77/n78）

Buttons

POWER, Reset, WPS

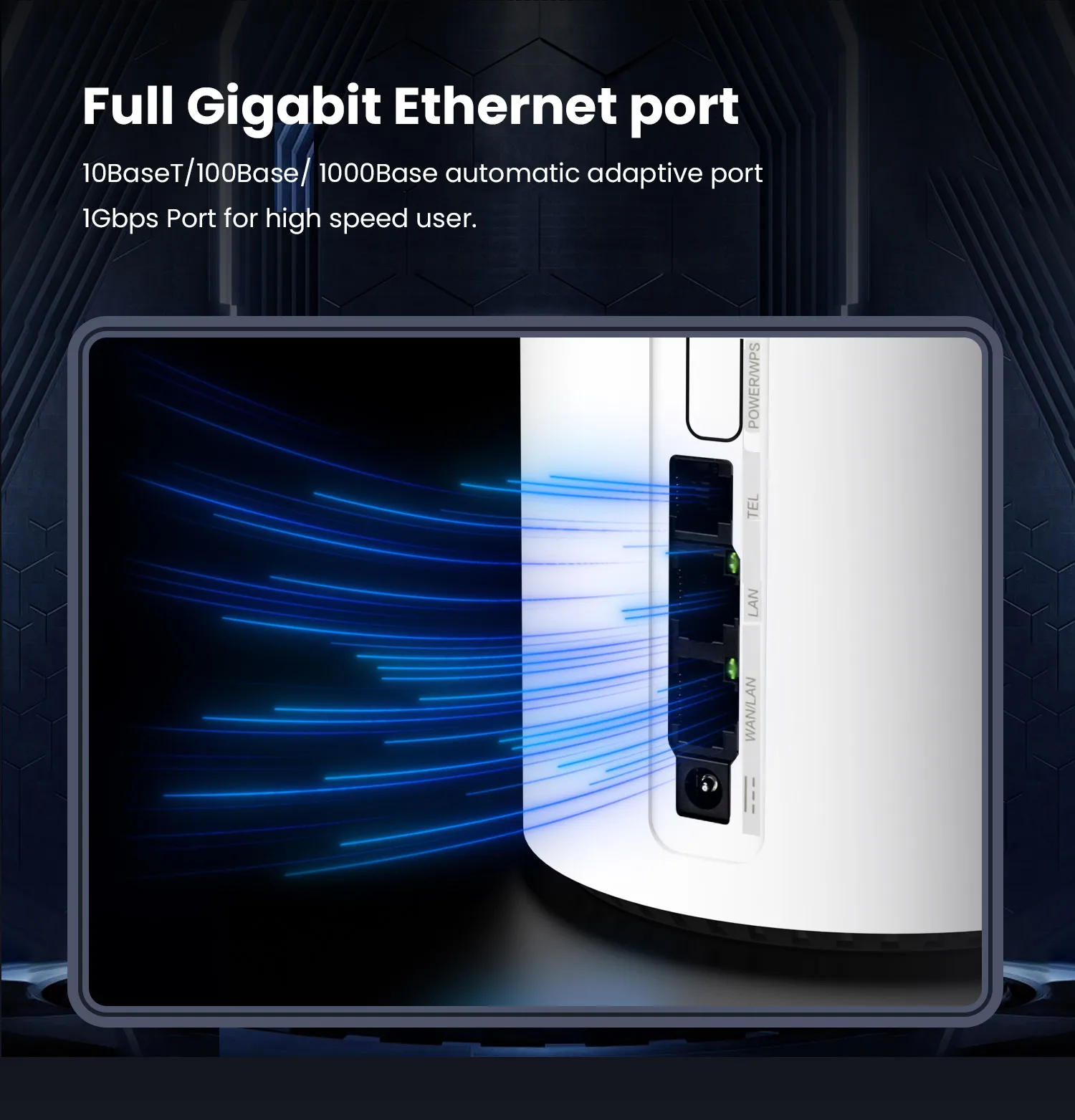

Ethernet

1*WAN+1*LAN
• 2*1000Base automatic adaptive port （default）
• 1*2.5Gbps + 1*1Gbps port （optional）

VOICE

1*RJ11，support VOIP/VOLTE/VONR(optional)

Reset

Pinhole

ESD

ESD Protection circuit; Contact±8KV, Air±10KV

HTTP

Support

Operating Temperature

Normal: 0°C ~ +45°C

Storage Temperature

-20°C ~ +70°C

Humidity

5%~ 95%
