JX-1530 Xách Tay Cnc Plasma Máy Cắt Ngọn Lửa Giá Cắt
JX-1525 CNC Portable Plasma Cutting Machine/portable flame cutting machine

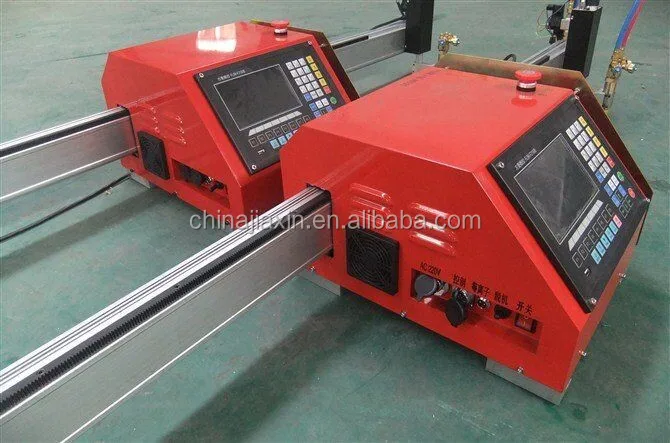

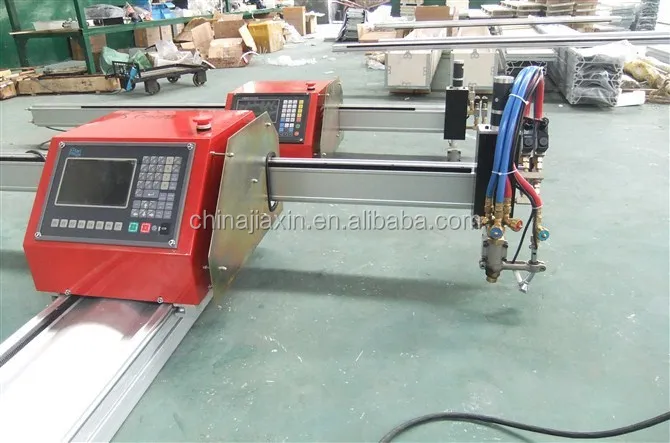

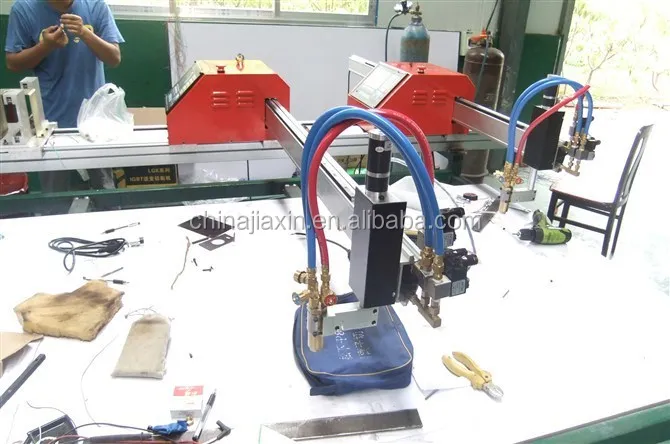

JX-1530TYPE is a high-end machine numerical control plasma, flame cutting machine. High hardness material imported aluminum structure, compared with general portable cutting machine, with higher handling, stability, transverse cutting area is large, longitudinal guide rail can dock, etc. It can be programmed to cut any plane shape parts composed of beeline and arc ,which are same as large gantry cutting machines . It is equipped with a 5.7 inch LED with dynamic and static graphical display .It is directly perceived and very easy to learn .
It can be programmed to cutting parts directly , and also can be operated in computer translating instructions into a program file by CAD program , and then deducing it via U hardware .The standard positioning of this machine is flame cutting ,external hanging plasma cutter is also workable .
| No. | Technical specification | |||
| 1 | Model | JX-1525 | JX-1530 | JX-1755 |
| 2 | Power source | AC 220±10%VAC 50/60Hz 220W | ||
| 3 | Cutting mode | O2/C3H8 or C2H2 | ||
| 4 | Effective cutting range(mm) | 1500*2500 | 1500*3000 | 1700*5500 |
| 5 | Input Voltage | 3 phase 380V, 50HZ | ||
| 6 | Cutting speed(mm/min) | 0-8000mm/min | ||
| 7 | Cutting thickness(Flame)(mm) | 6-160 (O2/C3H8 or C2H2) | ||
| 8 | Move precision | ±0.2mm/m | ||

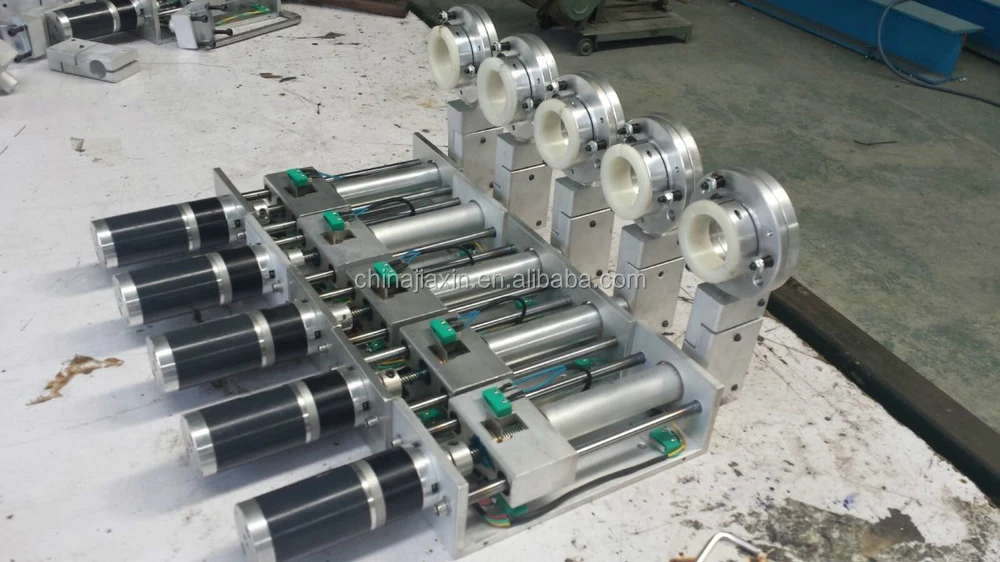

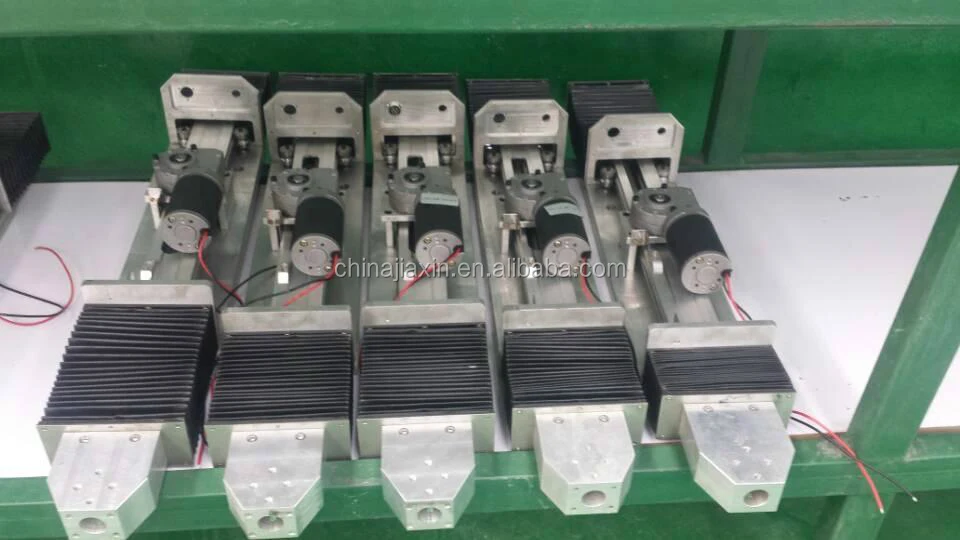

| 9 | Torch | Flame, electric height adjustment(±60mm) | ||
| 10 | Processing thickness(mm) | 0.5-15mm | ||
| 11 | Cutting system | Start control system | ||
| 12 | Host weight(kg) | 19 | ||
| 13 | Total weight(kg) | 100 | 120 | 150 |
| 14 | Gas pressure(Mpa) | Max.0.1 | ||
| 15 | Oxygen pressure(Mpa) | Max.0.7 | ||
| 16 | Type of gas | C3H8 C2H2 | ||
| 17 | Emergency stop | Yes | ||
| 18 | Working temperature | -5~45℃ | ||
| 19 | Power | 8.5kw | ||

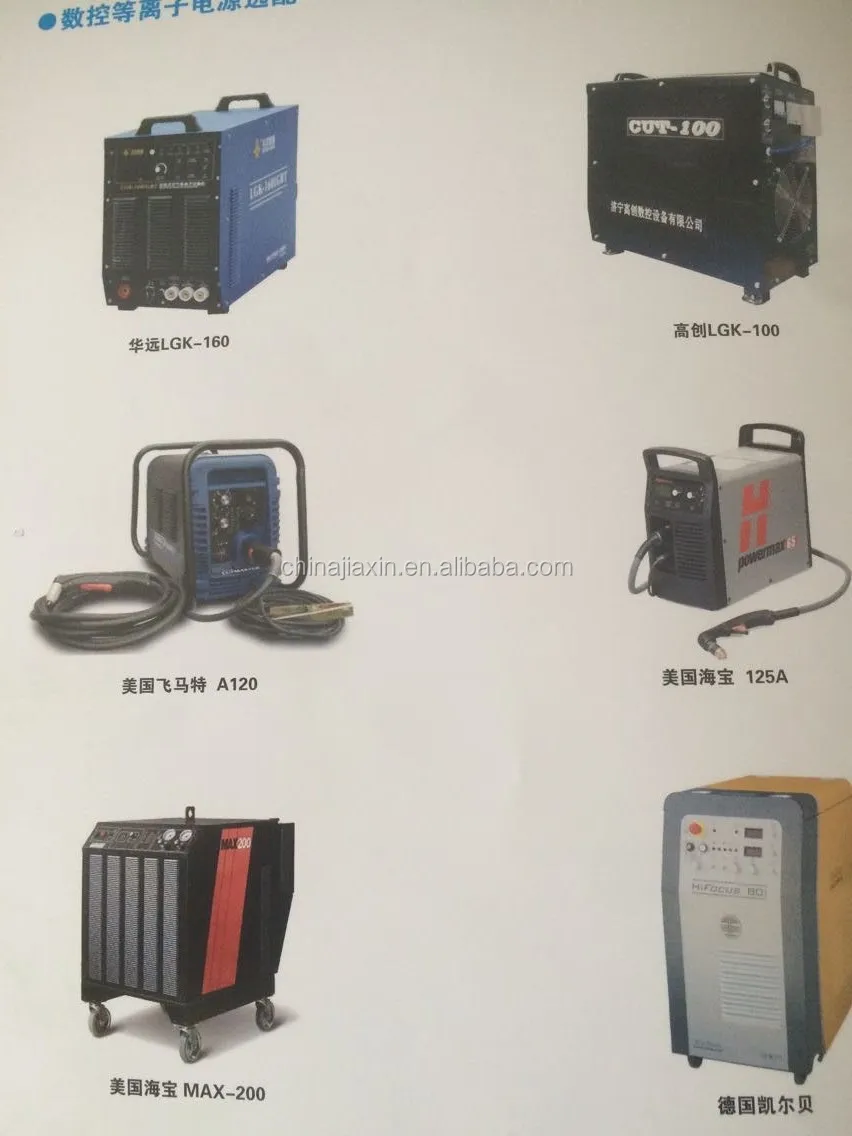

| 20 | Plasma power | 60A OR 100A | ||
| 21 | ARC | Untouched arc striking | ||
| 22 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates | ||
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Beam with light structure design, with good rigidity, light weight, low motion inertia, etc.
Gantry structure, Y axis adopt synchronous double drive, and adopts circular in X/Y/Z triaxial(square linear guide optional), stable transmission, high precision operation.
Cutting piece, neat, no residue phenomenon, automatic arc, stable performance.
Supported ty, ARTCAM, type 3 software to generate such standard G code path file, also can be read by software conversion to AUTOCAD software to generate the DXT format files, control system, files are processed using the U disk exchange operation convenient and quick.
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What&rsquos the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
