Laston MMA/MIG xách tay biến tần nhôm xung MIG thợ hàn
Laston MMA/MIG xách tay biến tần nhôm xung MIG thợ hàn
Laston MMA/MIG xách tay biến tần nhôm xung MIG thợ hàn

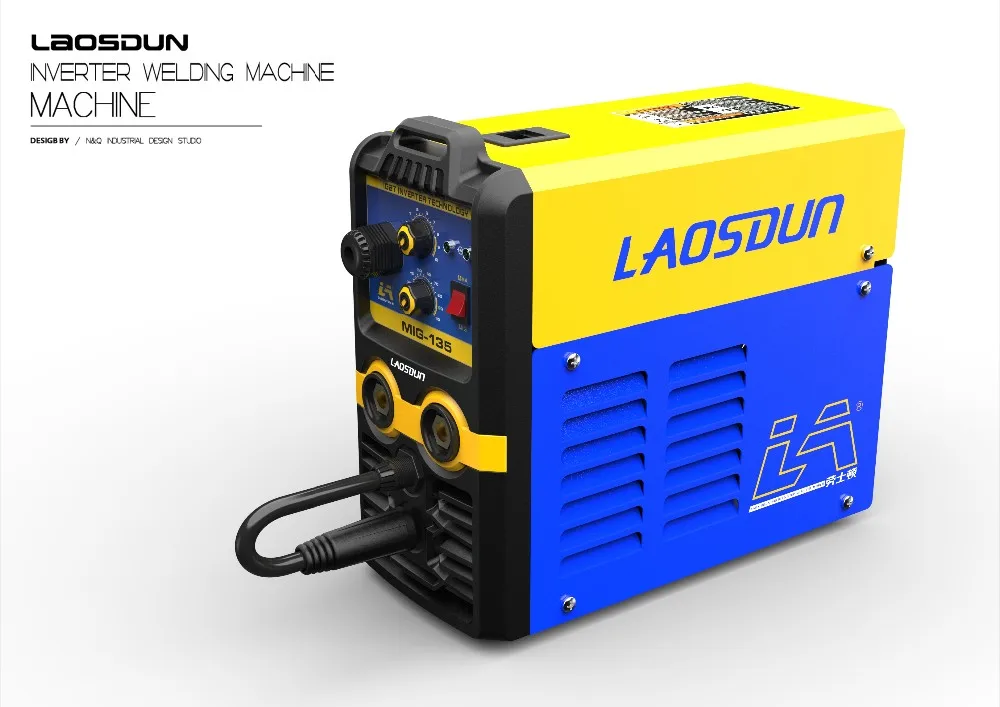

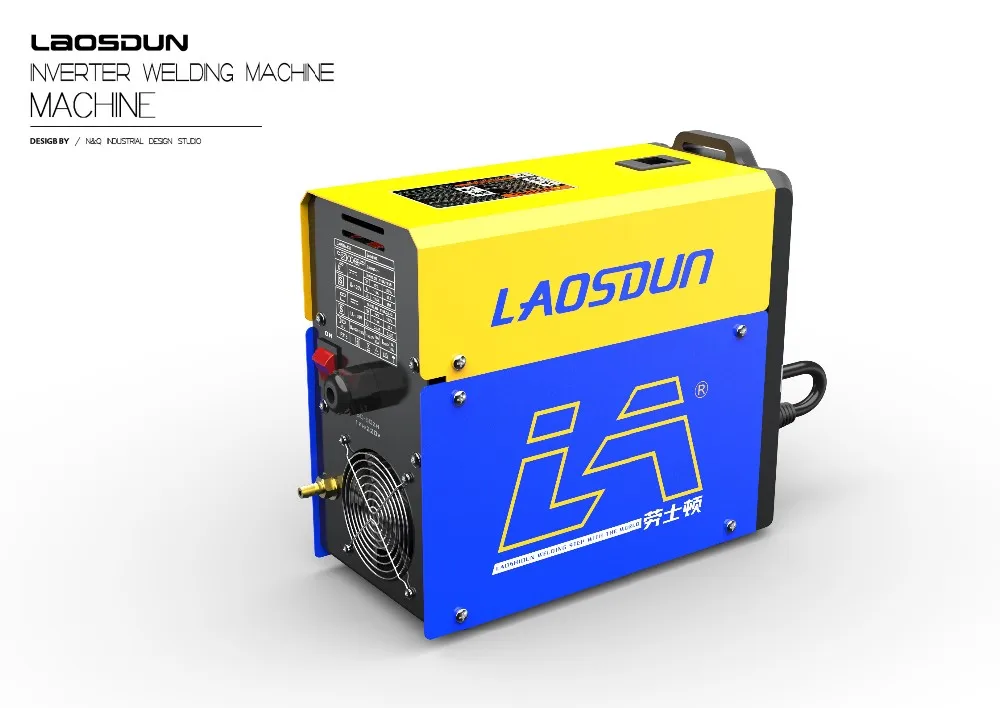

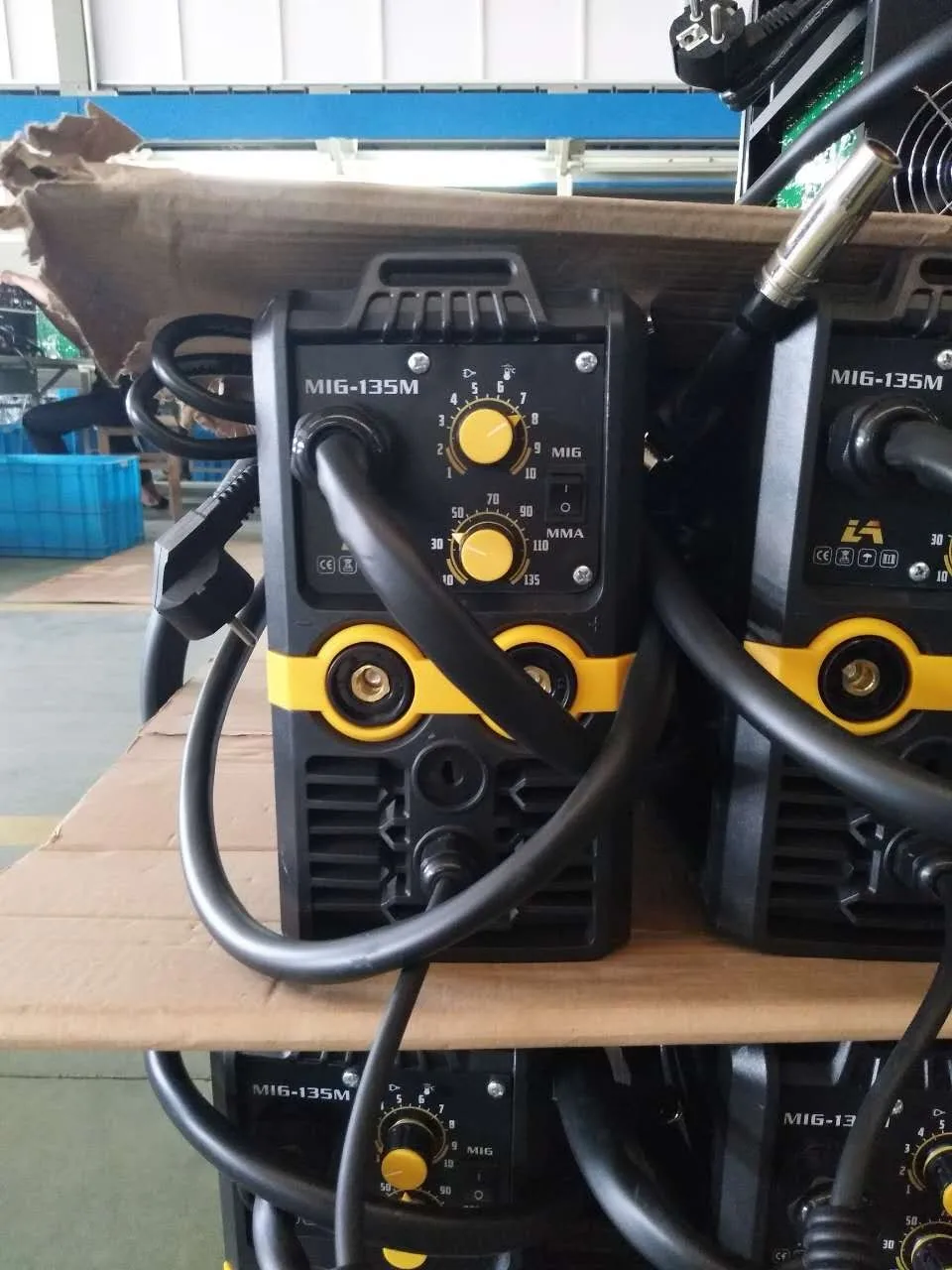

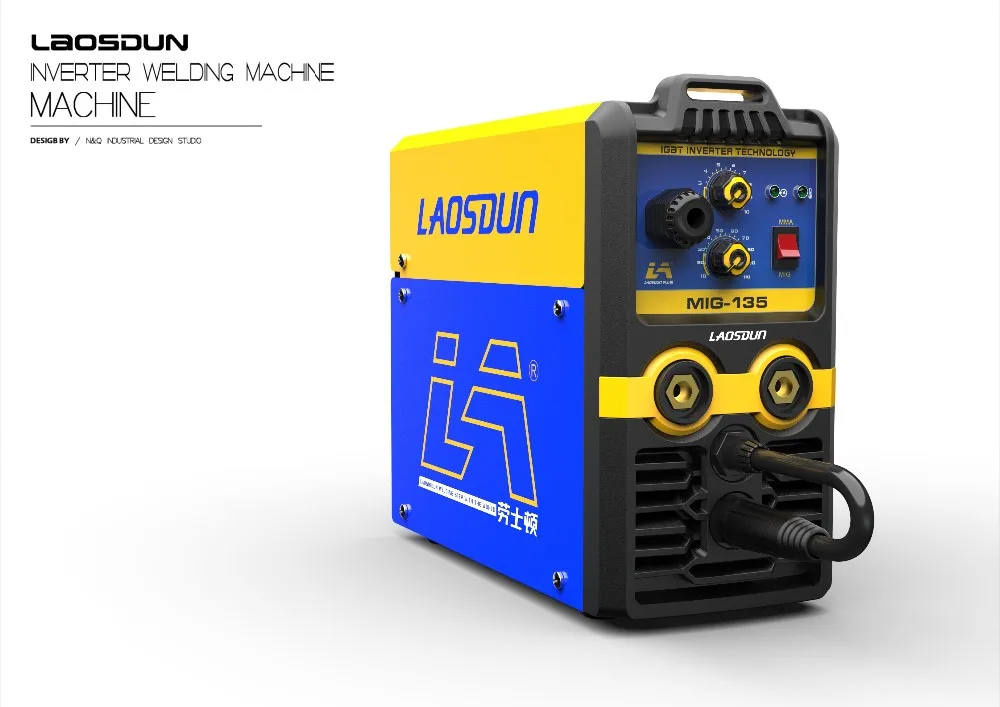

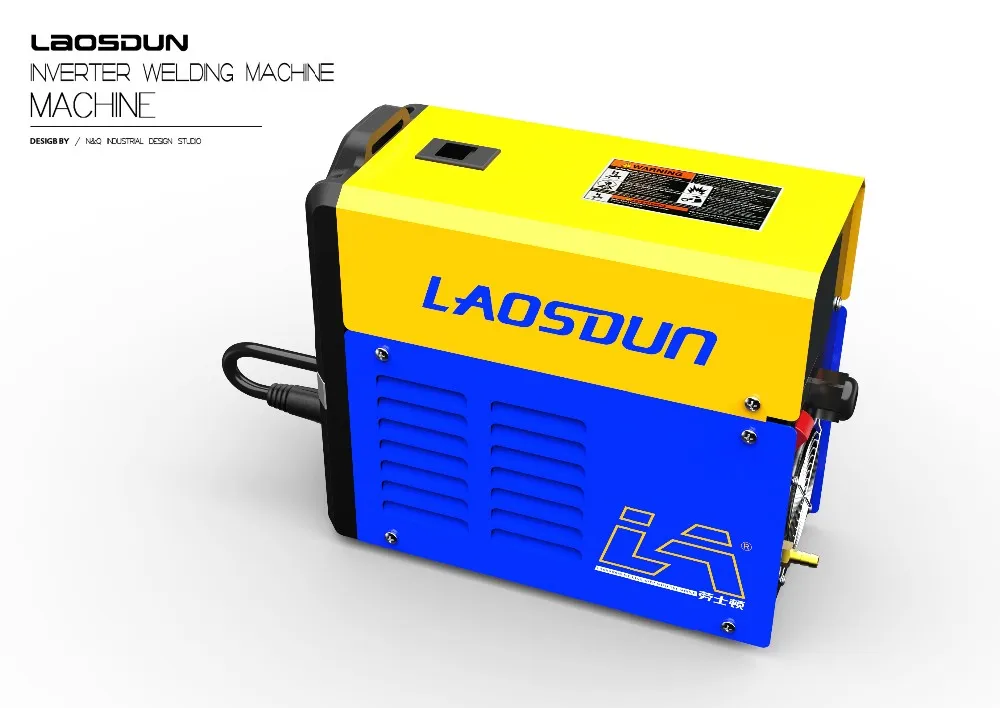

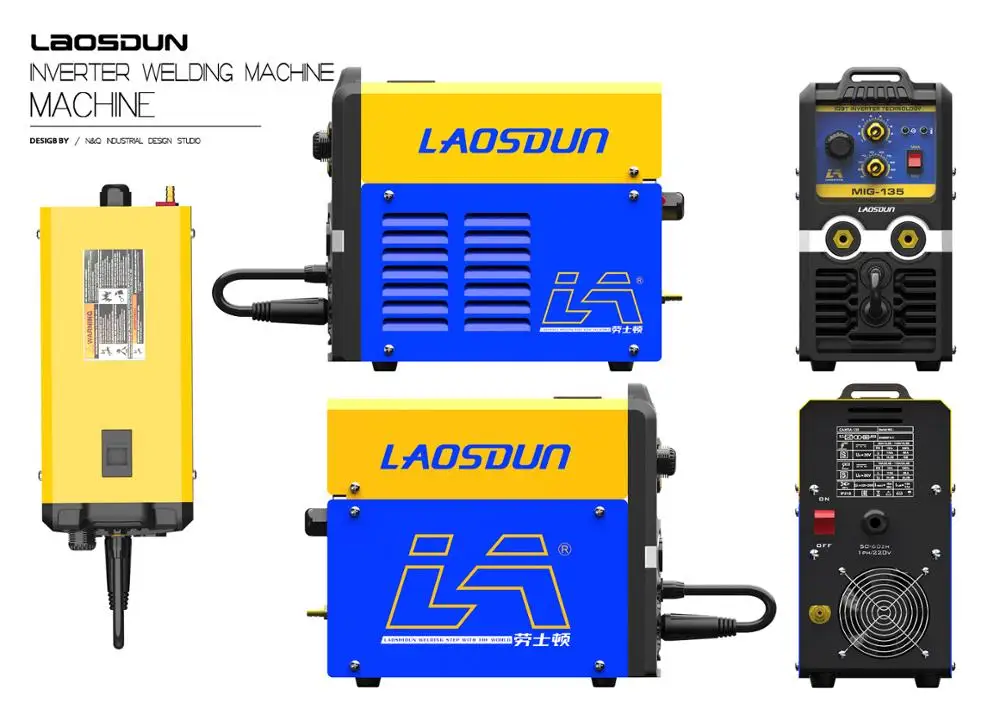

MMA/TIG/MIG portable inverter aluminium pulse mig welder
IGBT inverter technoloy,energy saving.
PWM pulse width control technology,special performance,accurate current control,stable arc passing.
Slow wire feeding,arc end with small balls clean,electronic and inductance regulating,shielding gas post
flow functions:well spatter control,good depth of fusion,good welding effect.

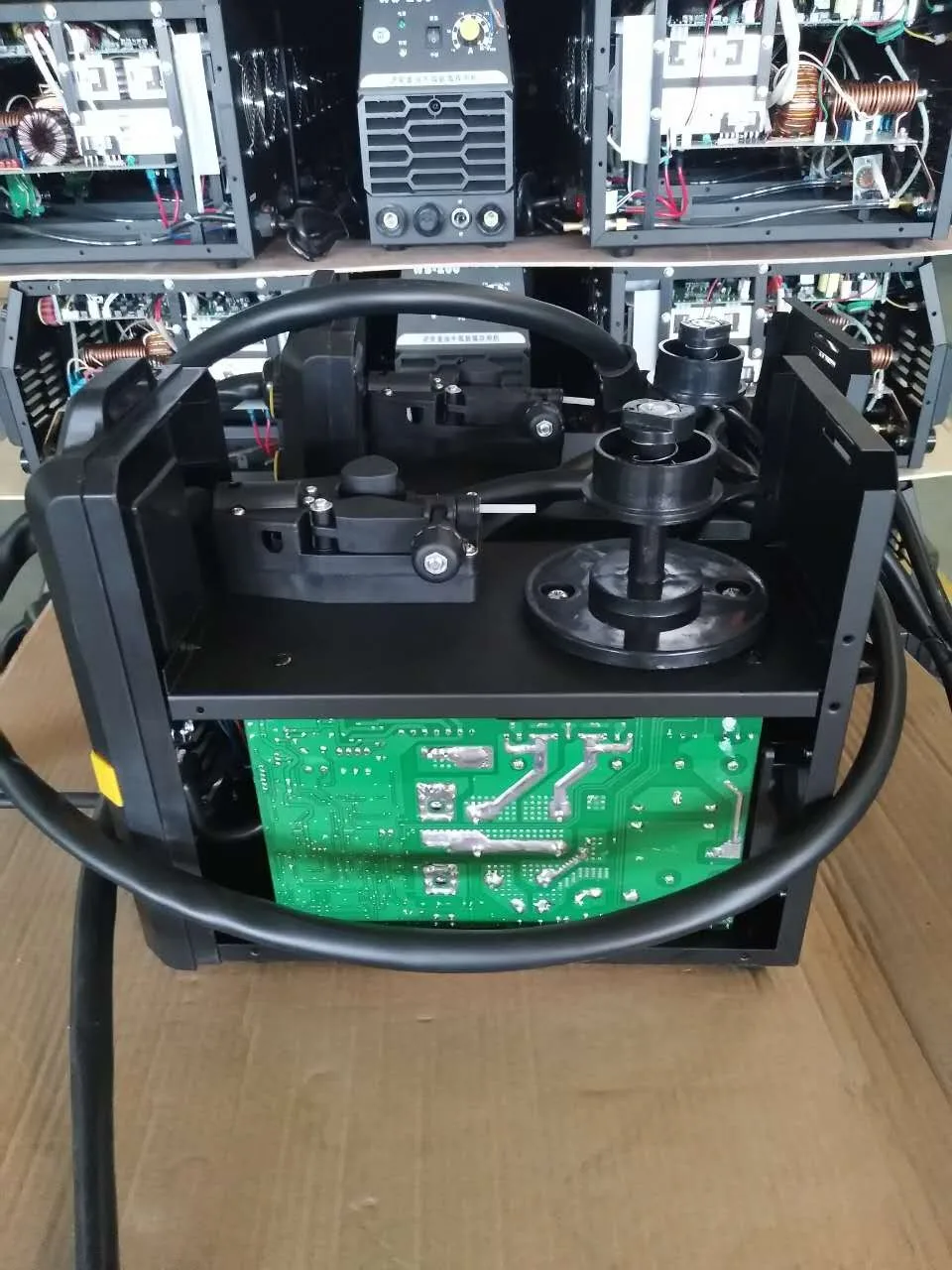

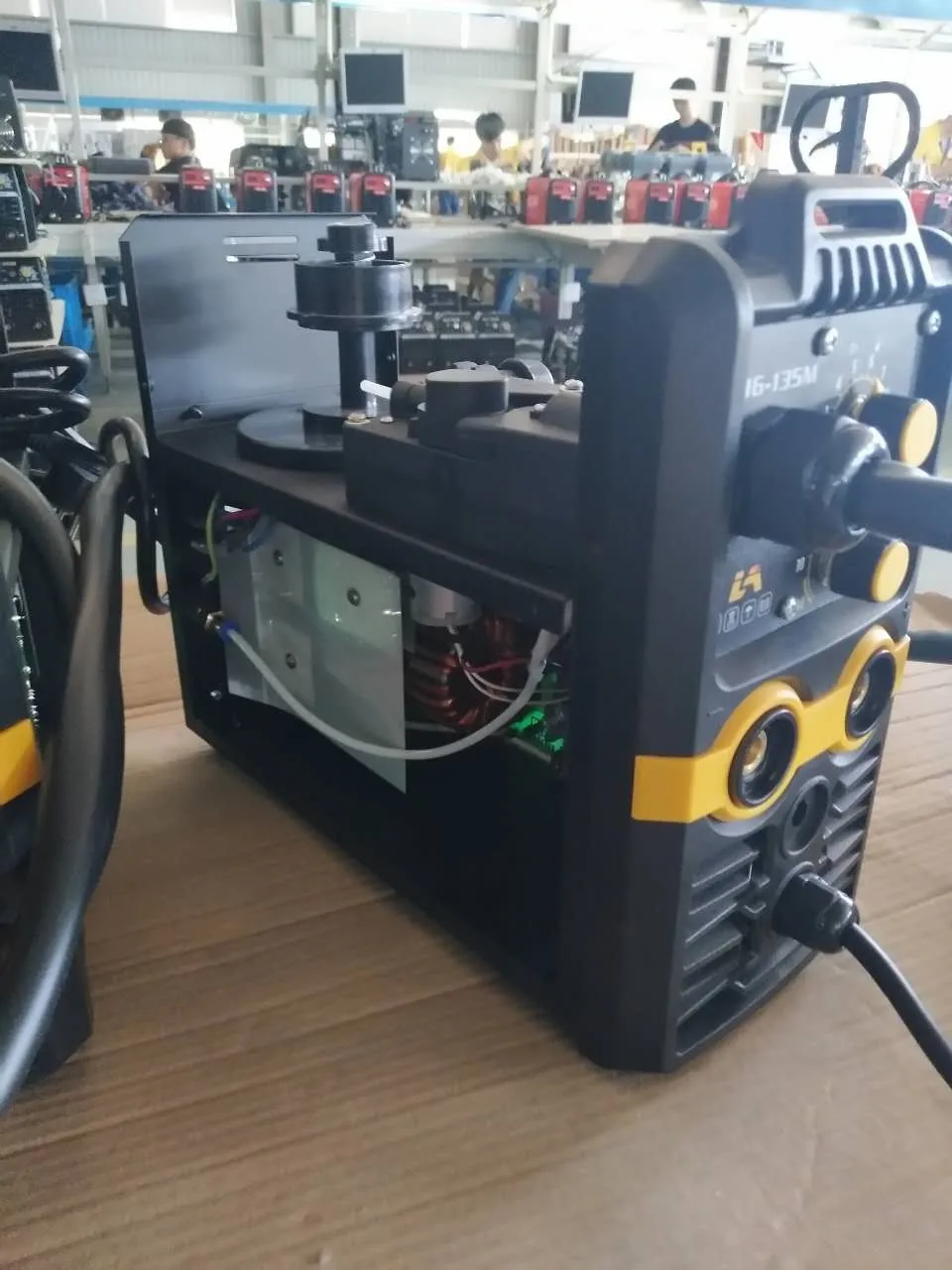

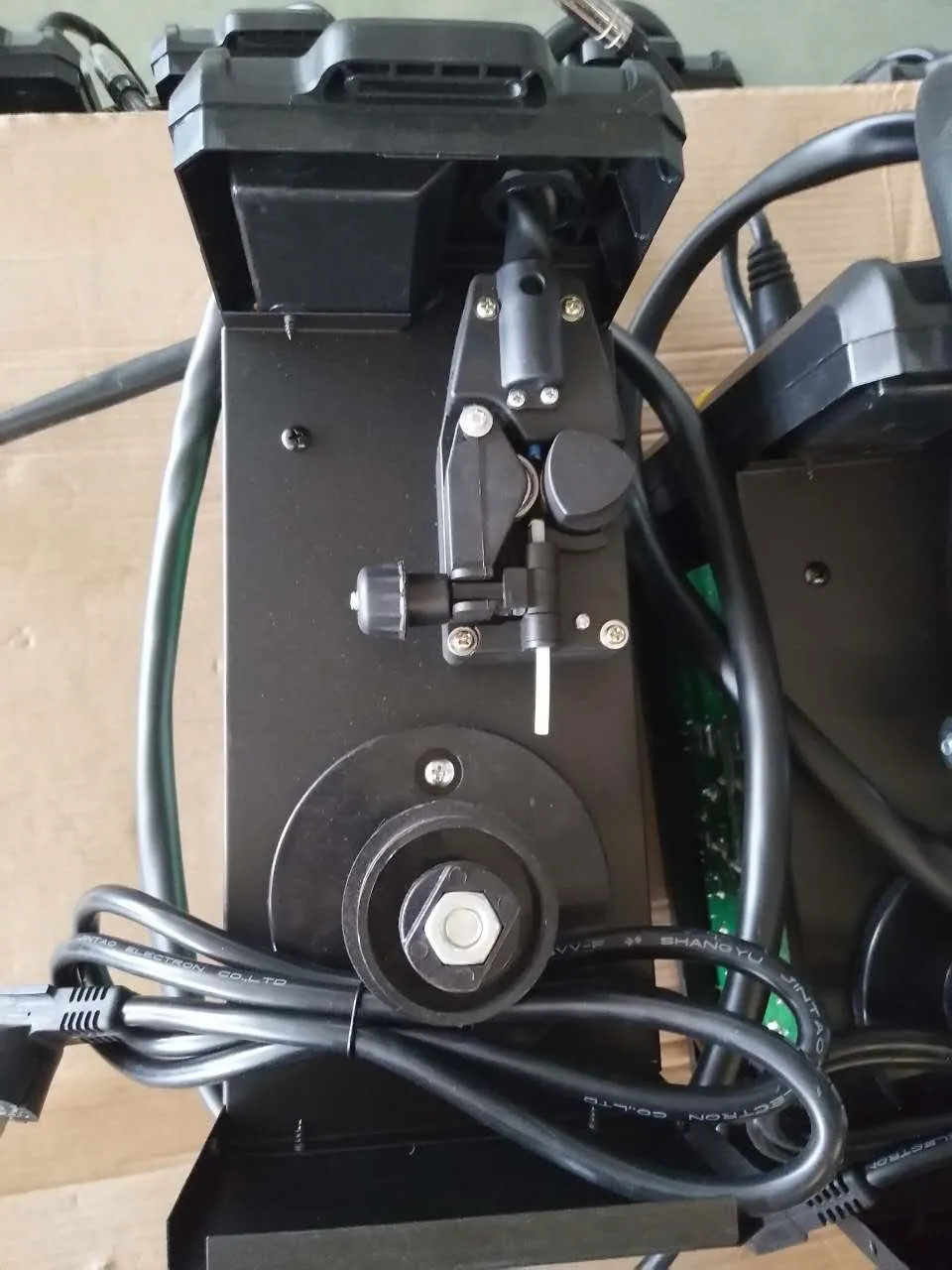

Over current,over heat,over load,over voltage protection.Special appearance wire feeder integrated,
porable.Suitable for welding mild steel,low alloy steel metal sheet.

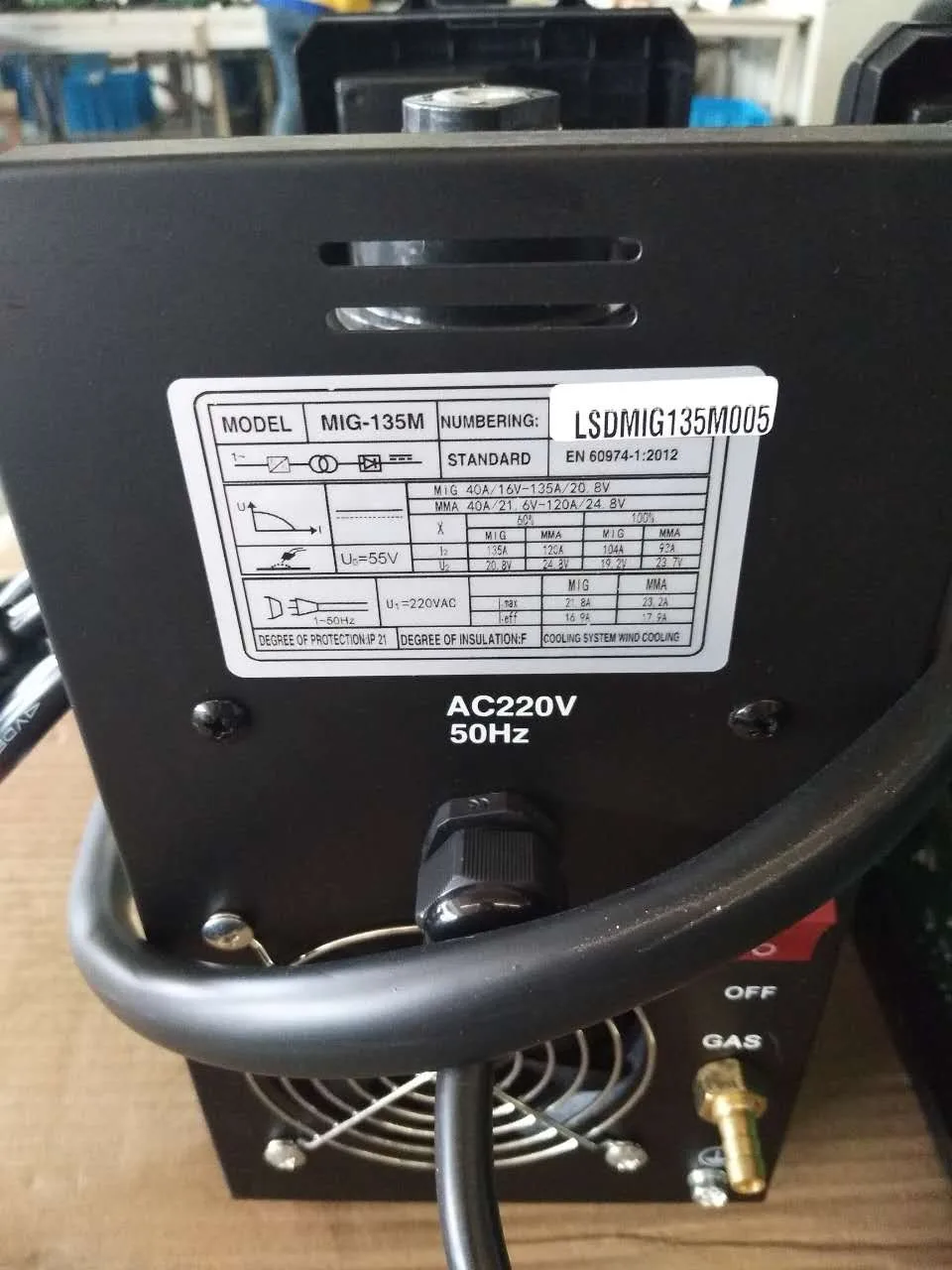

| MODEL | MIG-135H | MIG-175 | MIG-195 |
| Power voltage (V) | AC220V | AC220V | AC220V |
| Rated input capacity(KVA) | 4.1 | 6.8 | 7.6 |
| Rated intput current(A) | 18.7 | 31 | 35 |
| Actual output current(A) | 120 | 170 | 190 |
| no-load voltage (V) | 44 | 55 | 55 |
| Duty cycle(%) | 60 | 30 | 30 |
| Efficiency(%) | 80 | 80 | 80 |
| power factor | 0.73 | 0.73 | 0.73 |
| Insolation class | F | F | F |
| Protect class | IP21S | IP21S | IP21S |
| Usable wire(mm) | 0.6-0.8 | 0.6-1.0 | 0.6-1.0 |
| N.W.(KG) | 10 | 11.4 | 11.5 |
| Dimension(mm) | 480*220*340 | 480*240*370 | 480*240*370 |
you can choice the kraft box,the kraft box will be with the left and right foams.
you can choice the colour box,and also this box will with the left and right foams.
you can choice the honeycomb,this package is very strong so this honeycomb without the foams.
Payment
1.Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
2.LC AT SIGHT
Delivery time
Generally it is 25-30days after confirm the design and deposit.and also it's according to the quantity.
