LASTON AC/DC Inverter Welding Machine WSE-200
Main Features
*Quality squary wave power supply,stable arc,HF arc stabilizatiln .
*Super strong oxidization film removal capability , cleaning width can be adjusted continuously.ensure good weld surface .
*Easy arc-starting, stable welding current , hign speed of dynamic response;concentrative arc, AC welding unbiased magnetic;perfect welding seam forming.
*Phase lack protection ,over-current ,over-heat ,
over-voltage protect function , make the product more safety and reliable .
*DC function , can be used for welding stainless, alloy steel ,carbon steel ,copper and other no-ferrous metal . AC function can be used for welding aluminium and aluminium alloy products.
| ITEM | WSE-200 |
| Power Voltage(V) | AC220V±15%50HZ |
| Rated input current (A) | 22.2 |
| Rated input capacity (KVA) | 4.9 |
| Output current and voltage range (A) | 20-170A/16.8V |
| No-load Voltge (V) | 60 |
| Duty Cycle (%) | 60 |
| Effivency (%) | 80 |
| Power factor | 0.73 |
| Insulation class | F |
| Protect class | IP21S |
| Dimension(mm) | 480*330*440 |
| Weight (kg) | 15 |

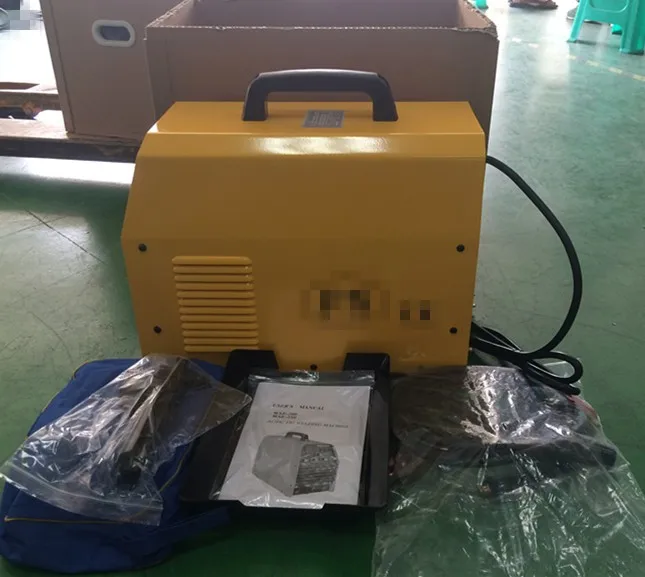

Machine Parts
Electrode holder :200A+1.8M*25mm²
Earth clamp：200A+1.6M*25mm²
With mask and brush
Trade Term :FOB/CFR/CIE
Payment :TT/LC/WES TERN UNION
My company has ordinary carton and color box for customers to choose, can according to the requirements of customers design the carton design, also can print your company's brand or customer requirements of the relevant text
