Laston xách tay IGBT Inverter MIG thợ hàn 195
Laston xách tay IGBT Inverter MIG thợ hàn 195
Laston xách tay IGBT Inverter MIG thợ hàn 195

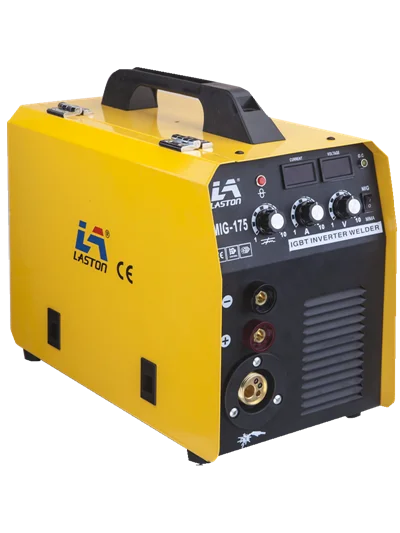

Portable IGBT inverter mig welder 195
Feature:
1.IGBT inverter technology,energy saving.
2.PWM pulse width control,technology,special performance,accurate current control.
3.Slow wire feeding,arc end with small balls clean,electronic and inductance regulating,
shielding gas post flow functions:well spatter control,good depth of fusion,good welding effect.
4.Over current,over heat,over load.over voltage protection.Special appearance wire feeder integrated.
5..Suitable for welding mild steel,low alloy steel metal sheet.
| ITEM | MIG-100 | MIG-135 | MIG-175 | MIG-195 |
| POWER VOLTAGE(V) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| RATED INPUT CAPACITY(KVA) | 3.25 | 4.1 | 6.8 | 7.6 |
| RATED OUTPUT(A) | 100 | 120 | 170 | 190 |
| RATED INPUT(A) | 14.8 | 18.7 | 31 | 35 |
| NO-LOAD VOLTAGE(V) | 44 | 44 | 55 | 55 |
| DUTY CYCLE(%) | 60 | 60 | 30 | 30 |
| EFFICIENCY(%) | 80 | 80 | 80 | 80 |
| POWER FACTOR | 0.73 | 0.73 | 0.73 | 0.73 |
| INSULATION CLASS | F | F | F | F |
| PROTECT CLASS | IP21S | IP21S | IP21S | IP21S |
| USABLE ELECTRODE(mm) | 0.6-0.8 | 0.6-0.8 | 0.6-1.0 | 0.6-1.0 |
| DIMENSION(mm) | 480*220*340 | 480*220*340 | 480*220*340 | 480*220*340 |
| WEIGHT(kg) |
10 |
10 |
11.4 |
11.4 |
Payment: T/T 30%in advance,70% after got the copy of the BL or LC at sight
1.FACTORY AERIAL VIEW
2.WORKSHOP AND OFFICE AREA
Q1: Are you a factory or trading company?
A: We are manufacturing factory.
Q2: Where is your factory located?
A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,
Wenling City, Zhejiang Province, China.
