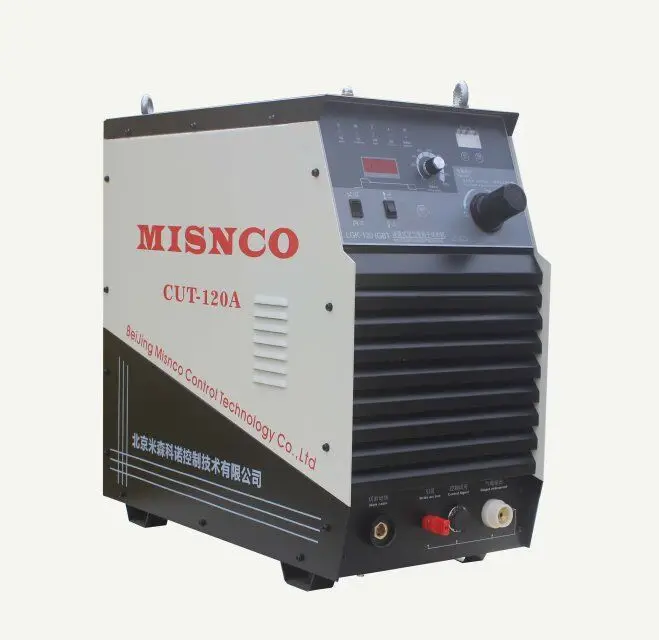

LGK-120IGBT CUT-120A MISNCO CNC Plasma Máy Cắt Plasma Nguồn Điện
999
Đã bán
24.860.150đ
20.294.000đ ~ 24.860.150đ
24.860.150đ
20.294.000đ ~ 24.860.150đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
20.294.000đ
f4OnBV1iTM
Mô tả sản phẩm
Đánh giá Điện Áp Đầu Vào: 3 pha 380V 50HzMở Mạch Điện Áp (OCV): 315vdc
Max. Sản Lượng Hiện Tại: 120cVideo Gọi Đi-Kiểm Tra: Cung Cấp
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpTiếp Thị Loại: Sản Phẩm Mới 2020
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ
Max. Điện Áp Đầu Ra: 120VXếp hạng Duty Cycle @ 40 °C: 100%
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: MISNCOĐiện áp: 380V
Công suất: 22.4kvaKích thước (L * W * H): 730*330*700m m
trọng lượng: 55Năm: 2020
Bảo hành: 1 NămÁp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Nhà Sử Dụng, In ấn Cửa Hàng, Xây dựng làm việc, Công Ty quảng cáo
Phòng Trưng Bày Trí: Không cóTrọng lượng (KG): 55 KG
Tên sản phẩm: Máy cắt plasma CUT-120AĐiện áp đầu vào: 3 pha 380V 50Hz
Đánh giá sản lượng hiện tại: 120cĐộ dày cắt: 0.3-16mm
Xếp dỡ điện áp: 315vdcPhạm vi ADJ hiện tại đầu ra: 30-120a
Áp suất không khí: 0.4-0.6MpaPhương pháp làm mát Cắt ngọn đuốc: Làm mát không khí
Lớp cách nhiệt: Lớp FLớp vỏ bảo vệ: Ip21s
Product Description
Features of LGK-120IGBT MISNCO Plasma Cutting Machine:
※ High load persistence, suitable for heavy industry.
※ With wide grid voltage adaptability.
※ Cutting current slow rising technology, reduce the consumption of cutting gun accessories.
※ Good arc stiffness, clean cut.
※ Scientific dustproof design, high reliability of the whole machine.
※ Compact structure, small size and light weight.
※ Cutting current stepless adjustable, suitable for different thickness of the workpiece.
※ Qigong test, easy to adjust the air pressure.
※ With undervoltage, overheat automatic protection function.
※ With wide grid voltage adaptability.
※ Cutting current slow rising technology, reduce the consumption of cutting gun accessories.
※ Good arc stiffness, clean cut.
※ Scientific dustproof design, high reliability of the whole machine.
※ Compact structure, small size and light weight.
※ Cutting current stepless adjustable, suitable for different thickness of the workpiece.
※ Qigong test, easy to adjust the air pressure.
※ With undervoltage, overheat automatic protection function.

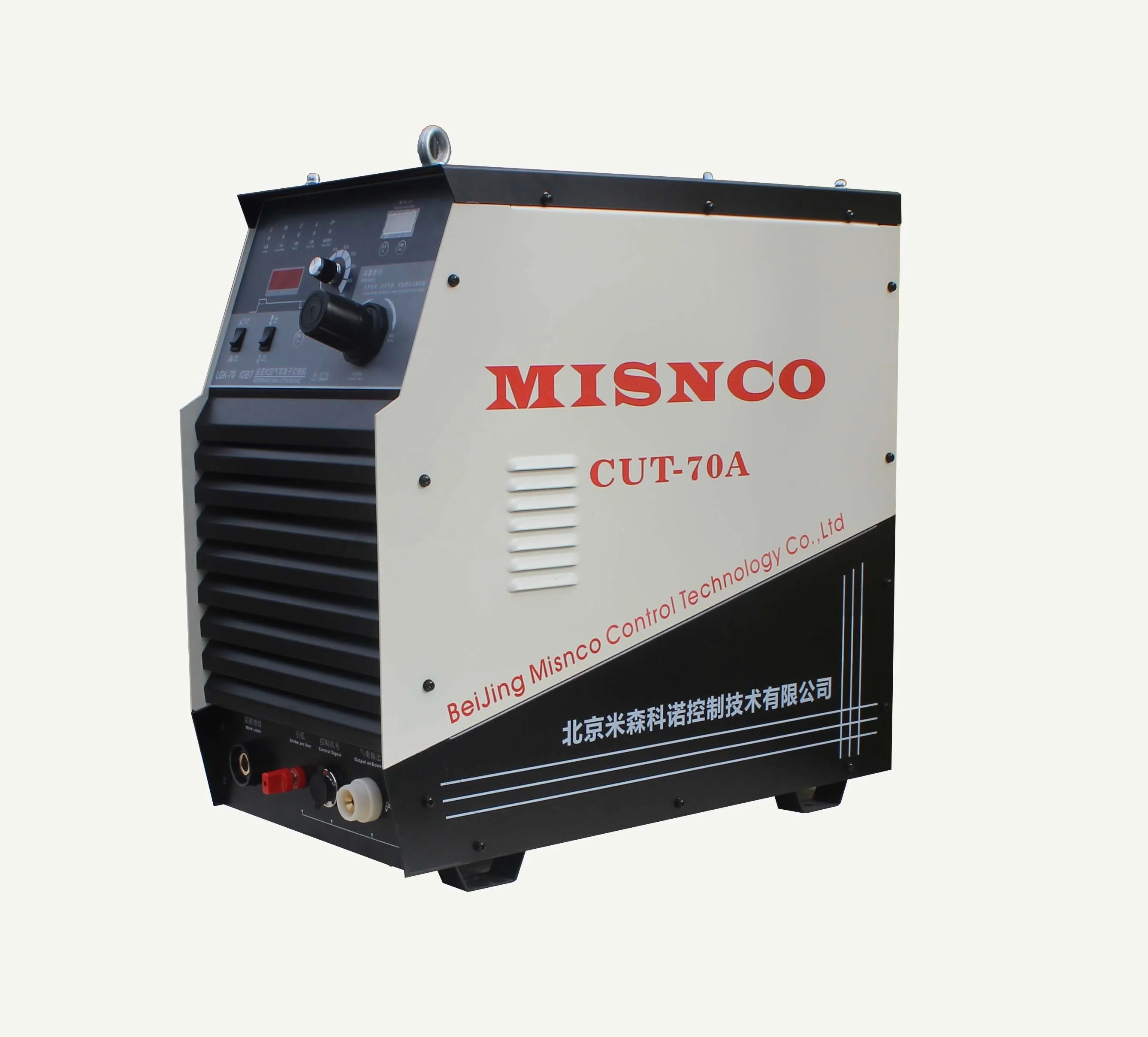

CUT-70A plasma cutting machine

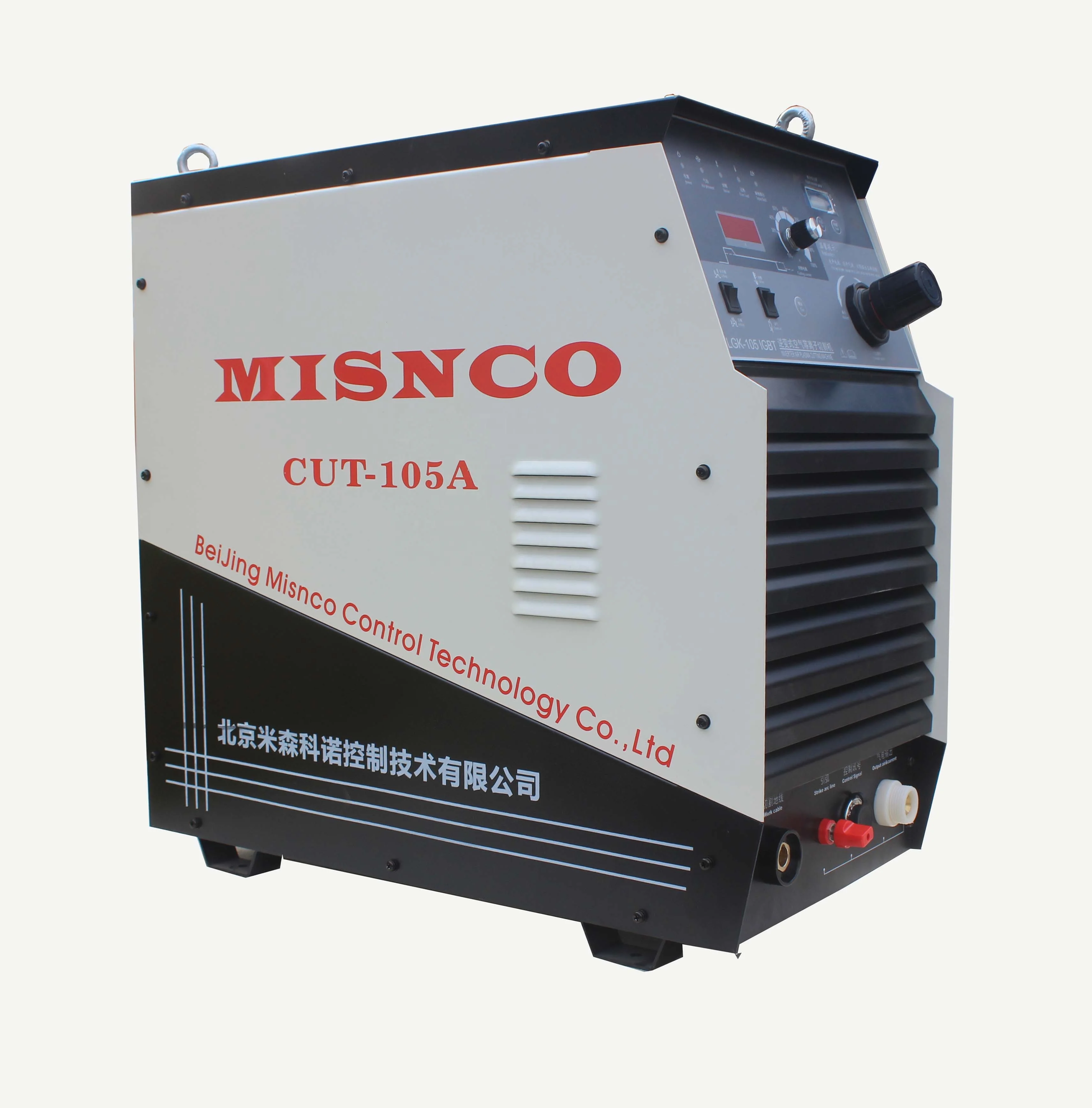

CUT-105A plasma cutting machine
CUT-120A plasma cutting machine

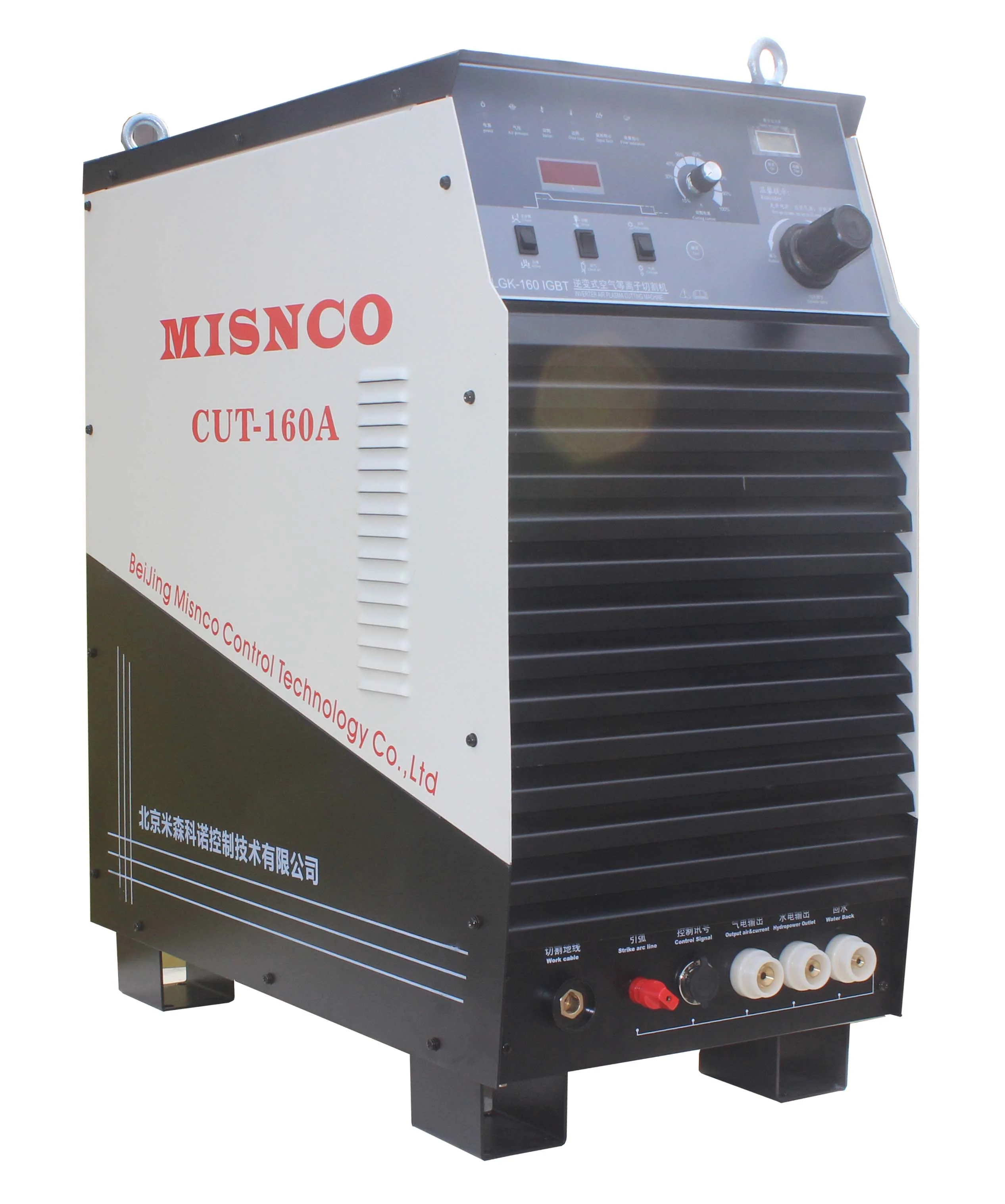

CUT-160A plasma cutting machine

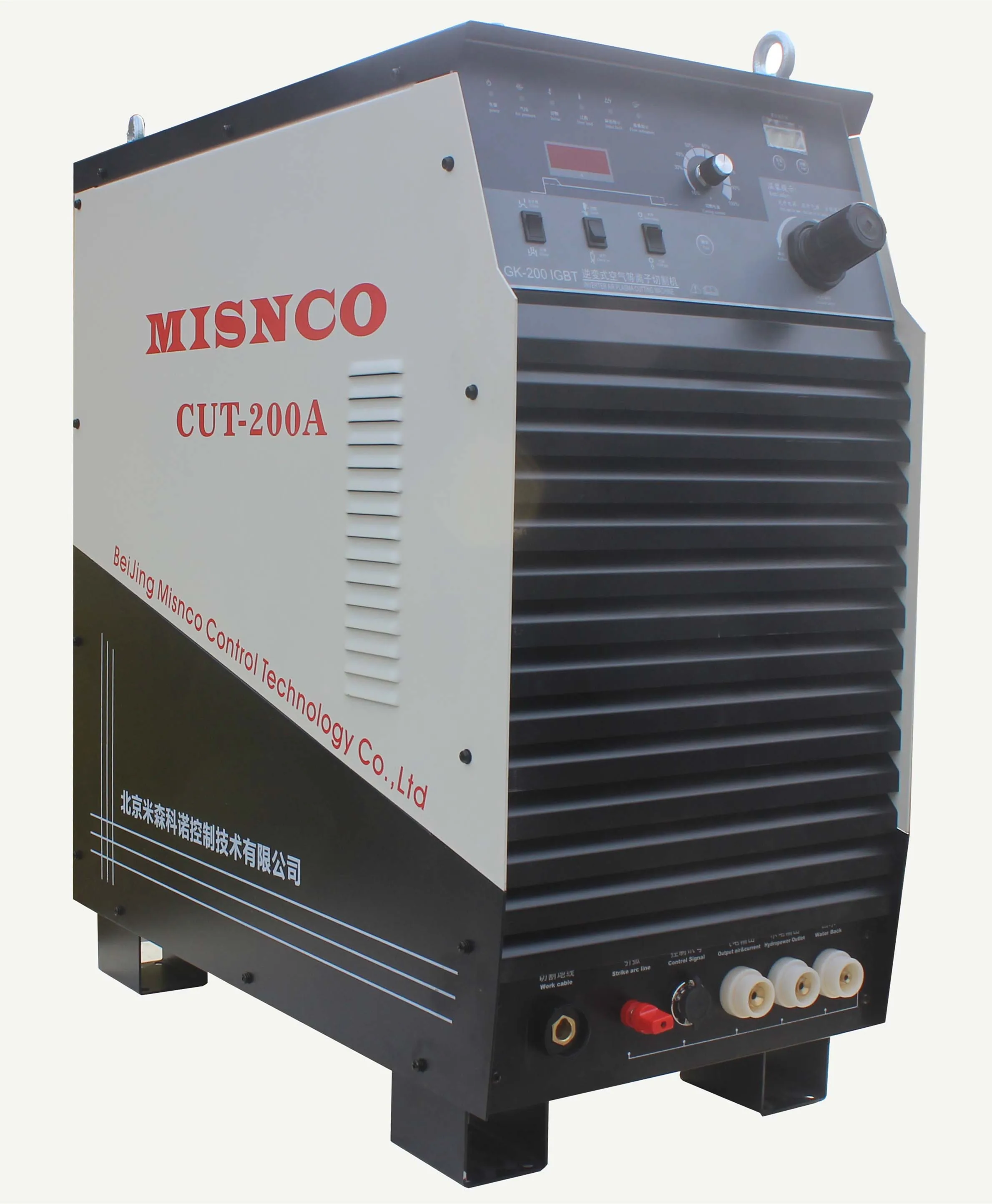

CUT-200A plasma cutting machine
CUT-300A plasma cutting machine

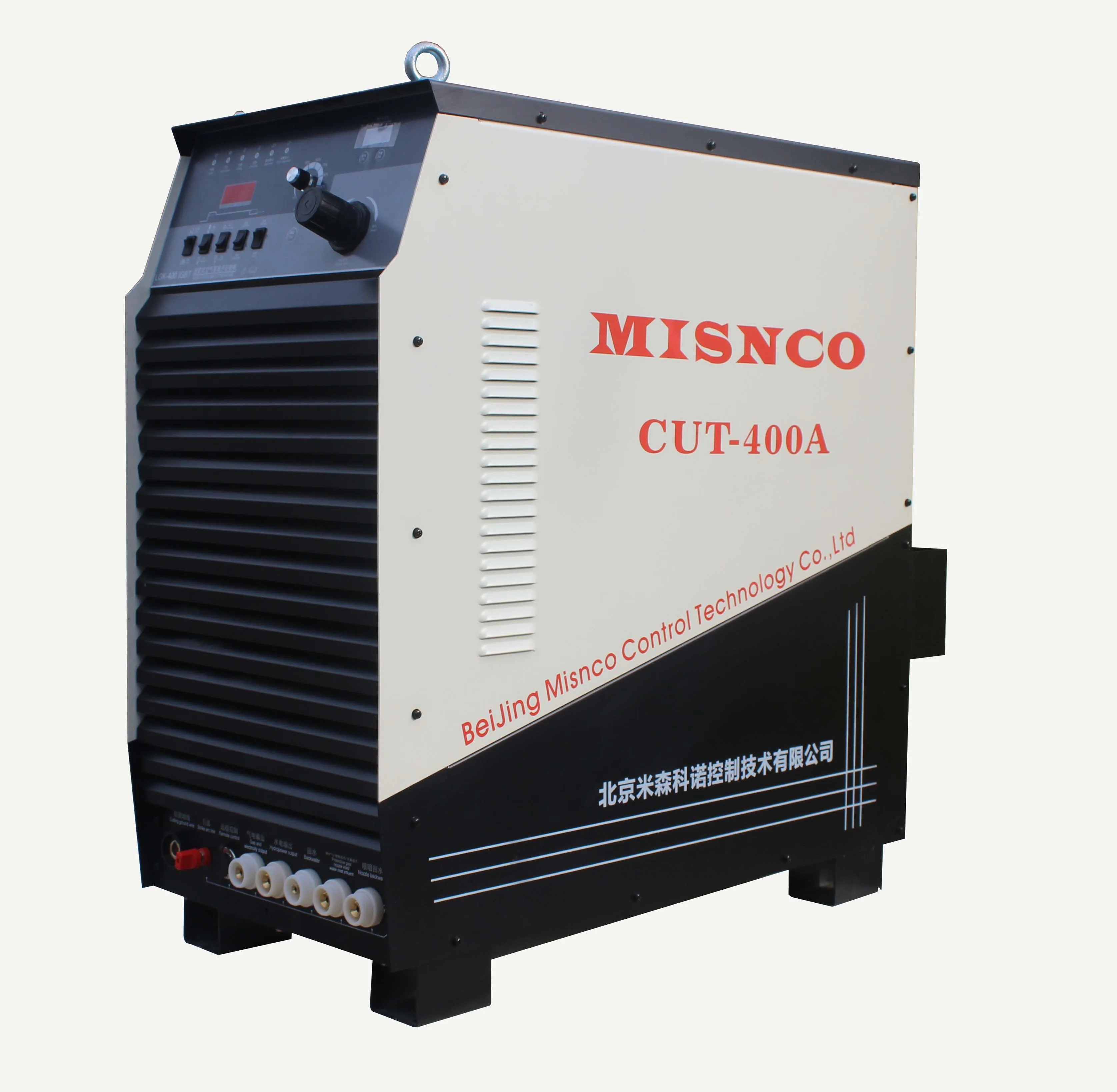

CUT-400A plasma cutting machine

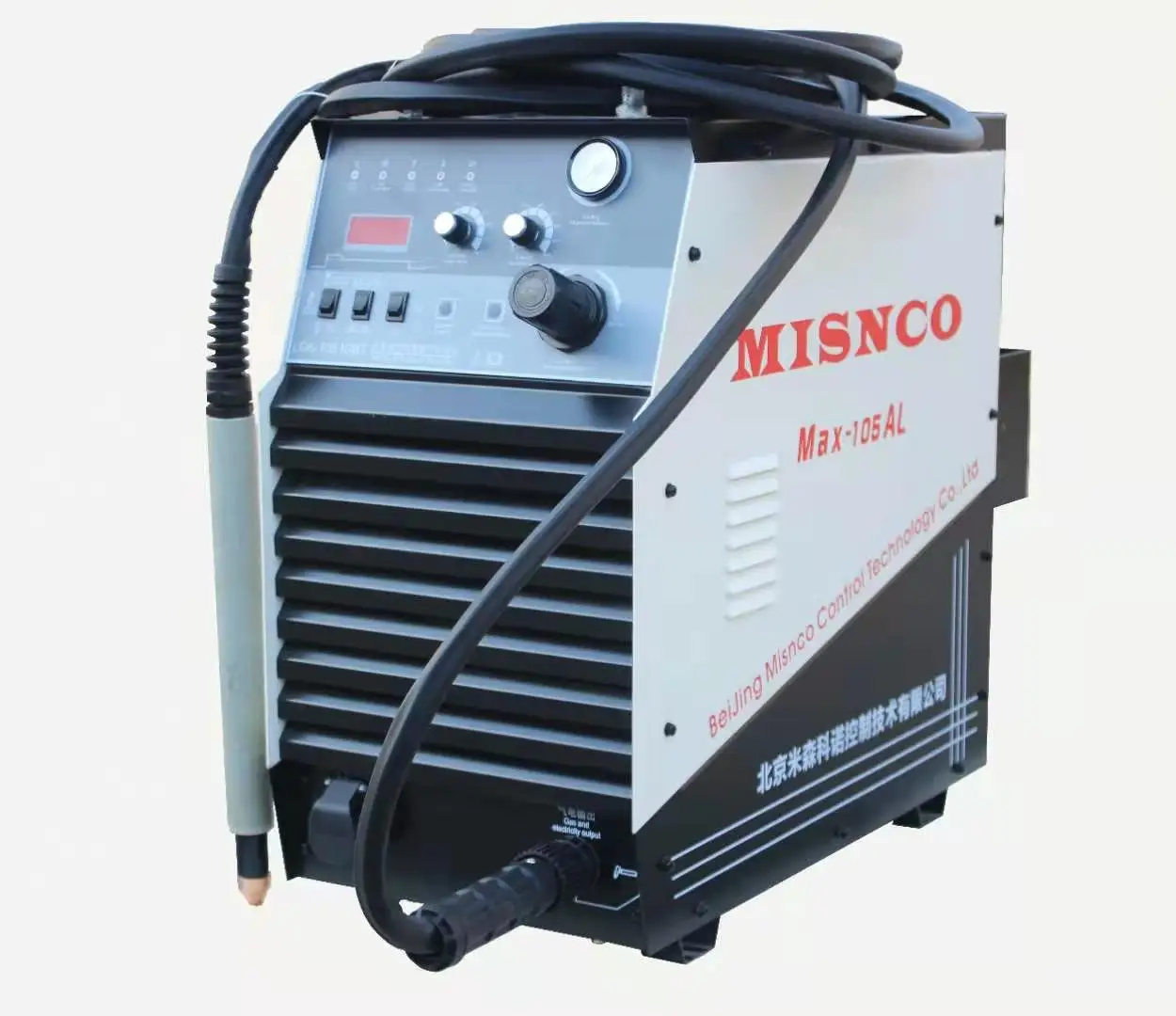

Max-105AL Low Frequency Plasma

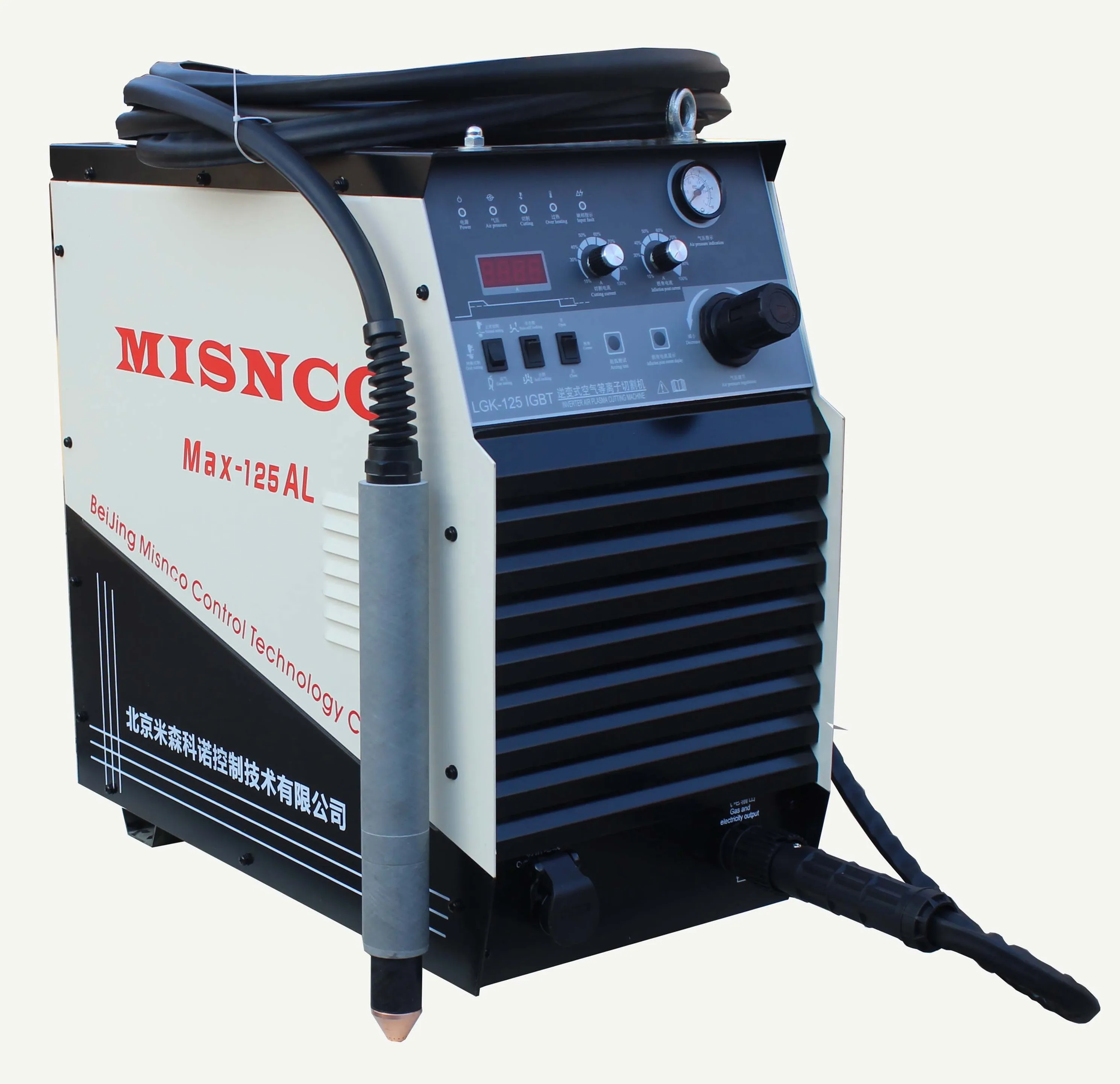

Max-125AL Low Frequency Plasma
Detailed Images

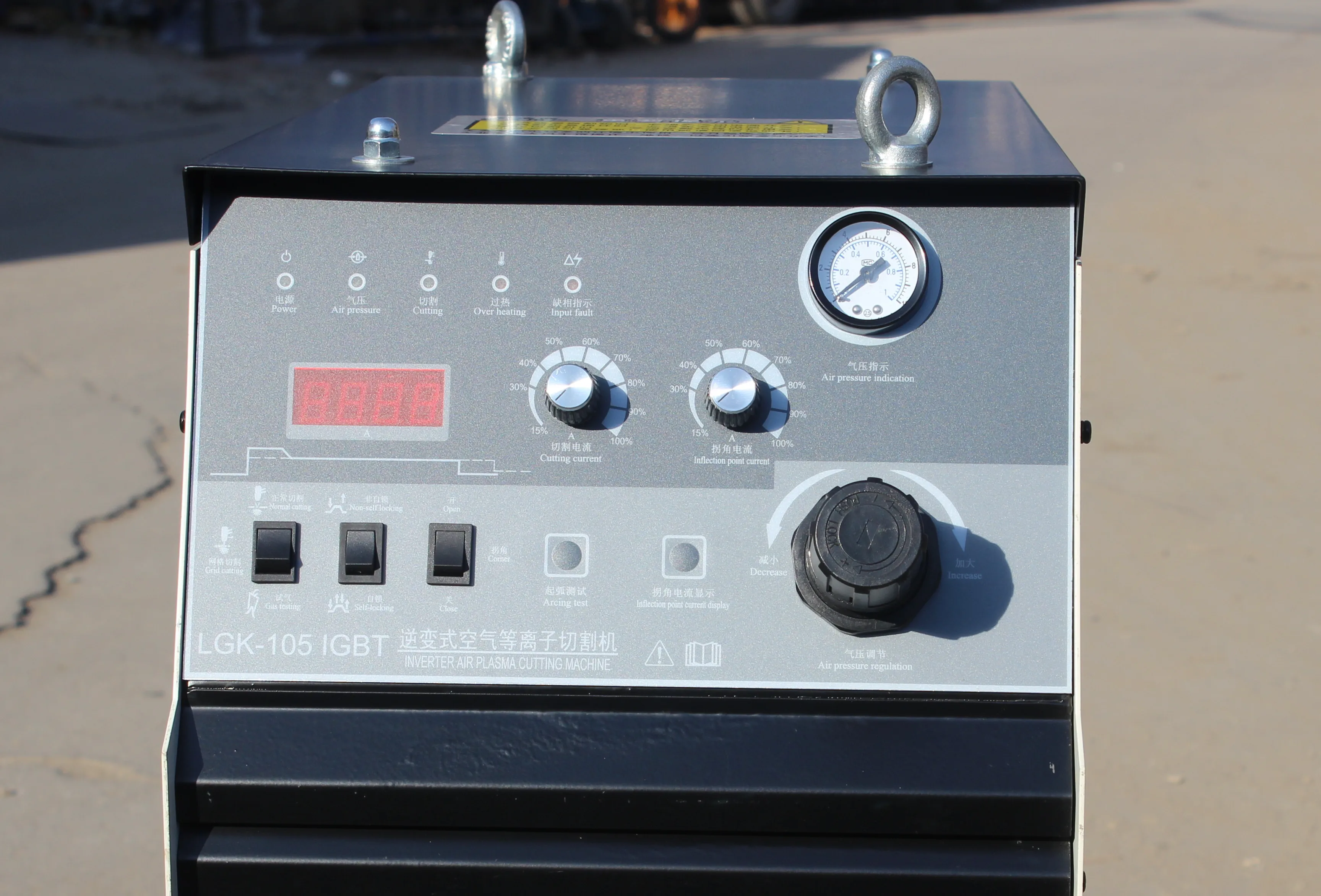

Front of Plasma Cutter
It has automatic protection function of overheat, undervoltage and out of phase to reduce the risk of accidental damage of power supply.

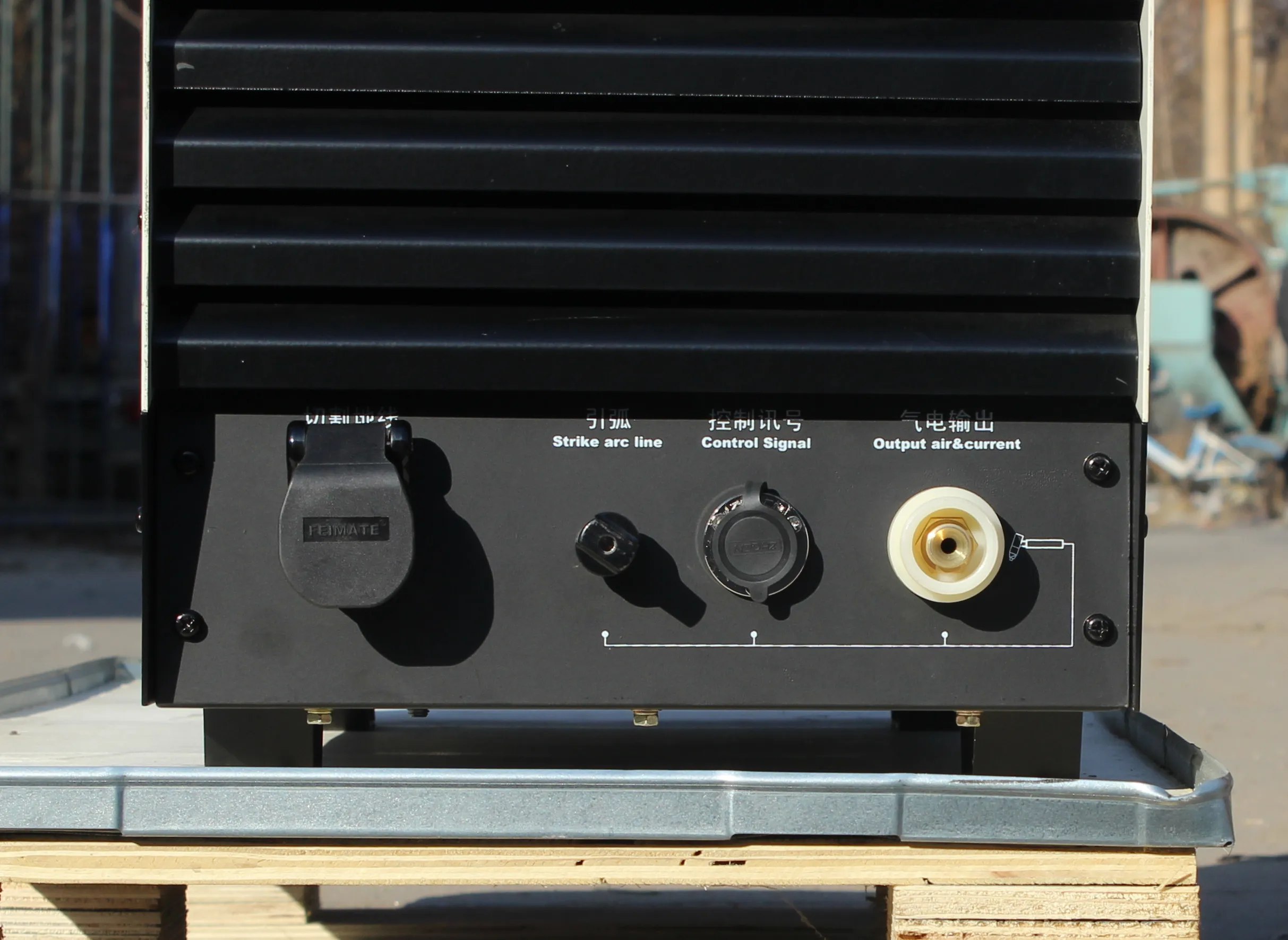

- Output of Plasma Cutter
The output terminal is equipped with a self-reset protective cap to ensure operation safety.

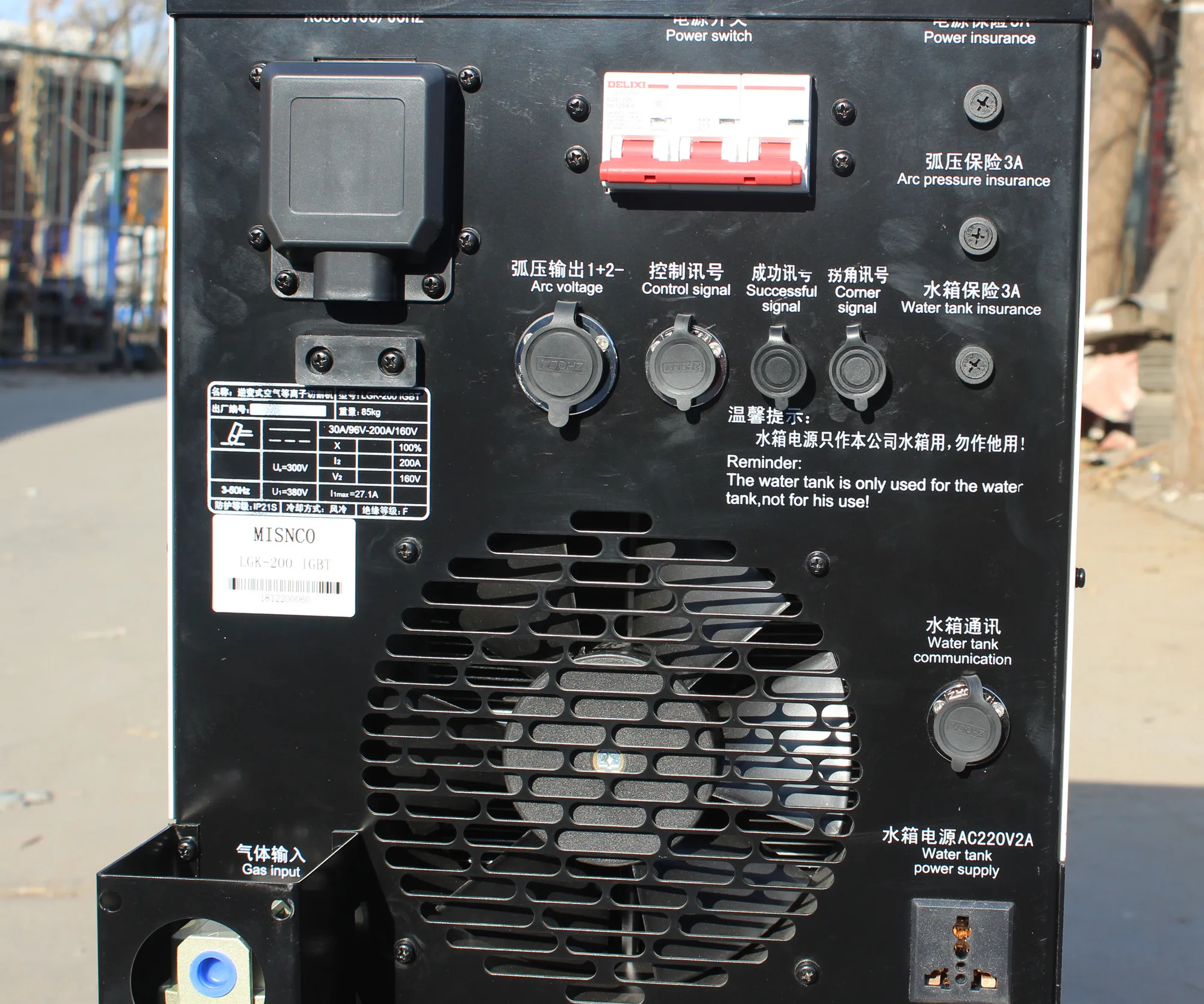

Back of Plasma Cutter
Air gouging, cutting, dual - use, it can be freely to switch working mode according to application.

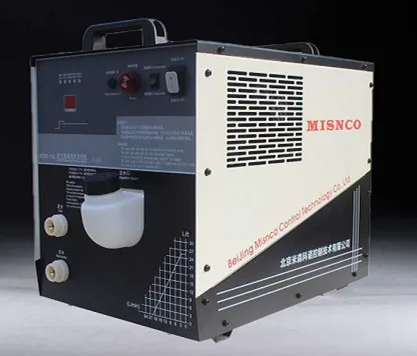

Intelligent Water Tank
1. Large copper condenser
2. Microcontroller control system
3. Imported filter element
4. Accurate temperature display
5. Alarm if the liquid level is less than 3/4
6. Insufficient flow alarm
7. Alarm when the water temperature is 65°, and alarm when it is lower than 0°.

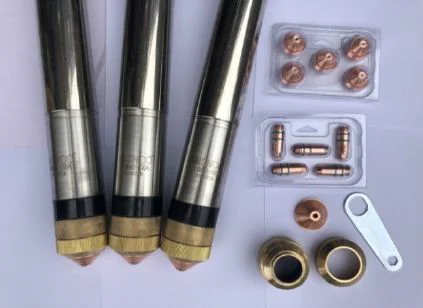

Plasma Consumable
Fine plasma torch
Cutting nozzle and electrodes
Accessories
Size Information
MISNCO CNC Plasma Cutting Machine
Item | Model | ||||||||
LGK-70IGBT | LGK-105IGBT | LGK-120IGBT | LGK-160IGBT | LGK-200IGBT | |||||
Input source (V/Hz) | 3-380±10% 50/60 | ||||||||
Rated input power (KVA) | 11 | 18.4 | 22.4 | 32.2 | 46.7 | ||||
Rated output current (A) | 70 | 105 | 34 | 49 | 71 | ||||
Rated output voltage (V) | 105.2 | 123 | 120 | 160 | 200 | ||||
Rated loading cycle | 100% | ||||||||
Unloading voltage (VDC) | 200 | 315 | 315 | ||||||
Range of output current | 30-70A | 30-105 | 30-120 | 30-160 | 30-200 | ||||
Copper wire cross-sectional area (mm²) | &ge6 | &ge10 | &ge16 | ||||||
Fuse (A) | 60 | 80 | 125 | ||||||
Switch capacity | 60 | 60 | 63 | 80 | 125 | ||||
Max cutting thickness (mm) | 0.3-10 | 0.3-12 | 0.3-16 | 0.3-20 | 0.3-25 | ||||
Piercing thickness (mm) | 12 | 16 | 19 | 25 | 30 | ||||
Air source | Air compressor | ||||||||
Air pressure (mpa) | 0.4-0.6 | 0.4-0.6 | |||||||
Cooling method of torch | Air cooling | Water cooling | |||||||
Arc-starting way | Un-touch | ||||||||
Insulation grade | Grade F | ||||||||
Shell protect grade | IP21S | ||||||||
Dimension (cm) | 59*26*48 | 73*33*70 | 86*45*98 | ||||||
Net weight (kg) | 30 | 56 | 108 | 110 | |||||

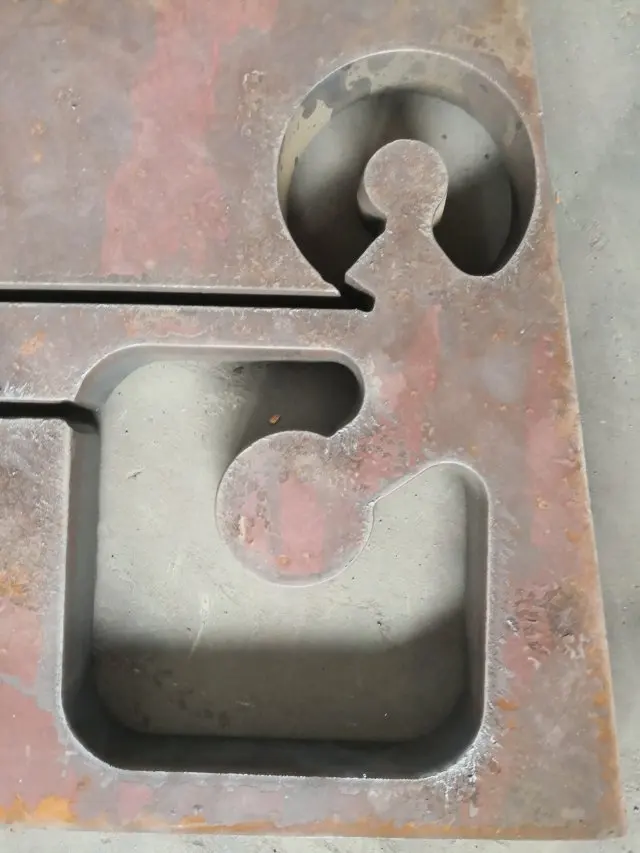

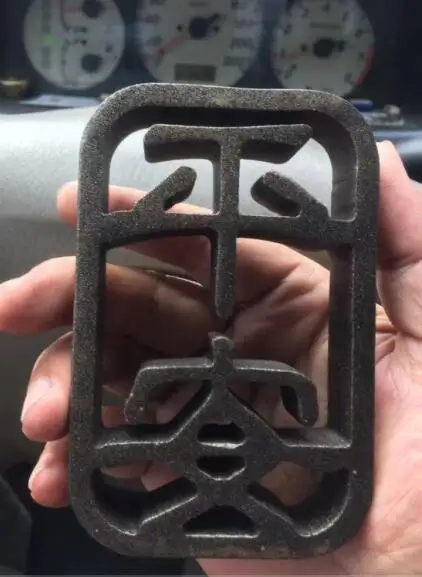

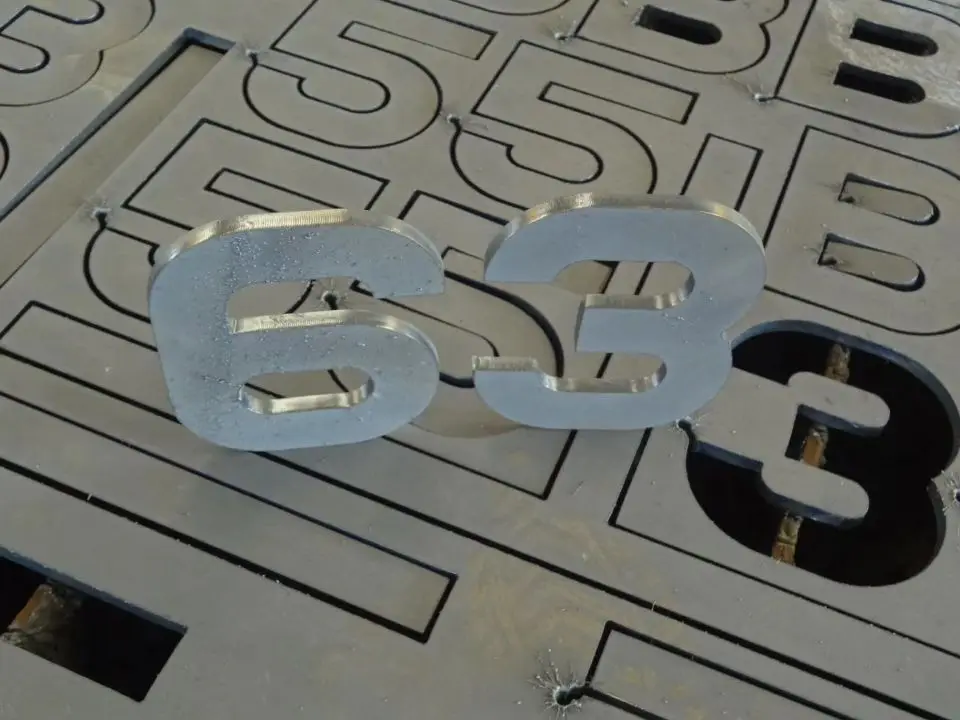

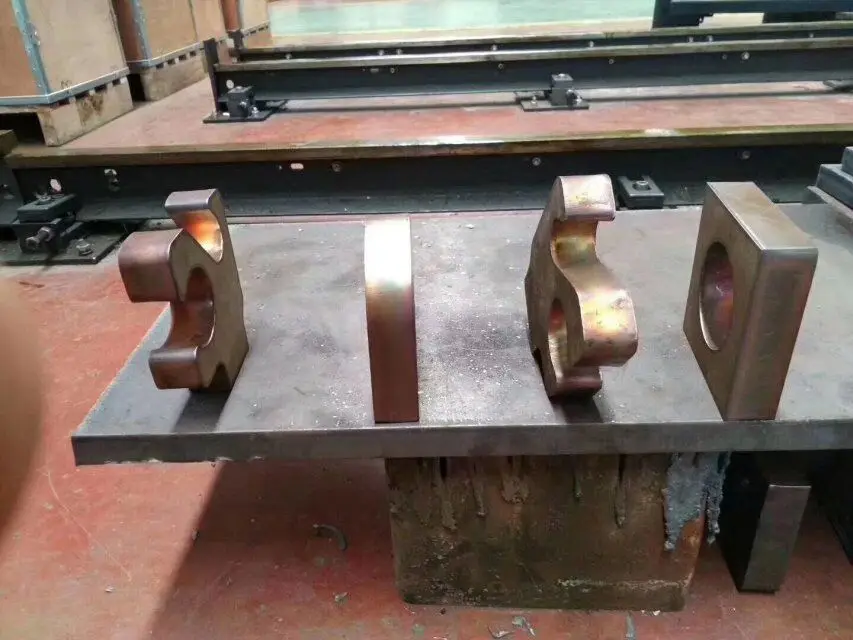

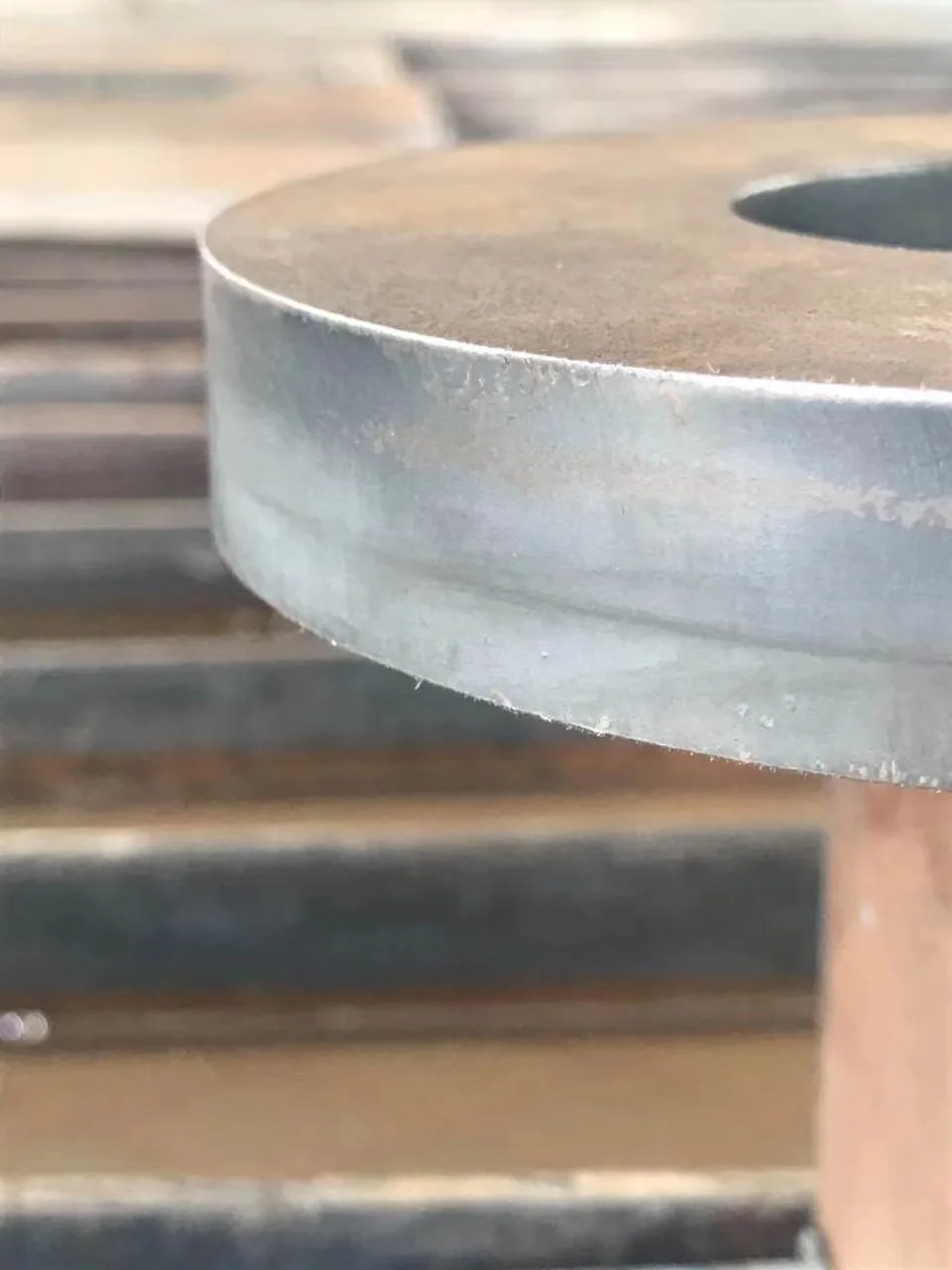

Working pictures
Application of LGK-120IGBT Air plasma cutting machine:
The portable CNC plasma power source is mainly used for cutting metal materials such as carbon steel, stainless steel, and aluminum. It is widely used in shipbuilding, steel structure construction, engineering machinery, locomotive manufacturing, boilers, water conservancy and hydropower, petrochemical, mechanical processing and other industries.
The portable CNC plasma power source is mainly used for cutting metal materials such as carbon steel, stainless steel, and aluminum. It is widely used in shipbuilding, steel structure construction, engineering machinery, locomotive manufacturing, boilers, water conservancy and hydropower, petrochemical, mechanical processing and other industries.

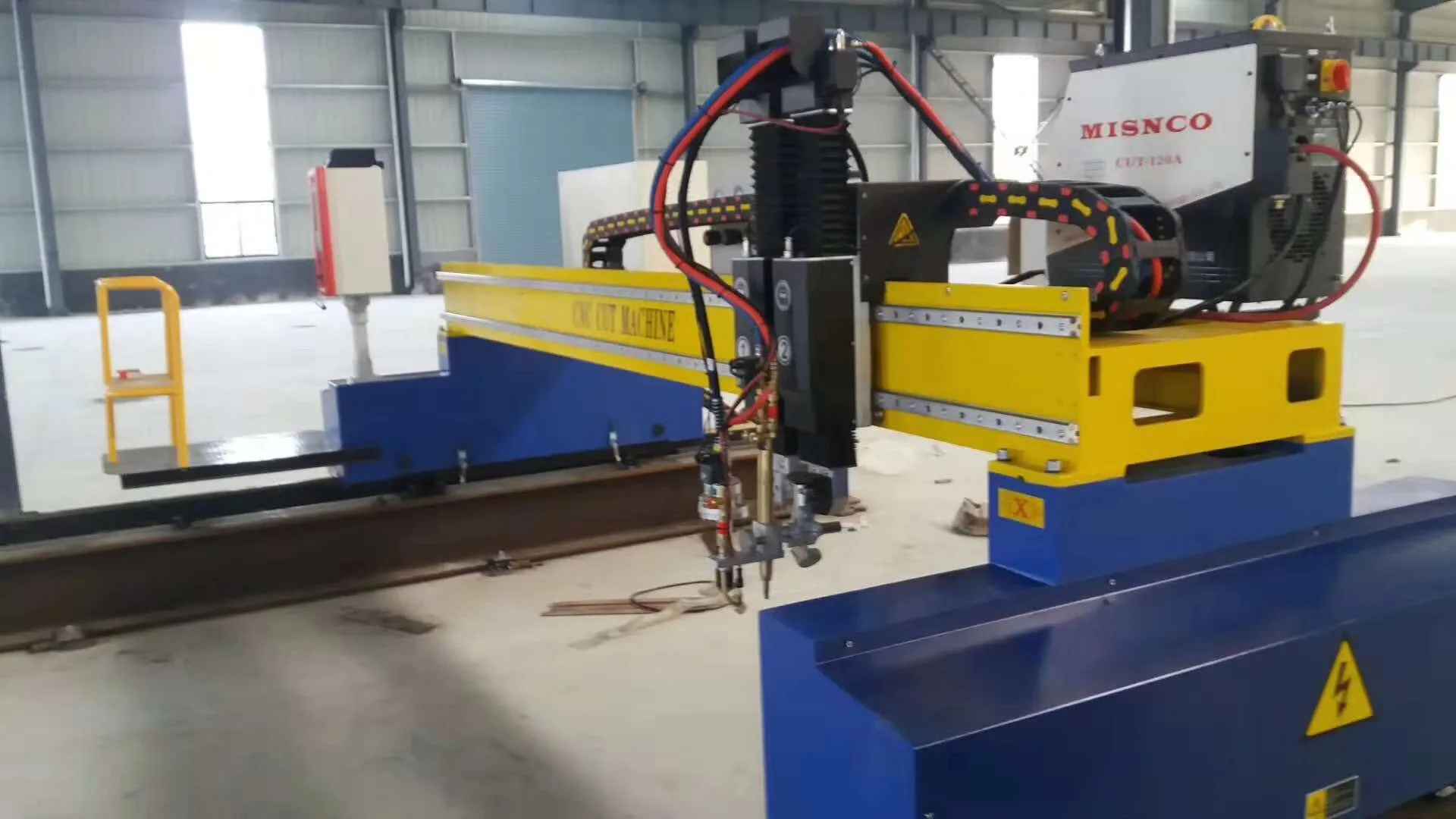

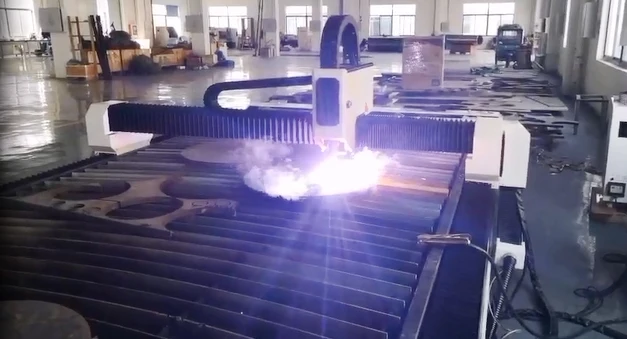

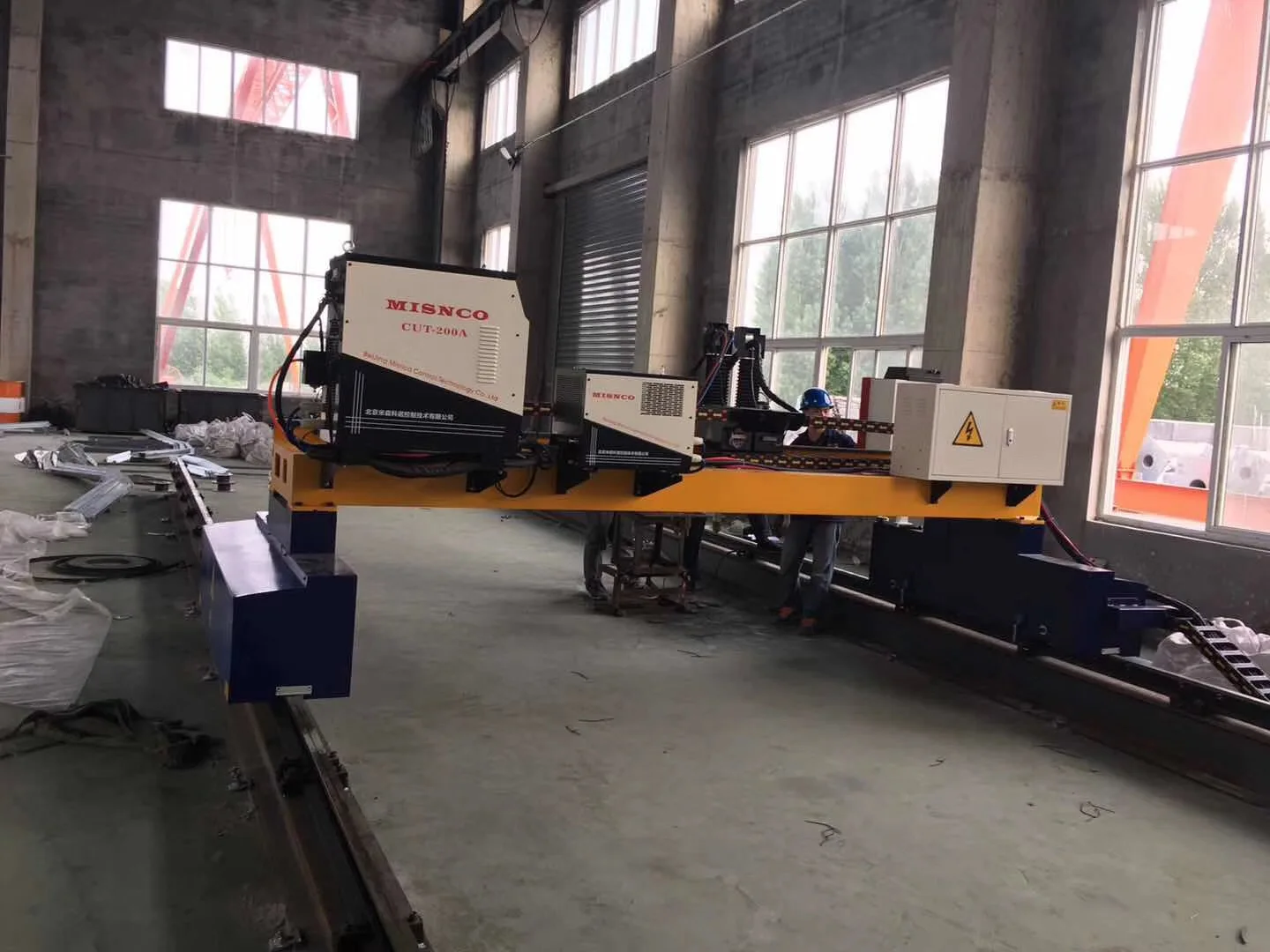

Gantry CNC plasma cutting machine is a kind of cutting and blanking equipment with extremely wide application. The professional mechatronics equipment combined with computer and software can cut any shape of plate or tube workpiece, improve cutting quality and efficiency, and increase material utilization. The stability of the cutting rate and cutting quality reduces the labor intensity of workers.

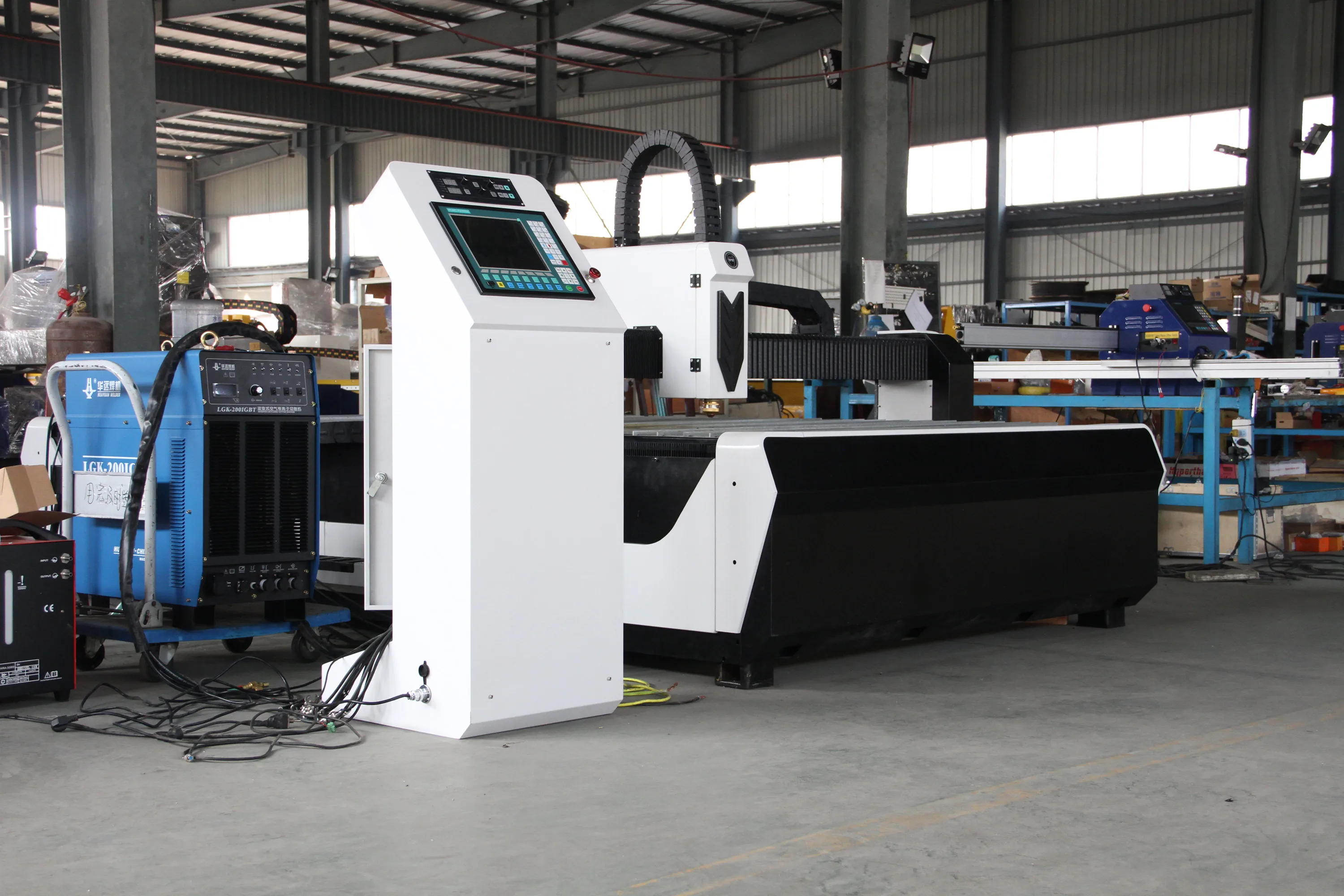

Table Type CNC Plasma cutting machine: It is a processing method that uses the heat of a high-temperature plasma arc to partially melt or evaporate the metal at the incision of the workpiece, and uses the momentum of the high-speed plasma to remove the molten metal to form an incision.
Related Products

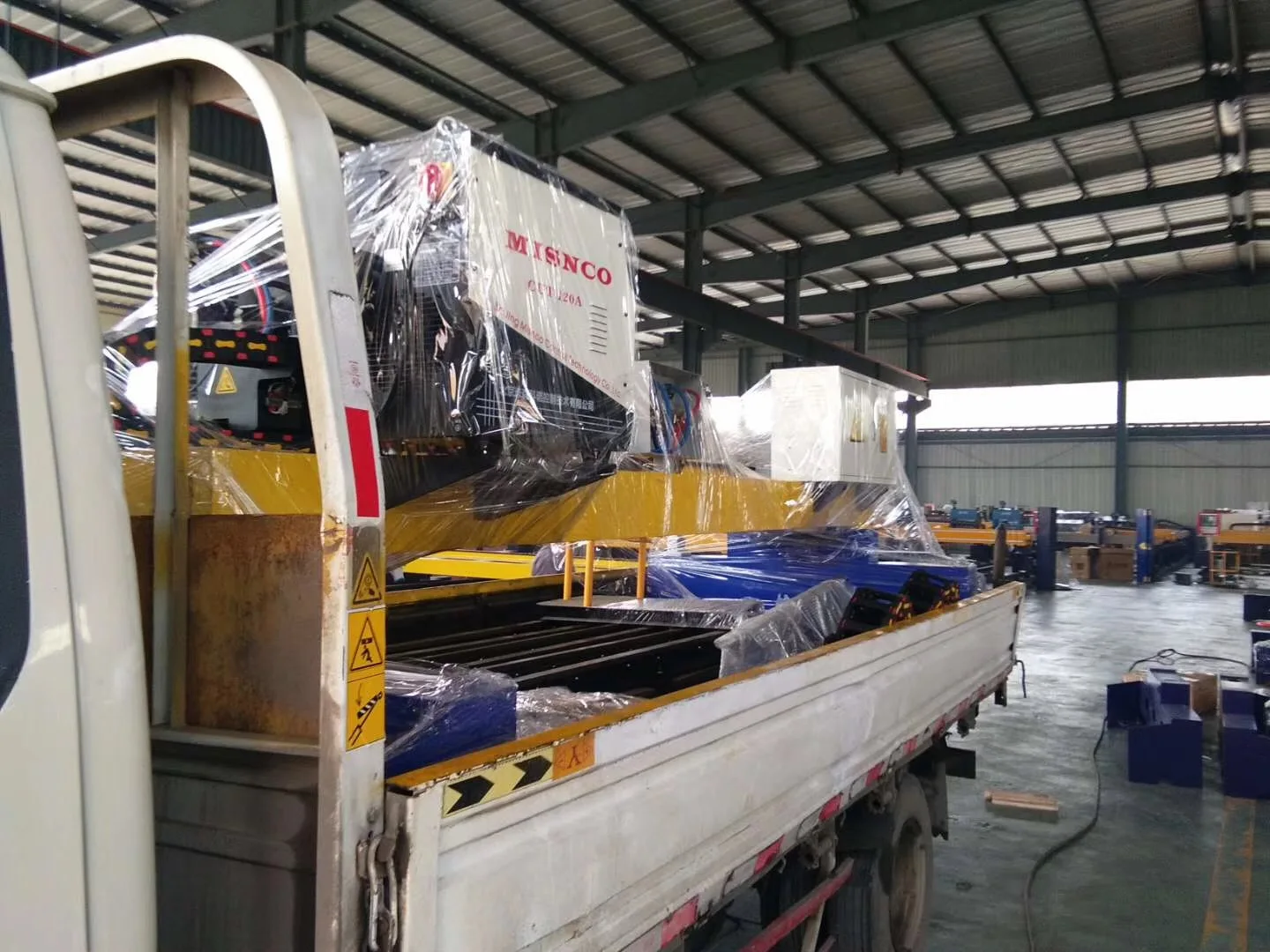

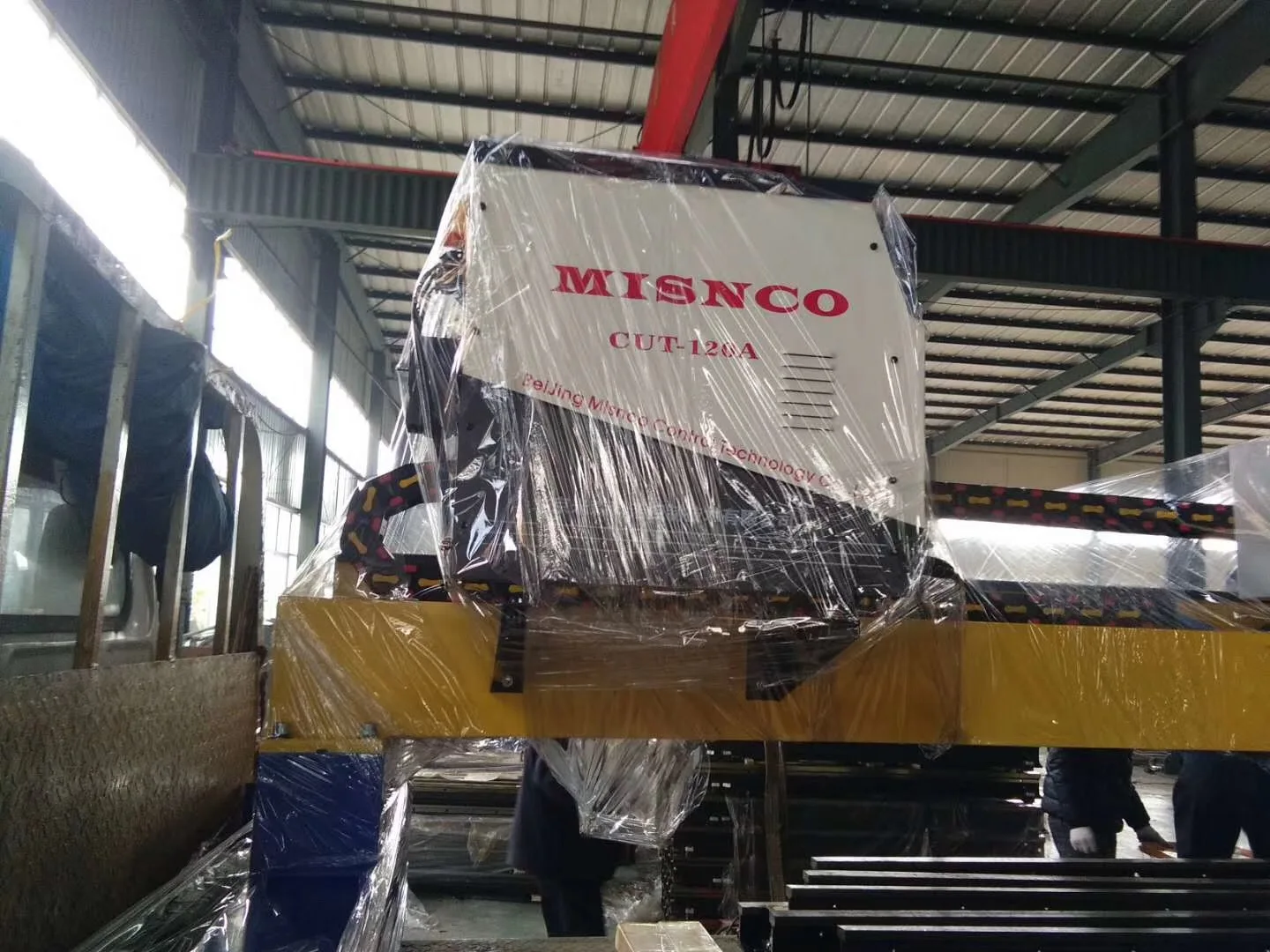

Packing&Shipping
Company Introduction
Shandong Jiaxin Machinery Equipment Co.,Ltd.located in the hometown of Confucius and Mencius-Jining City, northwest of excellent transport location for communication between business and customers to provide a great convenience and fast.
Science and technology are primary productive forces"continuous advancement of technology is the development of the eternal source of power. The factory after nearly 20 years of development from a roller mold factory into a large-scale production of cold. Hot-rolled steel processing equipment. CNC steel processing equipment five series more than thirty kinds of products manufacturer enterprises.
We have always adhered to the "integrity of management, quality first&rdquo business philosophy customer for Gud's business objectives. Through a nationwide sales and service network, improve the pre-sale, selling service and after sale service sincere cooperation by providing quality products and efficient service for you.
Our Services & Strength
1.Pre-Sales Service:
1)Inquiry and consulting support.
2)We provide you the friendly English user manual and testing video free.
3)24 hours technical support by email or calling.
2.After-Sales Service:
1)Video of operating the machine are available.
2)12 months warranty quality guarantee and charge free technical support forever.
3)Free training to make sure you master the operating of machine.
FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What&rsquos the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
