Màn hình cảm ứng công nghiệp đa năng UD30 10.4 inch, sẵn sàng giao hàng cho nhà sản xuất máy móc OEM
Mô tả sản phẩm
Product Description
Add standalone capability to a large number of gas sensors and detectors
Designed for use with a large number of Det-Tronics gas detectors, the UD30 is approved as a stand-alone device and can perform
functions of a gas controller.
Gas level (%), type and unit of measurement are indicated on the digital display. Access to the local event logs and other display
capabilities, such as calibration, is accomplished through four (4) magnetic buttons around the display.
Features
* Universal design supports multiple Det-Tronics sensors or generic linear 4–20 mA sensors
* Local digital LCD continuously indicates gas level, gas type and units measured
* Backlit and heated display
* Non-intrusive calibration
* Rugged construction approved for use in classified hazardous areas
* Available in 316 stainless steel (shown) and black epoxy aluminum
* Internal magnetic switches provide a non-intrusive user interface which allows device configuration without declassifying
hazardous areas
* SIL2 models certified to IEC61508 by exida®
* Logs provided for analysis and management include: * Event: Include fault and alarm logs with runtime hours
* Calibration: With runtime hours
* Temperature: Two sets of minimum and maximum temperature logs with runtime
hours

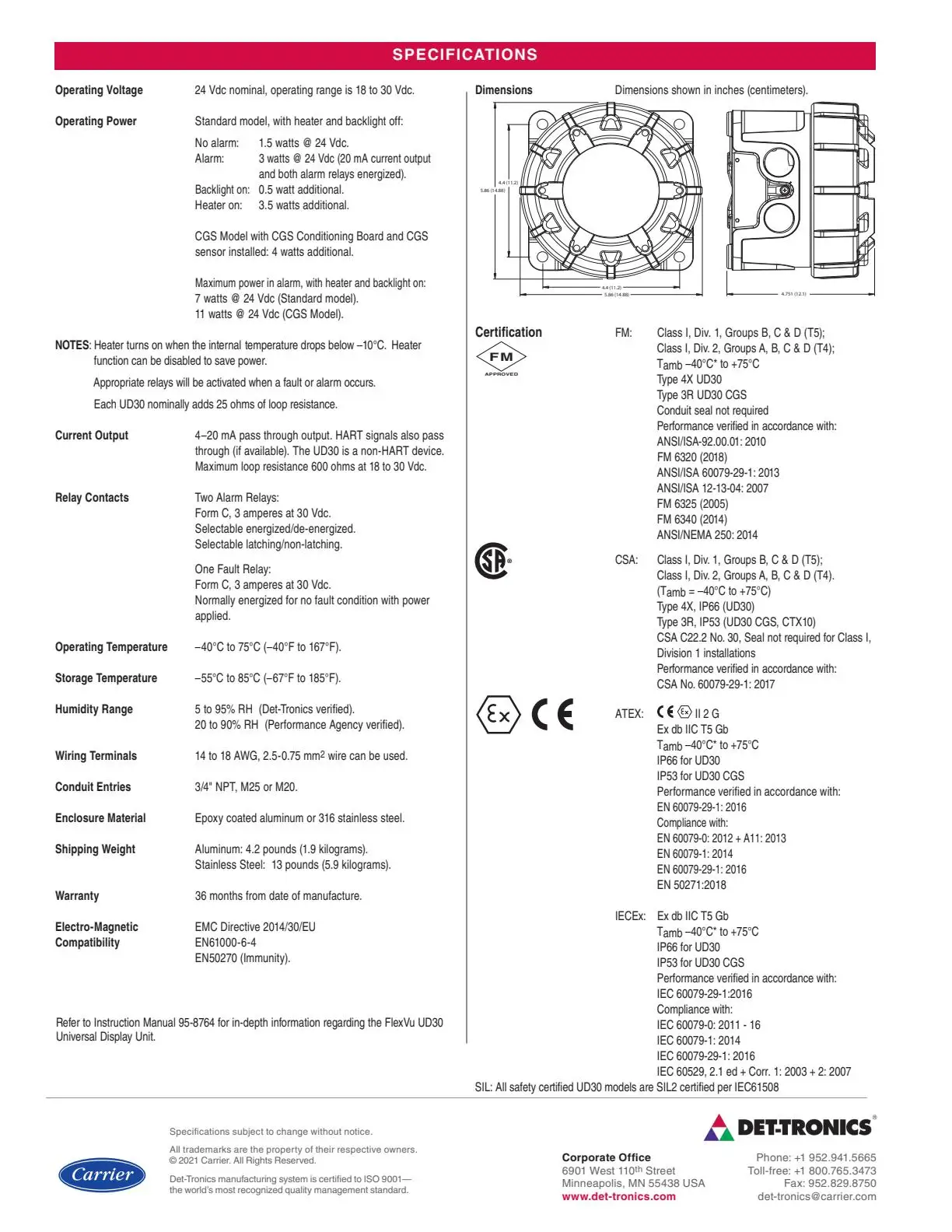

Technical Specifications
* Operating Voltage: * 24 Vdc nominal, operating range is 18 to 30 Vdc. Ripple cannot exceed 0.5 volt P-P.
* Signal outputs: * 0-20 mA output loop with HART when the connected sensor is HART capable
* Two (2) alarm relays and one (1) fault relay
* Visible Outputs: * Backlit LCD display
* HART pass through
* Two (2) Form C, 3 amps at 30 VDC alarm relays
* One (1) Form C, 3 amps at 30 VDC fault relay
Designed for use with a large number of Det-Tronics gas detectors, the UD30 is approved as a stand-alone device and can perform
functions of a gas controller.
Gas level (%), type and unit of measurement are indicated on the digital display. Access to the local event logs and other display
capabilities, such as calibration, is accomplished through four (4) magnetic buttons around the display.
Features
* Universal design supports multiple Det-Tronics sensors or generic linear 4–20 mA sensors
* Local digital LCD continuously indicates gas level, gas type and units measured
* Backlit and heated display
* Non-intrusive calibration
* Rugged construction approved for use in classified hazardous areas
* Available in 316 stainless steel (shown) and black epoxy aluminum
* Internal magnetic switches provide a non-intrusive user interface which allows device configuration without declassifying
hazardous areas
* SIL2 models certified to IEC61508 by exida®
* Logs provided for analysis and management include: * Event: Include fault and alarm logs with runtime hours
* Calibration: With runtime hours
* Temperature: Two sets of minimum and maximum temperature logs with runtime
hours
Technical Specifications
* Operating Voltage: * 24 Vdc nominal, operating range is 18 to 30 Vdc. Ripple cannot exceed 0.5 volt P-P.
* Signal outputs: * 0-20 mA output loop with HART when the connected sensor is HART capable
* Two (2) alarm relays and one (1) fault relay
* Visible Outputs: * Backlit LCD display
* HART pass through
* Two (2) Form C, 3 amps at 30 VDC alarm relays
* One (1) Form C, 3 amps at 30 VDC fault relay
Specification
Weight | 4.2 lbs |
Manufacturer | Carrier |
Brand | Det-Tronics |
Condition | New |
Unit of Measurement | EA (Each) |
Production Status | Active |
Model | UD30 |
