DC Inverter Air Plasma Cutting Machine
1.INPUT VOLTAGE AUTOMATIC IDENTIFICATION
2.IGBT TECHNOLOGY
3.100% DUTY CYCLE
4.SIMPLE OPERATION
5.110V/220V DUAL VOLTAGE
6.SMOOTH CUTTING SURFACE
7.COMPACT DIMENSIONS8.EASY MAINTENANCE
9.HIGH - EFFICIENCY
- Trang chủ
- Máy hàn plasma
-
Máy Cắt Cầm Tay Máy Cắt Plasma 40 Cắt 60 Bán Hàng
Máy Cắt Cầm Tay Máy Cắt Plasma 40 Cắt 60 Bán Hàng
Máy Cắt Cầm Tay Máy Cắt Plasma 40 Cắt 60 Bán Hàng
5
164
Đã bán
3.514.466đ
3.190.054đ ~ 3.514.466đ
Yêu thích
Máy Cắt Cầm Tay Máy Cắt Plasma 40 Cắt 60 Bán Hàng
5
164
Đã bán
3.514.466đ
3.190.054đ ~ 3.514.466đ
Máy Cắt Cầm Tay Máy Cắt Plasma 40 Cắt 60 Bán Hàng
Xem chi tiết
Số lượng
Đơn vị
1 Hộp các tông
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
Thông tin
Máy Cắt Cầm Tay Máy Cắt Plasma 40 Cắt 60 Bán Hàng
Mô tả sản phẩm
portable cutter cut 40 cut 60 air plasma cutter for sales

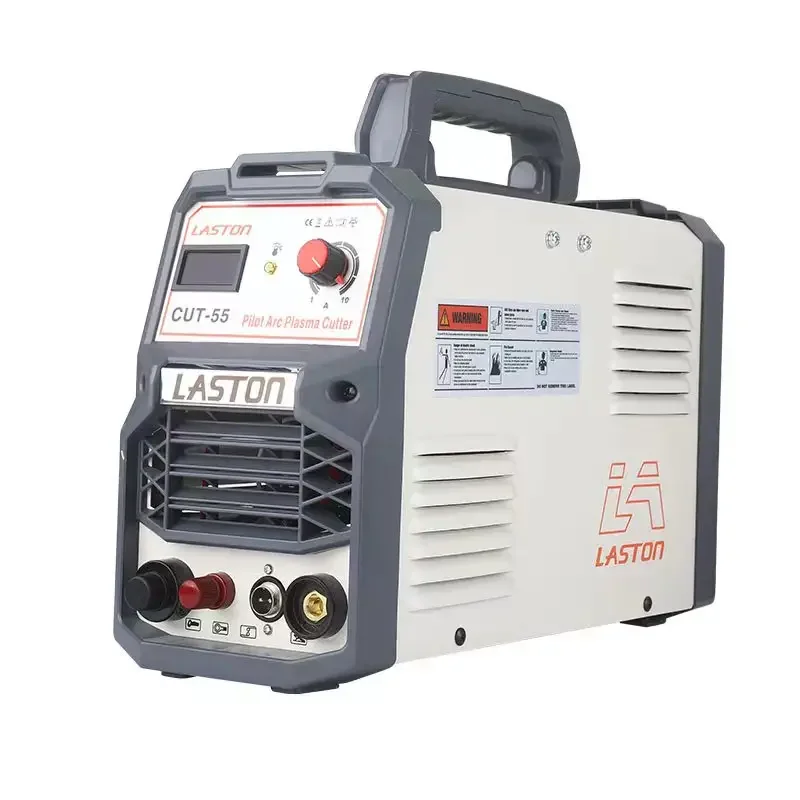

CUT-55A (110V-220V dual voltage) is 110V/220V dual voltage inverter plasma cutting machine, with automatic input voltage,identification function, adopts single tube IGBT as the inverter, switching frequency is 30KHz, has the characteristics of high efficiency and energy saving. The rated input voltage is 110V/220V, and the load duration is 100%. When the 110V input, the output current is 20A-- 35A; When the input is 220V, the output current is 20A-- 55A.

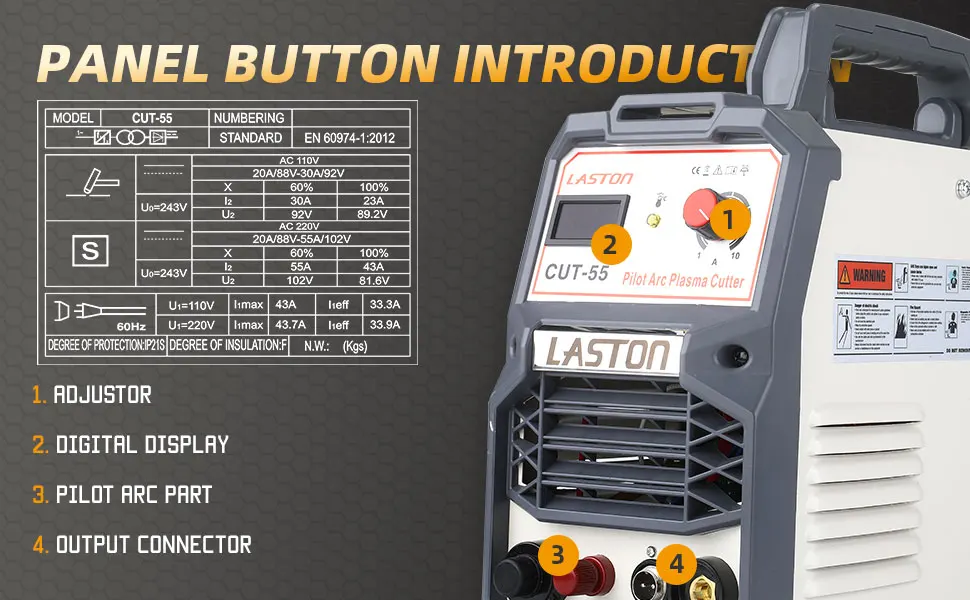

FEATURES AT A GLANCE

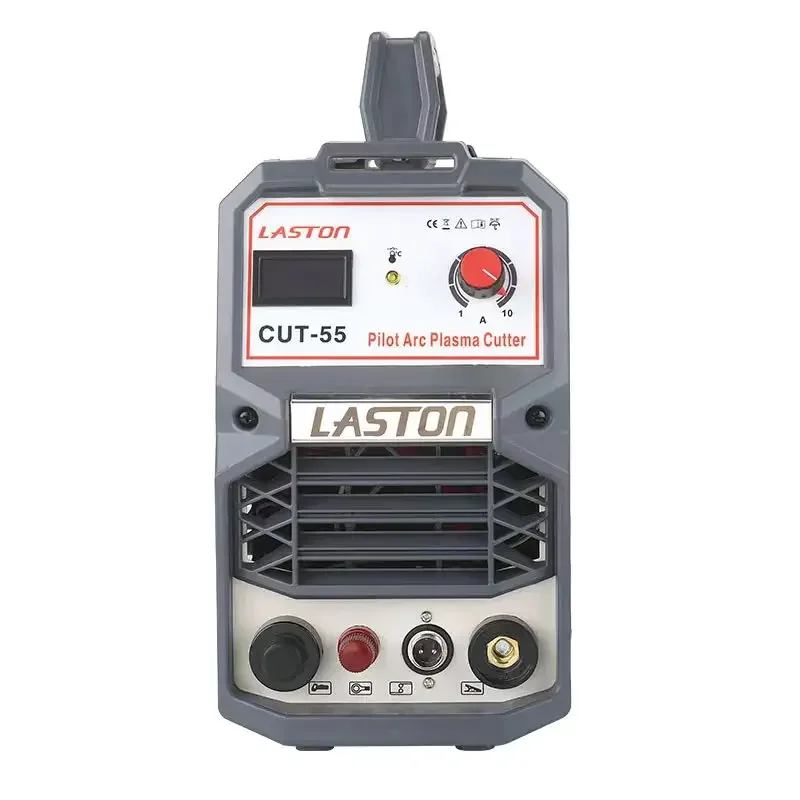

Front elevation
45° elevation

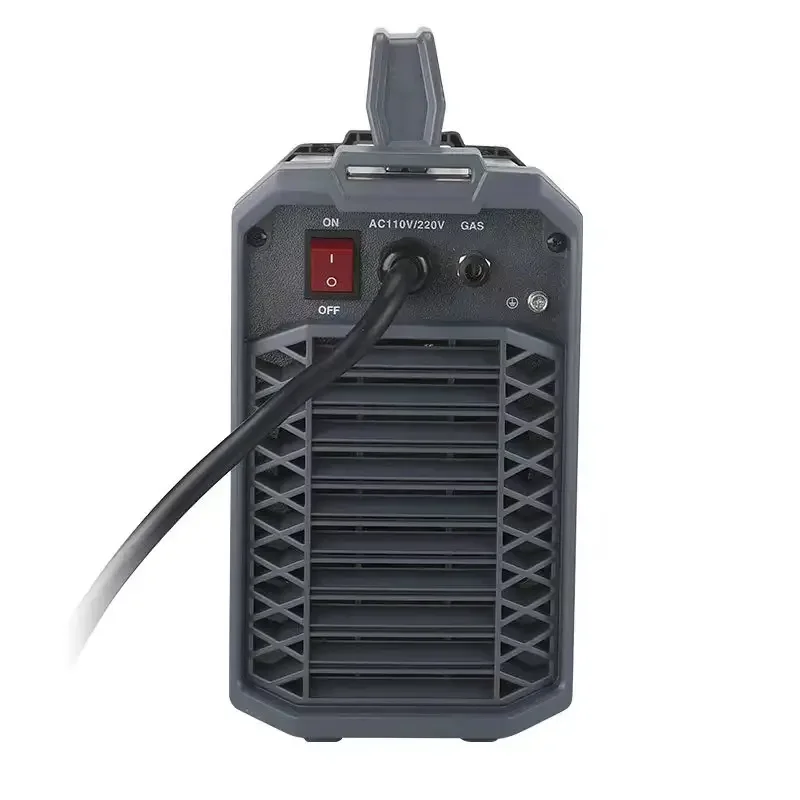

Back elevation
PRODUCT SPECIFICATIONS
No | Item | PLASMA CUTTING MACHINE | Data | |
1 | Model | CUT-55A | CUT-55A | |
2 | INPUT VOLTAGE RANGE | AC100V-250V | AC 100V-250V | |
3 | INPUT VOLTAGE | 110V | 220V | |
4 | OUTPUT CURRENT | 30A | 55A | |
5 | DUTY CYCLE | 243V | 243V | |
6 | RATED OUTPUT VOLTAGE | 92V | 102V | |
7 | EFFICIENCY | 80% | ||
8 | POWER FACTOR | 0.73 | ||
9 | DUTY CYCLE | 100% | 60% | |
10 | NET WEIGHT | 6.6KGS | ||

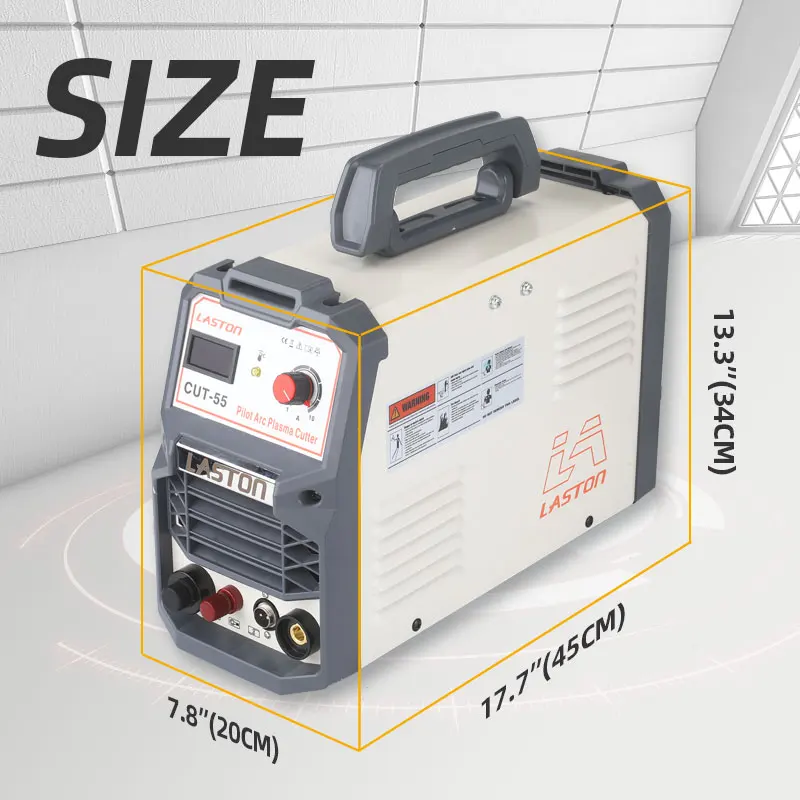

11 | DIMENSION | 450X200X340mm | ||

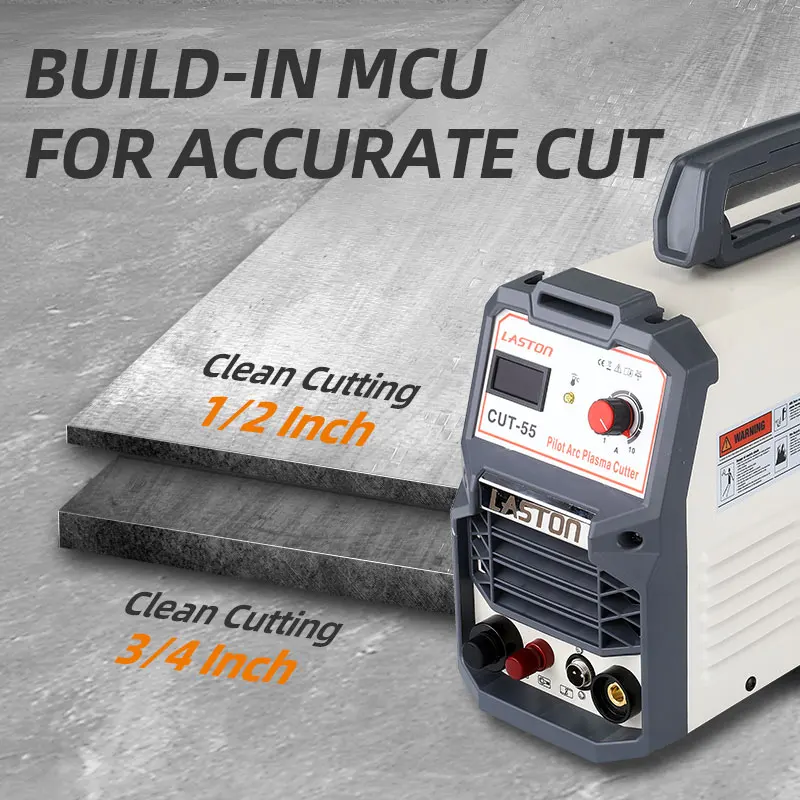

Cutting Thickness
* Max Rated Clean Cut Thickness: 1/2"
* Max Severance Thickness: 3/4"
It's perfect for both demanding industries and home or hobby use.
* Max Severance Thickness: 3/4"
It's perfect for both demanding industries and home or hobby use.
Applicable material and used
* Widely used for cutting stainless steel, mild steel, copper and other metal materials.
* Suitable for a wide range of applications including sheet metal fabrication, light industrial use, automotive, ducting work,repair and maintenance services.
* Suitable for a wide range of applications including sheet metal fabrication, light industrial use, automotive, ducting work,repair and maintenance services.

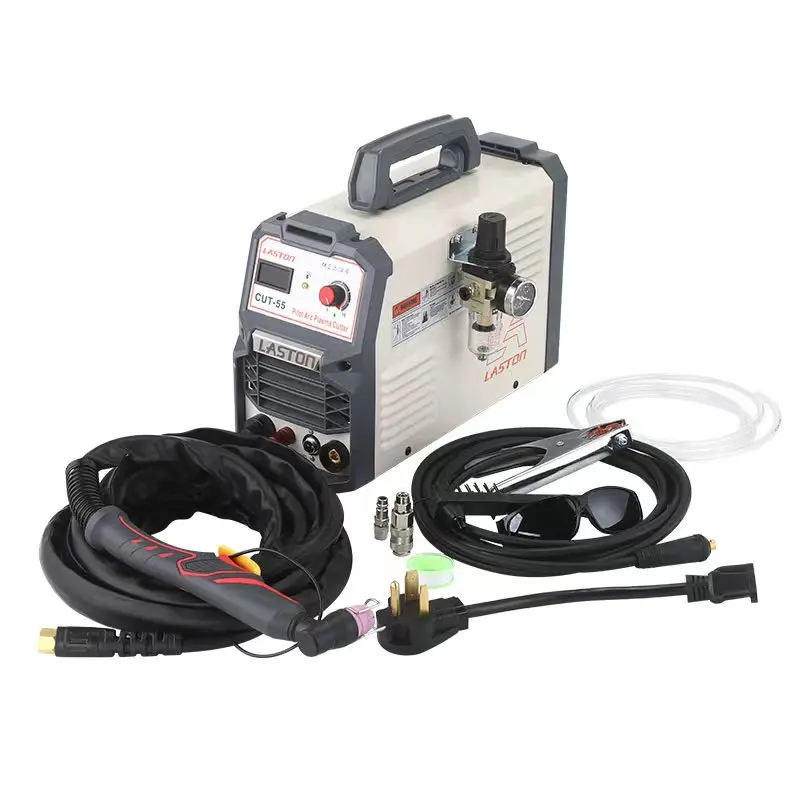

Accessories
1. 5m P60 CUTTING TORCH with Accessories
2. 5m 16m㎡ cable with 300A Ground Clamp
3. AW2000-02 Air Filter
4. 1.8m power cable
5. Gas Hose
6. Teflon Tape
7. Brush
8. goggles
2. 5m 16m㎡ cable with 300A Ground Clamp
3. AW2000-02 Air Filter
4. 1.8m power cable
5. Gas Hose
6. Teflon Tape
7. Brush
8. goggles
Packing and Payment

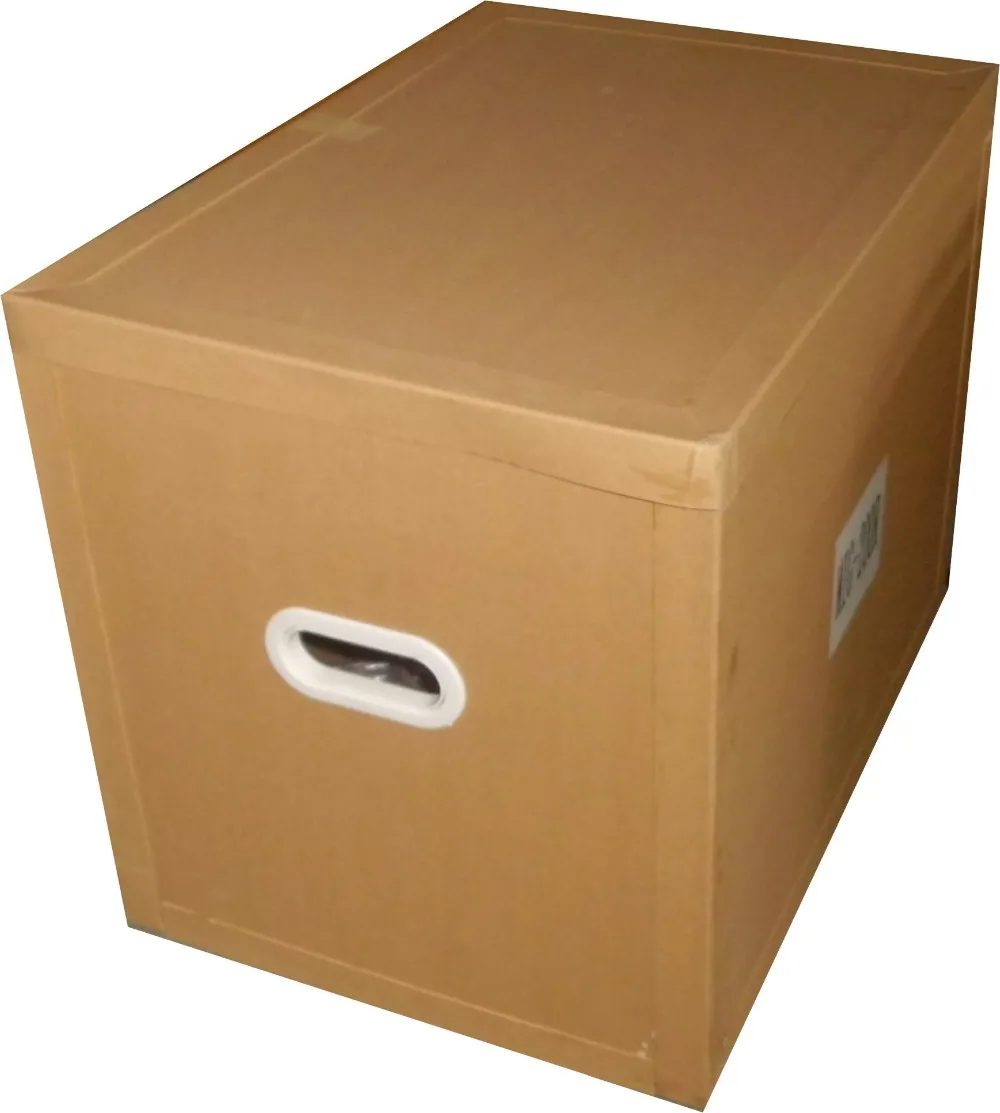

Kraft box by Customized design
MOQ:200PCS
honeycomb box by Customized design
MOQ:100PCS
color box by Customized design
MOQ:500PCS

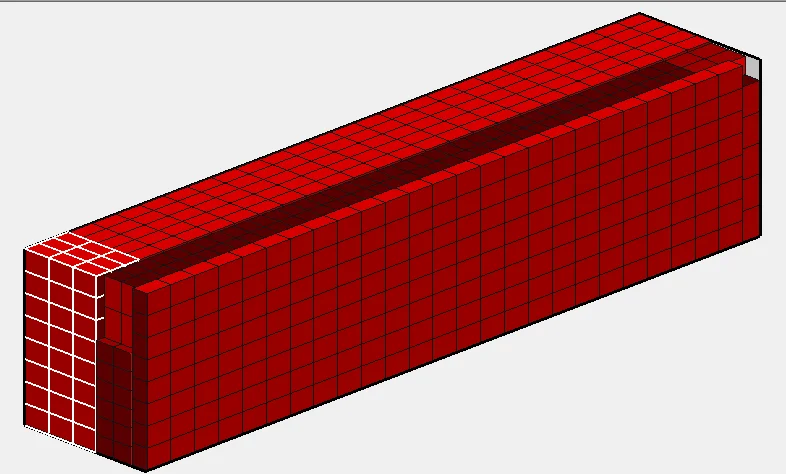

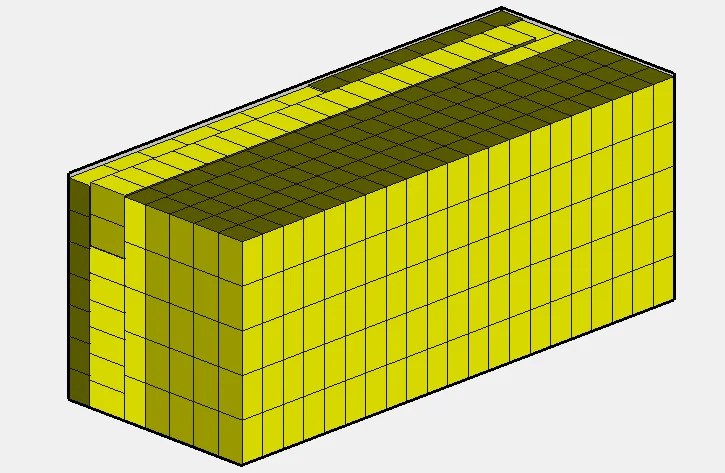

20 GP LOADING QTY
Package:465x280x330mm
20GP container loading quantity:747CTNS
40 HQ LOADING QTY
Package:465x280x330mm
40HQ container loading quantity:1715CTNS
Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,70% T/T after get the Copy BL.
CURRENCY
USD/EURO/RMB
DELIVERY
35-45 days after confirm the design and also the designs

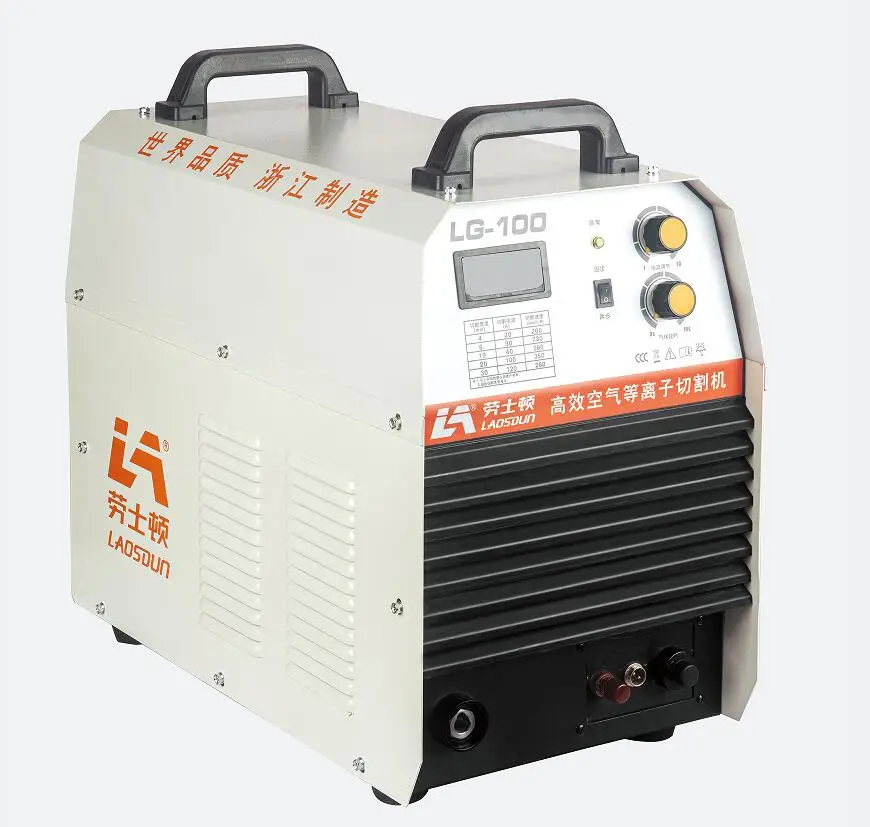

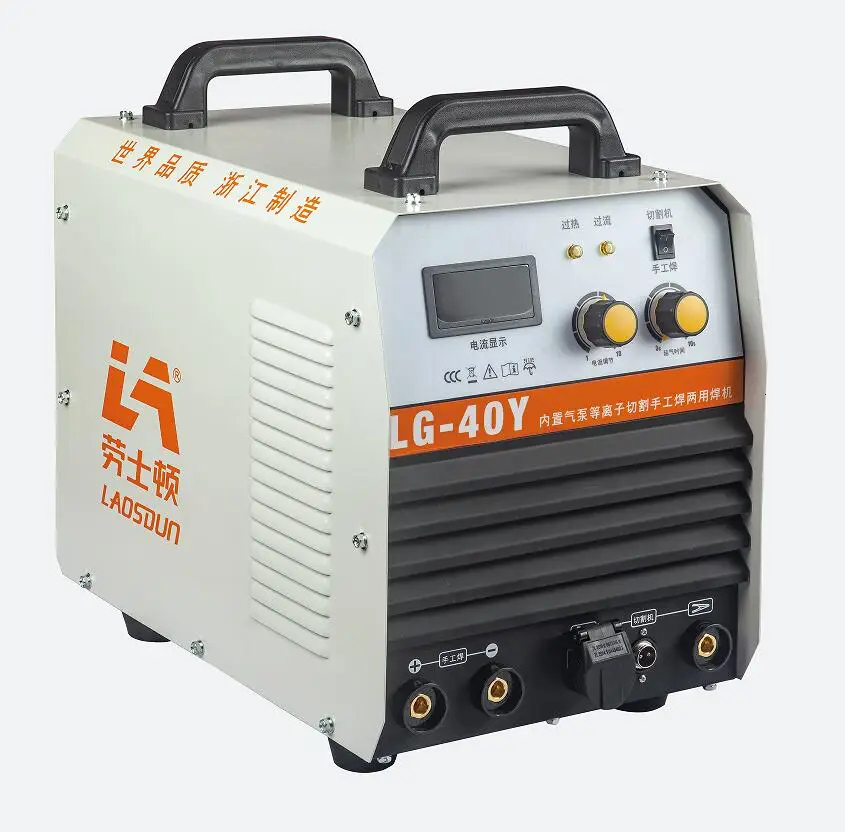

SIMILAR PRODUCTS

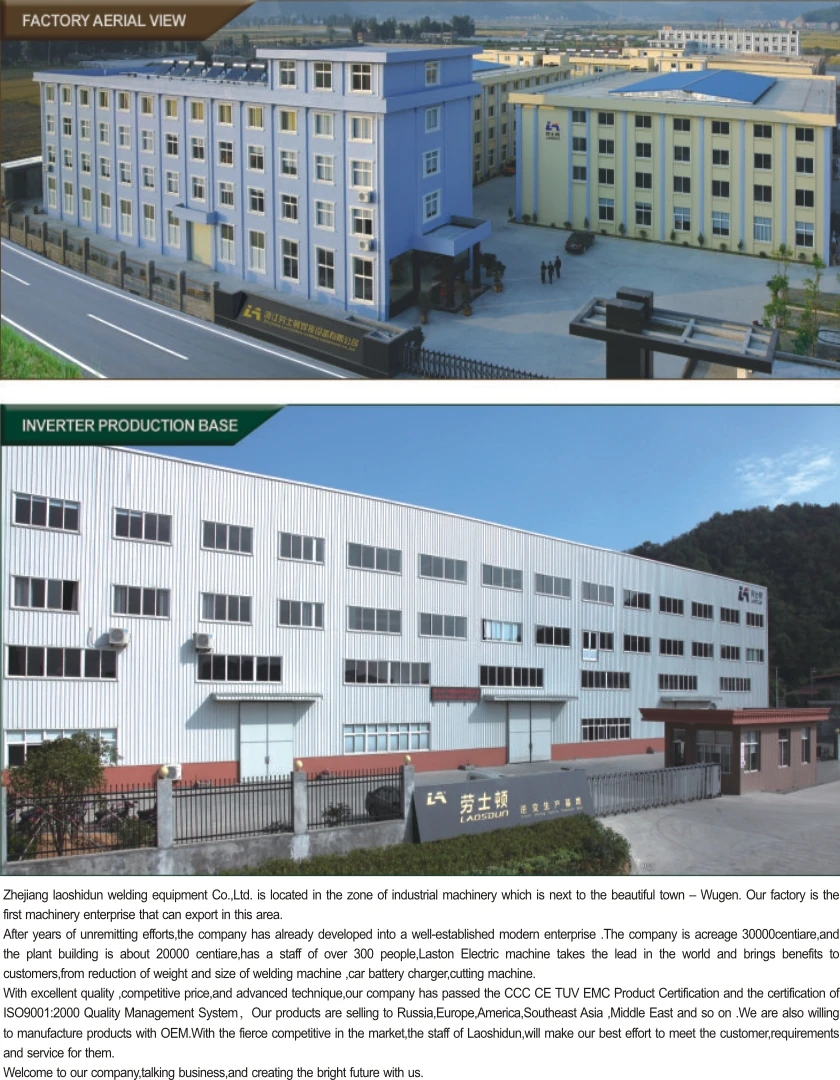

ABOUT LASTON
SALES AND SERVICE NETWORK
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:How many people in your factory?
A:About 450 people.

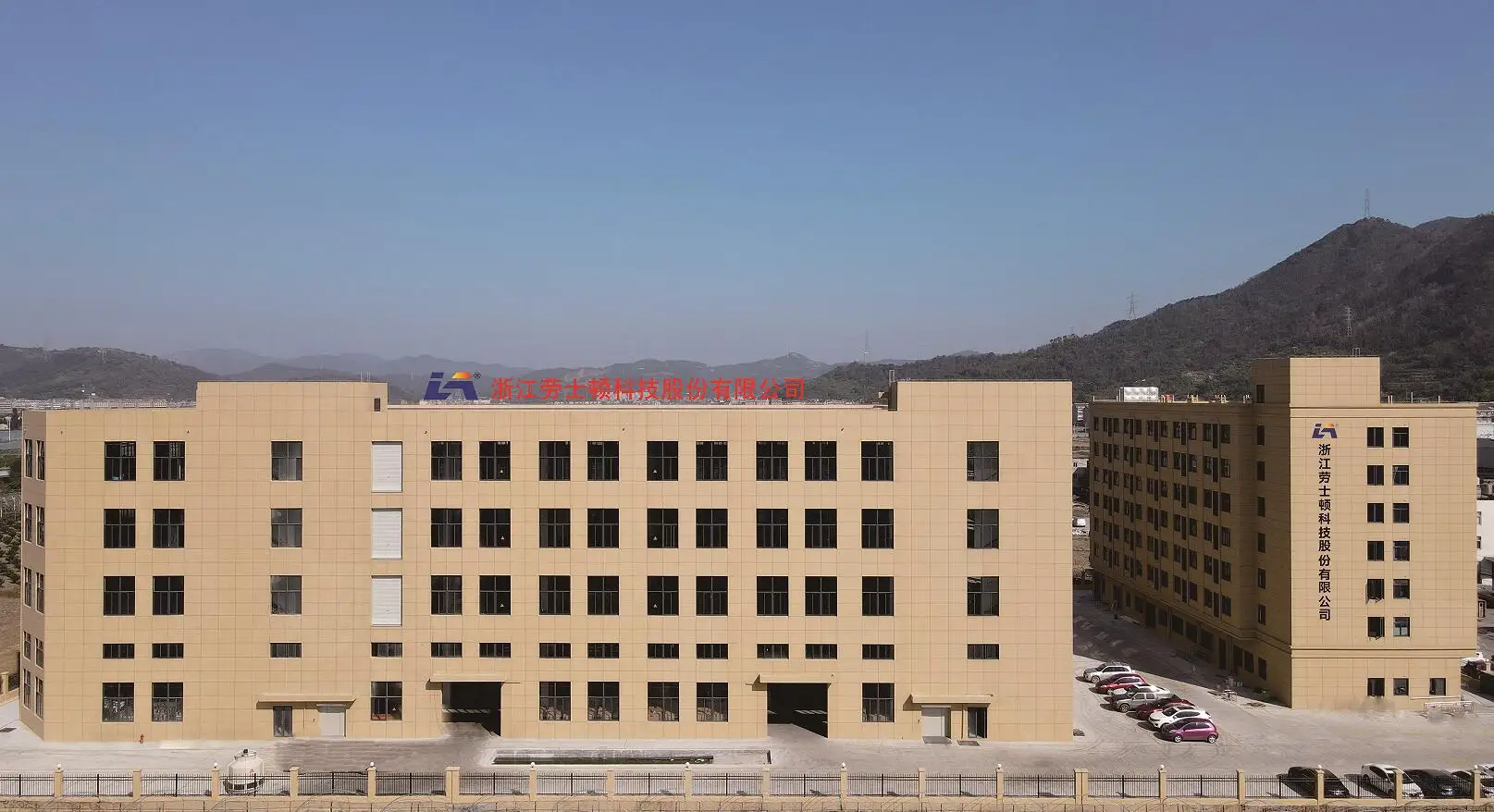

Q:Where is your factory located?
A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,Wenling City, Zhejiang Province, China.
Q: How can i visit your company?
A:You can fly to Taizhou airport, Ningbo airport or Shanghai air port. Or you can take train to Wenling Station. Then inform us,we'll come to pick you up!
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

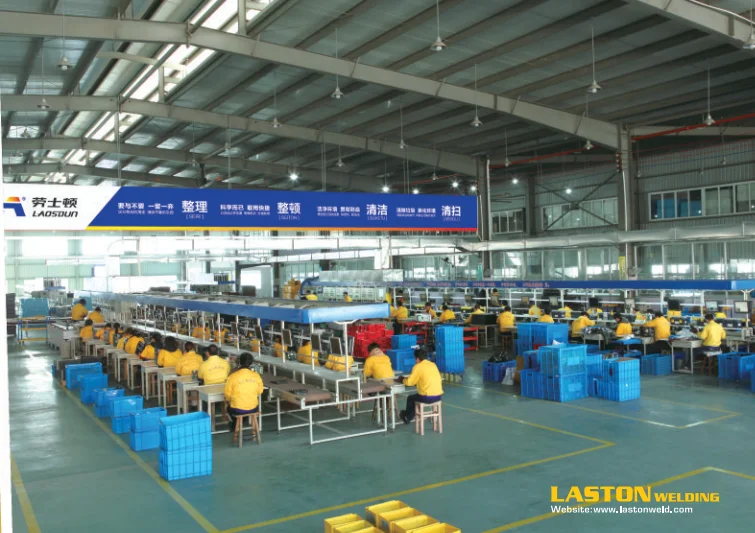

Q:How do you control the quality?
