2019 China cheap cnc plasma cutter Portable cnc plasma cutting machine
JX-1525/1530 TYPE is a high-end machine numerical control plasma, flame cutting machine.
Machine Introduction :
1.Programmable cutting arbitrary shape parts of line and arc .
2.Dynamic and static graphic display, easy to learn.Can convert CAD file in computer, through USB flash drive transmits to machine to realize cutting all kinds' graphs and also can program and operate directly on the machine .
3.Track and movement organizations adopt unique design, ensuring the working precision of machine.
4. Can use flame cutting (gas cutting ) and plasma cutting .
5.Interfaces in English or Chinese can be converted freely.
6.Economical, Portable and easy to operate.
7.Great working stability, effective shield plasma high frequency interference.
Technical data
|
No. |
Technical specification |
|||
|
1 |
Model |
JX-1525 |
JX-1530 |
JX-1755 |
|
2 |
Power source |
AC 220/380V±10%VAC 50/60Hz | ||
|
3 |
Cutting mode |
O2/C3H8 or C2H2 |
||
|
4 |
Effective cutting range(mm) |
1500*2500 |
1500*3000 |
1700*5500 |
|
5 |
Plasma cutting gas |
N2,O2,compressed air |
||
|
6 |
Flame cutting gas |
Oxygen+ propane or acetylene |
||
|
7 |
Cross beam width*guide rail length (mm) |
2000*3000mm |
||
|
8 |
Cutting speed mm/min |
0-8000mm/min |
||
|
9 |
Flame Cutting thickness (mm) |
5-150 (Oxygen + acetylene or propane) |
||
|
10 |
Plasma Cutting thickness (mm) |
0.3-30mm |
||
|
11 |
Move precision |
±0.2mm/m |
||
|
12 |
Torch |
Flame, electric height adjustment(±60mm) Plasma, Arc voltage height(THC) |
||
|
13 |
Cutting system |
Start control system |
||
|
14 |
Host weight(kg) |
19 |
||
|
15 |
Total weight(kg) |
100 |
120 |
150 |
|
16 |
Gas pressure(Mpa) |
Max.0.1 |
||
|
17 |
Oxygen pressure(Mpa) |
Max.0.7 |
||
|
18 |
Type of gas |
C3H8 C2H2 |
||
|
19 |
Emergency stop |
Yes |
||
|
20 |
Working temperature |
-5~45℃ |
||
|
21 |
Power |
8.5kw |
||
|
22 |
Plasma power |
60A-160A |
||
|
23 |
ARC |
Untouched arc striking |
||
|
24 |
Processing Materials |
Iron, steel aluminum sheets, galvanized sheets, Titanium plates |
||

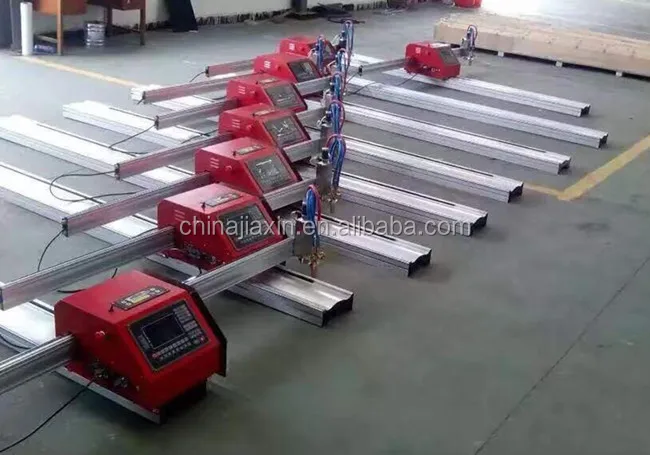

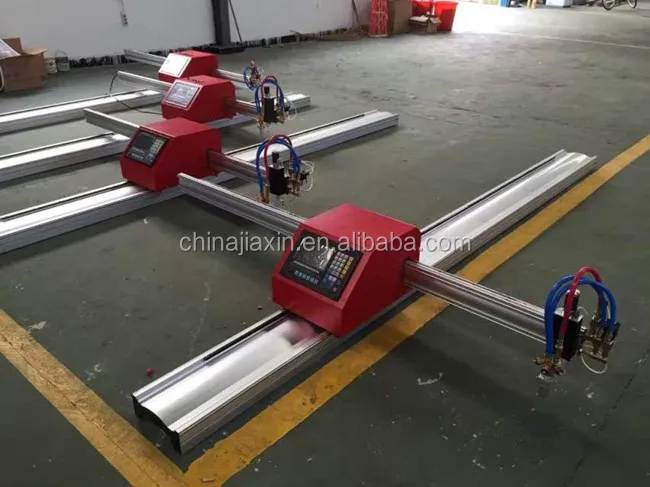

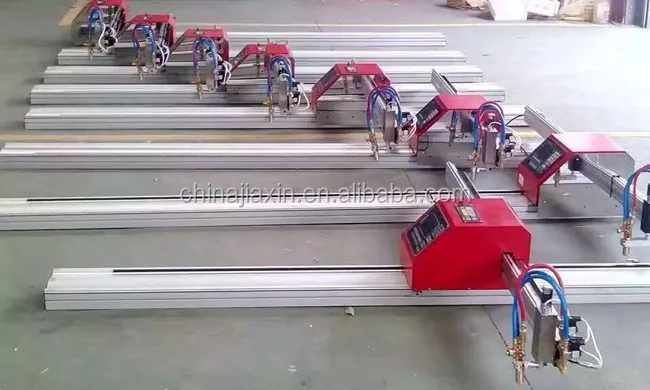

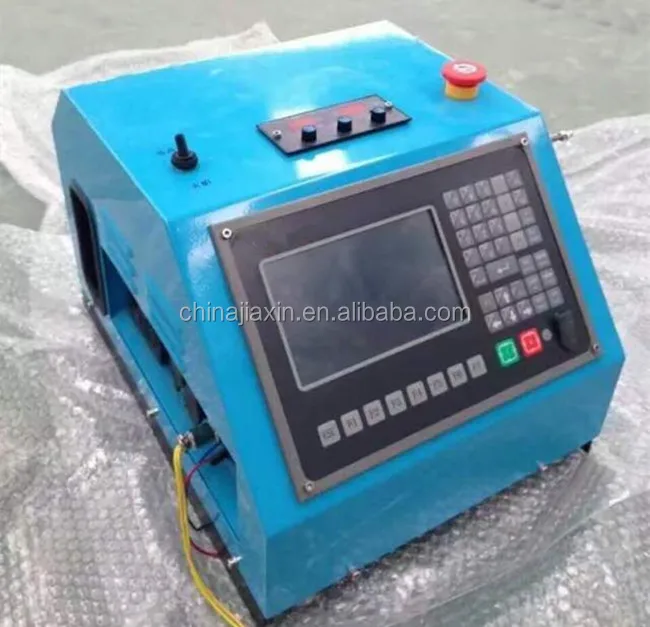

Picture show
9 Languages
Sample
Common patterns in system
Working pictures
We chose the best quality plywood for packing, stable and no need for
steaming. About the delivery ways, you can choose by sea, by air or by car.
1.We provide you the friendly English User manual and Testing Video for free.
2.24 hours technical support by email or calling.
3.12 Months warranty Quality guarantee and Charge free technical support forever
4.Free training to make sure you master the operating of automatic stirrup bending machine, not including programming training.
5.Videos of operating the machine are available.
we are manufacturer of CNC automatic steel bar bending machine,bending
machine , cutting machine, steel bar straightening machine etc.we also can supply
setting up a new factory full line service . We have already exported various kinds
of concrete pile , pole and pipe concern making machines to overseas countries
and regions such as Indonesia, Parkistan, Vietnam, Myanmar ,Korea,Malaysia ,
South african, Mideast Southeastern Asia, etc.
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What&rsquos the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
