china cheap Portable cnc plasma cutter cnc plasma cutting machine
1, Aluminum structure guide and rail,
Excelent balanced patent design, Geometric design, weighing more and wont bent after long time working, make sure high move precision and cutting precisioin.
2, Alloy aluminum structure body, strong enough for continuely working for years.
Hardware parts strong is most important for machines electric parts could change after broken, but hardware parts could not change.
3, Each 8 pcs big bearing rollers for X axis guide and Y axis rail which installed with duo ball guiding rails
Rollers tached rails tightly in different points, to make sure moving steady and moving precision.
4, Control system is Fangling F2100B,which is very popular in China,with large graphics library,and easy to learn to operate.
Support 19 languages(Chinese, English, Russian, Spanish, Portuguese,Nederlands, French, Japanese, Korean and so on).
Also could be other language as buyer demand.
5, Lifting station to take cutting torch up and down
Use Leadshine stepper motor, ball screw to transform more steady and smooth
6. Complete after-sales service whole set install video, operate video, problems resolve video, user manuals
24 hours online service Engineer available to service at buyers' countries.
china cheap Portable cnc plasma cutter cnc plasma cutting machine
| No. | Technical specification of Portable cnc plasma cutting machine | |||
| 1 | Model | JX-1525 | JX-1530 | JX-1560 |
| 2 | Power source | AC 220/380±10%VAC 50/60Hz | ||
| 3 | Cutting mode | O2/C3H8 or C2H2 | ||
| 4 | Effective cutting range(mm) | 1500*2500 | 1500*3000 | 1500*6000 |
| 5 | Input Voltage | 220V, 50HZ | ||
| 6 | Cutting speed(mm/min) | 0-8000mm/min | ||
| 7 | Cutting thickness(Flame)(mm) | 6-160 (O2/C3H8 or C2H2) | ||
| 8 | Move precision | ±0.2mm/m | ||
| 9 | Torch | Flame, electric height adjustment(±60mm) | ||
| 10 | Processing thickness(mm) | 0.5-15mm | ||
| 11 | Cutting system | Start control system | ||
| 12 | Host weight(kg) | 19 | ||
| 13 | Total weight(kg) | 100 | 120 | 150 |
| 14 | Gas pressure(Mpa) | Max.0.1 | ||
| 15 | Oxygen pressure(Mpa) | Max.0.7 | ||
| 16 | Type of gas | C3H8 C2H2 | ||
| 17 | Emergency stop | Yes | ||
| 18 | Working temperature | -5~45℃ | ||
| 19 | Power | 8.5kw | ||
| 20 | Plasma power | 40A to 200A | ||
| 21 | ARC | Untouched arc striking | ||
| 22 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates | ||
china cheap Portable cnc plasma cutter cnc plasma cutting machine

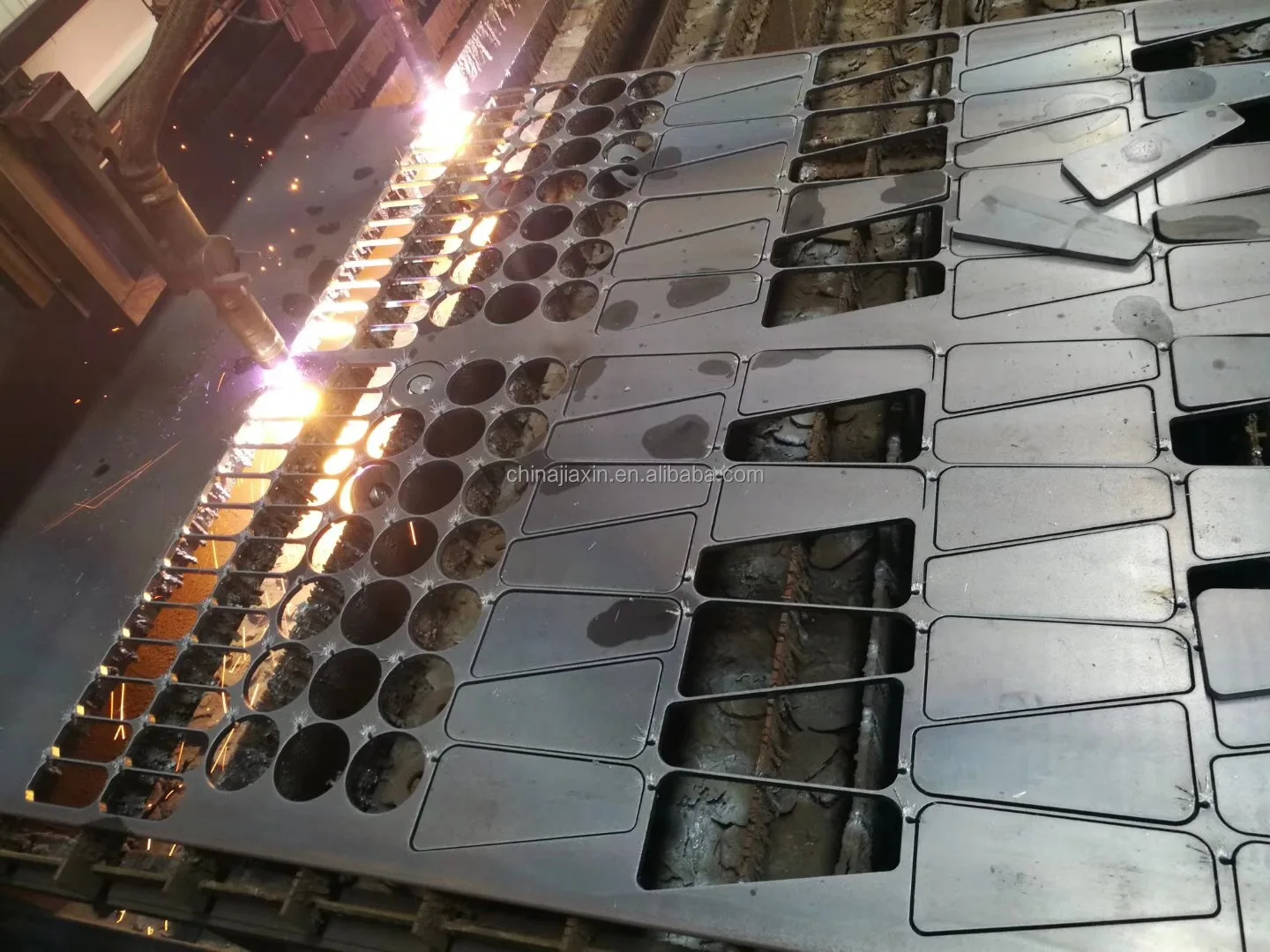

This Portable cnc plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

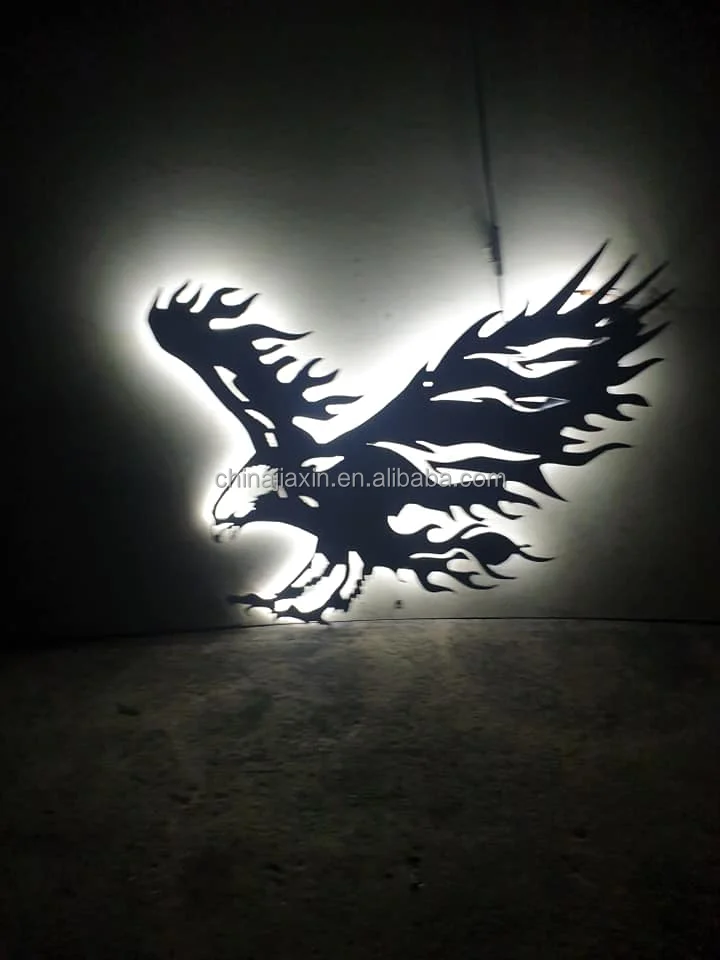

Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Portable CNC plasma cutting machine equiped with Plasma cutting torch and Oxygen fuel cutting torch
could cut both thin and thick metal plates with fast speed and guarantee the cutting quality.
Smart cut, could accept and cut all shapes from AutoCad.
china cheap Portable cnc plasma cutter cnc plasma cutting machine
Prompt delivery 1-3 days after get order OEM and trial order are welcome.
One set Portable cnc plasma cutting machine will packed into 2-3 pcs free-fumigation wooden cases.
We produce different plasma cutting machines for metal sheets and metal pipes.
You are welcome to leave a inquiry to us, detailed quotation will provided to you at soonest.
