Máy Cắt Plasma Công Nghiệp Máy Cắt Plasma Công Nghiệp LGK-400 Cho Tấm Kim Loại Dày 90Mm
999
Đã bán
164.888.750đ
159.815.250đ ~ 164.888.750đ
164.888.750đ
159.815.250đ ~ 164.888.750đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
159.815.250đ
zeZH8EjT4v
Mô tả sản phẩm
Đánh giá Điện Áp Đầu Vào: 94.1KVAMở Mạch Điện Áp (OCV): 380V
Max. Sản Lượng Hiện Tại: 400AVideo Gọi Đi-Kiểm Tra: Cung Cấp
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpTiếp Thị Loại: Sản Phẩm Mới 2020
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ
Max. Điện Áp Đầu Ra: 380V ± 15%Xếp hạng Duty Cycle @ 40 °C: 100%
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: China Huayuan BrandĐiện áp: 380V
Công suất: 94.1KVAKích thước (L * W * H): 930*400*900mm
trọng lượng: 144kgNăm: 2020
Bảo hành: 1 NămÁp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, In ấn Cửa Hàng, Xây dựng làm việc, Công Ty quảng cáo
Phòng Trưng Bày Trí: Việt Nam, Brasil, Mexico, Chile, Algérie, BangladeshTrọng lượng (KG): 85 KG
Tên sản phẩm: Máy Cắt Plasma LGK-400Điện áp đầu vào: 3 pha 380V ± 15% 50/60Hz
Xếp hạng đầu ra hiện tại: 400AĐộ dày cắt: 0.3-40mm
Đánh giá dỡ điện áp: 380VSản lượng Hiện Tại ADJ Phạm Vi: 30-400A
Áp Suất không khí: 0.4-0.6MpaPhương pháp làm mát của cắt ngọn đuốc: Nước làm mát
Cách nhiệt lớp: Lớp FVỏ bảo vệ lớp: IP21S
Dịch vụ sau bán hàng cung cấp: Miễn Phí Các Bộ Phận Dự Phòng, Lĩnh vực cài đặt, vận hành và đào tạo, Lĩnh Vực Bảo Trì Và Dịch Vụ Sửa Chữa, Hỗ Trợ Trực Tuyến, Video Hỗ Trợ Kỹ ThuậtSau Khi Dịch Vụ Bảo Hành: Video Hỗ Trợ Kỹ Thuật, Hỗ Trợ Trực Tuyến, Các Bộ Phận Dự Phòng, Lĩnh Vực Bảo Trì Và Dịch Vụ Sửa Chữa
Địa Phương Phục Vụ Vị Trí: Peru, Indonesia, Thái Lan, Chile, AlgérieChứng nhận: CE ISO
Product Description
Features of Plasma Cutting machine LGK-400:
※ High load persistence, suitable for heavy industry.
※ With wide grid voltage adaptability.
※ Cutting current slow rising technology, reduce the consumption of cutting gun accessories.
※ Good arc stiffness, clean cut.
※ Scientific dustproof design, high reliability of the whole machine.
※ Compact structure, small size and light weight.

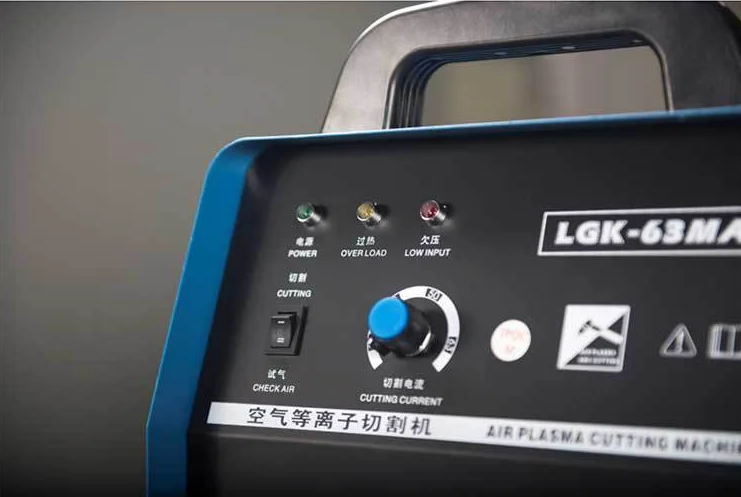

※ Cutting current stepless adjustable, suitable for different thickness of the workpiece.
※ Qigong test, easy to adjust the air pressure.
※ With undervoltage, overheat automatic protection function.
※ With wide grid voltage adaptability.
※ Cutting current slow rising technology, reduce the consumption of cutting gun accessories.
※ Good arc stiffness, clean cut.
※ Scientific dustproof design, high reliability of the whole machine.
※ Compact structure, small size and light weight.
※ Cutting current stepless adjustable, suitable for different thickness of the workpiece.
※ Qigong test, easy to adjust the air pressure.
※ With undervoltage, overheat automatic protection function.

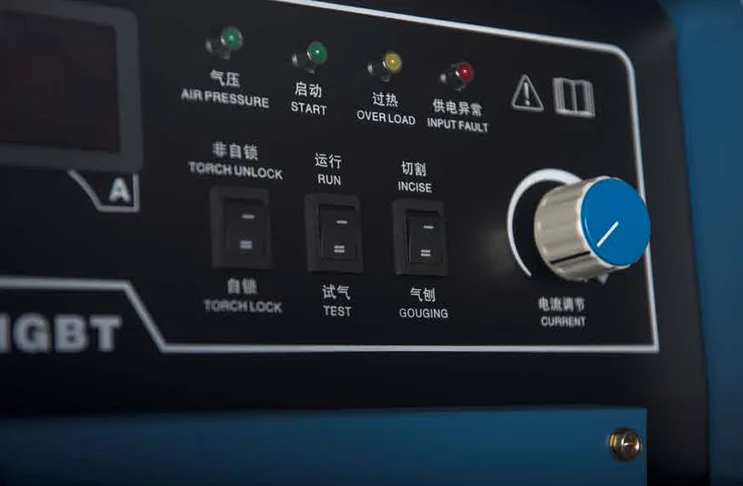

Detailed Images
Ambient temperature 40 ℃, 100% load persistence, suitable for heavy load industrial high-intensity operations.
Designed for CNC plasma cutting machines with unloading voltage up to 380V.

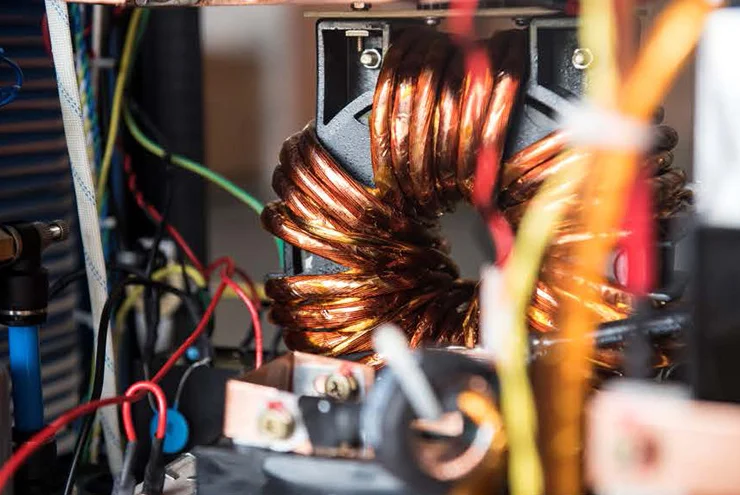

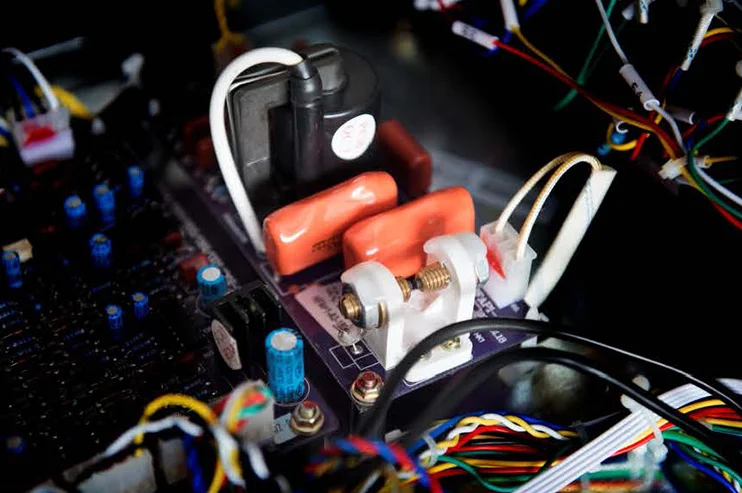

Equipped with high quality high frequency generator, high success rate of arc initiation.
The core of machine adopts dust-proof, moisture-proof and smog-proof spraying technology, with strong environmental adaptability.

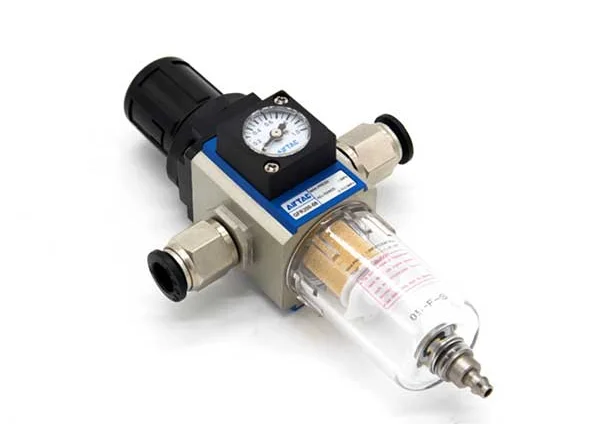

Select high quality pressure regulating filter, filter, pressure regulating stable and reliable.
Air gouging, cutting, dual - use, it can be freely to switch working mode according to application.
It has automatic protection function of overheat, undervoltage and out of phase to reduce the risk of accidental damage of power supply.

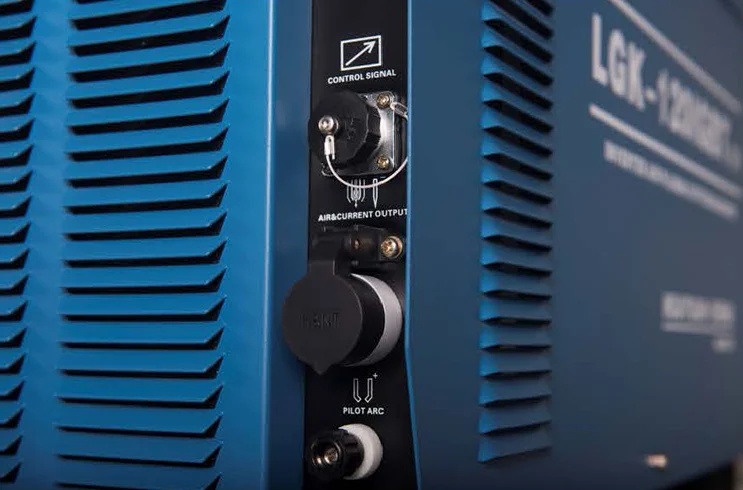

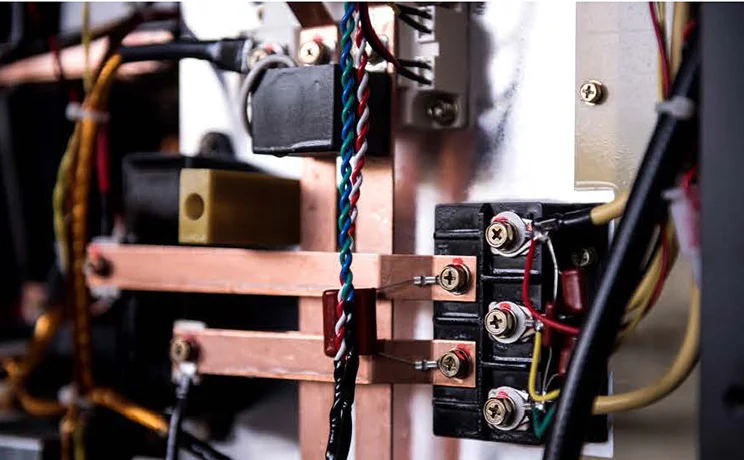

The output terminal is equipped with a self-reset protective cap to ensure operation safety.

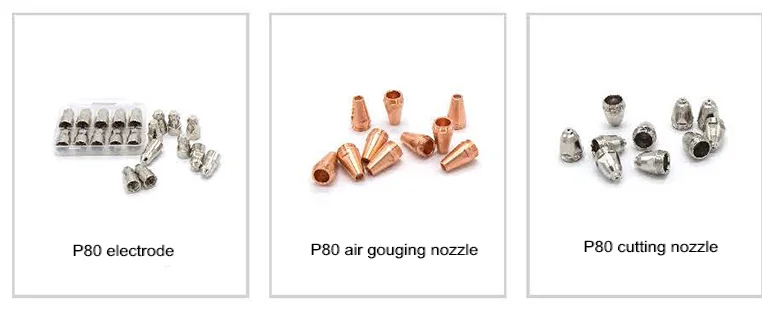

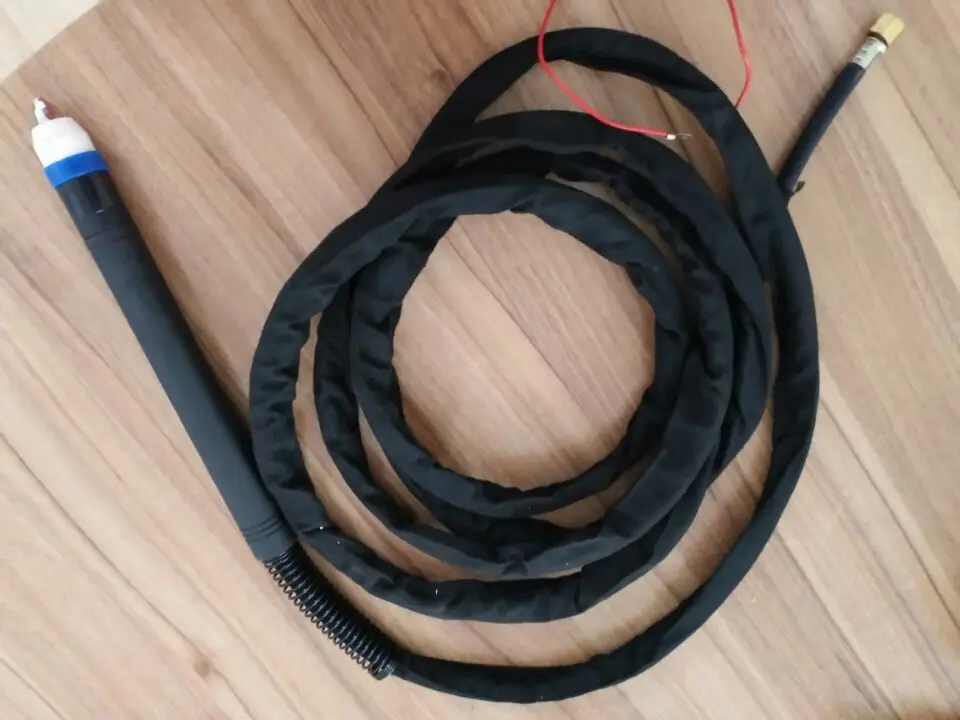

P80 plasma cutting torch
Size Information
Item | Model | ||
LGK-300IGBT | LGK-400IGBT | ||
Input source (V/Hz) | 3-380±15% 50/60 | ||
Rated input capacity (KVA) | 65.8 | 94.1 | |
Rated input current (A) | 100 | 143 | |
Rated output current (A) | 300 | 400 | |
Rated output voltage (v) | 200 | 200 | |
Rated unloading voltage (v) | 380 | 380 | |
Rated loading cycle | 100%(40℃) | ||
Range of output current | 30-300A | 30-400A | |
Ratio of arc pressure output signal | 1:1/1:20/1:50/1:100 | ||
Qualified cutting capacity (carbon steel) (mm) | 0.3-50 | 0.3-60 | |
Cutting capacity (carbon steel) (mm) | 80 | 90 | |
Plasma air | Air compressor | ||
Air pressure (mpa) | 0.45-0.6 | ||
Cooling method of torch | Water cooling | ||
Cooling method of source | Water cooling | ||
Insulation grade | Grade F | ||
Shell protect grade | IP21S | ||
Dimension (mm) | 890*430*900 | 930*400*900 | |
Net weight (kg) | 124 | 144 | |

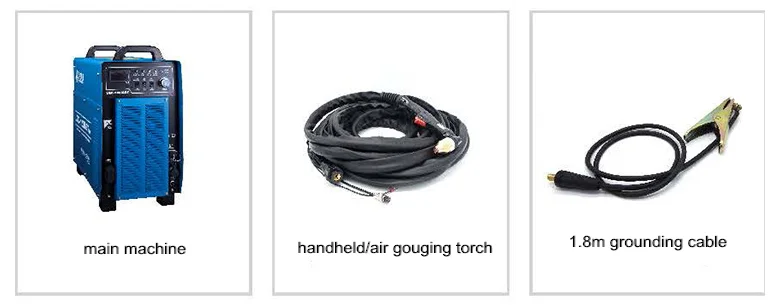

Standard configuration of Air plasma power source.

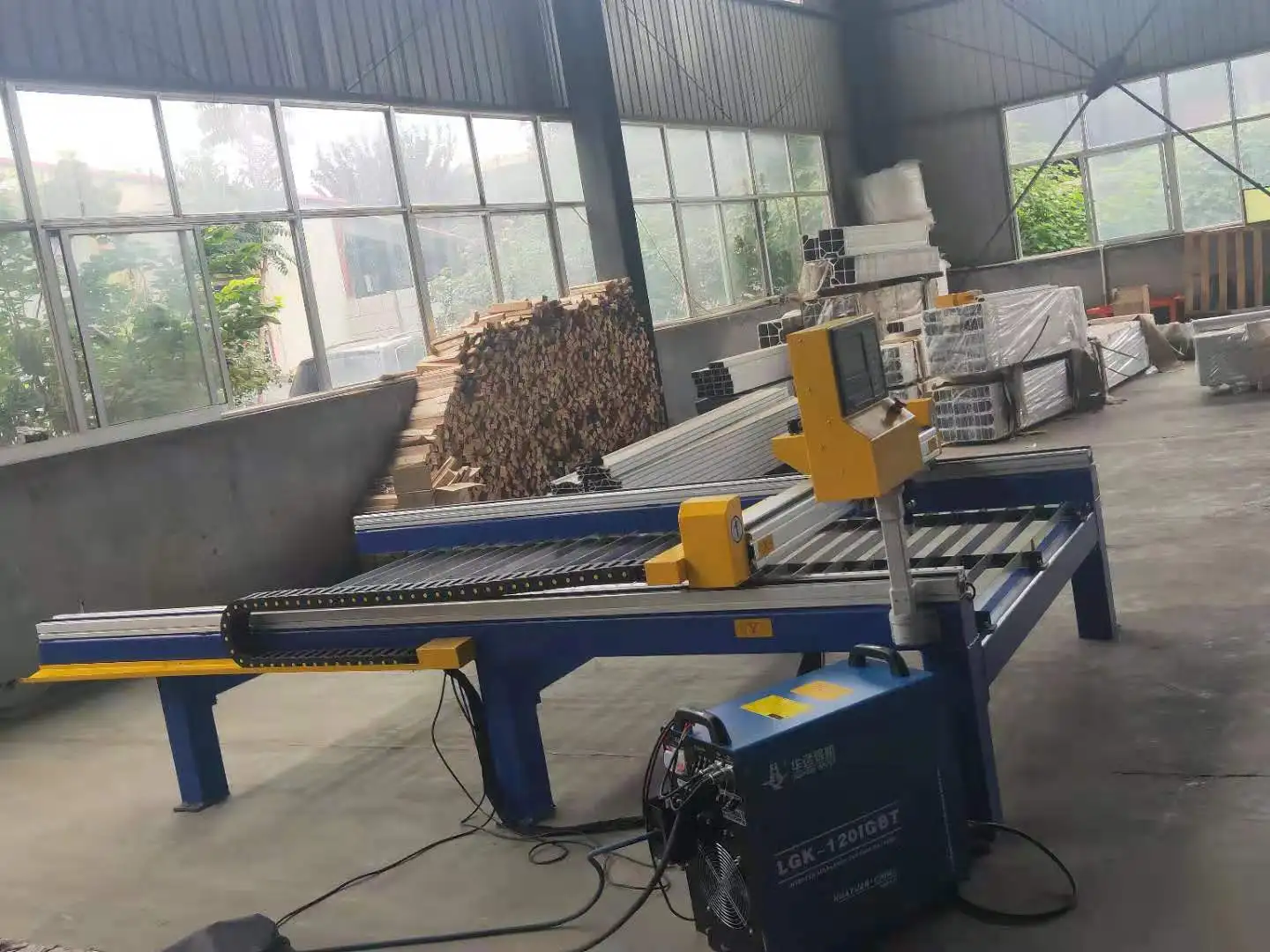

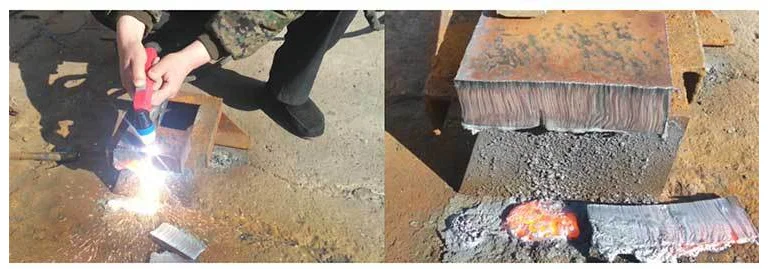

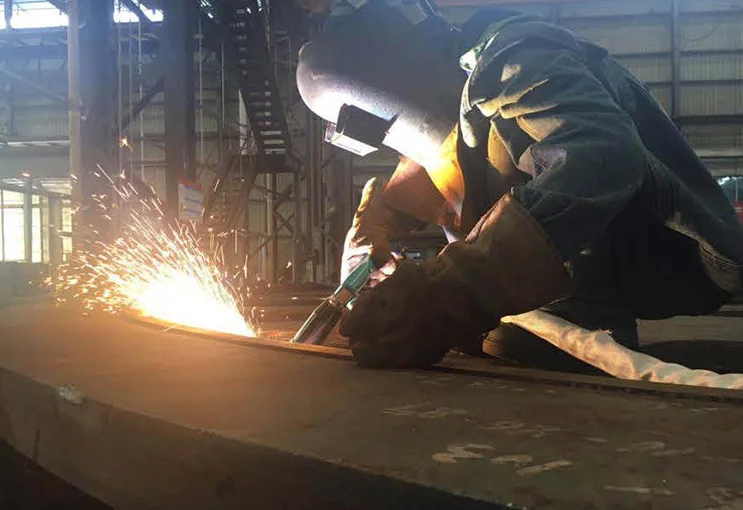

Working pictures
Application of Plasma Cutting machine LGK-400:
The plasma power supply is mainly used for cutting metal materials such as carbon steel, stainless steel, and aluminum. It is widely used in shipbuilding, steel structure construction, engineering machinery, locomotive manufacturing, boilers, water conservancy and hydropower, petrochemical, mechanical processing and other industries.
The plasma power supply is mainly used for cutting metal materials such as carbon steel, stainless steel, and aluminum. It is widely used in shipbuilding, steel structure construction, engineering machinery, locomotive manufacturing, boilers, water conservancy and hydropower, petrochemical, mechanical processing and other industries.

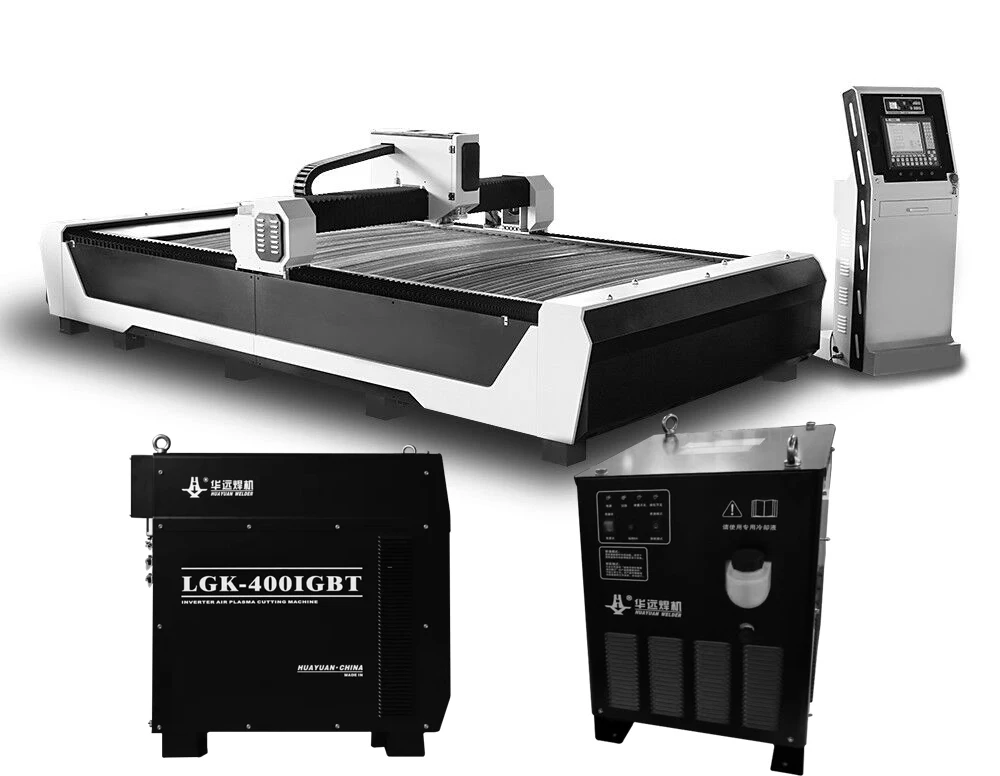

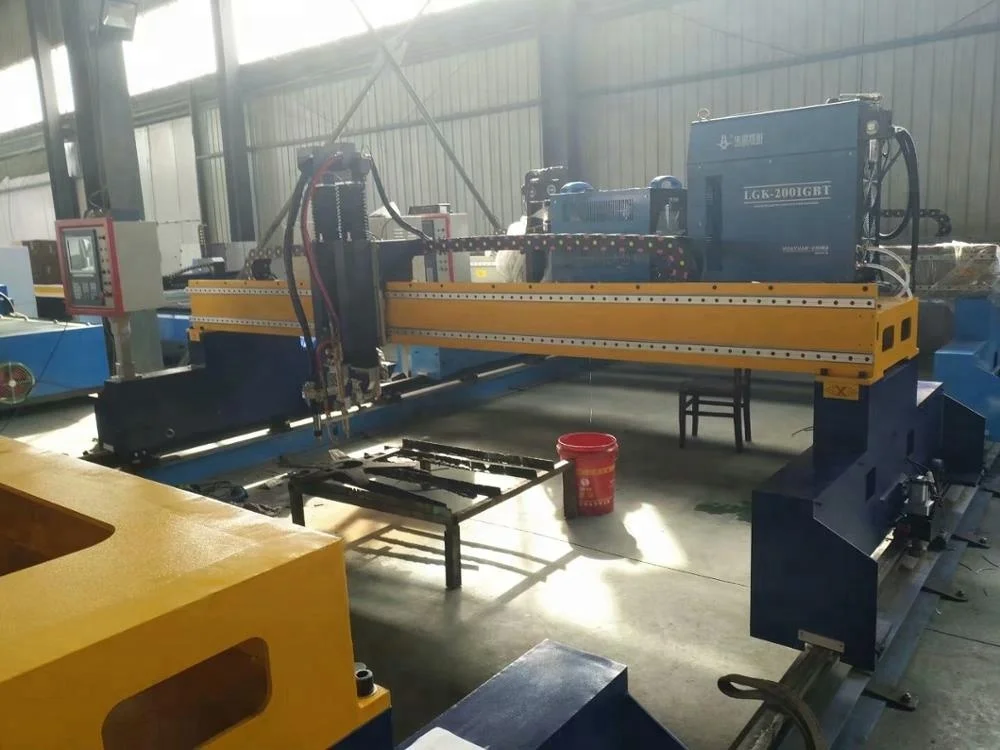

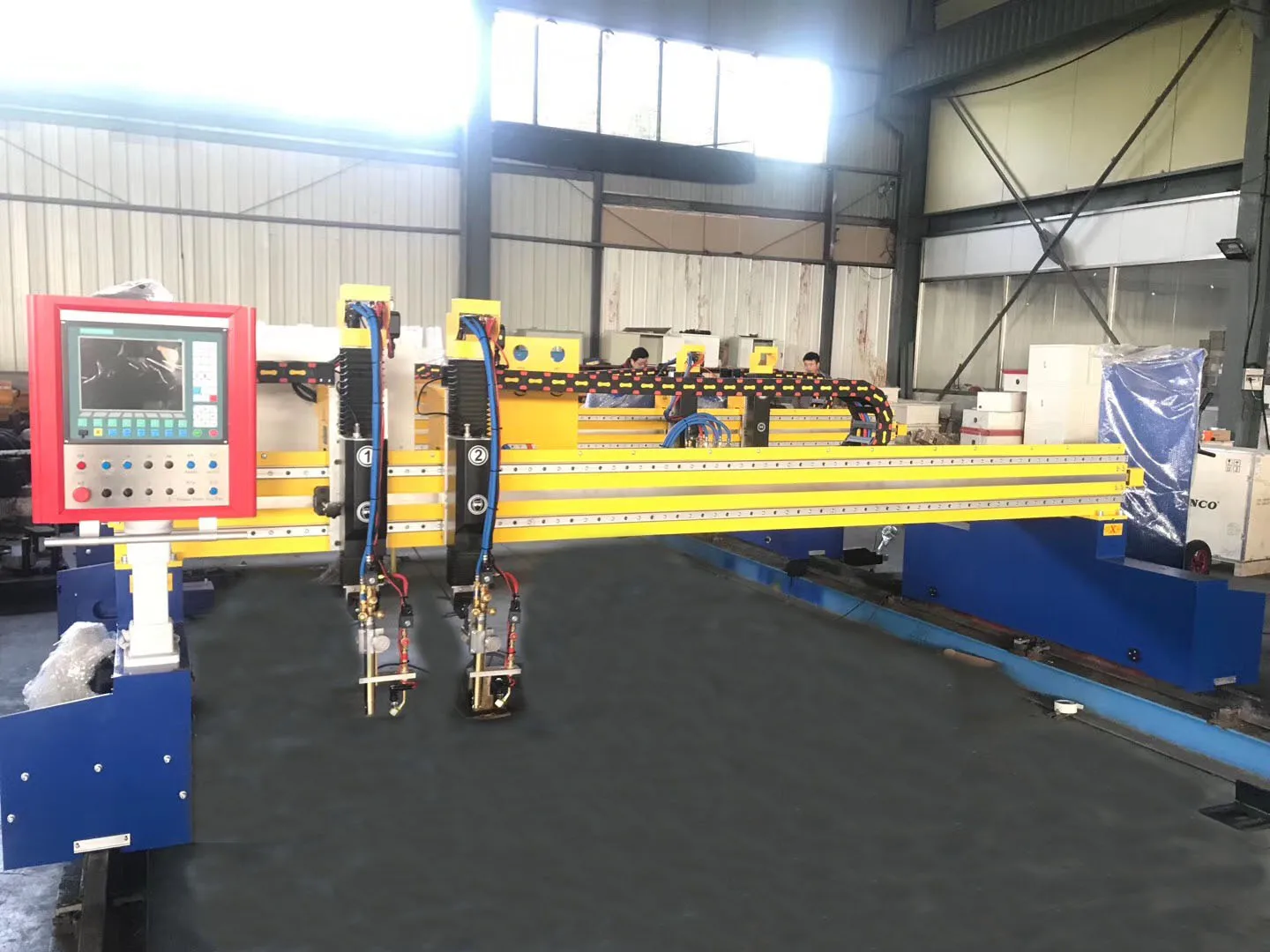

Gantry CNC cutting machine is a kind of cutting and blanking equipment with extremely wide application. The professional mechatronics equipment combined with computer and software can cut any shape of plate or tube workpiece, improve cutting quality and efficiency, and increase material utilization. The stability of the cutting rate and cutting quality reduces the labor intensity of workers.
CNC Plasma cutting: It is a processing method that uses the heat of a high-temperature plasma arc to partially melt or evaporate the metal at the incision of the workpiece, and uses the momentum of the high-speed plasma to remove the molten metal to form an incision.

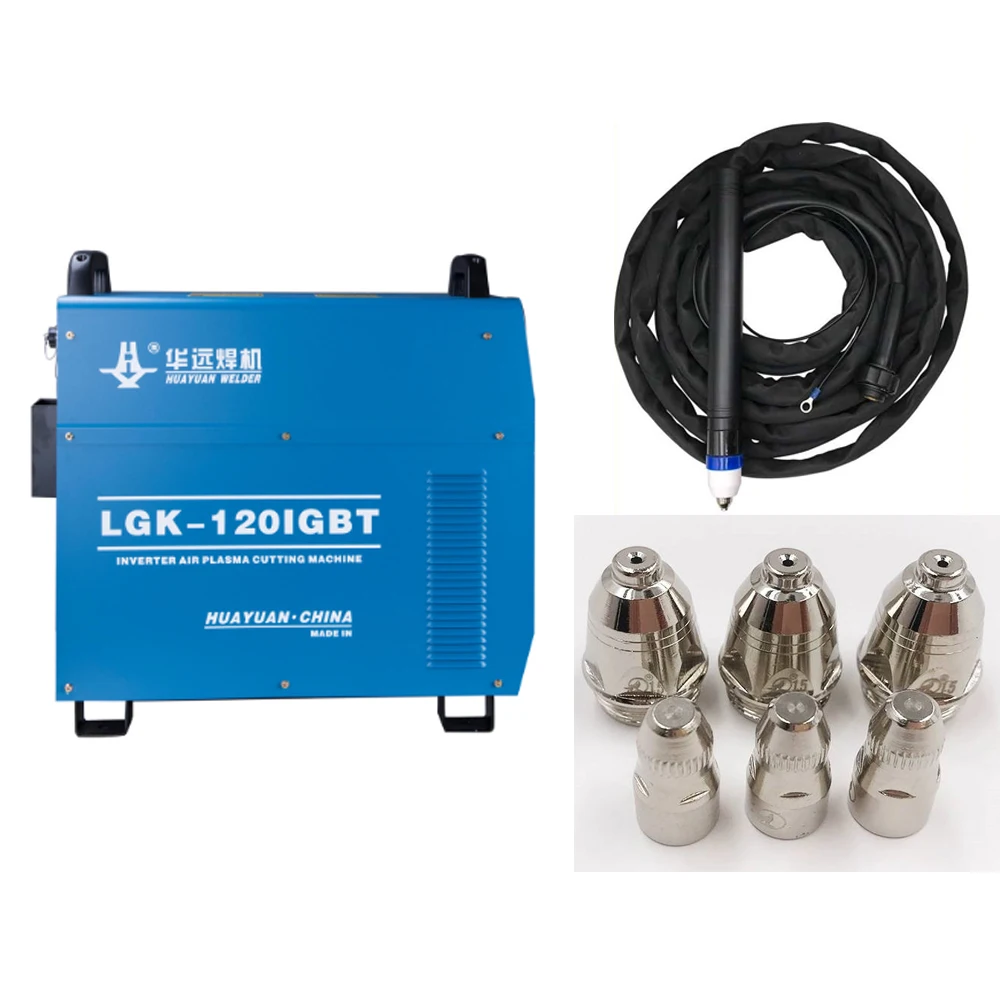

Related Products
Packing&Shipping
Company Introduction
Shandong Jiaxin Machinery Equipment Co.,Ltd.located in the hometown of Confucius and Mencius-Jining City, northwest of excellent transport location for communication between business and customers to provide a great convenience and fast.
Science and technology are primary productive forces"continuous advancement of technology is the development of the eternal source of power. The factory after nearly 20 years of development from a roller mold factory into a large-scale production of cold. Hot-rolled steel processing equipment. CNC steel processing equipment five series more than thirty kinds of products manufacturer enterprises.
We have always adhered to the "integrity of management, quality first&rdquo business philosophy customer for Gud's business objectives. Through a nationwide sales and service network, improve the pre-sale, selling service and after sale service sincere cooperation by providing quality products and efficient service for you.
Our Services & Strength
1.Pre-Sales Service:
1)Inquiry and consulting support.
2)We provide you the friendly English user manual and testing video free.
3)24 hours technical support by email or calling.
2.After-Sales Service:
1)Video of operating the machine are available.
2)12 months warranty quality guarantee and charge free technical support forever.
3)Free training to make sure you master the operating of machine.
FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What&rsquos the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
