Shanghai Fangling brand Control system
with 7 inch touchscreen, with built - in 48 figures, you could choose pattern from these figures directly, very convenient.
Máy Cắt Plasma Di Động Giá Rẻ Sở Thích Máy Cắt Plasma CNC Loại Bảng Mini
640
Đã bán
96.396.500đ
81.176.000đ ~ 96.396.500đ
96.396.500đ
81.176.000đ ~ 96.396.500đ
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
0%
81.176.000đ
GRF9P9bu0x
Mô tả sản phẩm
Kích thước: 1500*3000mmLoại động cơ: Động cơ bước
Điều kiện: MớiNơi xuất xứ: Shandong, China
Nhãn hiệu: JIAXINSố Mô Hình: JX-1530D
Điện áp: 220V/380VCông suất: 400W * 2
Kích thước (L * W * H): 2000*3400mmTrọng lượng (KG): 550 KG
Năm: 2021Bảo hành: 1 năm
Key Điểm Bán Hàng: Dễ dàng để Hoạt ĐộngÁp dụng Các Ngành Công Nghiệp: Vật Liệu xây dựng Cửa Hàng, Máy móc Cửa Hàng Sửa Chữa, Nhà Máy sản xuất, Xây dựng làm việc, Công Ty quảng cáo
Phòng Trưng Bày Trí: Brasil, Peru, Ấn Độ, Nga, Thái Lan, AlgérieTiếp Thị Loại: Sản Phẩm Mới 2020
Máy Móc Báo Cáo Thử Nghiệm: Cung CấpVideo Gọi Đi-Kiểm Tra: Cung Cấp
Bảo Hành Của Core Thành Phần: 1 NămCore Thành Phần: Động Cơ, Hướng dẫn tuyến tính, Ngang Đường sắt, nâng trạm
Tên sản phẩm: Cắt kim loại CNC Ngọn Lửa Plasma Máy CắtSau khi bán hàng Dịch Vụ Cung Cấp: Các kỹ sư có sẵn để phục vụ máy móc ở nước ngoài
Màu sắc: Tùy chỉnhĐộ dày cắt: 0.3-32mm
Tốc độ cắt: 0-8000mm/minKhu vực làm việc: 1500mm * 3000mm
Hệ thống cắt: Thượng Hải FangLing Thương HiệuDi chuyển chính xác: ± 0.2 mm/m
Phần mềm: Fastcam hoặc StacamTrọng lượng: 550kg
Sau khi Dịch Vụ Bảo Hành: Video hỗ trợ kỹ thuật, Hỗ trợ trực tuyến, Phụ tùng các bộ phậnDịch Vụ địa phương Vị Trí: Brazil, Peru, Pakistan, Ấn Độ, Nga, Thái Lan, Algeria
Chứng nhận: ISO
Product Description

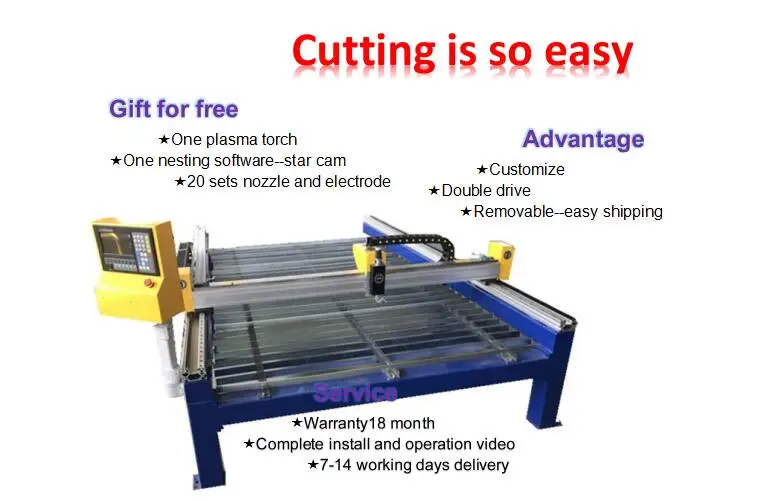

TABLE CNC plasma/flame cutting machine can cut any flat shape parts composed of straight lines and arcs. The graphic is static and dynamic, easy to learn, can be programmed directly on the machine, or can be drawn on a computer or attached by using a ready-made CAD file. The gifted software is directly converted into a G code program file, and is automatically cut by copying it to the operating system through a USB flash drive.
TABLE gantry type double-sided drive structure, exquisite system structure, high degree of automation, simple operation, convenient maintenance, high reliability, easy cutting from sheet metal to large thickness steel plate, the product is widely used in metal sheet cutting in various manufacturing fields. The cutting process can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal sheets.
Detailed Images

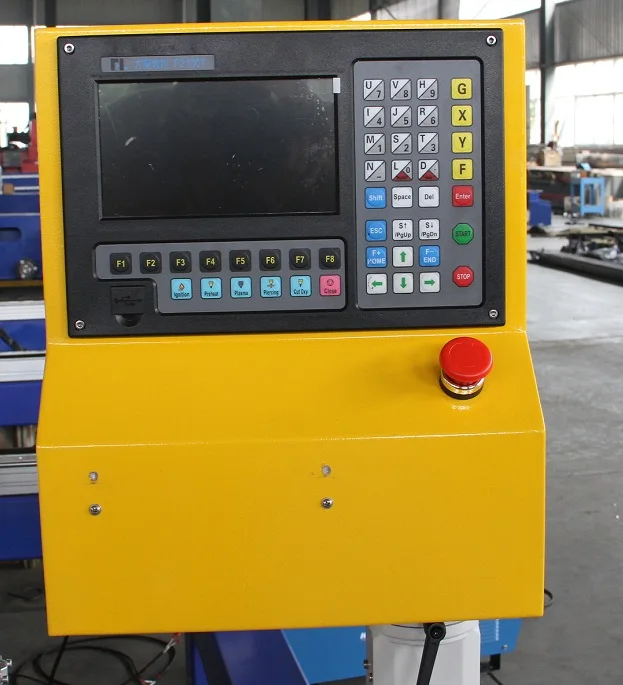

Control System F2100B
Shanghai Fangling brand Control system
with 7 inch touchscreen, with built - in 48 figures, you could choose pattern from these figures directly, very convenient.
It can be fixed plasma torch or flame torch, electric wire is installed in it, avoid

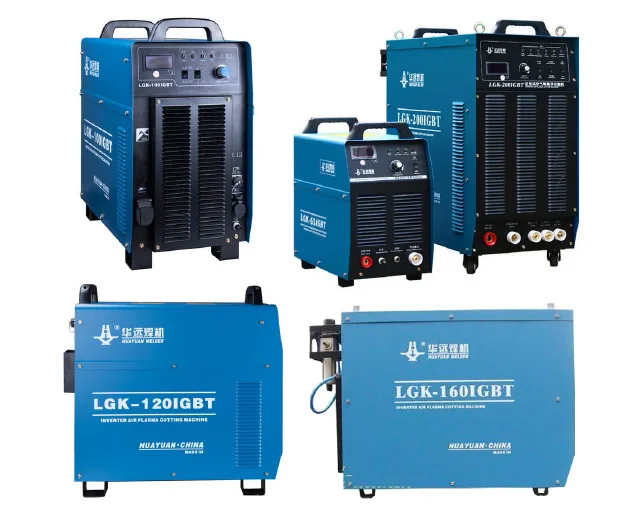

Chinese best brand plasma power source
200A
Use soft switch inverter technology, to make cutting current very stable
Cutting current rise slowly, reduce consumption of cutting parts
Has a wide adaptability to grid voltage
Unique dust-proof design, high reliability
Compact structure, small volume, light weight, can be installed on many kinds CNC machines

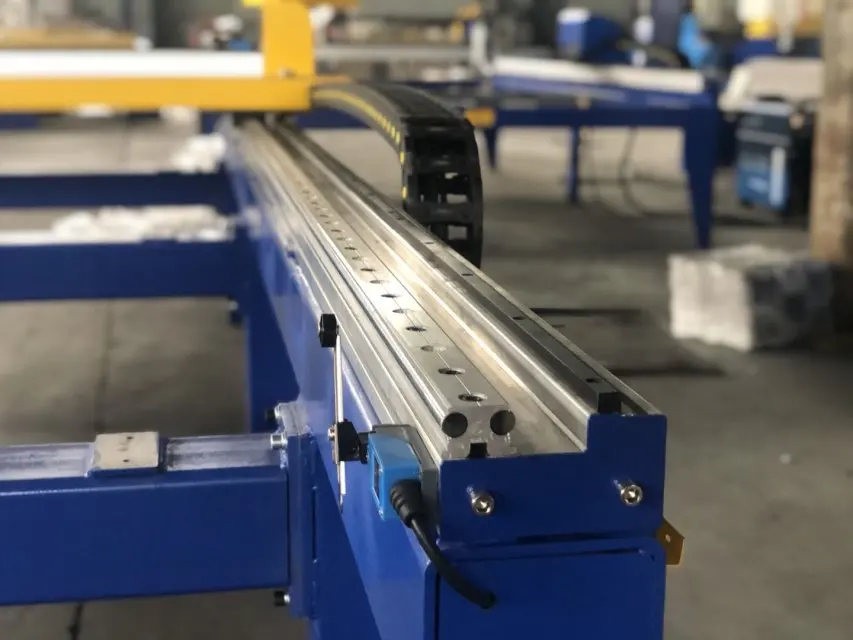

use high precision linear guide, and light weight alloy-aluminum horizontal rail, not easy become deformation.

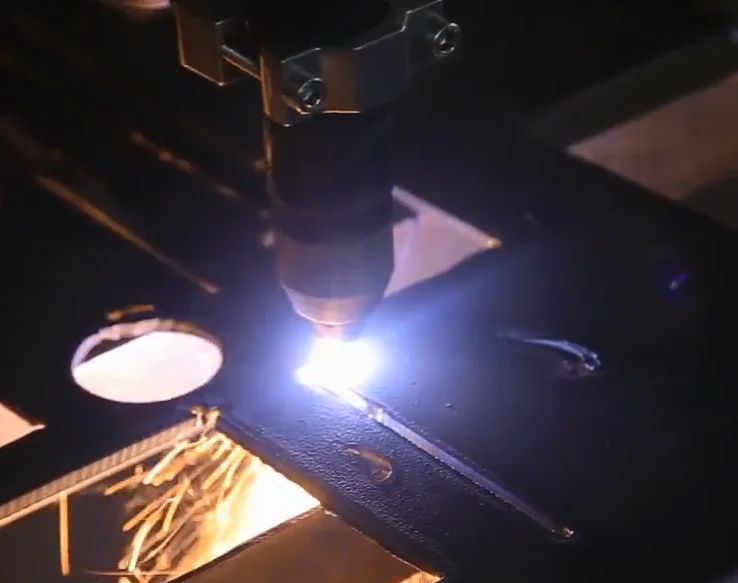

Cutting torch
Flame cutting torch is fixed, plasma cutting torch is mobile type.
Flame torch and plasma torch could be changed very easily.
Famous brand in China
Size Information
Technical Parameters
1 | Model | JX-1530D |
2 | Power source | AC 220/380±10%VAC 50/60Hz |
3 | Cutting mode | O2/C3H8 or C2H2 |
4 | Effective cutting range(mm) | 1500*3000 |
5 | Input Voltage | 220V, 50HZ |
6 | Cutting speed(mm/min) | 0-8000mm/min |
7 | Cutting thickness(Flame) | |
8 | Cutting thickness(Plasma) | According to plasma power source |
9 | Move precision | ±0.2mm/m |
10 | Plasma THC | YES |
11 | Processing thickness(mm) | 0.3-32mm |
12 | Cutting system | Shanghai Fangling F2100T control system |
13 | Host weight(kg) | 550 |
14 | Gas pressure(Mpa) | Max.0.1 |
15 | Oxygen pressure(Mpa) | Max.0.7 |
16 | Type of gas | C3H8 C2H2 |
17 | Emergency stop | Yes |
18 | Working temperature | -5~45℃ |
19 | Plasma power | Chinese brand IGBT Plasma sources: Huayuan |
20 | ARC | Untouched arc striking |
21 | Processing Materials | Iron, stainless steel, carbon steel, copper sheets aluminum sheets, galvanized sheets, Titanium plates and other kinds metal |

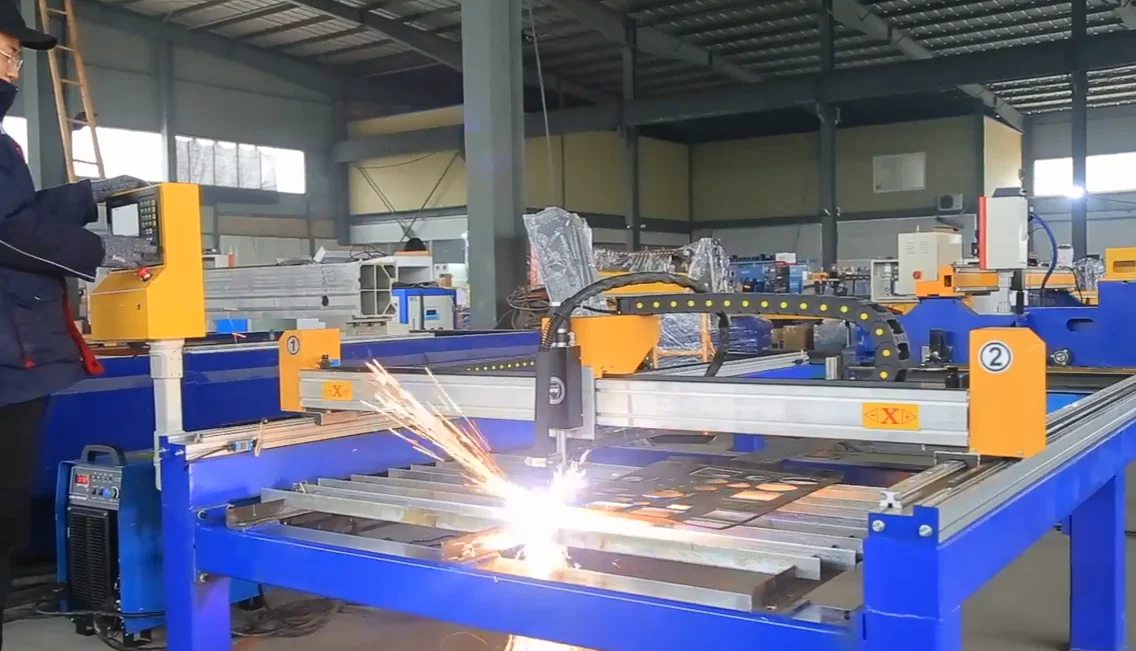

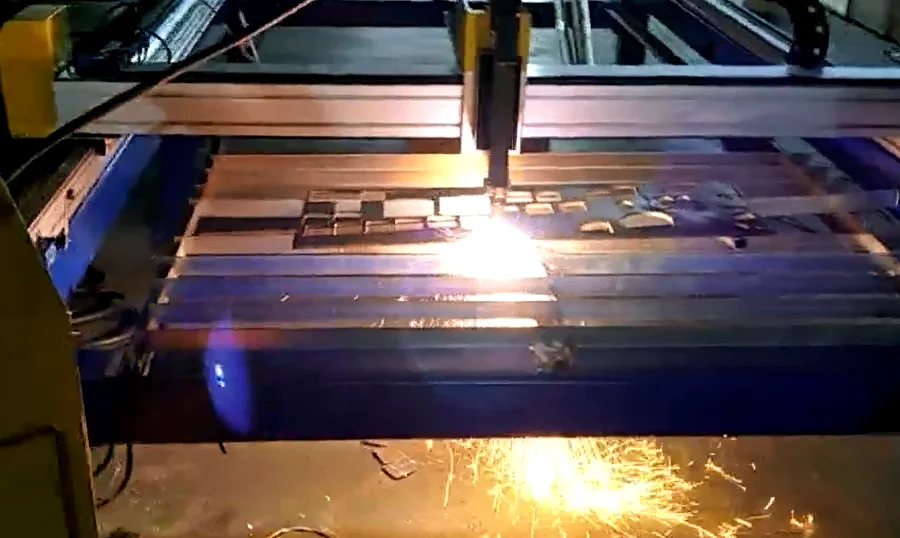

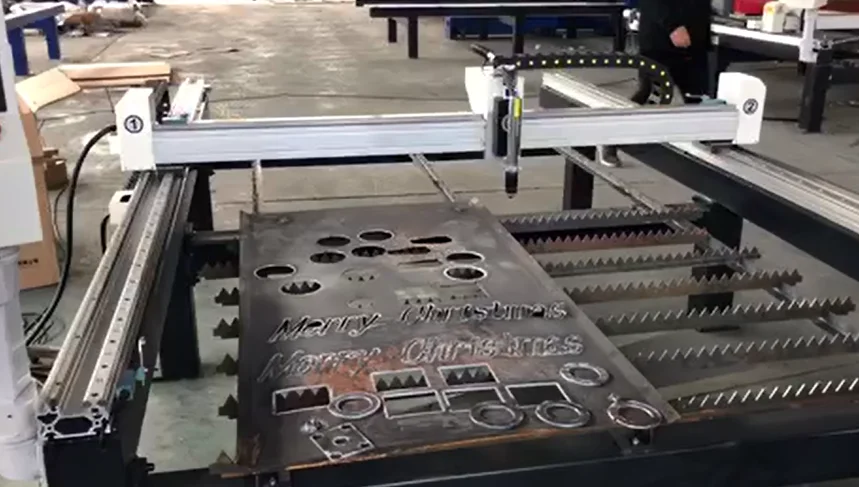

Working pictures

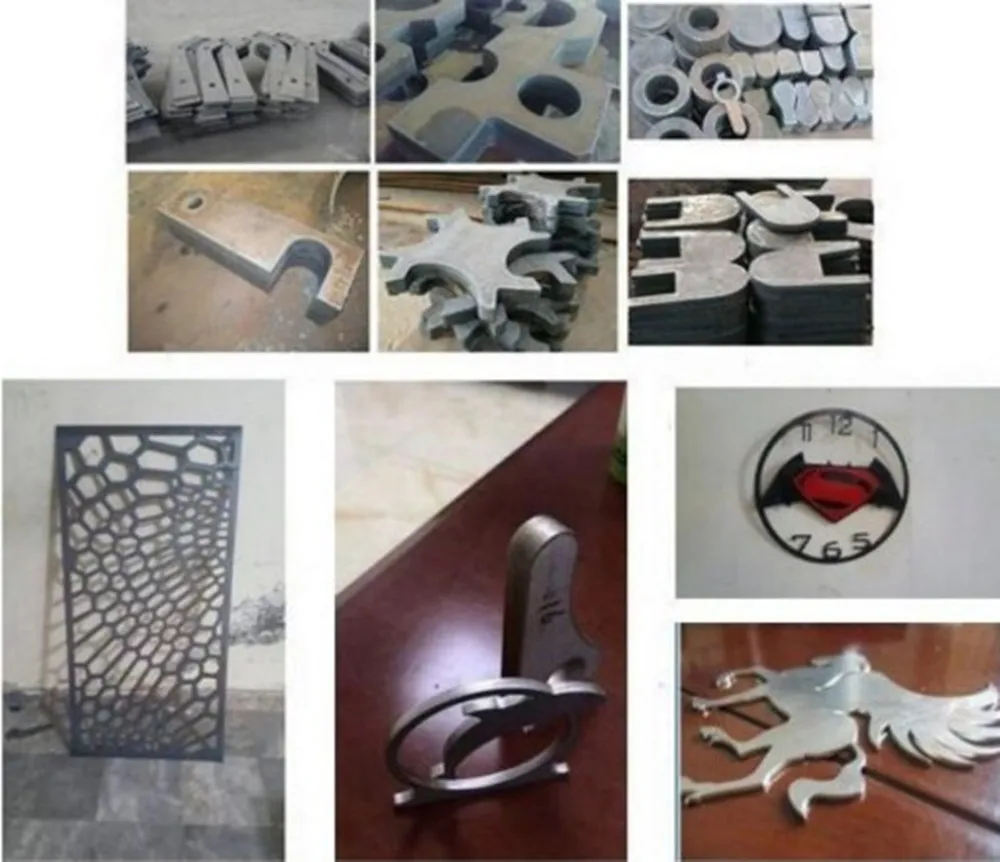

JX-1530D JX-2040D table CNC plasma cutting machine removable is used to cut 0.3- 32mm thin metal sheets, the metal sheet could be iron, stainless steel, aluminum, copper, Titanium, tin and many other kinds metal. Widely used in trucks, trailers, motorcycles, pressure vessls, general machinery, steel structure, ship and so on.
Related Products
Packing&Shipping
One machine picked in 2 or 3 wooden cases. Shipped by sea by LCL, or by truck, by air.
Company Introduction
Shandong Jiaxin Machinery Equipment Co.,Ltd.located in the hometown of Confucius and Mencius-Jining City, northwest of excellent transport location for communication between business and customers to provide a great convenience and fast.
Science and technology are primary productive forces"continuous advancement of technology is the development of the eternal source of power. The factory after nearly 20 years of development from a roller mold factory into a large-scale production of cold. Hot-rolled steel processing equipment. CNC steel processing equipment five series more than thirty kinds of products manufacturer enterprises.
We have always adhered to the "integrity of management, quality first&rdquo business philosophy customer for Gud's business objectives. Through a nationwide sales and service network, improve the pre-sale, selling service and after sale service sincere cooperation by providing quality products and efficient service for you.
Our Services & Strength
1.Pre-Sales Service:
1)Inquiry and consulting support.
2)We provide you the friendly English user manual and testing video free.
3)24 hours technical support by email or calling.
2.After-Sales Service:
1)Video of operating the machine are available.
2)12 months warranty quality guarantee and charge free technical support forever.
3)Free training to make sure you master the operating of machine.
FAQ
Q: What's the delivery time?
A: 10-15 working days to delivery port.
Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
Q: What's the MOQ?
A: 1 set.
Q: What&rsquos the payment term?
A: We accept T/T, L/C or Cash.
Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires.
Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
