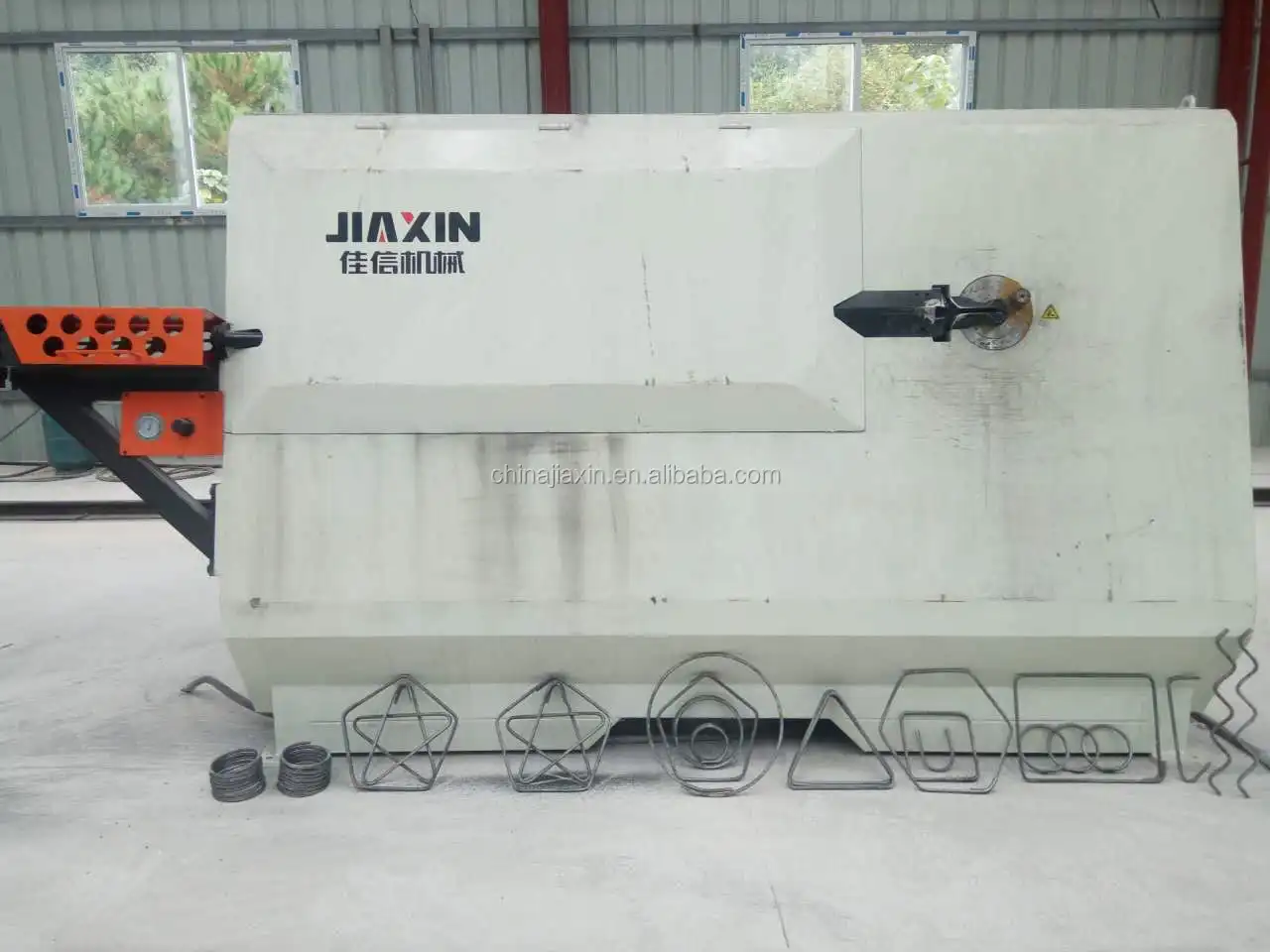

Automatic steel wires Rebar bending machine for make construction stirrups
Save our Alibaba page on computer---USD 10 discount
Share our Alibaba on Faceboo/Twiter/Youtube--USD 50 discount
Introduce our machines friends---USD 100 discount

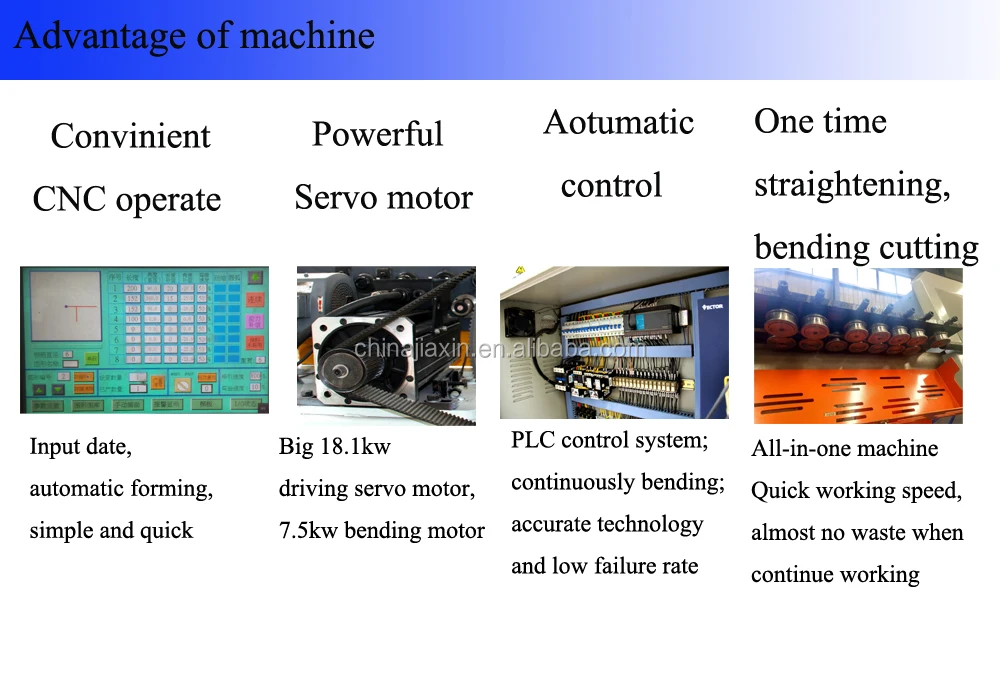

1, combine with horizontal and vertical straightening wheels, drive by Vector brand servo motor, make sure best accuracy when straightening rebar.
2, bending spindle could rotating and telescope in high speed,could cut rebars very quick to get high bend precision.
3, large storage capacity can save many processing graphics,
4, straightening, measure length, bending, shear at same time, processing in high efficiency.
|
TECHNICAL DATA |
||
|
Production capacity
|
Single wire |
&Phi4 &ndash 12 [mm] |
|
Double wire |
&Phi5 &ndash 10 [mm] |
|
|
Max. bending angle |
±180° [double direction] |
|
|
Max. bending speed |
1100 [°/sec] |
|
|
Max. pulling speed |
2000 [mm/sec] |
|
|
Mandrel diameter |
&Phi25 &ndash &Phi32 [mm] |
|
|
Stirrup side length |
70--1800[mm] |
|
|
Length tolerance |
± 1 [mm] |
|
|
Bending tolerance |
± 1° |
|
|
Average air-compressed consumption |
6 [l/min] |
|
|
Average electric power consumption |
6 [Kw/h] |
|
|
Labeled electric power |
28 [Kw] |
|
|
Voltage |
380 [v] - 50 [Hz] - 3[phase] |
|
|
Overall machine net weight |
2733 [Kg] |
|
|
Overall dimension(main machine) |
3040× 1400 × 2250 [mm] [L*W*H]
|
|
|
Overall dimension(with package) |
3300*1920*2200[mm] [L*W*H]
|
|

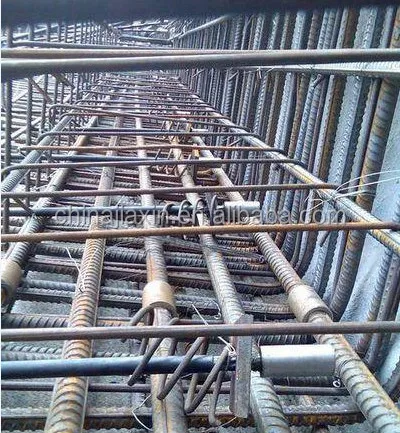

we are manufacturer of pile cage welding machine , CNC automatic steel bar bending machine,Automatic stirrup bender, cutting machine, steel bar straightening machine etc.
1, Q: This machine is Automatic or manual?
A: This Stirrup bender WG12B use PLC system, working automaticlly
2, Q: How many people needed to operate machine?
A: one worker is enough this machine working efficiency very quick, works out as 20-30 workers working by hand
3, Q: How many spare parts provided?
A: whole set cutting blades and straightening rollers, made by special metal enough for 2 years working
4, Q: If this machine easy to install and operate?
A: Yes, this machine is all-in-one machine, very easy to install
And we will provide operate videos and manual to you
5, Q: If we could go to visit your factory?
A: Yes, our factory located in Jining city, Shandong Province 3-4 hours from Shanghai city or Beijing city
You are welcome to visit and have training in our factory.
6, Q: How long is the warranty?
A: One year wanrranty, new spare parts available if needed and lifetime technical support for free.
7, Q: How delivery this machine?
A: this machine could delivery by sea by LCL or FCL.
If you want to know more about this WG12B rebar bending machine, please leave me a message. I will reply you immediately.
