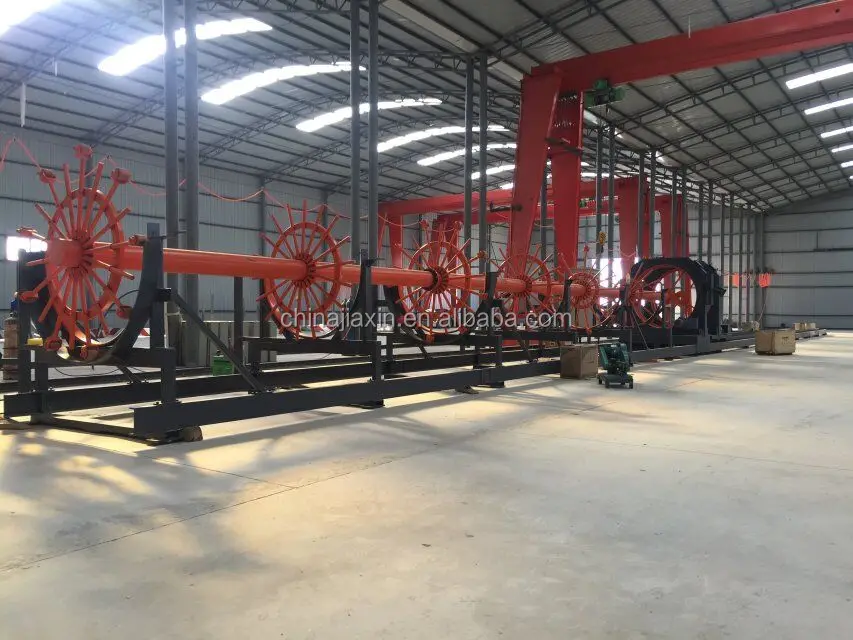

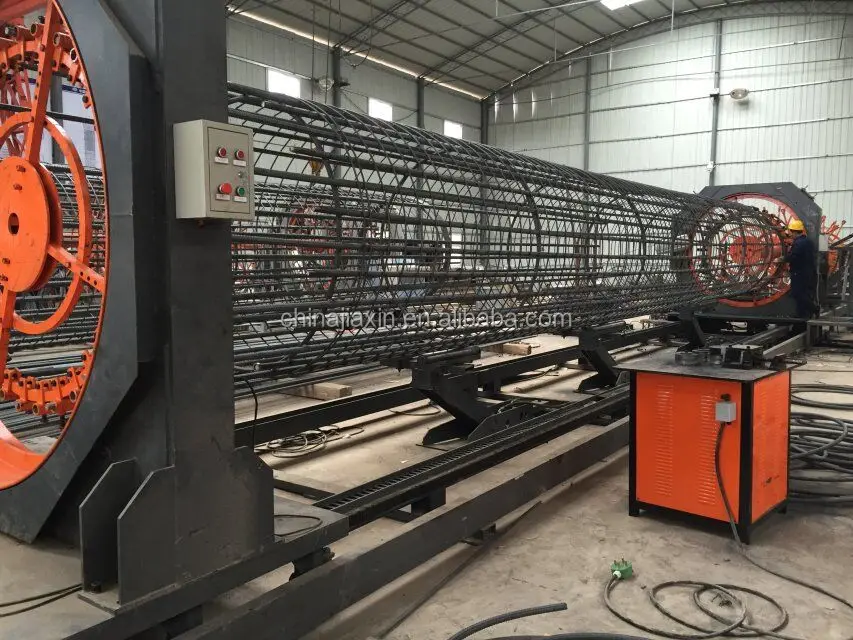

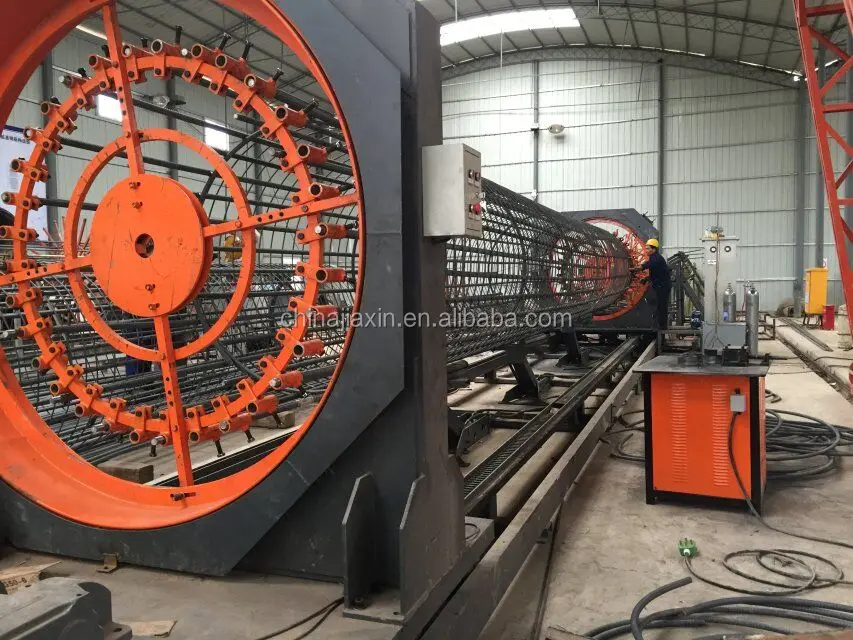

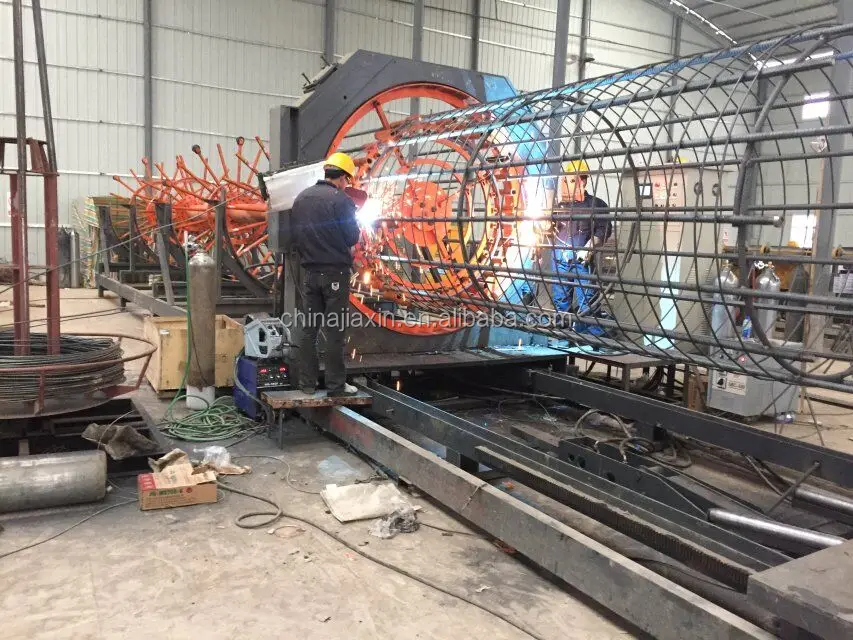

CNC Cage making machine for concrete piles/Automatic Cage welding machine
1, Imported PLC variable frequency control, servo motor drive, high machining accuracy
2, Equipped with multiple carrier automatic hydraulic roller, prevent deformation because of the weight of reinforcing steel bar cage
3, The straightening system adopt high strength alloy material, high strength, wear resistance, improve the service life of wearing parts
4, Equipped with automatic feeding device, easy to operate, save time. 5, independent design motorized, prevent the scribble.
|
Automatic reinforcing cage seam welder technical parameters |
|||||||||||||||||||||||||||||
|
Model |
GLJ-1250 |
GLJ-1500 |
GLJ-2000 |
GLJ-2500 |
|||||||||||||||||||||||||
|
Reinforcing cage pile diameter(mm) |
200-1250 |
300-1500 |
400-2000 |
400-2500 |
|||||||||||||||||||||||||
|
Reinforcing cage pile length(m) |
12 |
18 |
24 |
27 |
12 |
18 |
24 |
27 |
12 |
18 |
24 |
27 |
12 |
18 |
24 |
27 |
|||||||||||||
|
Reinforcing cage pile Max weight(kg) |
3000 |
4500 |
6000 |
8000 |
|||||||||||||||||||||||||
|
Reinforcing cage pile length(m) |
12-27 |
||||||||||||||||||||||||||||
|
Diameter of the pipe(mm) |
10-32 |
12-40 |
12-50 |
12-50 |
|||||||||||||||||||||||||
|
Winding bar space(mm) |
50-500 |
||||||||||||||||||||||||||||
|
The main reinforcement diameter(mm) |
DN12-40 |
||||||||||||||||||||||||||||
|
Hydraulic station pressure(Mpa) |
10 |
||||||||||||||||||||||||||||
|
Rated Power Consumption(KW) |
13 |
15 |
23 |
23 |
|||||||||||||||||||||||||
|
Dimension |
L(m) |
28.5 |
38.5 |
46.5 |
55 |
27.5 |
38.5 |
46.5 |
54.5 |
27.5 |
38.5 |
46.5 |
54.5 |
29 |
42 |
50 |
59 |
||||||||||||
|
W(m) |
5 |
5 |
5 |
5 |
5.5 |
5.5 |
5.5 |
5.5 |
8 |
8 |
8 |
8 |
8.5 |
8.5 |
8.5 |
8.5 |
|||||||||||||
|
H(m) |
2.2 |
2.2 |
2.2 |
2.2 |
2.5 |
2.5 |
2.5 |
2. |
3.3 |
3.3 |
3.3 |
3.3 |
3.5 |
3.5 |
3.5 |
3.5 |
|||||||||||||
|
Total weight(kg) |
7000 |
9300 |
10000 |
11300 |
12500 |
16000 |
18000 |
20000 |
18000 |
21000 |
24000 |
28500 |
20000 |
26500 |
33000 |
39500 |
|||||||||||||
CNC Cage making machine for concrete piles/Automatic Cage welding machine
|

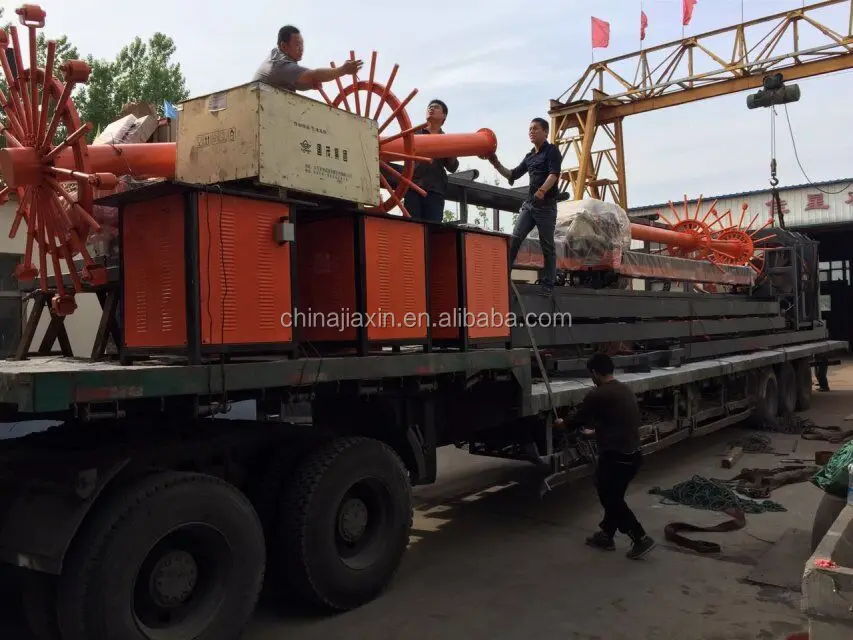

Packaging Details: |
Wooden case or as the client's requests |
|
Delivery Detail: |
Within 15days after receiving your deposit. |
CNC Cage making machine for concrete piles/Automatic Cage welding machine
The company technical personnel on-site tracking service a month or so, until the site operation personnel master the operation of the equipment is responsible for equipment operation, maintenance, and other user training. To ensure that all equipment normal use, the company will arrange two customer pays a return visit will be during the warranty period? And testing of the control system of a freeupgrade.

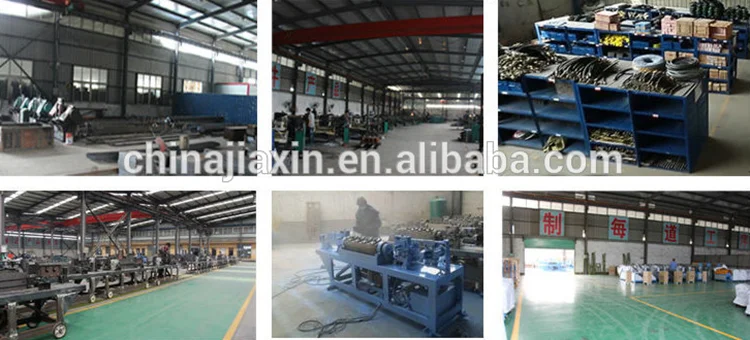

Shandong Jia xin Machinery Co.,Ltd located in the hometown of Confucius and Mencius-Jining City,northwest of excellent transport location for communication between business and customers to provide a great convenience and fast.
"Science and technology are primary productive forces"continuous advancement of technology is the development of the eternal source of power .The factory after nearly two decades of development,from a roll mold factory into a large-scale production with a production of cold,hot-rolled steel processing equipment,CNC steel processing equipment,five series more than thirty kinds of products manufacturing enterprises.
We have always adhered to the "integrity of management ,quality first " business philosophycustomer for God's business objectives.Through a nationwide sales and service netword,improve the pre-sale,servicesincere cooperation by providing quality products and efficient service for you.
