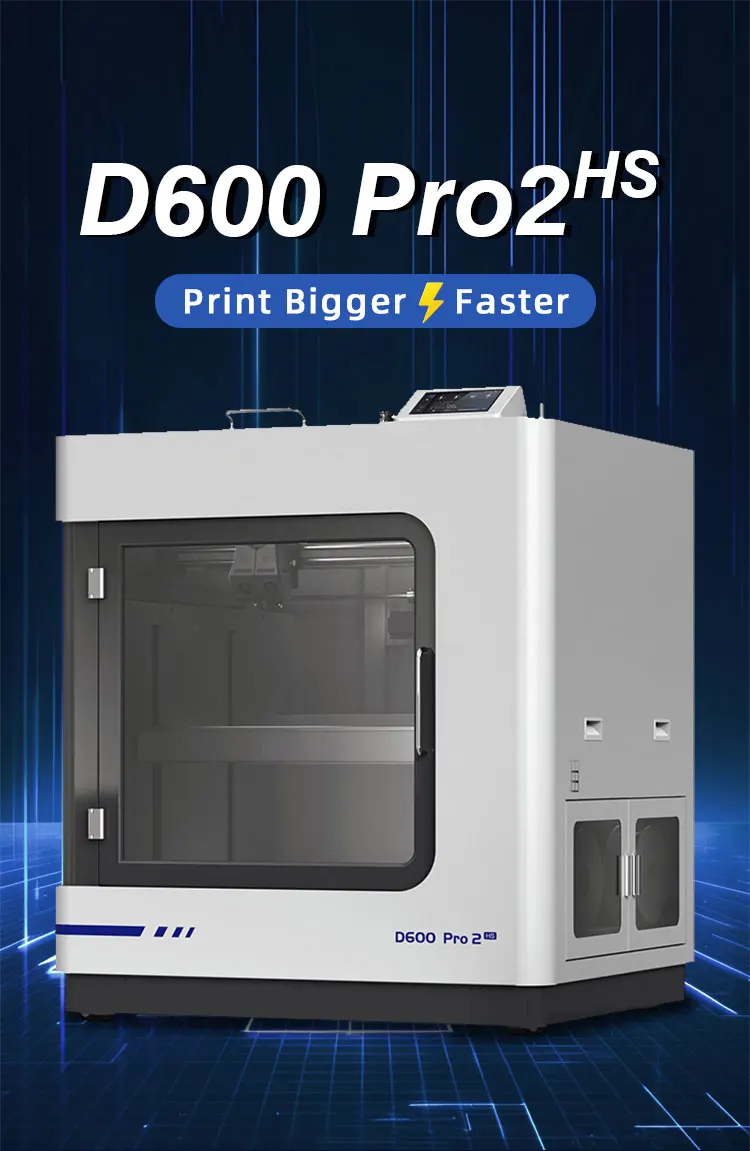

Máy in 3D sản xuất phụ tùng ô tô BM được thiết kế đặc biệt để sản xuất các bộ phận tùy chỉnh chính xác.
5
600
Đã bán
422.376.109đ
397.261.710đ ~ 422.376.109đ
Máy in 3D sản xuất phụ tùng ô tô BM được thiết kế đặc biệt để sản xuất các bộ phận tùy chỉnh chính xác.
Số lượng
Đơn vị
1 Cái
Chọn loại hàng (ví dụ:màu sắc ,kích thước)
Thông số sản phẩm
Mô tả sản phẩm











Specification
Print parameters | ||
Printing technology | FDM, FFF | |
Print volume | Single print head printing: 600*600*600mm; Dual print head printing: 540*600*600mm | |
Number of nozzles | Double | |

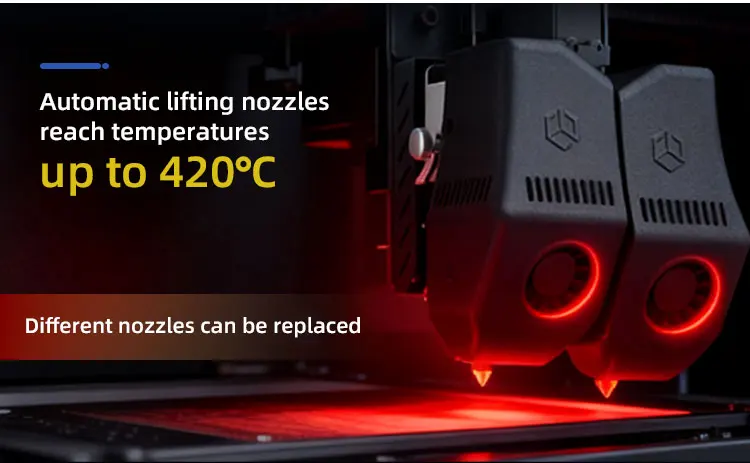

Automatic lifting extruder | Yes | |
Minimum layer thickness | 0.05mm | |
Consumable diameter | 1.75mm | |
Consumables compatibility: | PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF, etc | |
Nozzle diameter | 0.6mm (0.3, 0.4, 0.6, 0.8,1.0mm are optional) | |
Print file type | GCODE | |
Temperature parameters | ||
Nozzle maximum temperature | 420°C | |
Highest temperature of the printing platform | 100°C | |

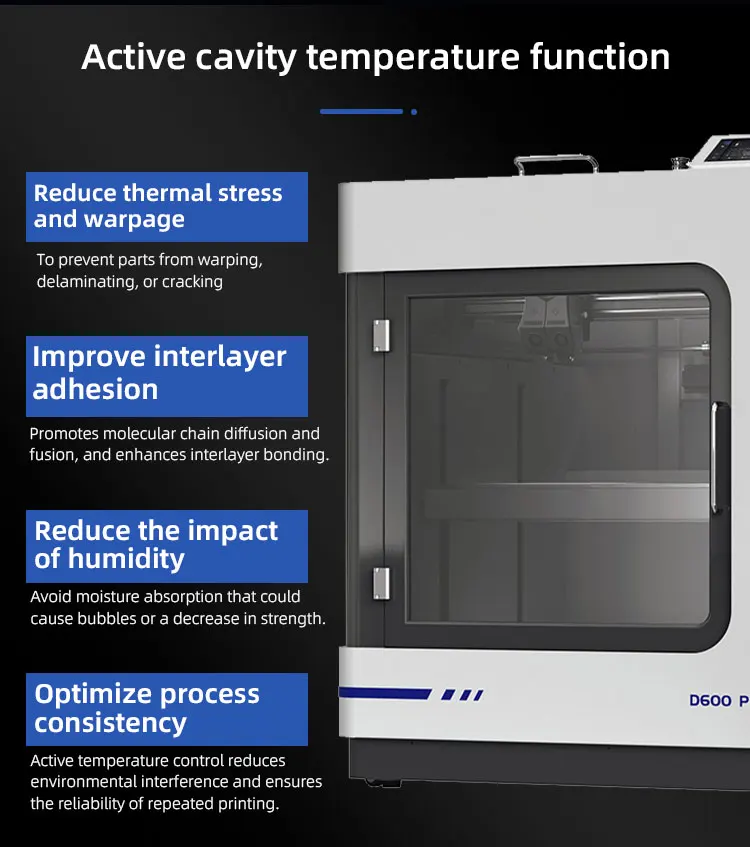

Maximum temperature of the printing chamber | 70°C | |
Consumable drying temperature | 0-70°C (Timed) | |
Speed parameters | ||

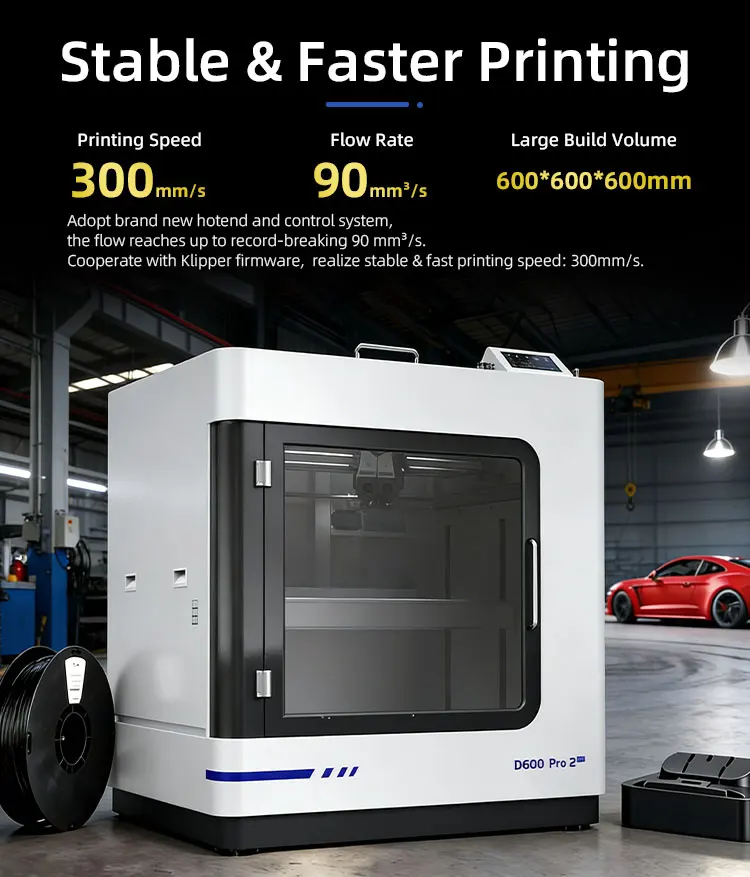

Maximum printing speed | 300mm/s | |
Flow rate | 90 mm³/s | |
Electrical Specifications | ||
Power requirements | 240V, 50-60Hz | |
Maximum power | 5500W | |
Screen | 7-inch touch screen | |
Connection method | USB/U disk/WiFi/LAN | |
Software parameters | ||
software package | CreatWare, OrcaSlicer, Cura, Slice 3r | |
Supported file types | STL, OBJ, AMF | |
operating system | Windows All / Mac OS | |
Special features | ||
Consumables Testing | Pause printing when filament runs out | |

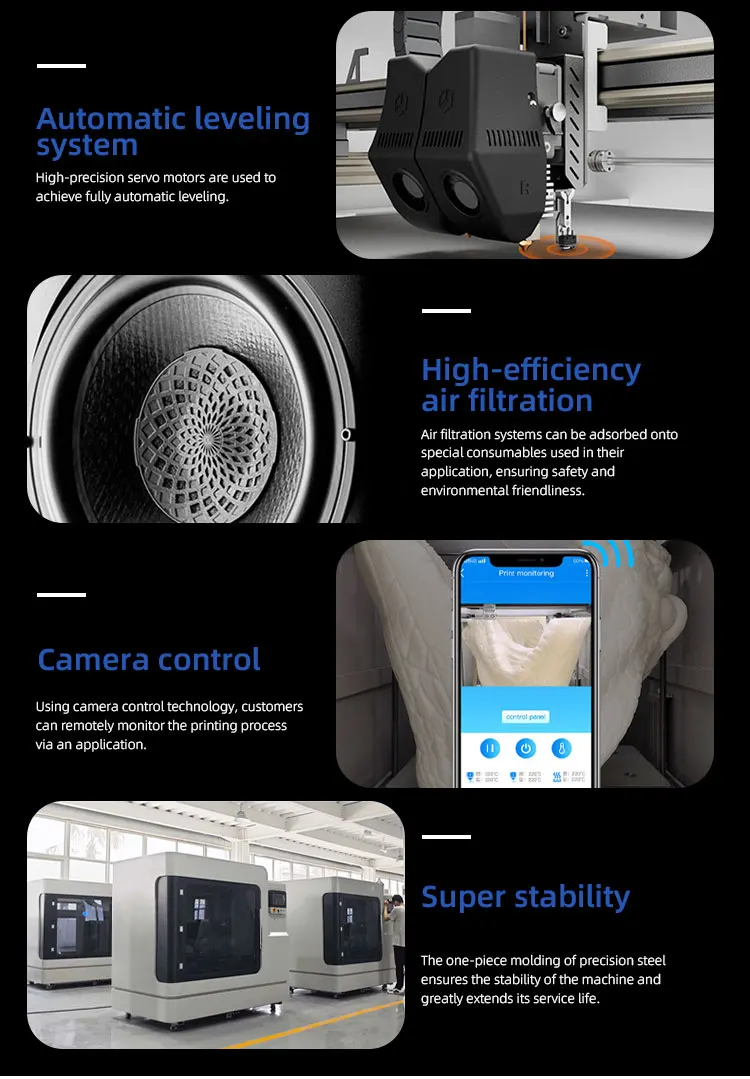

Automatic leveling platform | Yes | |
Magic Box Technology | Perfect Z-axis texture | |
Camera control | Monitoring + Control | |
Emergency stop switch | Yes | |
firmware | Klipper High-Speed Firmware | |
Dual printhead automatic recovery printing | Automatically switch to the backup nozzle when filament runs out. | |
Hardware parameters | ||

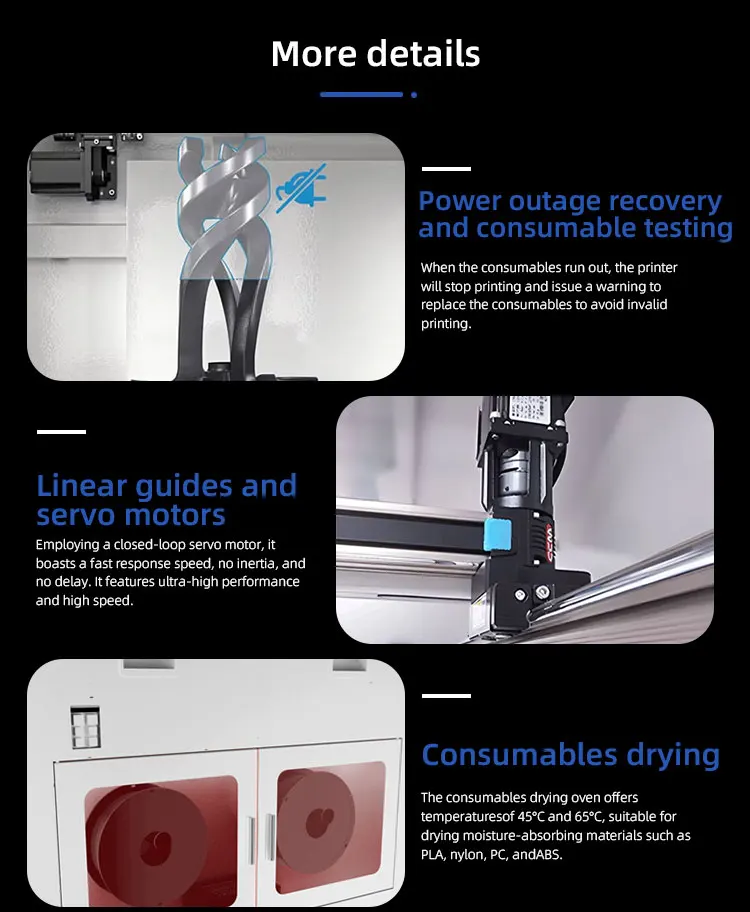

X/Y axis motors | High-precision servo motor | |
X/Y axis | High-precision linear guide | |
air filter | HEPA+Carbon | |
Printing platform | Detachable magnetic platform (based on high-precision aerospace aluminum plate) | |
Printed surface | PEI sheet + PEI coating | |
motherboard | 32 bits | |
Minimum and maximum travel of X/Y axes | Photoelectric switch | |
Size and weight | ||
Product dimensions and weight | 1080*920*1245mm 200kg | |
Packaging dimensions and weight | 1150*1000*1410mm 245kg | |
